4X T1/E1 ION WITHOUT ETHERNET 1XSFP FOR SA POWER

Name: 4X T1/E1 ION WITHOUT ETHERNET 1XSFP FOR SA POWER
Brand: LANTRONIX - IOT
SKU: Z28131
Price: 786.5 USD
Availability: InStock

LANTRONIX - IOT

PCN#

Z28131

MFG#

S6110-1040-SA

$786.50

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

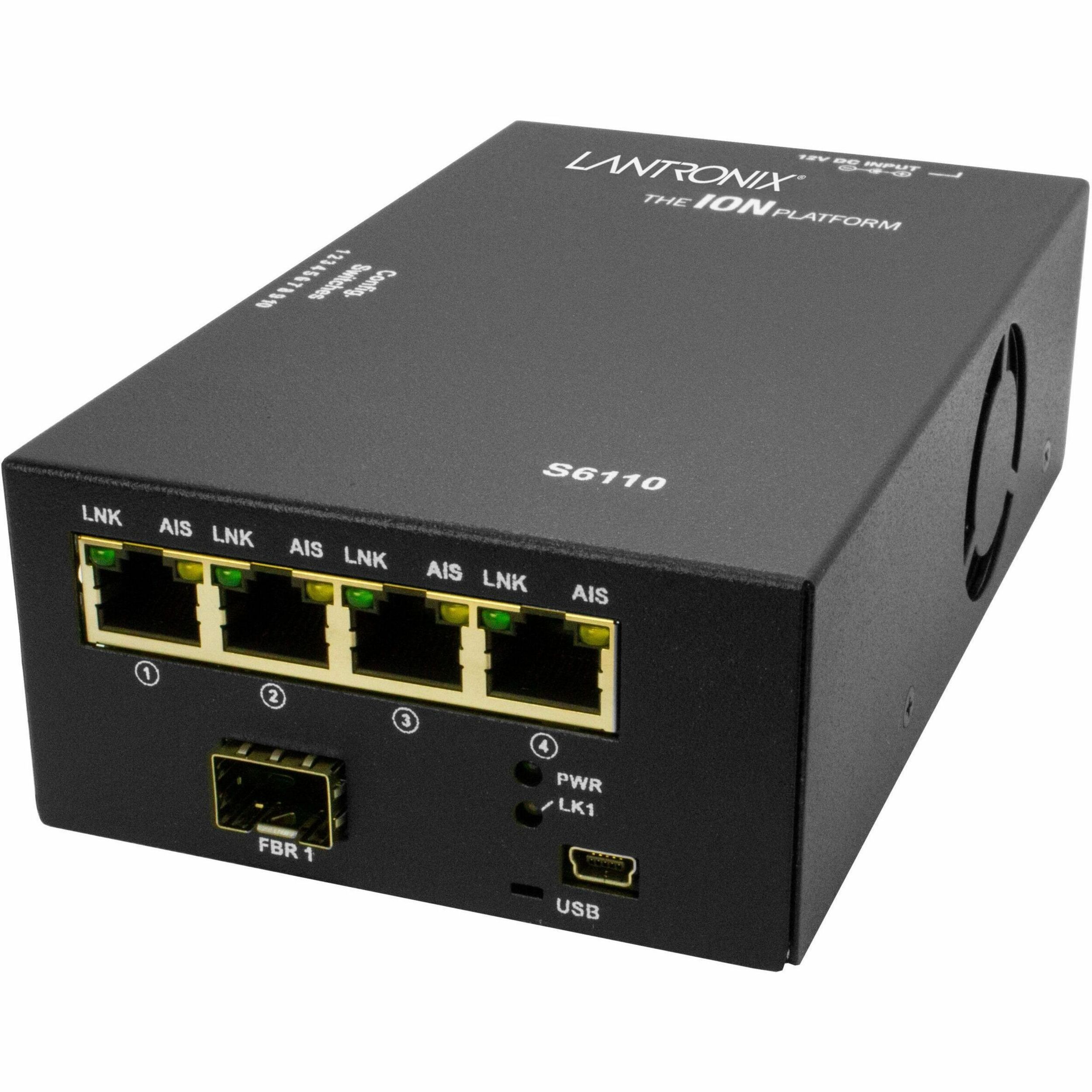

Transition Networks S6110-1040 Transceiver/Media Converter

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	S6110-1040-SA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Line	ION
Product Model	S6110-1040
Product Name	S6110-1040 Transceiver/Media Converter
Marketing Information	Stand-alone DS1 - T1/E1/J1 Network Interface Device 4 x DS1 - T1/E1/J1 over Fiber The ION S6110 is a managed stand-alone DS1 - T1/E1/J1 media converter mux that provides a solution for those users that need to extend multiple DS1 - T1/E1/J1 connections over fiber. The S6110 includes (4) RJ-48 ports and (1) fiber port. The device offers support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6110 converter must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6110 is linked to a C6110 card installed in a managed ION chassis.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	4
Number of RJ-48 Ports	4

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Maximum Distance Supported	1.50 km

I/O Expansions

Total Number of Expansion Slots	1
Expansion Slot Type	SFP
Number of SFP Slots	1

Network & Communication

Carrier Supported	T-carrier/E-carrier/J-carrier
Network Technology	100Base-X/OC-3 T1/E1/J1

Power Description

Physical Characteristics

Miscellaneous

Package Contents	S6110-1040 Transceiver/Media Converter Power Supply - South Africa
Application/Usage	Data Network
Additional Information	1 *SFP port (Empty) to (4) RJ-48 [1.5 km/0.9 mi.]
Certifications & Standards	EN55022 Class A, EN55024, CE mark
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
