DS3-T3/ES COAX TO FIBER MM SC 2KM W/EU

Name: DS3-T3/ES COAX TO FIBER MM SC 2KM W/EU
Brand: LANTRONIX - IOT
SKU: Z28142
Price: 595.95 USD
Availability: InStock

LANTRONIX - IOT

PCN#

Z28142

MFG#

S6210-3013-EU

$595.95

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 2 lbs.

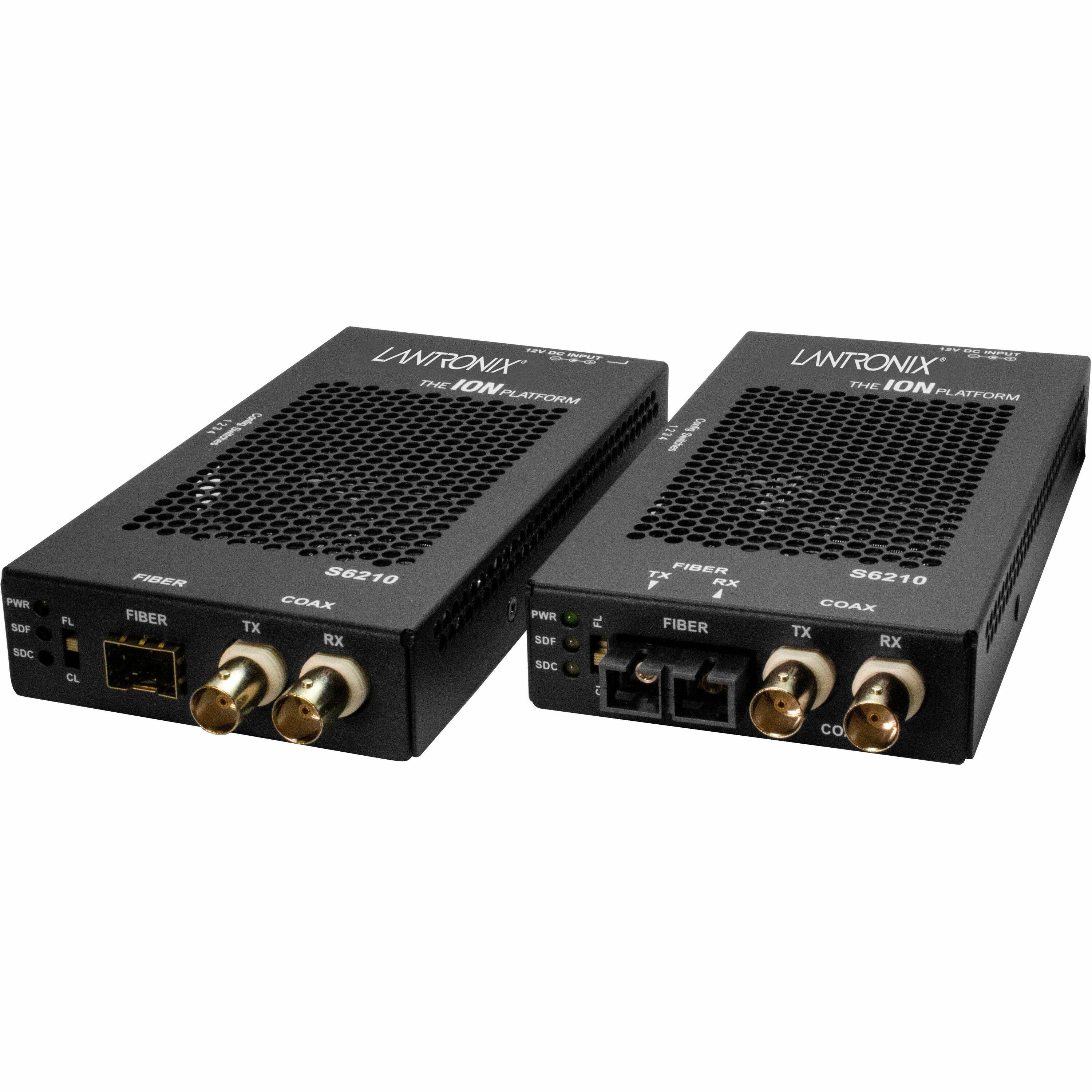

Transition Networks S6210-3013 Transceiver/Media Converter

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	S6210-3013-EU
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Transition Networks
Product Line	ION
Product Series	S6210
Product Model	S6210-3013
Product Name	S6210-3013 Transceiver/Media Converter
Marketing Information	Stand-alone DS3-T3/E3 Network Interface Device DS3 - T3/E3 Coax over Fiber The ION S6210 is a managed stand-alone media converter that provides a solution for those users that need to extend DS3-T3/E3 connections over fiber. The S6210 is available in versions that support fixed fiber connectors as well as SFP fiber modules offering support for a variety of fiber types, distances, and wavelengths to provide maximum flexibility across a variety of network topologies. CWDM SFPs can also be utilized to further increase the bandwidth capacity of the fiber infrastructure. The S6210 DS3-T3/E3 converters must be used in pairs. Management of the stand-alone converter is supported, in-band, over the fiber, when the remote S6210 is linked to a C6210 card installed in a managed ION chassis.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Media & Performance

Media Type Supported	Optical Fiber Coaxial
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	1300 nm
Maximum Data Transfer Rate	44.70 Mbit/s
Maximum Distance Supported	2 km

Power Description

Physical Characteristics

Form Factor	Wall Mountable DIN Rail Mountable Rack-mountable Standalone Shelf Mount
Height	1"
Width	3.5"
Depth	6.5"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	S6210-3013 Transceiver/Media Converter Power Supply - Europe
Application/Usage	Data Network
Additional Information	(2) Coax (BNC) to 1300nm multimode (SC) [2 km/ 1.2 mi.] Link Budget: 11.0 dB
Certifications & Standards	CISPR/EN55022 Class A, FCC Class A, CE Mark, UL60950
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
