10/100/1000B-T TO 1000BASE-X SM SC 10K WITH EU PWR SUPPLY

Name: 10/100/1000B-T TO 1000BASE-X SM SC 10K WITH EU PWR SUPPLY
Brand: LANTRONIX - IOT
SKU: Z28181
Price: 537.93 USD
Availability: InStock

LANTRONIX - IOT

PCN#

Z28181

MFG#

SGFEB1014-130-EU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$537.93

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

10/100/1000B
T to 1000BASE
X SM SC 10K with EU Pwr Supply

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

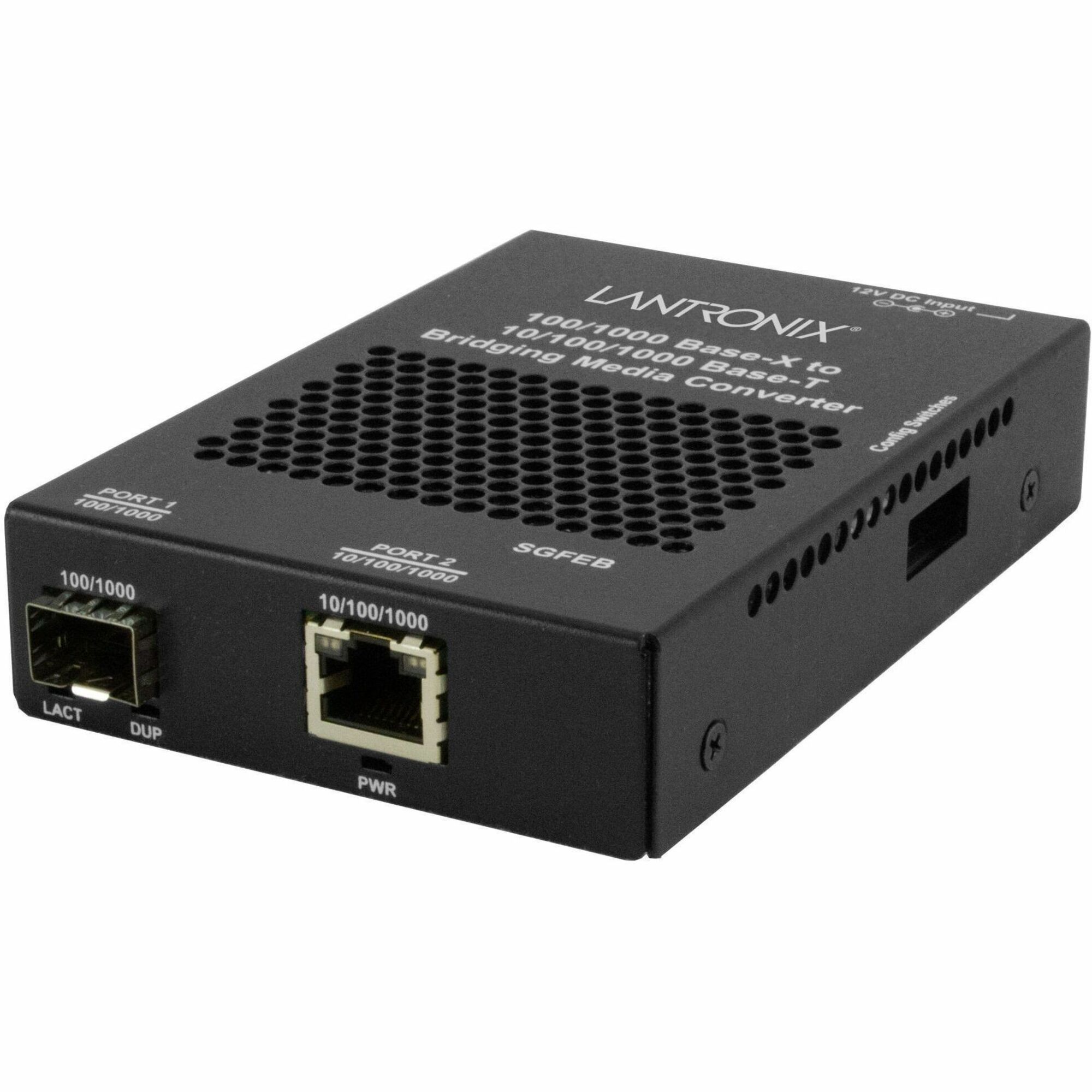

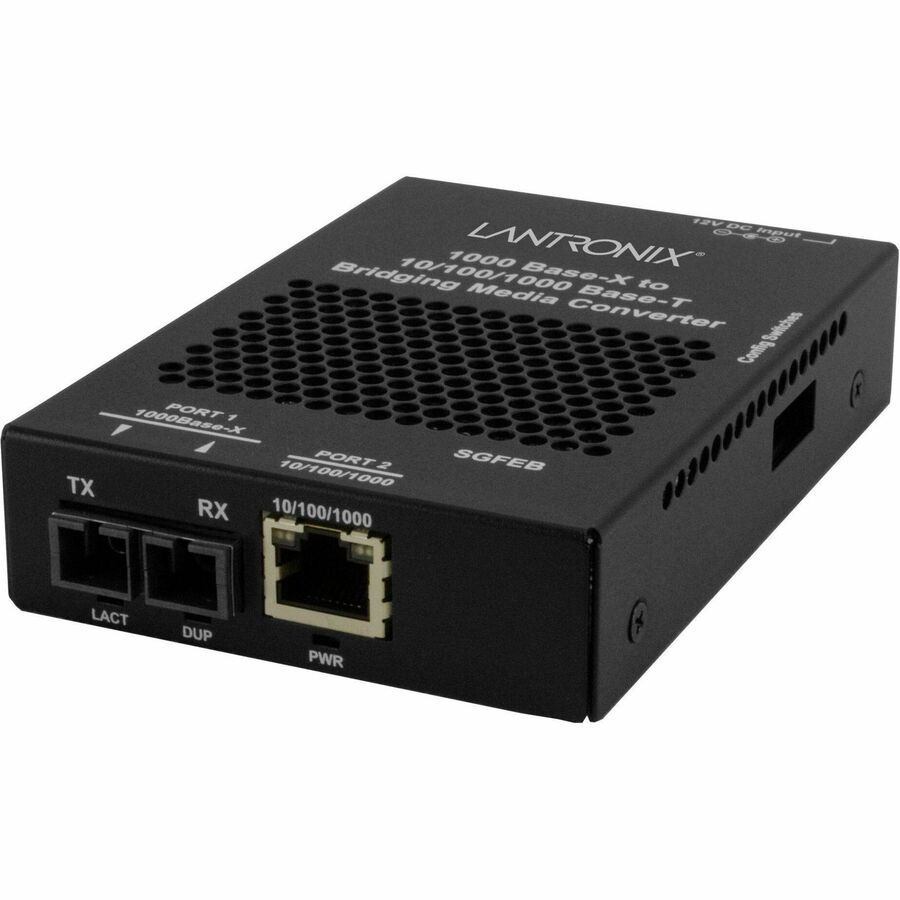

Stand-alone Gigabit Ethernet Media and Rate Converter 10/100/1000Base-T to 1000Base-SX/LX

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SGFEB1014-130-EU
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SGFEB
Product Model	SGFEB1014-130
Product Name	SGFEB1014-130 Transceiver/Media Converter
Marketing Information	The SGFEB Series is a stand-alone media converter that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. NDAA Compliant, TAA Compliant
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Management Port	No
Number of Network (RJ-45) Ports	1
Number of SC Ports	1
SC Port Type	Duplex

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	10 km

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-LX

Power Description

Power Source	AC Adapter
Power Consumption	2.20 W

Physical Characteristics

Form Factor	Rail-mountable Wall Mountable Desktop
Height	1"
Width	3.3"
Depth	4.8"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	SGFEB1014-130 Transceiver/Media Converter Power Supply (Europe)
Certifications & Standards	EN55022 Class A, EN55024, FCC Class A, CE Mark Safety: Wall Mounted Power Supply: UL Listed, UL60950 and CSA Certified
TAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
