MEDIA CONVERTER INDUST POE++ (2)10/100M/1G/2.5G (1) 1G/10G SFP+

Name: MEDIA CONVERTER INDUST POE++ (2)10/100M/1G/2.5G (1) 1G/10G SFP+
Brand: LANTRONIX - IOT
SKU: VK4901
Price: 344.06 USD
Availability: InStock

LANTRONIX - IOT

PCN#

VK4901

MFG#

SI-IES-521D-LRT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$344.06

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1 x Network (RJ
45)
1x PoE (RJ
45) Ports
Ethernet
10GBase
X
1 x Expansion Slots
1 x SFP+ Slots
DIN Rail Mountable, Wall Mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

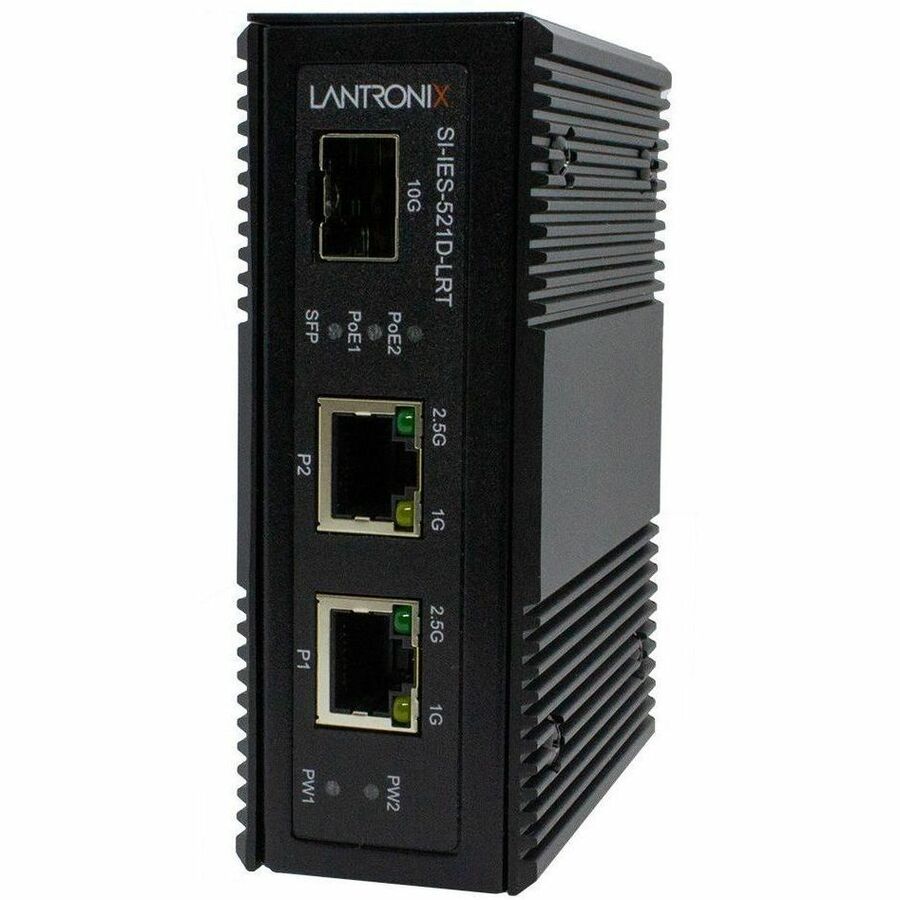

Lantronix SI-IES-5x1D-LRT Transceiver/Media Converter

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SI-IES-521D-LRT
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SI-IES-5x1D-LRT
Product Name	SI-IES-5x1D-LRT Transceiver/Media Converter

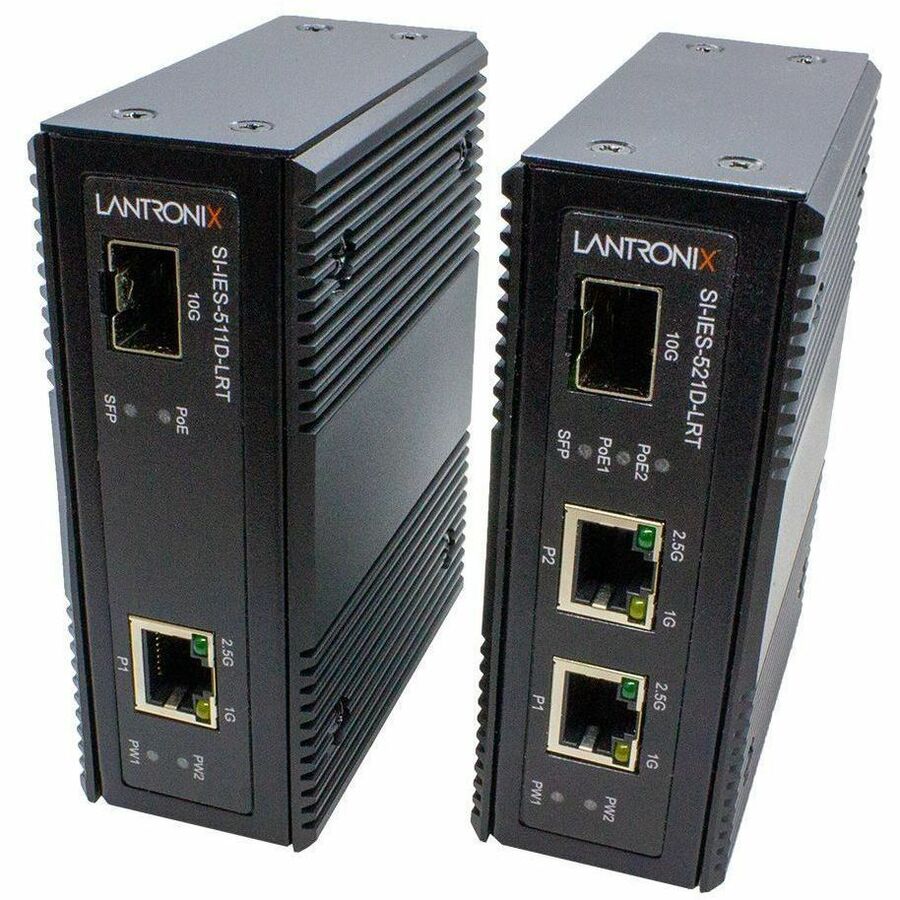

Marketing Information	The SI-IES-511D-LRT and SI-IES-521D-LRT are unmanaged hardened multi-Gigabit PoE++ injector/converters that add up to 90 Watts of power from the PoE++ port(s) onto 1 or 2 (depending on model) network segments. The SI-IES-5x1D Series are designed specifically to meet the evolving demands of higher 2.5G bandwidth and higher power (90W) devices such as wireless access points and security cameras in outdoor traffic cabinets, parking garages, or other harsh environments. The 1G/10G speed SFP+ slot provides flexibility by allowing fiber SFP uplink ports to extend the distance of security, transportation and telco networks. The SI-IES-5x1D-LRT Series PoE++ injector/converters are built for rugged environments like outdoor cabinets and certified to ensure safe and reliable operation in temperatures between -40°C to +75°C.
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
PoE Port Type	PD
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported

Twisted Pair
Optical Fiber

I/O Expansions

Total Number of Expansion Slots	1
Number of SFP+ Slots	1

Network & Communication

Ethernet Technology	Ethernet
Network Technology	10GBase-X

Power Description

Power Consumption

220 W

Physical Characteristics

Form Factor	DIN Rail Mountable Wall Mountable
Height	4.1"
Width	1.5"
Depth	3.2"
Weight (Approximate)	11.29 oz

Miscellaneous

Package Contents	SI-IES-5x1D-LRT Transceiver/Media Converter Wall Mount Brackets
Application/Usage	Industrial
Certifications & Standards	EN62368-1 (LVD) Safety UL62368-1 (MET) Hazardous Loc UL 121201 C1 D2 (MET) FCC CE/UKCA EN 55032/35 (EMC) EMI CISPR 32 FCC Part 15B Class A IEC61000-4-2 (ESD): Contact 6KV, Air 8KV IEC61000-4-3 (RS) IEC61000-4-4(EFT): Power 2KV, Signal 2KV IEC61000-4-5 (Surge): Power 2KV, Signal 2KV IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field) EN50058-2-6 (Vibration) EN60068-2-27 (Shock) EN60068-2-32 (Free Fall)
TAA Compliant	Yes

Warranty

Limited Warranty

5 Year
