10/100BASE-TX RJ45 POE TO 100BASE-FX MM LC 2 KM WITH -BR POWE

Name: 10/100BASE-TX RJ45 POE TO 100BASE-FX MM LC 2 KM WITH -BR POWE
Brand: LANTRONIX - IOT
SKU: SR7425
Price: 287.94 USD
Availability: InStock

LANTRONIX - IOT

PCN#

SR7425

MFG#

SPOEB1039-105-BR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$287.94

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

10/100BASE
TX RJ45 PoE to 100BASE
FX, MM LC, 2 KM with
BR Power Supply

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

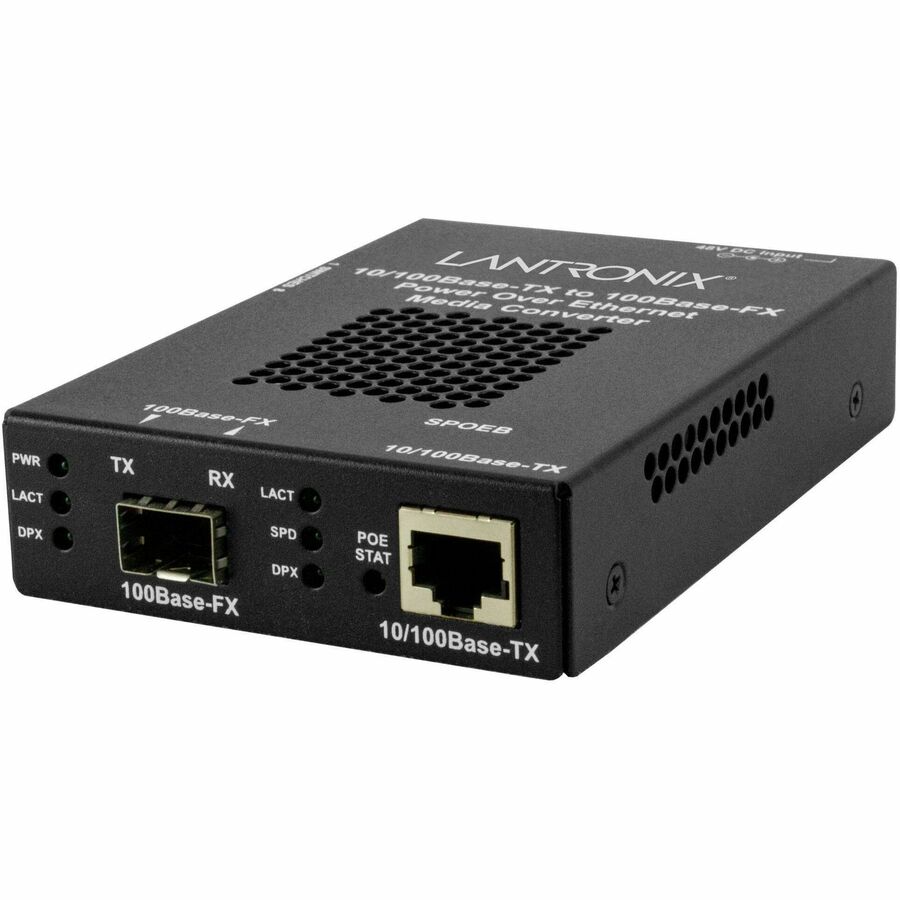

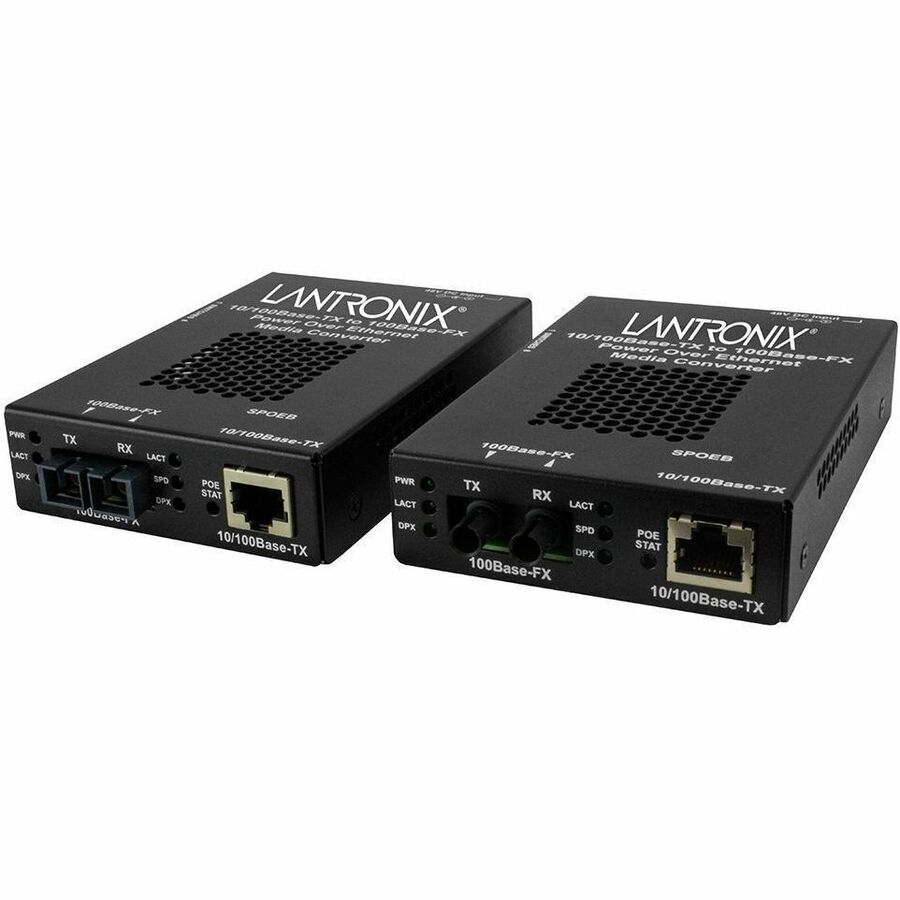

Stand-alone Fast Ethernet PoE Media Converter 10/100Base-TX PoE PSE to 100Base-FX

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	SPOEB1039-105-BR
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	SPOEB
Product Model	SPOEB1039-105
Product Name	Stand-alone Fast Ethernet PoE Media Converter
Marketing Information	The SPOEB Series is a 10/100 Ethernet copper to fiber PoE media converter that enables enterprises to provide power to network devices over the existing CAT5 data connection. NDAA Compliant, TAA Compliant
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
Number of PoE (RJ-45) Ports	1
PoE Port Type	PSE
Number of LC Ports	1
LC Port Type	Duplex

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	1300 nm
Maximum Data Transfer Rate	100 Mbit/s
Maximum Distance Supported	2 km

Network & Communication

Ethernet Technology	Fast Ethernet
Network Technology	10/100Base-T 100Base-FX

Power Description

Power Source	Power Supply
Input Voltage	230 V AC 120 V AC
Power Consumption	20 W

Physical Characteristics

Form Factor	Wall Mountable Rail-mountable Standalone
Height	1"
Width	3.3"
Depth	4.8"
Weight (Approximate)	2 lb

Miscellaneous

Package Contents	Stand-alone Fast Ethernet PoE Media Converter Power Supply (Brazil)
Application/Usage	Data Network
Additional Information	10/100Base-TX PoE (RJ-45) [100 m/328 ft.] to 100Base-FX 1300nm multimode (LC) [2 km/1.2 mi.] Link Budget: 11.0 dB
Certifications & Standards	EN55022:1994+A1:1996+A2:1997 Class A FCC Part 15 Subpart B UL 1950 IEEE 802.3af IEEE 802.3
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
TAA Compliant	Yes
NDAA Compliant	Yes

Warranty

Limited Warranty

Lifetime
