10M FIBER OPTIC SMF LC/LC 9/125 DUPLEX PVC PATCH CABLE

Name: 10M FIBER OPTIC SMF LC/LC 9/125 DUPLEX PVC PATCH CABLE
Brand: LEGRAND
SKU: 8JD543
Price: 35.64 USD
Availability: InStock

LEGRAND

PCN#

8JD543

MFG#

25977

$35.64

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $11.99

1-Year $8.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

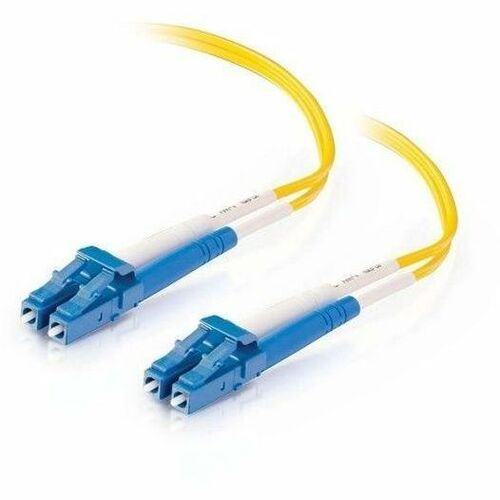

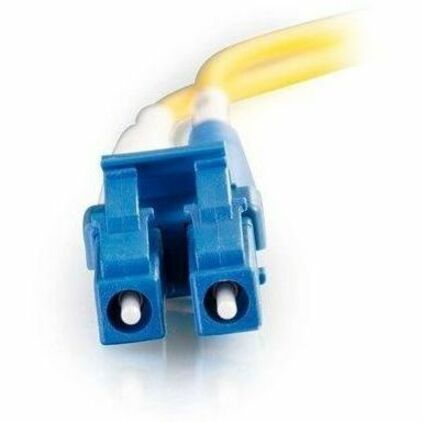

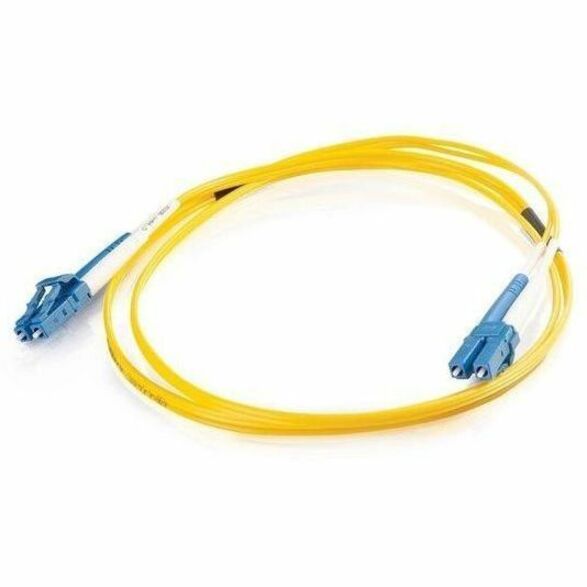

C2G 32.8ft (10m) LC-LC 9/125 OS2 Duplex Single-Mode PVC Fiber Optic Cable - Yellow

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	25977
Manufacturer Website Address	http://www.legrand.us
Brand Name	C2G
Product Name	Fiber Jumper
Marketing Information	Cost-effective solution that provides high bandwidth and transmission rates over longer distances. With LC to LC termination, this high quality fiber optic patch cable is specifically designed for gigabit ethernet applications. The patented injection molding process provides each connection greater durability in resisting pulls, strains and impacts from cabling installs. Each cable is 100% optically inspected and tested for insertion loss before you receive it. A pull-proof jacket design surrounds the popular 9/125 Single-mode fiber, immune to electrical interference.
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Single-mode
Fiber Type	Duplex
Fiber Optic Cable Core/Cladding Specification	9/125 µm
Fiber Category	OS2
Cable Length	32.81 ft
Connector Type on First End	LC Network - Male
Connector Gender on First End	Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	LC Network - Male
Connector Gender on Second End	Male
Connector on Second End Details	2 x LC Network - Male
Jacket Type	Plenum
Device Supported	Network Device
Features	Molded Pull Resistant Connector Impact Resistant Flex Resistant Strain Resistant Crush Resistant

Physical Characteristics

Miscellaneous

Additional Information	Buffer material: PVC Buffer OD: 900 µm Jacket OD: 3.0 mm Attenuation @1310 nm: 1.0 dB/km Attenuation @1550 nm: 0.75 dB/km Maximum tensile load: 100 N/cm Loaded min. bend radius: 5 cm Unloaded min. bend radius: 3 cm Crush resistance: 750 N/cm Impact resistance: 1000 cycles Flex resistance: 5000 cycles
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	Hong Kong

Warranty

Limited Warranty

Lifetime
