KITSPLICETRAYMASSFUSION144F

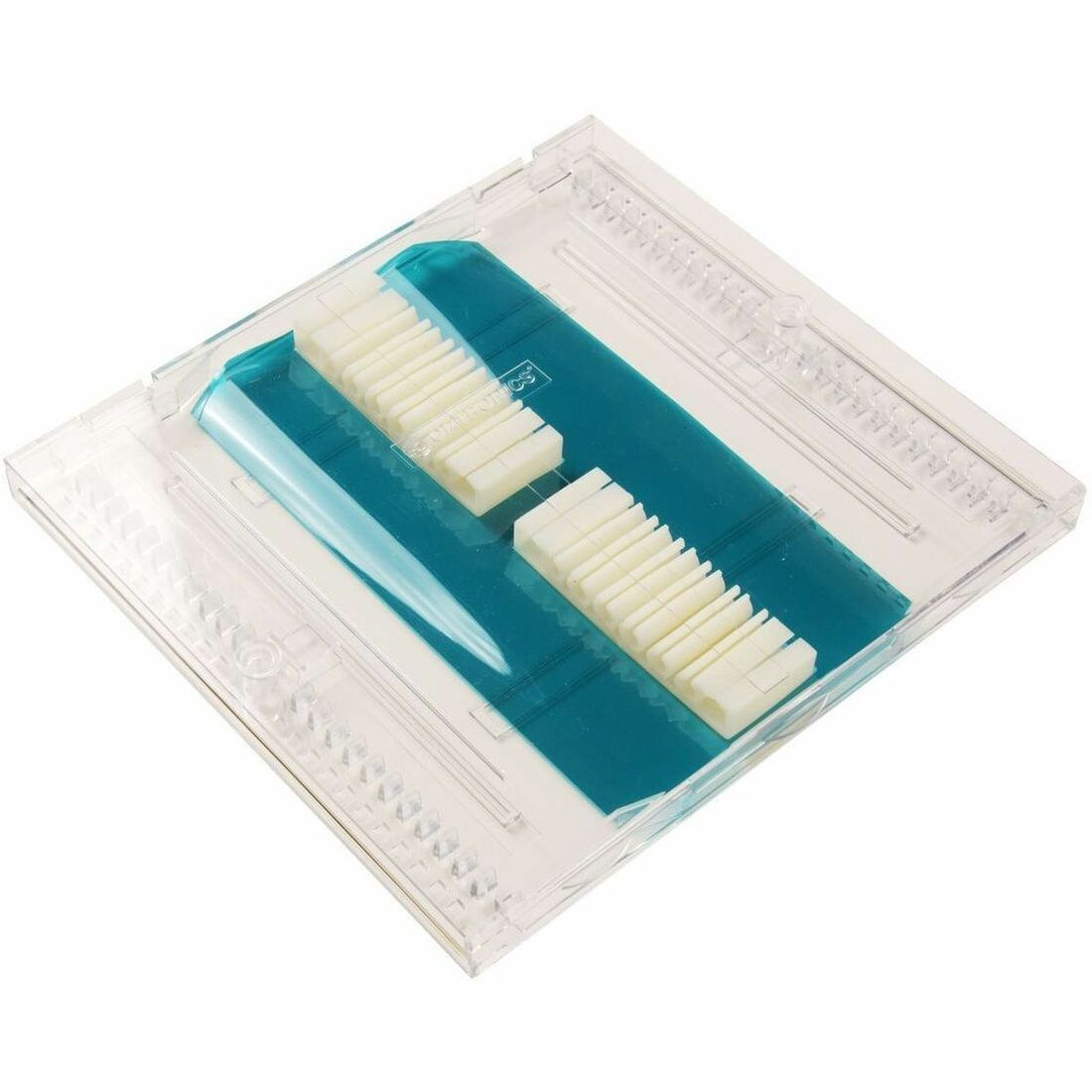

The 144-Fiber transparent fusion splice tray is ideal for fusion splicing ribbon fiber. The see through cover and mylar insert enable easy viewing when visual fault locator (VFL) testing and verification is performed to ensure cable continuity and determine pass or failure of splicing. The hinged cover and carefully designed fiber routing enable quick and easy splicing and fiber management. The stackable design of this 7 inch tray, saves space while ensuring maximum density for the application.

Maximum quantity of FST3-A144 fiber splice trays for compatible hardware

Infinium Adapt 1U Rack-Mount Fiber Enclosures (ADAPT-01U)  1 Tray

Infinium Adapt 2U Rack-Mount Fiber Enclosures (ADAPT-02U)  4 Trays

Infinium Adapt 4U Rack-Mount Fiber Enclosures (ADAPT-04U)  10 Trays

Any Infinium Access Rack-Mount Fiber Enclosures (ACCESS-01U-xx)  2Trays

Q-Series 1U Rack-Mount Fiber Enclosures (EQ01U-CHC)  2 Trays

Q-Series 2U Rack-Mount Fiber Enclosures (EQ02U-CHC)  4 Trays

Q-Series 4U Rack-Mount Fiber Enclosures (EQ04U-CVC)  11 Trays

Product Type

Splice Tray KitTechnical Information

Recommended Usage

CommercialRackmount EnclosurePhysical Characteristics

Dimensions

Product Depth 6.54 inProduct Height 0.56 inProduct Length 6.54 inProduct Width 7.13 inMiscellaneous

Package Contents

2 x 6 Position Mass Fusion Splice Holders8 x Tie Wraps 1 x Blue/Green Film Insert 48 x Rubber Compressing Pads

Compatibility
