CASSM424SPLICE LCQDOM4T3RIBBON

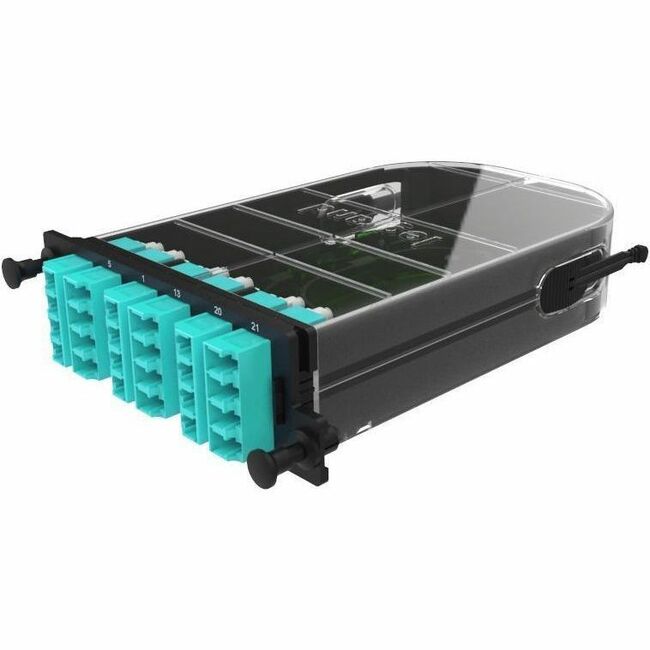

This M4 Splice Cassette enables fast, field termination and provides cable management within the housing. The M4 Splice Cassette is designed for use with Multimode OM4 fiber, houses 24 fibers, and provides LC Quad ports. This cassette supports fusion splicing of ribbon fibers, with heat shrinks, pigtail slack and cable slack managed within the cassette. This eliminates the need for individual splice trays or housings, as well as allowing splicing to be done away from the rack housing in a suitable workspace as needed. The design of the cassette allows it to be easily mounted from either the front or the rear of an enclosure or panel. Individual fibers within the cassette may be accessed without disturbing the other fibers in the housing. Tier 3 performance characteristics of this cassette produce typical insertions loss of 0.15dB.

• Thermoplastic
• Zirconia

• Enclosure Mountable
• Panel-mountable

• Rear
• Front

• Infinium Ultra M4 Splice Cassette, 24 Ribbon Fiber, LC Quad OM4
• (12 or 24) Fiber Pigtails
• Protective Dust Caps
• Splice Management Tray
• Splice Protection Sleeves

TIA-568-C.3
