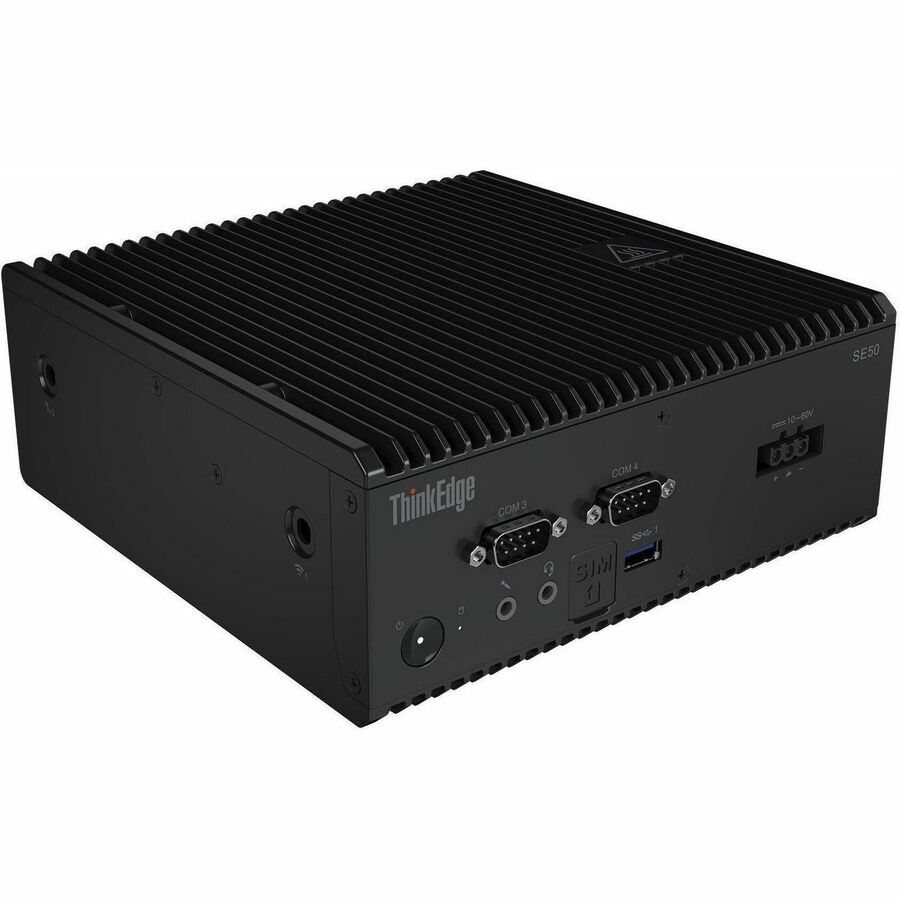

THINKEDGE SE50 I5-8365UE 1.60G 16GB 512GB NO OS

by
LENOVO
PCN#
690C07
MFG#
11RJ00AQUS
$2,733.52
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • ThinkEdge SE50, Intel® Core™ i5
  • 8365UE (1.60GHz, 6MB), No Operating System, 16.0GB, 1x512GB SSD M.2 2280 PCIe TLC Opal, Intel UHD 620, Intel Ethernet Server Adapter I350
  • T4, 65W, 3 Year On

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 YearAdditional Warranty Information3 Year On-site
Shipping Weight: 30 lbs.
SE50 1.60 GHz NO OS 16.0GB 512GB PCIe
Tech Specs
Specifications

Manufacturer

Lenovo Group Limited

Manufacturer Part Number

11RJ00AQUS

Manufacturer Website Address

http://www.lenovo.com/us/en/

Brand Name

Lenovo

Product Line

ThinkEdge

Product Series

SE50

Product Model

11RJ00AQUS

Product Name

ThinkEdge SE50 11RJ00AQUS

Marketing Information

ThinkEdge SE50

Smart, automated Internet of Things (IoT) applications streamline your industrial operations. They speed up production and help you trim costs.

Rapidly roll out your own smart IoT applications with Lenovo's ThinkEdge SE50 edge computing infrastructure powered by Intel® technology and built for the data needs of tomorrow

MORE POWER, MORE VERSATILITY

The SE50 has the power to handle all your real-time data aggregation and processing with higher performance options for superior computational capabilities at the edge - so you can confidently scale your IoT environment as your business grows. The SE50 even doubles as an IoT gateway, with diverse wired and wireless connections built right in.

BANDWIDTH AND STORAGE SAVINGS

End users can deploy the ThinkEdge SE50 to aggregate and analyze real-time data from distributed IoT devices. This smart edge device can filter and forward IoT data across the WAN to the cloud or data center. Customers have the option to enhance their edge AI strategy with cutting-edge silicon and optimized software leveraging the OpenVINO™ toolkit.

BUILT-IN RELIABILITY AND CONNECTIVITY

True to the Lenovo brand, the fanless SE50 is rugged, built to withstand industrial environments from 0° to 50°C, and comes with an IP50 rating. Available CAN bus and expandable NICs enable rapid communication between devices at the edge of your business.

Product Type

Industrial Computer
Processor

Processor Manufacturer

Intel

Processor Type

Core i5

Processor Generation

8th Gen

Processor Model

i5-8365UE

Processor Core

Quad-core (4 Core)

Processor Speed

1.60 GHz

Cache

6 MB
Chipset

Chipset Manufacturer

Intel
Memory

Standard Memory

16 GB

Maximum Memory Supported

64 GB

Memory Technology

DDR4 SDRAM

Memory Standard

DDR4-2666/PC4-21300

Total Number of Memory Slots

2

Number of Occupied Memory Slots

1
Storage

Total Solid State Drive Capacity

512 GB
Display & Graphics

Graphics Controller Manufacturer

Intel

Graphics Controller Model

UHD Graphics 620

Graphics Memory Technology

DDR4 SDRAM

Graphics Memory Accessibility

Shared
Network & Communication

Ethernet Technology

Gigabit Ethernet

Wireless LAN

No

Bluetooth

No

WWAN Supported

No
Interfaces/Ports

HDMI (Rear)

Yes

Total Number of USB Ports

4

Number of USB 2.0 Ports (Rear)

2

Number of USB 3.2 Gen 1 Ports

2

DisplayPort (Rear)

Yes

Number of DisplayPort Outputs (Rear)

1

Number of Network (RJ-45) Ports

6

Serial Port

Yes
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Maximum Power Supply Wattage

65 W

Frequency

  • 50 Hz
  • 60 Hz
Physical Characteristics

Color Family

Black

Product Color

Black

Height

2.8"

Width

7"

Depth

7.2"

Weight (Approximate)

6.58 lb
Miscellaneous

Package Contents

  • ThinkEdge SE50 11RJ00AQUS
  • Power Adapter

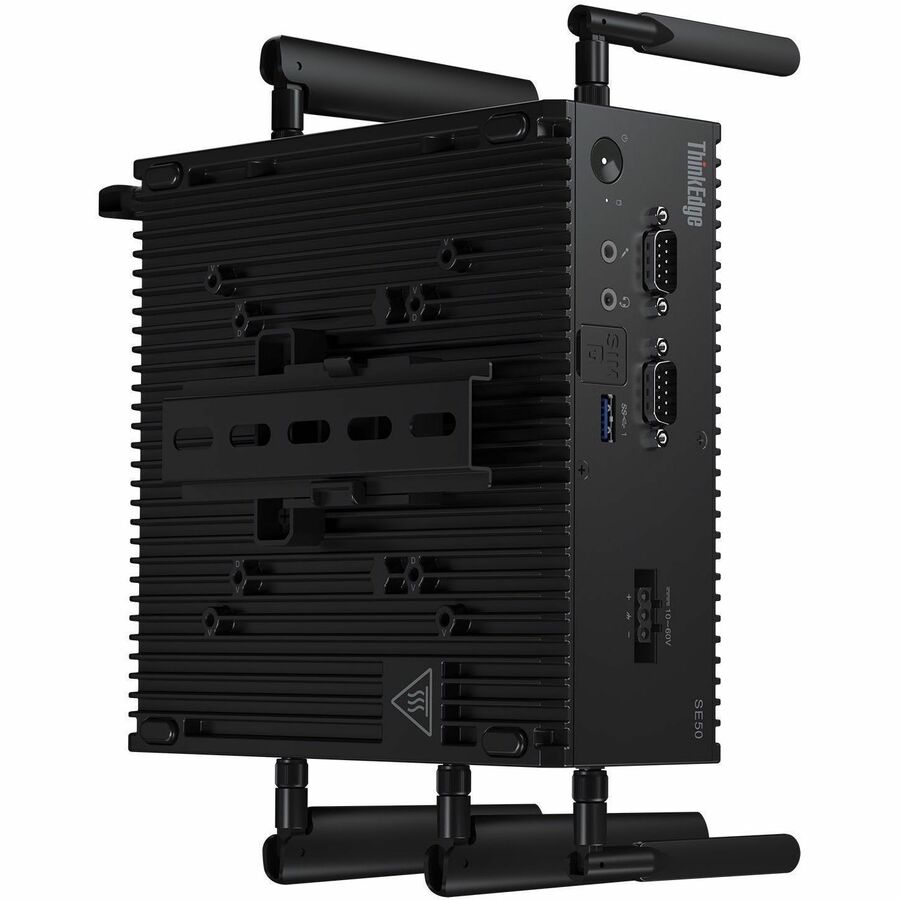

  • 1 x DIN Rail Bracket
  • IP50 Dust Cover Kits

IP Rating

IP50

Environmental Compliance

  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • The ECO Declaration (TED)
Warranty

Limited Warranty

3 Year

Additional Warranty Information

    3 Year On-site
