TP TBT4 SMART DOCK G2 US

Name: TP TBT4 SMART DOCK G2 US
Brand: LENOVO
SKU: Z49501
Price: 287.6 USD
Availability: InStock

LENOVO

PCN#

Z49501

MFG#

40BE0135US

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$287.60

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Notebook, Display Screen, Monitor
Charging Capability
135 W
Thunderbolt 4
4 Displays Supported
8K @ 60Hz, 4K @ 144Hz
7680 x 4320, 3840 x 2160
6 x USB Ports
4 x USB Type
A Ports
USB Type
A
2 x USB Type
C Ports
USB Type
C
Network (RJ
45)
1 x HDMI Ports
HDMI
2 x DisplayPorts
DisplayPort
Eclipse Black
Thunderbolt

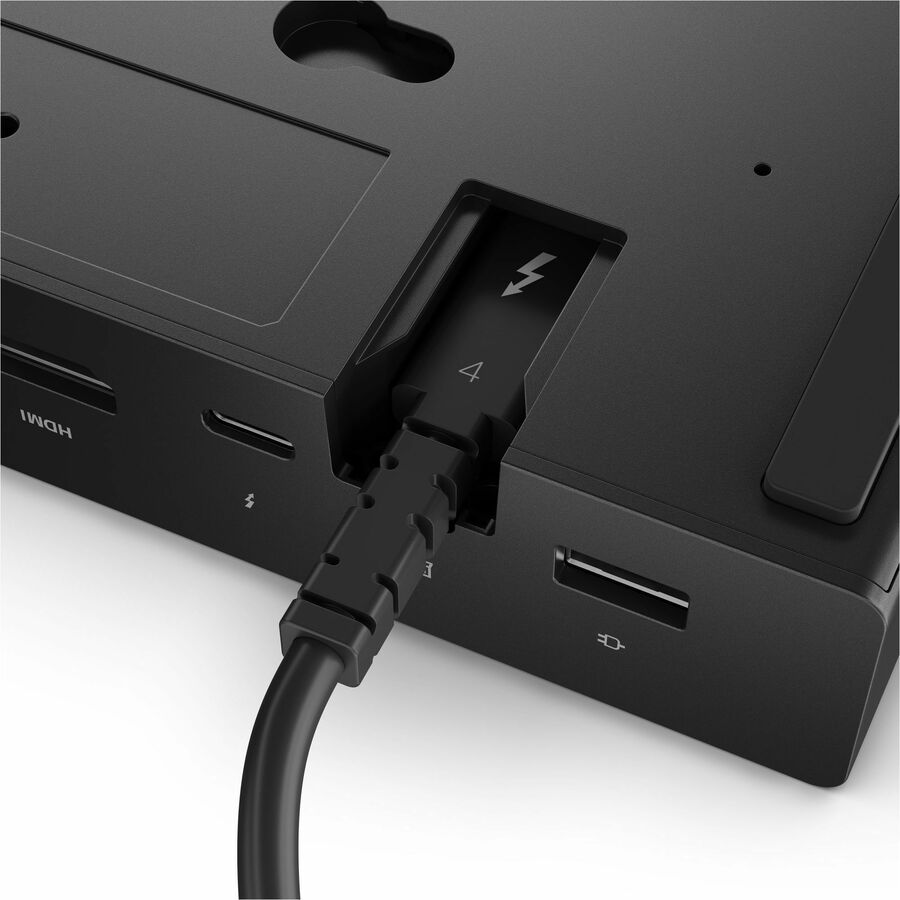

1 x Thunderbolt 4 Ports
Wired
2.5 Gigabit Ethernet
Windows, macOS, Linux
100W

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

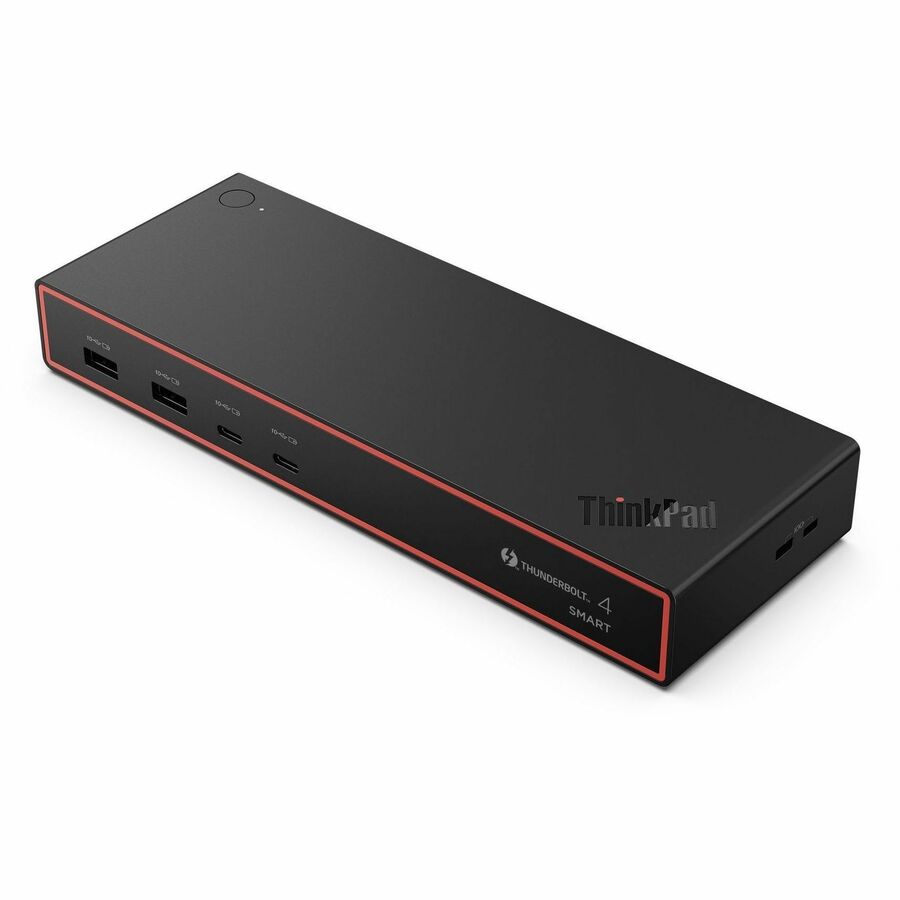

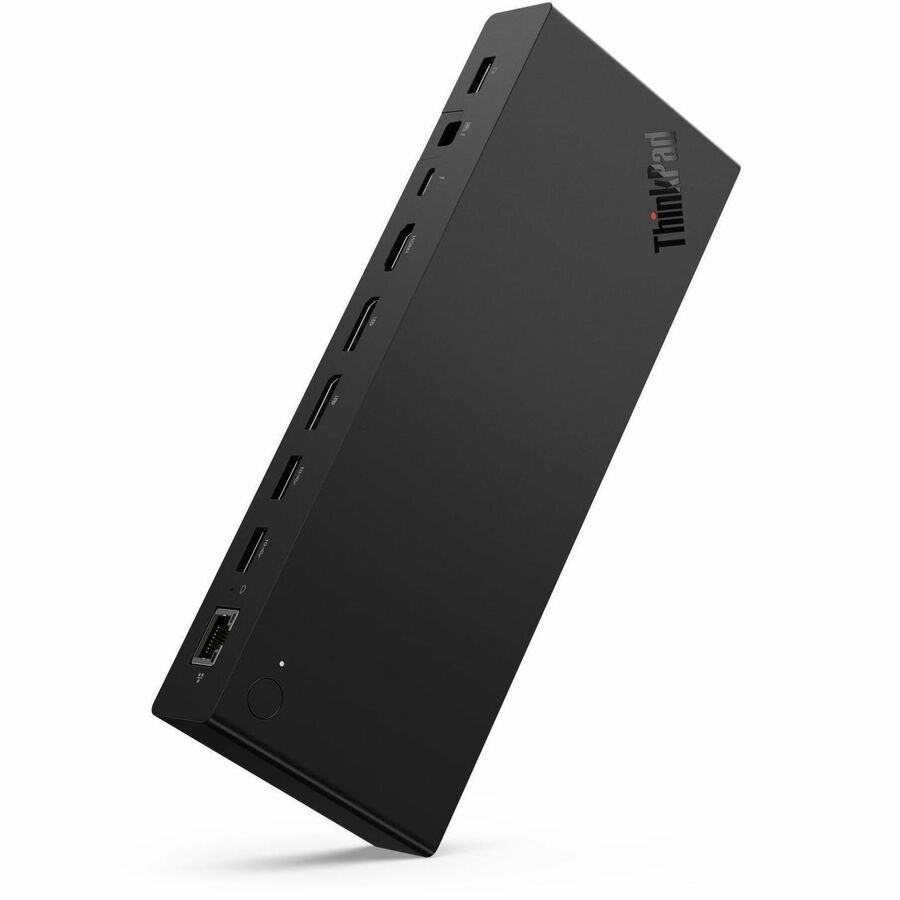

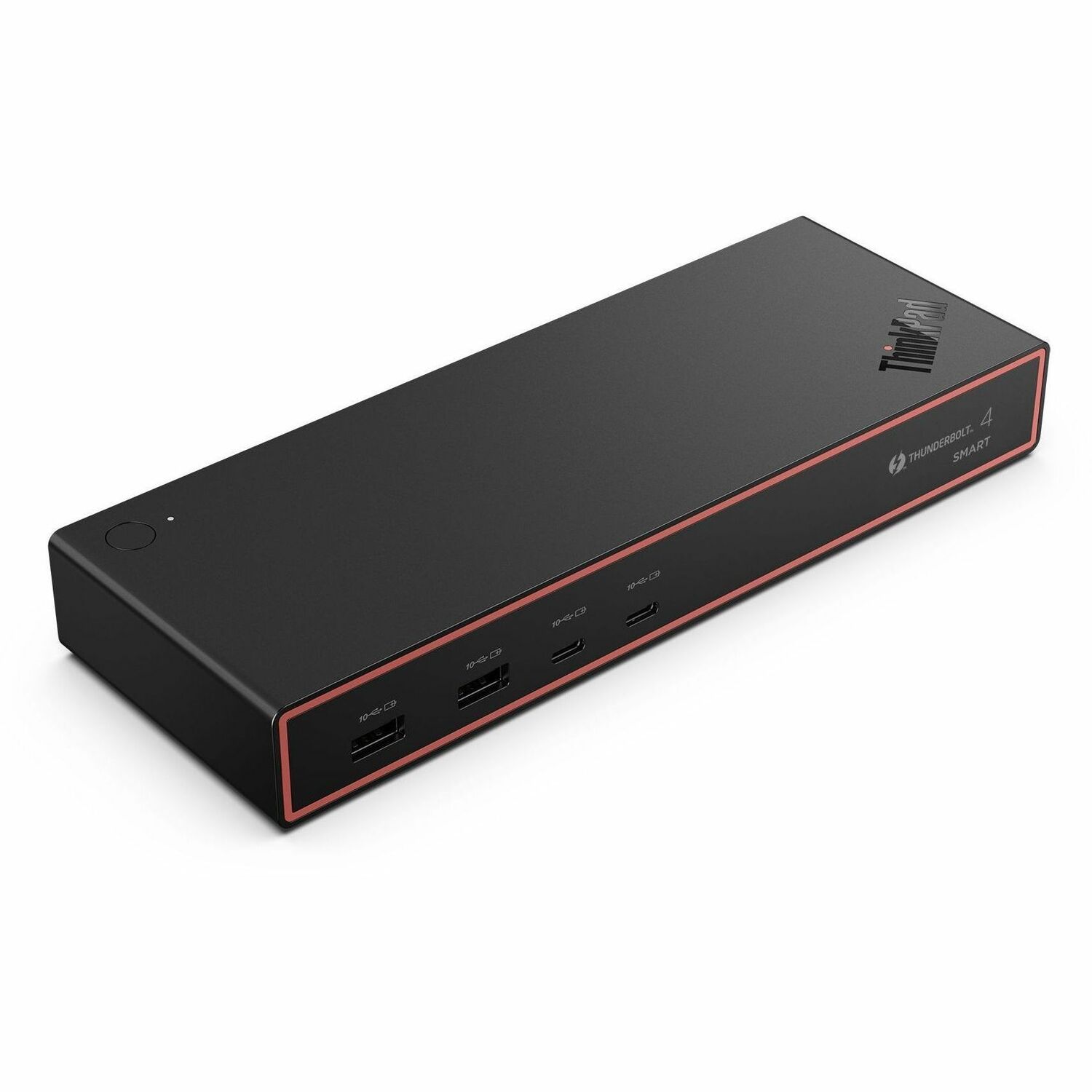

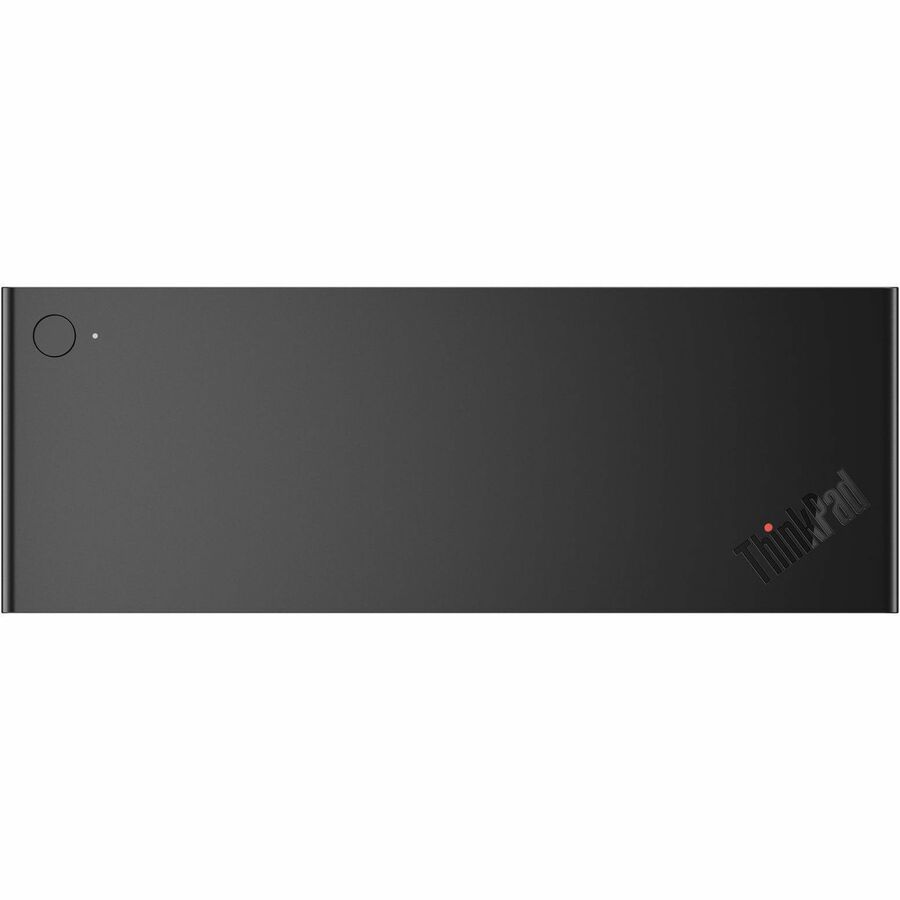

Lenovo ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - US

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	40BE0135US
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkPad
Product Name	ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - US
Marketing Information	New Generation ThinkPad® Thunderbolt™ 4 Smart Dock; The ThinkPad® Thunderbolt™ 4 Smart Dock Gen 2 7500 is a refresh of its Thunderbolt™ 4 Smart Dock Predecessor, Best for business professionals, IT decision-makers, and creative professionals who need Premium PC experience with multiple displays setup, secure and reliable connections for intensive tasks. Capable of driving up to 8K 60Hz display and 40Gbps data speed, and new generation cloud-based management console powered by AWS for IT managers. Top Features The ThinkPad® Thunderbolt™ 4 Smart Dock 7500 with up to 40 Gbps bandwidth, you can have one Ultra-High Resolution 8K 60Hz Displays or two 4K 144Hz High Refresh Rate monitors setup, to fully extend your laptop to a powerful work platform with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 100W to give a fast-charge to your laptop, you can drastically expand the potential of your workspace with ease. Universal Dock Compatibility a cross different Operating System. With Lenovo™ Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Diagnostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere with ease.
Packaged Quantity	1
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Charging Capability	Yes
Device Supported	Notebook Display Screen Monitor
Features	Security Lock Power Delivery Pass-through
Number of Displays Supported	4
Screen Mode Supported	8K @ 60Hz 4K @ 144Hz
Supported Resolutions	7680 x 4320 3840 x 2160
Maximum Data Transfer Rate	5 GB/s
Security Slot Type	Nano Security Slot Kensington Security Slot
Localization	United States

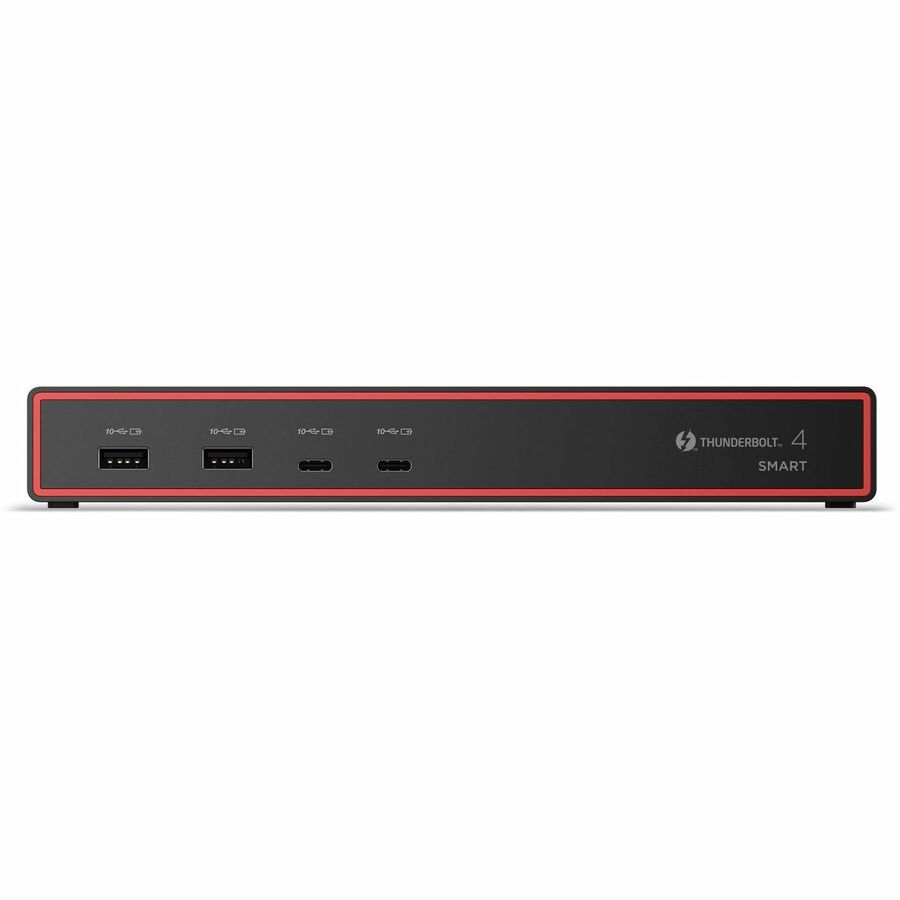

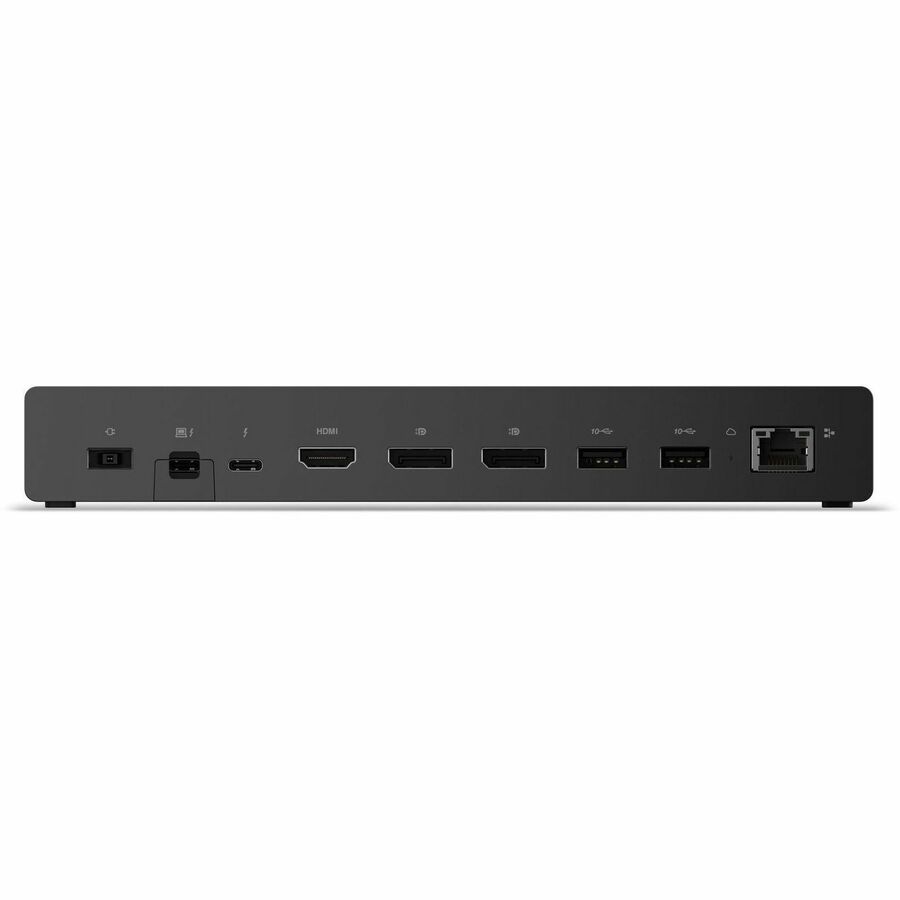

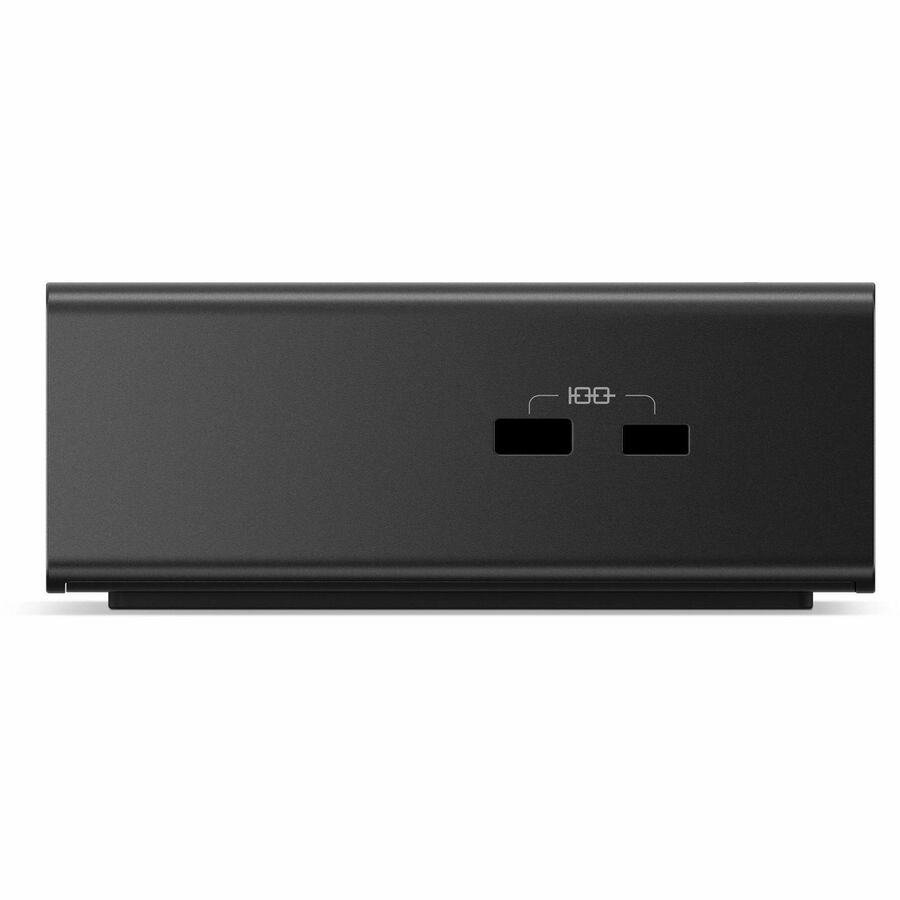

Power Delivery Details	Front: 2 x USB-A 3.2 Gen2 (2 x AOU 12W) 2 x USB-C 3.2 Gen2 (2 x AOU 15W) Back: 2 x USB-A 3.2 Gen2 5W 1 x TBT 4 Full Function 15W

Network & Communication

Ethernet Technology

2.5 Gigabit Ethernet

Interfaces/Ports

Host Interface	Thunderbolt 4
Total Number of USB Ports	6
USB Type-A	Yes
Number of USB 3.2 Gen 2 Type-A Ports	4
Number of USB 3.2 Gen 2 Type-C Ports	2
Number of USB Type-A Ports	4
USB Type-C	Yes
USB Type-C Detail	2 x USB-C 3.2 Gen2 (2 x AOU 15W)
Number of USB Type-C Ports	2

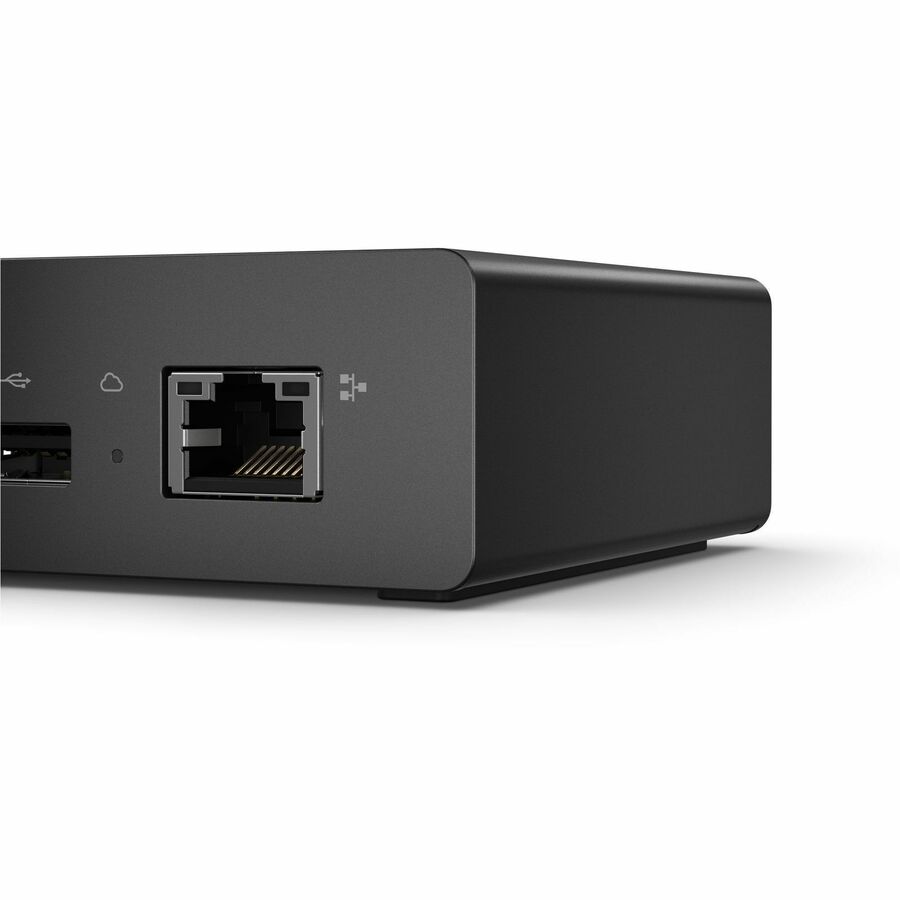

Network (RJ-45)	Yes
DisplayPort	Yes
Number of DisplayPorts	2
HDMI	Yes
Number of HDMI Ports	1
Thunderbolt	Yes
Thunderbolt Ports Quantity	1
Number of Thunderbolt 4 Ports	1
USB Power Delivery	100W
Interfaces	2 x DP 1.4 1 x HDMI 2.1 1 x TBT 4 Full Function

Software

Operating System Supported

Windows
macOS
Linux

Power Description

Maximum Power Supply Wattage	135 W
Power Source Type	Power Adapter

Physical Characteristics

Color Family	Black
Product Color	Eclipse Black
Height	1.18"
Depth	3.15"
Weight (Approximate)	1.21 lb

Miscellaneous

Package Contents	ThinkPad Thunderbolt 4 Smart Dock Gen2 7500 - US 1 x Power Adaptor 1 x Power Cord 3 x Documentation
Kensington Security Slot	Yes
Compatibility	Lenovo Notebooks: ThinkPad P14s Gen 5 (AMD) ThinkPad T14 Gen 5 (AMD) ThinkPad T14 Gen 5 (Intel) ThinkPad T14s Gen 5 ThinkPad T16 Gen 3 ThinkPad X1 2-in-1 Gen 9 ThinkPad X1 Carbon Gen 12 ThinkPad X13 2-in-1 Gen 5 ThinkPad X13 Gen 5

Warranty

Limited Warranty

3 Year
