THINKSYSTEM BROADCOM 57608 2X200/1X400GBE QSFP112 OCP ETHERNET

Name: THINKSYSTEM BROADCOM 57608 2X200/1X400GBE QSFP112 OCP ETHERNET
Brand: LENOVO
SKU: Z58268
Price: 6653.17 USD
Availability: InStock

LENOVO

PCN#

Z58268

MFG#

4XC7A95695

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$6,653.17

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Free Shipping

Estimated Shipment:

Product Highlights:

PCI Express 5.0 x16
Broadcom 57608
Optical Fiber
full
height, low
profile Bracket Height
100GBase
X, 50GBase
X, 25GBase
X
QSFP112
Plug
in Card

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 1 lbs.

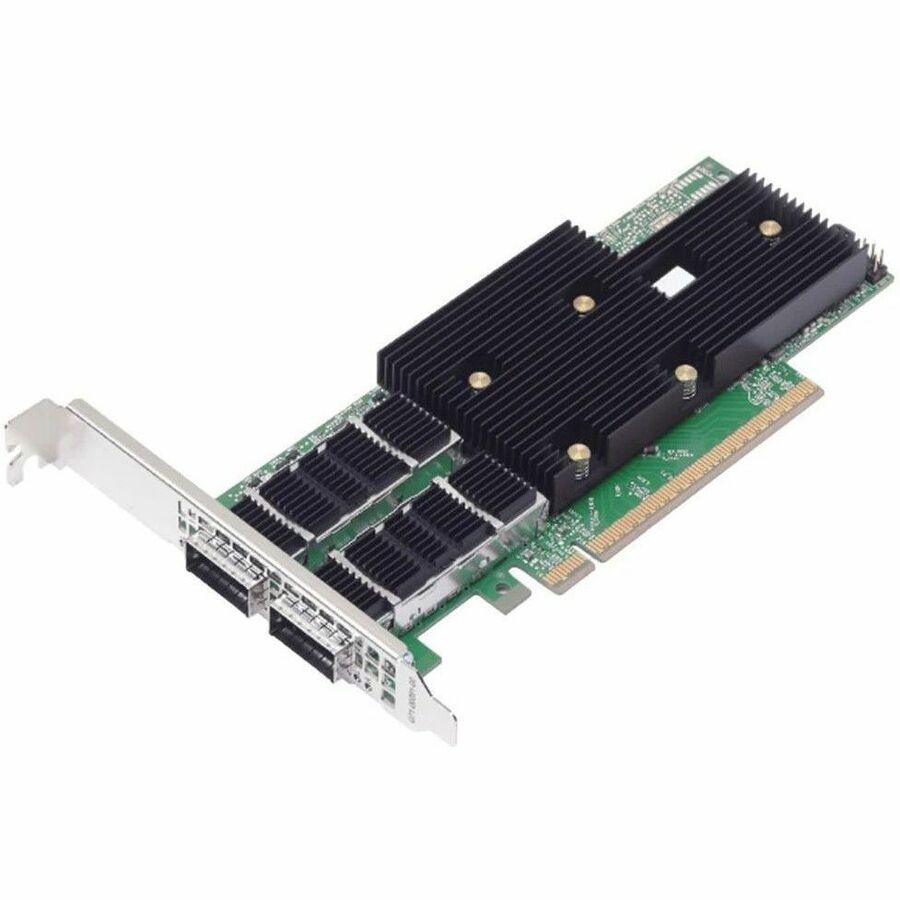

Lenovo ThinkSystem 200/400Gigabit Ethernet Card

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	4XC7A95695
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Name	ThinkSystem 200/400Gigabit Ethernet Card
Marketing Information	The ThinkSystem Broadcom 57608 2x200/1x400GbE QSFP112 Ethernet Adapters are high-performance dual-port 200Gb Ethernet adapters with a PCIe 5.0 x16 host interface that are designed to build highly scalable, feature-rich networking solutions in servers for AI/ML, cloud, high-performance computing, and storage applications. The 57608 Ethernet adapters are available in two form factors, a PCIe low-profile adapter and an OCP 3.0 adapter. The adapters use the Broadcom BCM57608 400GbE MAC controller. Incorporating industry-leading PHY technology, the adapter provides highly efficient network connectivity using 8 lanes of built-in SerDes, each supporting 100/50G PAM-4 and 25G NRZ. The adapters support fourth-generation, standards-based RDMA over Converged Ethernet (RoCE) with hardware-based congestion control. The 57608 Ethernet adapters offer two 200Gb Ethernet ports but can also be configured as a 1-port 400Gb adapter with port 1 active and port 2 disabled.
Packaged Quantity	1
Product Type	200/400Gigabit Ethernet Card

Technical Information

Chipset Manufacturer	Broadcom
Chipset Model	57608
Features	RDMA over Converged Ethernet (RoCE) Extended Message-Signaled Interrupts (MSI-X) RDMA over Converged Ethernet (RoCE) v2 Single Root I/O Virtualization (SR-IOV) Virtual Extensible LAN (VXLAN) Network Virtualization using Generic Routing Encapsulation (NVGRE) User Datagram Protocol (UDP) Large Send Offload (LSO) Large Receive Offload (LRO) Transmit Side Scaling (TSS) Receive Side Scaling (RSS) PXE Support UEFI Support
AI-powered	Yes

Interfaces/Ports

Host Interface

PCI Express 5.0 x16

I/O Expansions

Total Number of Expansion Slots	3
Expansion Slot Type	QSFP112

Media & Performance

Media Type Supported

Optical Fiber

Network & Communication

Network Technology

100GBase-X
50GBase-X
25GBase-X

Physical Characteristics

Form Factor	Plug-in Card
Bracket Height	full-height, low-profile
Width	3"
Depth	4.5"

Miscellaneous

Package Contents	ThinkSystem 200/400Gigabit Ethernet Card PCIe Adapter Documentation Flyer
Application/Usage	Network Security Data Center
Device Supported	Server Switch
Operating System Compatibility	Red Hat Enterprise Linux 9.4 Ubuntu 22.04 Ubuntu 24.04

Warranty

Limited Warranty

1 Year
