THINKSYSTEM SR630 V3 4509Y 32GB

Name: THINKSYSTEM SR630 V3 4509Y 32GB
Brand: LENOVO
SKU: 6641BR
Price: 7382.23 USD
Availability: InStock

LENOVO

PCN#

6641BR

MFG#

7D73A05KNA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$7,382.23

Extended & Accidental Damage Protection Plans Available Details

2-Year $418.99

3-Year $535.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C741 Chip
2 Processor Support
8 TB RAM Support
TruDDR5
0, 1, 5, 10, JBOD RAID Levels Up to 16 MB Graphic Card
10 x Total Bay(s)
10 x SFF Bay(s)
Hot Swappable Bays
1 x 750 W

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Shipping Weight: 45 lbs.

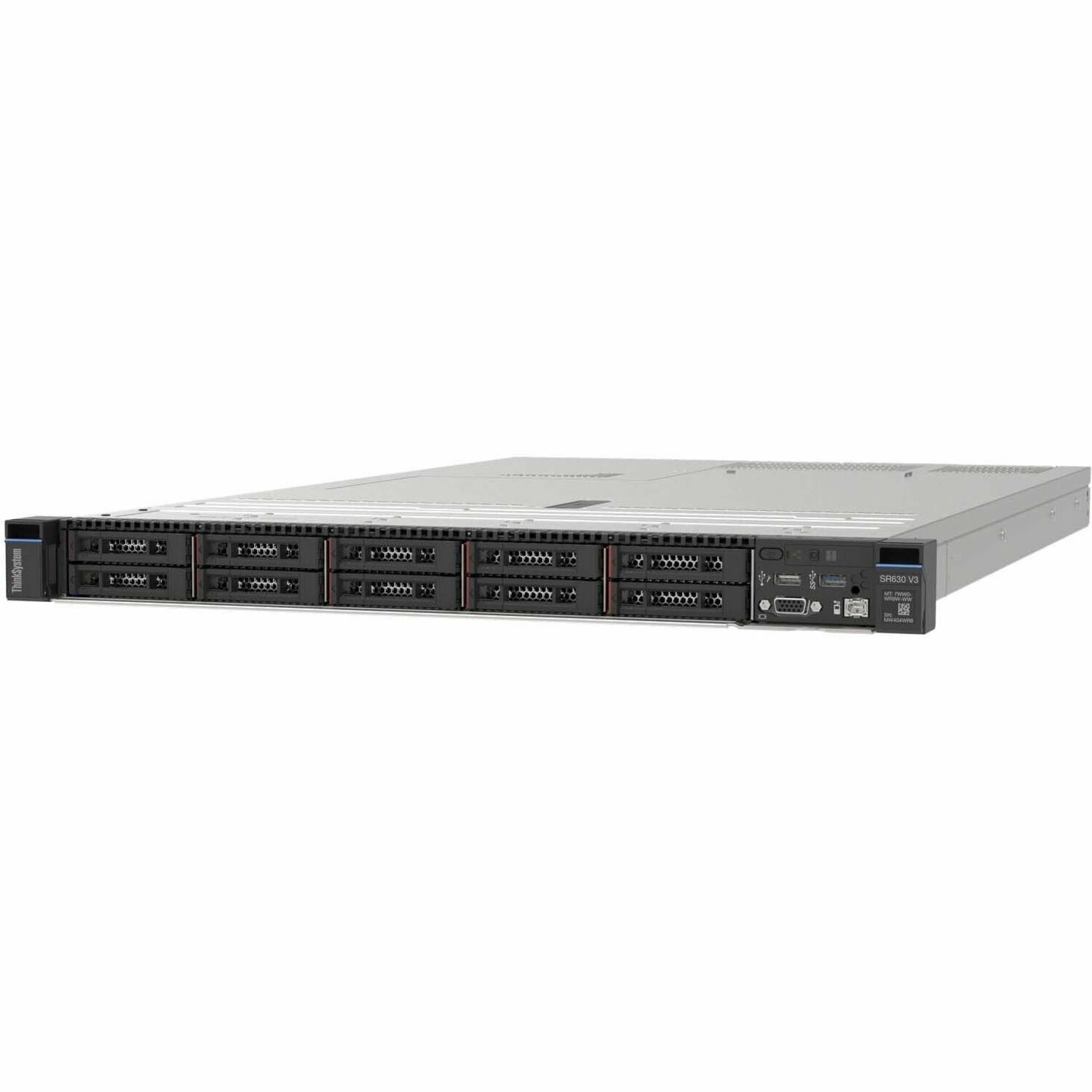

Lenovo ThinkSystem SR630 V3 7D73A05KNA 1U Rack Server - 1 Xeon Silver 4509Y 2.60 GHz - 32 GB RAM - Serial ATA/600 Controller

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7D73A05KNA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	SR630 V3
Product Model	7D73A05KNA
Product Name	ThinkSystem SR630 V3 7D73A05KNA Server
Marketing Information	The Lenovo ThinkSystem SR630 V3 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	1
Processor Type	Xeon Silver
Processor Generation	5th Gen
Processor Model	4509Y
Processor Core	Octa-core (8 Core)
Processor Speed	2.60 GHz
Cache	22.50 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C741

Memory

Standard Memory	32 GB
Maximum Memory Supported	8 TB
Memory Technology	TruDDR5
Memory Clock Speed	4.40 GHz
Error Checking	ECC
Total Number of Memory Slots	32
Number of Occupied Memory Slots	1
Intel Optane Memory Ready	No
Signal Processing	Registered (Buffered)

Controllers

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0, 1, 5, 10, JBOD

I/O Expansions

Number of Total Expansion Bays	10
Number of Internal 2.5" Bays	10
Number of SFF Bays	10
Hot Swappable Bays	Yes

Display & Graphics

Graphics Memory Capacity

16 MB

Interfaces/Ports

Total Number of USB Ports	6
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	XClarity Controller (XCC) Standard

Operating System

Operating System Supported

Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.6
Red Hat Enterprise Linux 8.7
Red Hat Enterprise Linux 8.8
Red Hat Enterprise Linux 8.9
Red Hat Enterprise Linux 8.10
Red Hat Enterprise Linux 9.0
Red Hat Enterprise Linux 9.1
Red Hat Enterprise Linux 9.2
Red Hat Enterprise Linux 9.3
Red Hat Enterprise Linux 9.4
SUSE Linux Enterprise Server 15 SP4
SUSE Linux Enterprise Server 15 SP5
Ubuntu 22.04 LTS x64

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13
Maximum Power Supply Wattage	750 W
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.3"
Depth	30.4"
Weight (Approximate)	45.86 lb

Miscellaneous

Package Contents	ThinkSystem SR630 V3 7D73A05KNA Server Toolless Slide Rail Kit
Security Features	Chassis intrusion switch Power-on password Administrator's password Root of Trust module supporting TPM 2.0 Platform Firmware Resiliency (PFR)
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	China Environmental Labeling Program (CELP) Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) GREENGUARD
Energy Efficiency Certification	China Energy Conservation Program (CECP) ENERGY STAR 4.0
Energy Efficiency Compliance	Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
