THINKSYSTEM SR250 V3 80W 16G

Name: THINKSYSTEM SR250 V3 80W 16G
Brand: LENOVO
SKU: 6650BR
Price: 3980.54 USD
Availability: InStock

LENOVO

PCN#

6650BR

MFG#

7DCLA01XNA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$3,980.54

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C266 Chip
1 Processor Support
128 GB RAM Support
TruDDR5 Up to 16 MB Graphic Card
Gigabit Ethernet
8 x Total Bay(s)
8 x SFF Bay(s)
1 x 800 W

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response.

Shipping Weight: 19 lbs.

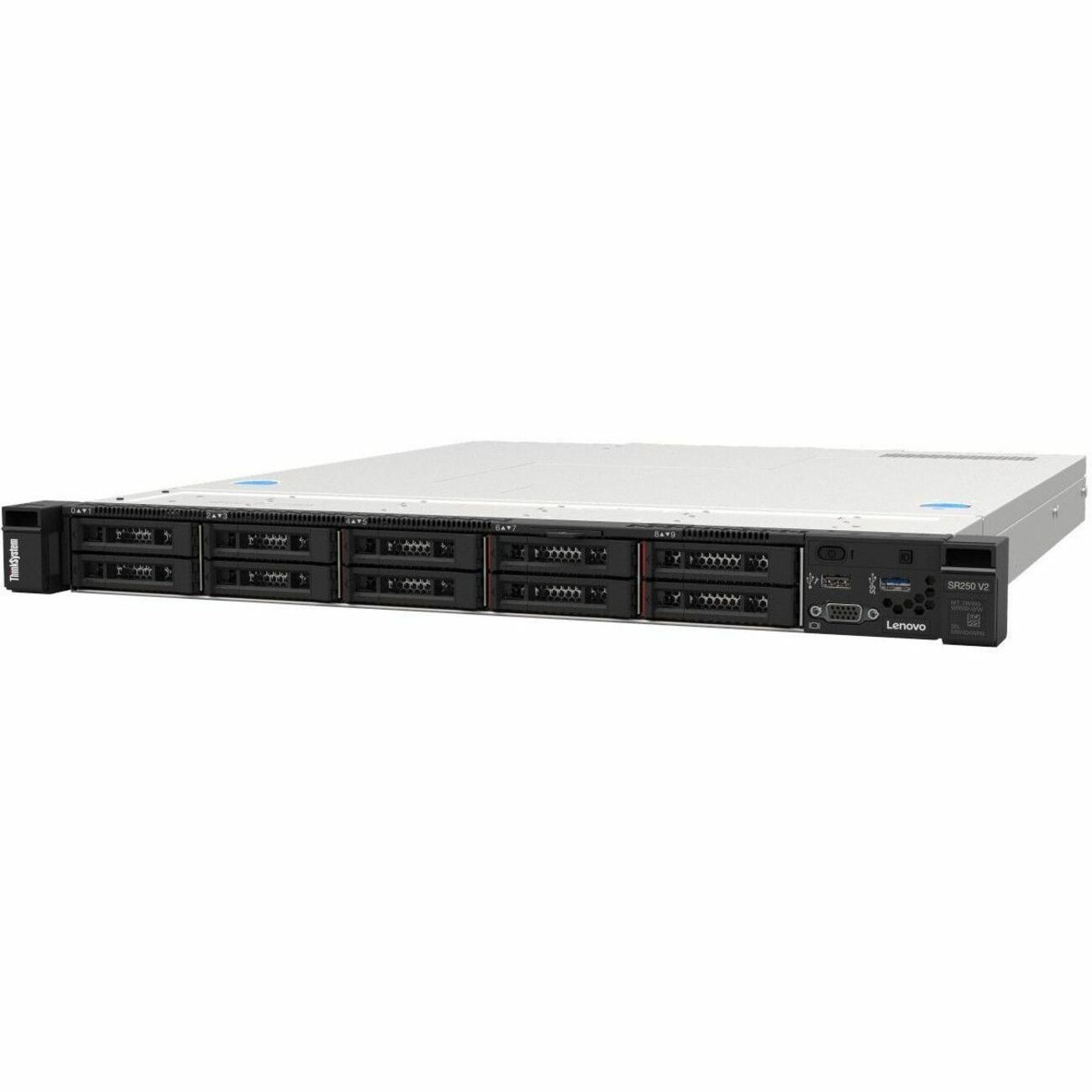

Lenovo ThinkSystem SR250 V3 7DCLA01XNA 1U Rack Server - 1 Xeon E-2456 3.30 GHz - 16 GB RAM - Serial ATA Controller

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7DCLA01XNA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	SR250 V3
Product Model	7DCLA01XNA
Product Name	ThinkSystem SR250 V3 7DCLA01XNA Server
Marketing Information	The Lenovo ThinkSystem SR250 V3 is a high-value single-socket 1U rack server for growing businesses that need optimized performance and flexibility for future growth, along with enterprise-class reliability, management, and security. The server supports one Intel Xeon E-2400 Series processor (formerly codenamed "Raptor Lake-E (RPL-E)") or Intel Pentium ("Alder Lake (ADL)") and up to 128 GB of 4800 MHz TruDDR5 ECC memory. Flexible and scalable internal storage configurations include up to ten 2.5-inch or four 3.5-inch drives with affordable software RAID or advanced hardware RAID protection and a wide selection of drive sizes and types, including NVMe PCIe SSDs, SATA SSDs, and SAS/SATA HDDs. Also, it features integrated dual-port 1 Gb Ethernet NIC and additional PCIe expansion slots for hardware RAID protection, network scalability, and external storage connectivity.
Product Type	Server

Processor

Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Xeon
Processor Model	E-2456
Processor Core	Hexa-core (6 Core)
Processor Speed	3.30 GHz
Cache	12 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C266

Memory

Standard Memory	16 GB
Maximum Memory Supported	128 GB
Memory Technology	TruDDR5
Memory Clock Speed	4.80 GHz
Error Checking	ECC
Total Number of Memory Slots	4
Number of Occupied Memory Slots	1

Controllers

Controller Type

Serial ATA

I/O Expansions

Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Total Number of Expansion Slots	3
PCI Express Details	x8 LP, x8 LP, x8 Int
Riser Card	slot1: PCIe Gen4 x8 in x8 (LP); slot2: PCIe Gen4 x8 in x16 slot (LP)

Display & Graphics

Graphics Memory Capacity

16 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
VGA	Yes
Number of VGA Ports	1
Remote Management	Yes
Remote Management Controller	XClarity Controller (XCC2) Standard

Operating System

Operating System Supported

Windows Server 2022
Red Hat Enterprise Linux 8.8
Red Hat Enterprise Linux 8.9
Red Hat Enterprise Linux 8.10
Red Hat Enterprise Linux 9.2
Red Hat Enterprise Linux 9.3
Red Hat Enterprise Linux 9.4
SUSE Linux Enterprise Server 15 SP5
Ubuntu 22.04 LTS x64

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13
Maximum Power Supply Wattage	800 W
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.1"
Depth	22.1"
Weight (Approximate)	25.22 lb

Miscellaneous

Package Contents	ThinkSystem SR250 V3 7DCLA01XNA Server Documentation flyer Toolless Friction Rail v2 1 x Power Cord
Security Features	Power-on password Administrator's Password Trusted Platform Module ,supporting TPM 2.0.
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)
Energy Efficiency Certification	China Energy Conservation Program (CECP) ENERGY STAR 4.0
Energy Efficiency Compliance	Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit (CRU) and onsite limited warranty with next business day response.
