DM CONTROLLER DM3010H 2U12 LFF

Name: DM CONTROLLER DM3010H 2U12 LFF
Brand: LENOVO
SKU: Z67304
Price: 63409.9 USD
Availability: InStock

LENOVO

PCN#

Z67304

MFG#

7DCV1003NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$63,409.90

Free Shipping

Estimated Shipment:

Product Highlights:

12 x HDD Supported
12 x SSD Supported
2 x 12Gb/s SAS Controller
RAID Supported
4, RAID
DP, RAID
TEC RAID Levels
12 x Total Bays
12 x 3.5" Bay
Gigabit Ethernet
2 USB Port(s)
Network (RJ
45)
SSH, SNMP, SSL, LDAP, iSCSI, NFS, CIFS/SMB
3 SAS Port(s) External
2U
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty Information3-year base warranty, customer-replaceable unit and onsite limited warranty with selectable service levels:9x5 service coverage next business day (NBD) onsite response (Foundation) or 24x7 service coverage with 4-hour onsite response (Essential).Premier Support is also available.Software support is included in the Foundation or Essential Service for the duration of the warranty period.

Shipping Weight: 1 lbs.

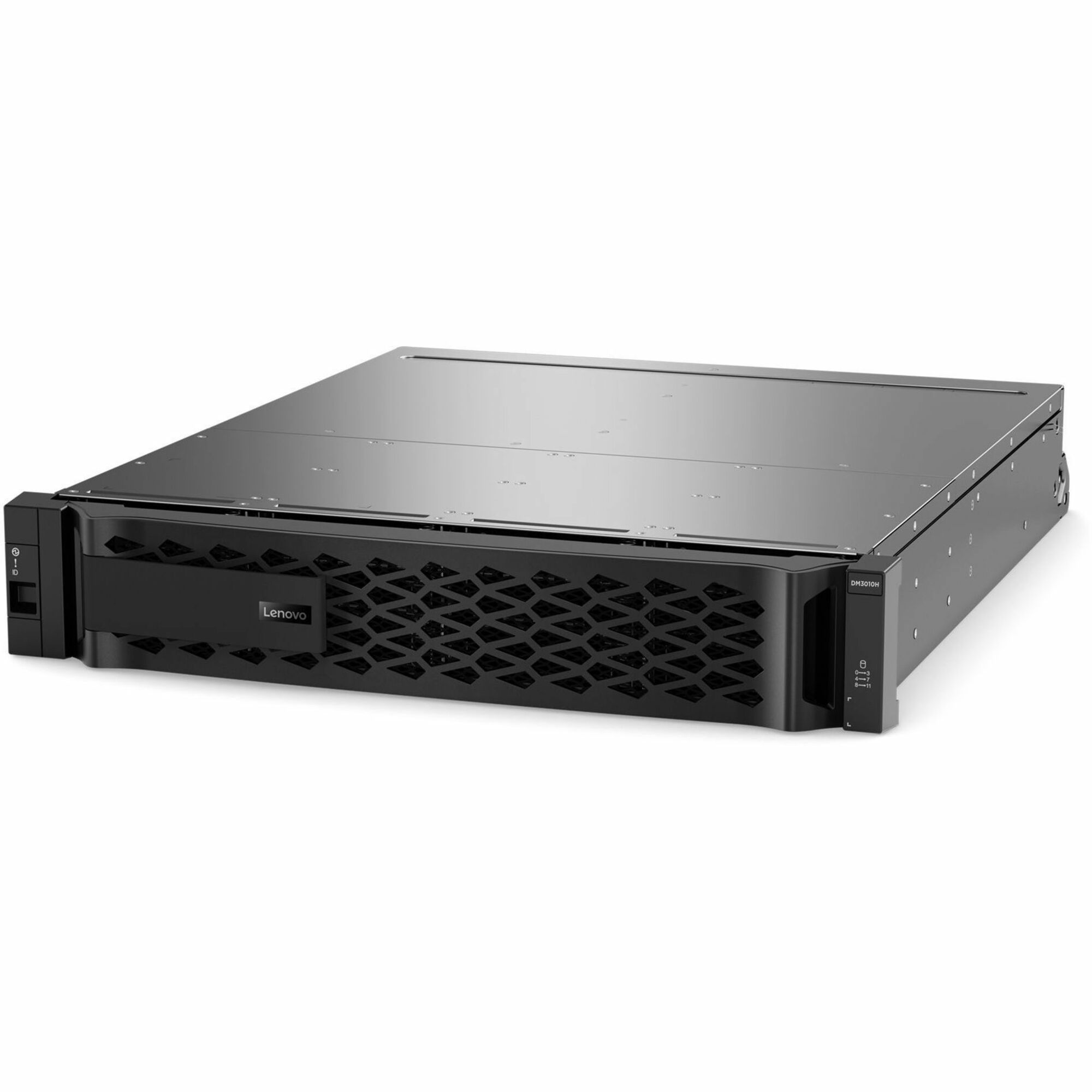

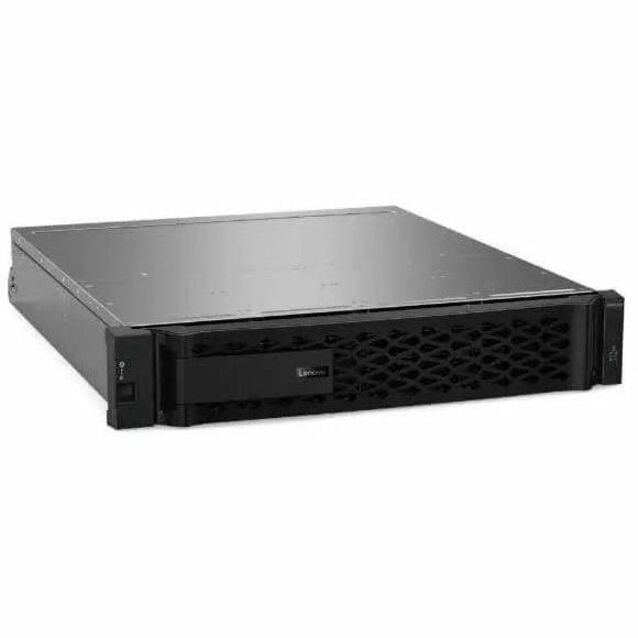

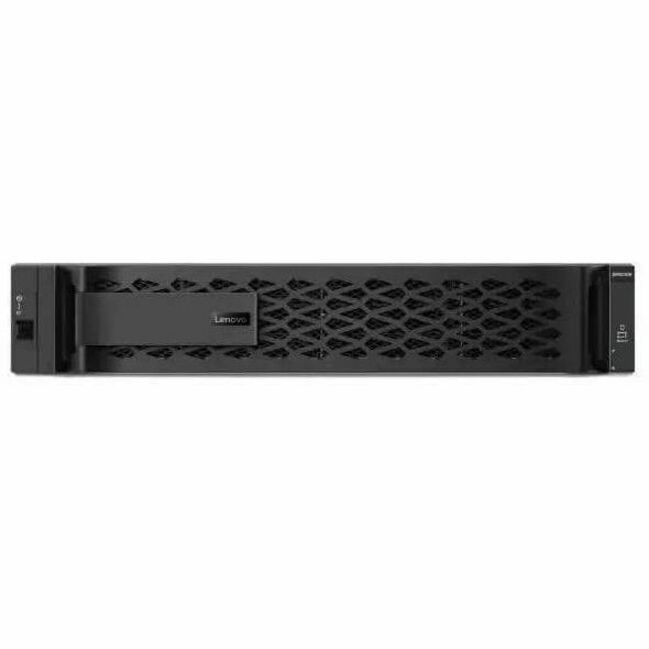

Lenovo ThinkSystem DM3010H DAS/SAN Storage System

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7DCV1003NA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	DM
Product Model	DM3010H
Product Name	ThinkSystem DM3010H DAS/SAN Storage System
Marketing Information	Lenovo ThinkSystem DM3010H is a unified, hybrid storage system that is designed to provide performance, simplicity, capacity, security, and high availability for small to large enterprises with remote offices and branch offices. ThinkSystem DM3010H delivers enterprise-class storage management capabilities with a wide choice of host connectivity options, flexible drive configurations, and enhanced data management features.
Product Type	DAS/SAN Storage System

Storage

Number of Hard Drives Supported	12
Number of Solid State Drive Supported	12

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	12
Number of 3.5" Bays	12

Controllers

Number of Controllers	2
Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	4, RAID-DP, RAID-TEC

Interfaces/Ports

Host Interface	12Gb/s SAS
Number of SAS Ports (External)	3
Total Number of USB Ports	2
Network (RJ-45)	Yes
Fibre Channel	Yes

Management & Protocols

Protocols

SSH
SNMP
SSL
LDAP
iSCSI
NFS
CIFS/SMB

Power Description

Number of Power Supplies Installed	2
Plug/Connector Type	C19 to IEC 320-C20
Maximum Power Supply Wattage	2325 W
Redundant Power Supply	Yes

Physical Characteristics

Cooling Fan	Yes
Height	3.4"
Width	17.6"
Depth	20"
Form Factor	Rack-mountable
Rack Height	2U
Weight (Approximate)	64.37 lb

Miscellaneous

Package Contents	ThinkSystem DM3010H DAS/SAN Storage System Rack Mount Kit 2 m USB Cable (USB Type A to USB-C) Electronic Publications Flyer 2 x Power Cables
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	3-year base warranty, customer-replaceable unit and onsite limited warranty with selectable service levels:9x5 service coverage next business day (NBD) onsite response (Foundation) or 24x7 service coverage with 4-hour onsite response (Essential).Premier Support is also available.Software support is included in the Foundation or Essential Service for the duration of the warranty period.
