RT6KVA 3U RACK OR TOWER UPS-G2 (200-240VAC) WITHOUT INTELLIGENT

Name: RT6KVA 3U RACK OR TOWER UPS-G2 (200-240VAC) WITHOUT INTELLIGENT
Brand: LENOVO
SKU: Z58128
Price: 18871.87 USD
Availability: InStock

LENOVO

PCN#

Z58128

MFG#

7DD5A00EWW

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$18,871.87

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,784.99

3-Year $2,341.99

Free Shipping

Estimated Shipment:

Product Highlights:

3U Rack/Tower
3 Minute Stand
by
230 V AC Input
200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output
Sine Wave
Serial Port
USB
LCD Display
2 x IEC 60320 C19 (16A), 8 x IEC 60320 C13 (10A) Receptacle(s)
Network Management Card, SNMP/Telnet/HTTP/SSH

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

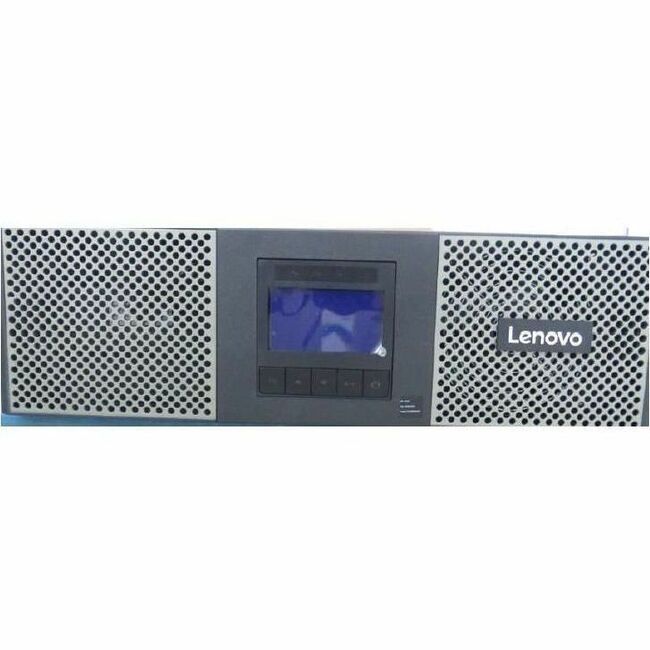

Lenovo RT6kVA 6000VA Rack/Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7DD5A00EWW
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Model	RT6kVA
Product Name	RT6kVA 6000VA Rack/Tower UPS
Marketing Information	The RT5kVA and RT6kVA 3U Rack or Tower Uninterruptible Power Supply-G2 offerings provide extended power protection with increased efficiency and simplified power management to safeguard high-availability of Lenovo server environments. With efficiency ratings of up to 98%, these compact 3U rack or tower designs can help reduce energy usage without compromising performance or reliability. The 3U Rack or Tower UPS-G2 units can be installed in a data center rack cabinet or can be used as tower UPS units in office and distributed IT environments where extended power protection is required. Did you know? 3U Rack or Tower UPS-G2 units feature Advanced Battery Management (ABM) technology that uses a unique three-stage charging technique that significantly extends battery service life and optimizes recharge time, compared to traditional charging methods. 3U Rack or Tower UPS-G2 units can enhance system availability with individual receptacle groups or load segments that can be programmed and controlled, which allows mission-critical devices to be prioritized during shutdown to preserve battery run time if there is a prolonged power outage. 3U Rack or Tower UPS-G2 units support UPS Manager software that integrates seamlessly with the major virtualization platforms, which enables you to view and manage your entire power system from your current dashboard. It also triggers live migration during power outages and avoids data loss by gracefully shutting down virtual machines and hosts in a cluster if there is an extended power outage.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	Hardwire Terminal Block
Receptacle Type	IEC 60320 C19 (16A) IEC 60320 C13 (10A)
Receptacle Detail	2 x IEC 60320 C19 (16A) 8 x IEC 60320 C13 (10A)
Transfer Time	10 ms
Efficiency Detail	94% (Online Mode) 98% (Hi-efficiency Mode)
Application/Usage	Server Data Center Rack Cabinet IT Mission Critical Equipment Electronic Equipment
Features	Advanced Battery Management (ABM)

Power Description

Load Capacity (VA)	6000 VA
Load Capacity (Watt)	5400 W
Input Voltage	230 V AC
Input Voltage Range	200 V AC - 240 V AC
Input Current	30 A
Output Voltage	200 V AC 208 V AC 220 V AC 230 V AC 240 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	Sine Wave

Display & Graphics

Display

LCD

Management

Network Management

Network Management Card
SNMP/Telnet/HTTP/SSH

Controls/Indicators

Status Indicators

LED indicators:

Online
On Battery
Bypass
Fault

Interfaces/Ports

Serial Port	Yes
Network (RJ-45)	Yes
USB	Yes
EPO Port	Yes

Battery Information

Battery Characteristics	Leak-proof, Sealed, Maintenance-free, Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	3 Minute
Backup/Run Time (Half Load)	8.50 Minute
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	9842.52 ft

Physical Characteristics

Height	5.12"
Width	17.36"
Depth	26.97"
Rack Height	3U
Form Factor	Rack/Tower
Weight (Approximate)	105.82 lb

Miscellaneous

Package Contents	RT6kVA 6000VA Rack/Tower UPS Rack-mount Kit Rack Installation Instructions Tower Kit Serial Cable: 1.2 m (4 ft) USB Cable Remote On/Off (ROO) and Remote Power Off (RPO) Connector Documentation Package
Certifications & Standards	BESC CBSA CE cUL/CSA Pvoc SGS UKCA UL
Energy Star	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
