THINKEDGE SE100 2X16GB 1RX8 960GBX1 SATA SW RD 1X140W

Name: THINKEDGE SE100 2X16GB 1RX8 960GBX1 SATA SW RD 1X140W
Brand: LENOVO
SKU: VK2323
Price: 5494.4 USD
Availability: InStock

LENOVO

PCN#

VK2323

MFG#

7DGR1001NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$5,494.40

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel Chip
1 Processor Support
64 GB RAM Support
TruDDR5
Intel
Gigabit Ethernet
1 x 140 W

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Shipping Weight: 1 lbs.

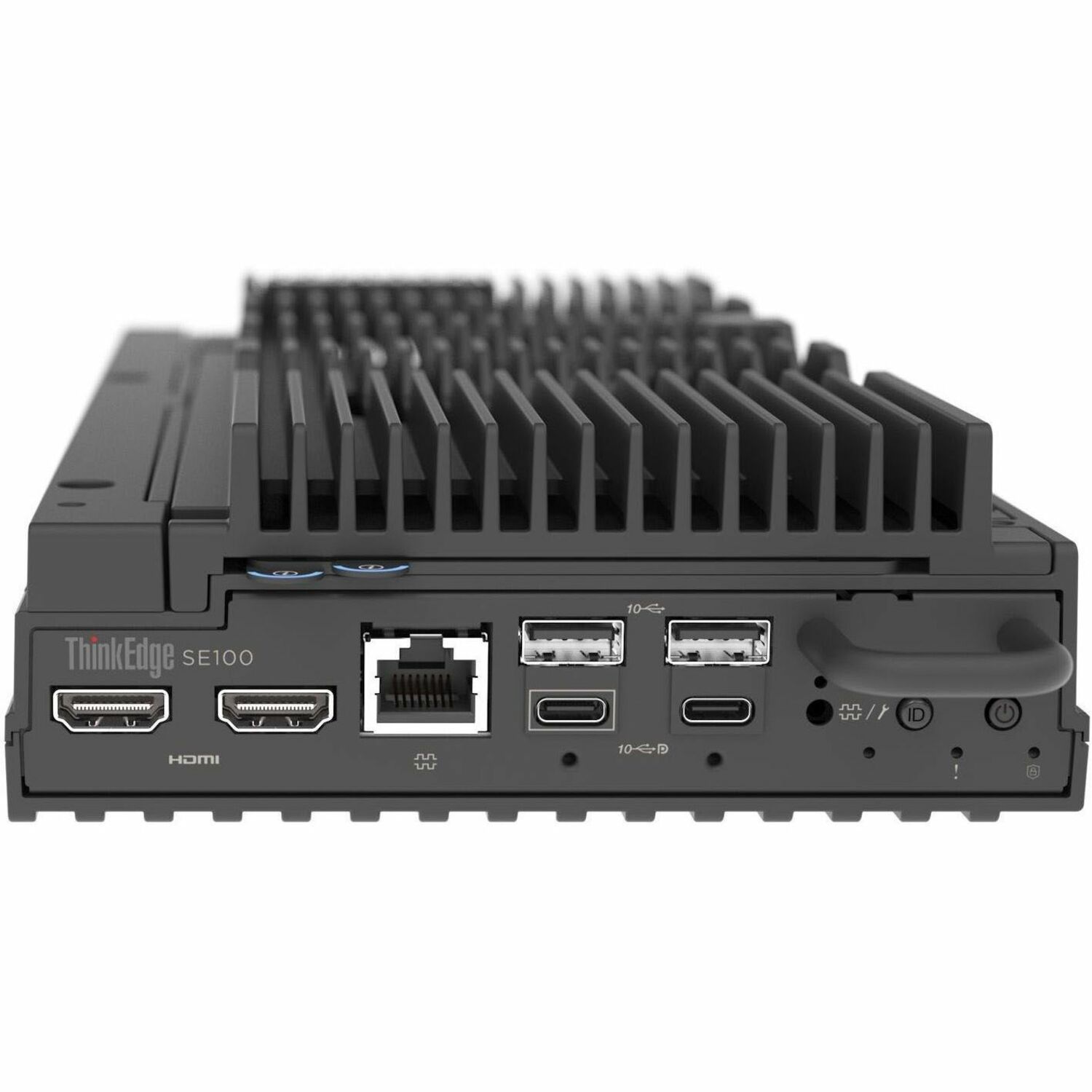

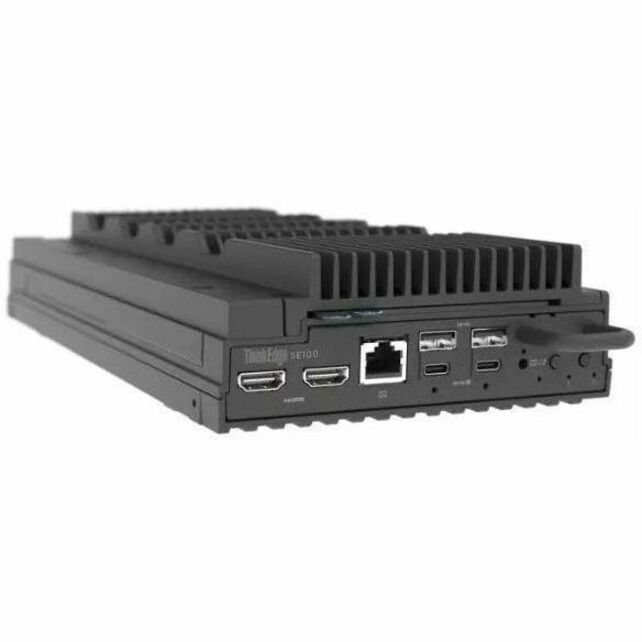

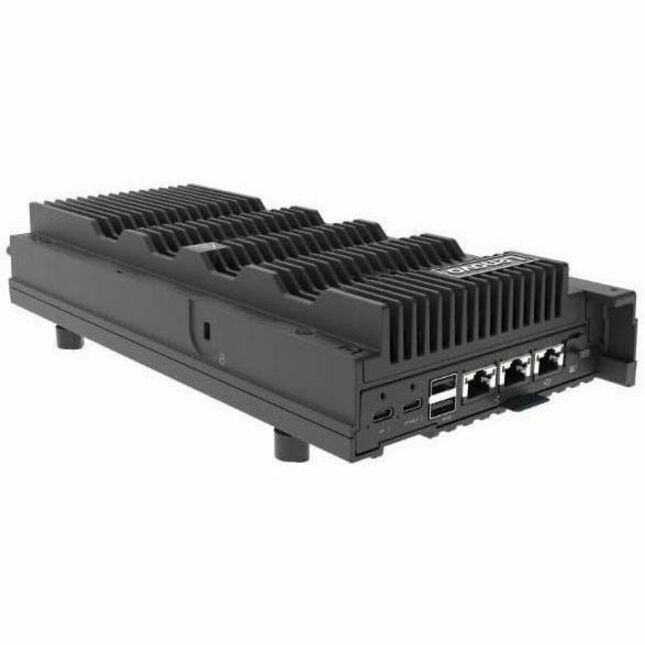

Lenovo Thinkedge SE100 7DGR1001NA 1U Server - 1 x Intel Core Ultra 7 255H 2 GHz - 32 GB RAM - 960 GB SSD - (1 x 960GB) SSD Configuration

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7DGR1001NA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	Thinkedge
Product Series	SE100
Product Model	7DGR1001NA
Product Name	Thinkedge SE100 7DGR1001NA Server
Marketing Information	The SE100 is a purpose-built server that is 1/3 width and significantly shorter than a traditional server, making it ideal for deployment in tight spaces. It can be mounted on a wall, desktop or mounted in a rack. The ThinkEdge SE100 server is Artificial Intelligence optimized with increased processing power, storage and network closer to where data is generated. For customers that want to install server outside data center looking for reduced latency by processing at the edge.
Product Type	Server

Processor

Number of Processors Supported	1
Number of Processors Installed	1
Processor Manufacturer	Intel
Processor Type	Core Ultra 7
Processor Model	255H
Processor Core	Hexadeca-core (16 Core)
Processor Speed	2 GHz
Cache	24 MB

Chipset

Chipset Manufacturer

Intel

Memory

Standard Memory	32 GB
Maximum Memory Supported	64 GB
Memory Technology	TruDDR5
Memory Clock Speed	6.40 GHz
Total Number of Memory Slots	2
Number of Occupied Memory Slots	2

Storage

Number of Solid State Drives	1
Total Solid State Drive Capacity	960 GB
Solid State Drive Interface	Serial ATA
Solid State Drive Configuration	1 x 960GB

Controllers

RAID Supported

I/O Expansions

Hot Swappable Bays

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

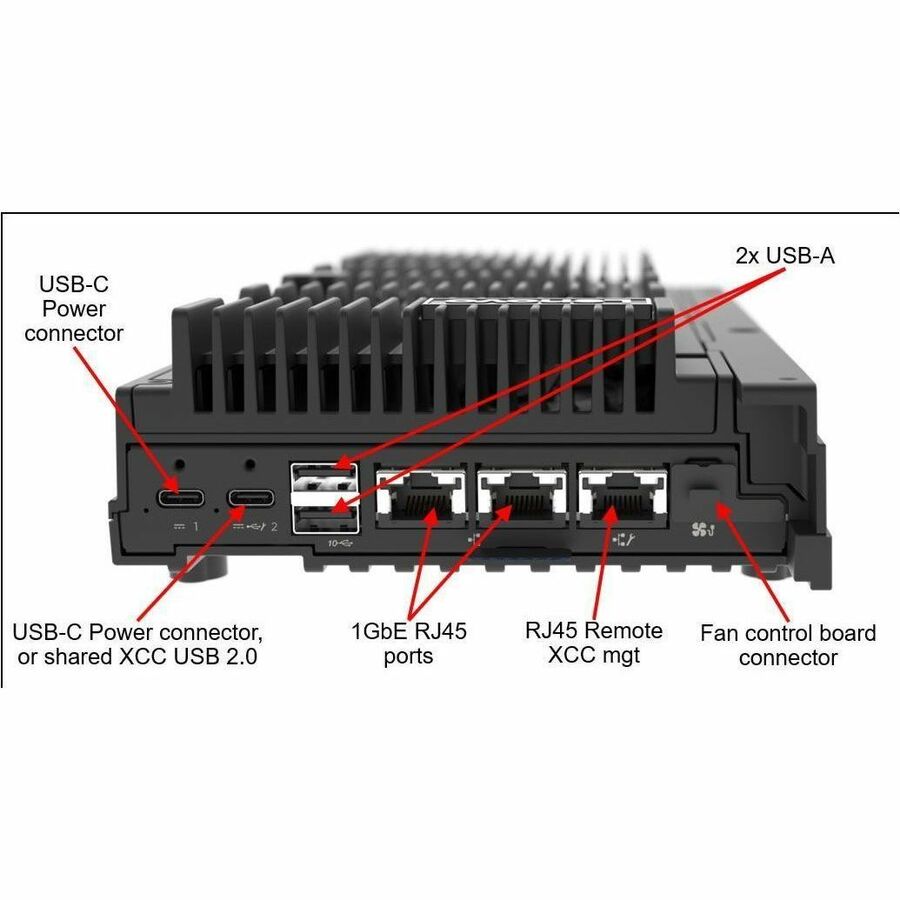

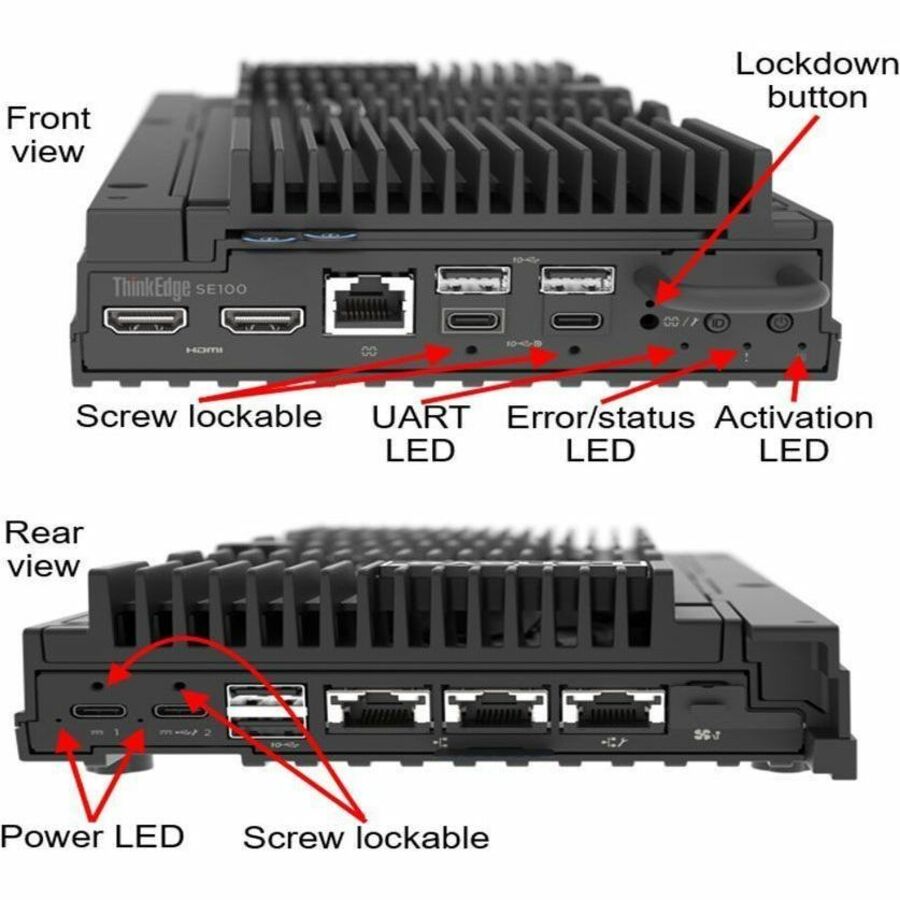

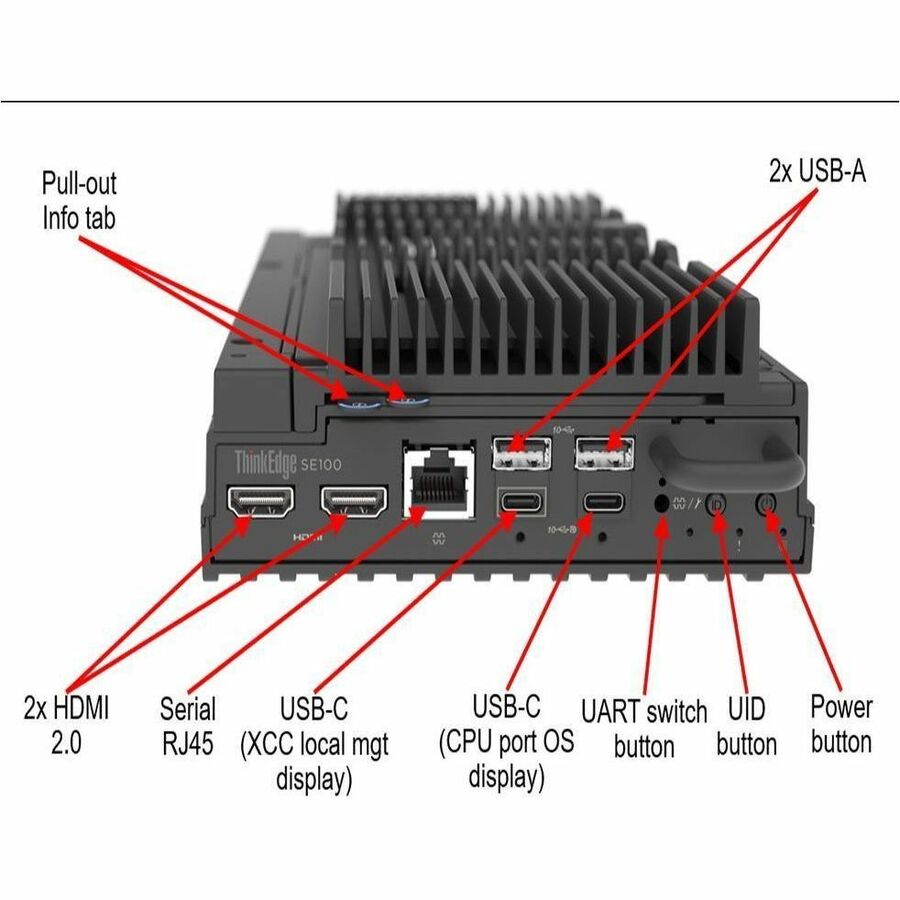

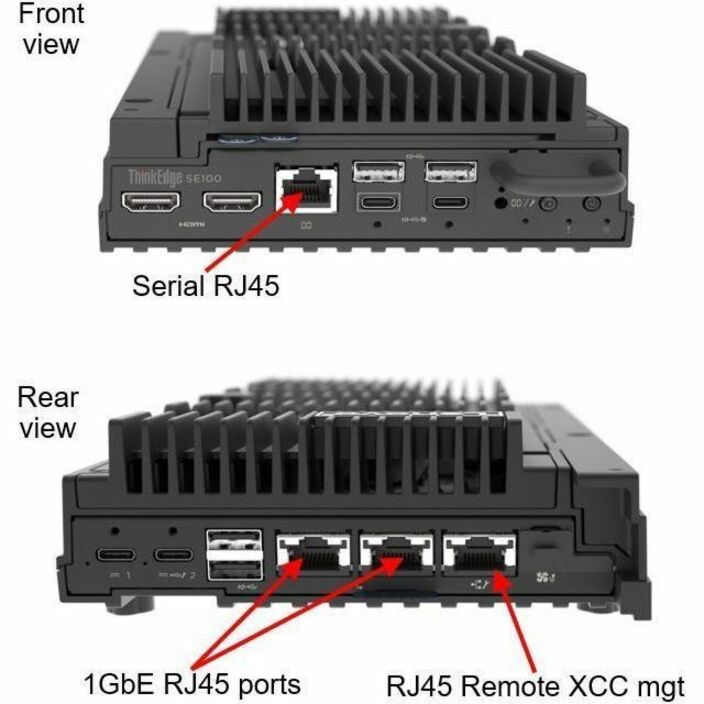

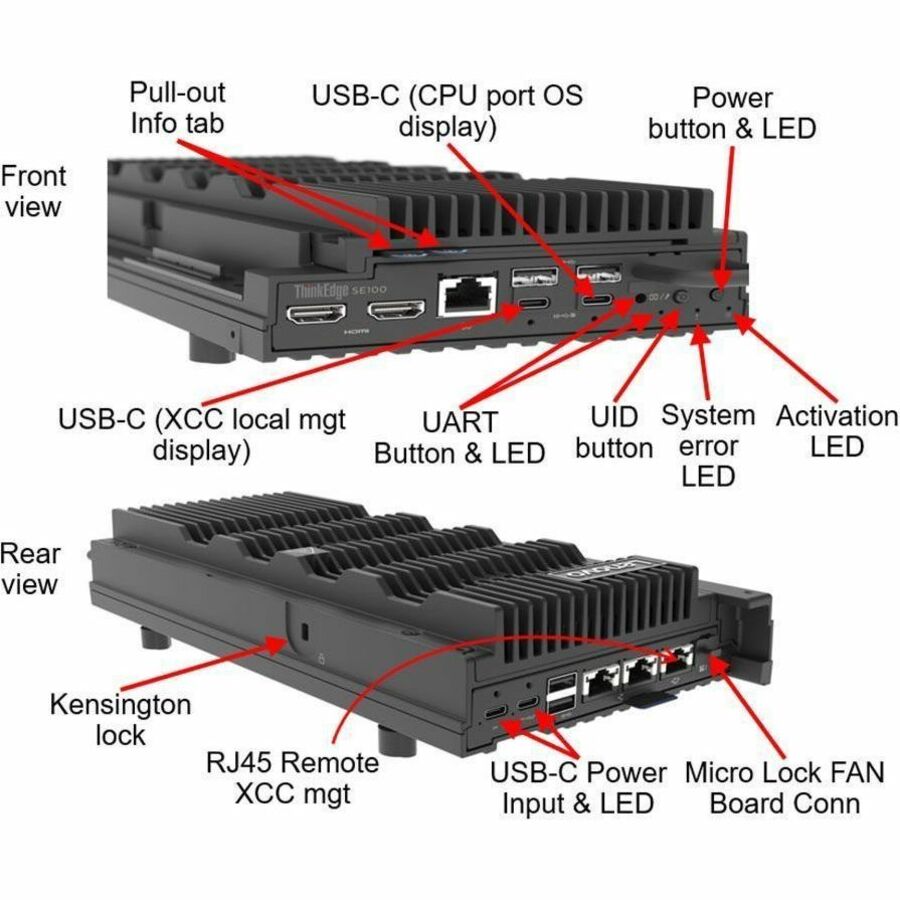

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	8
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Remote Management	Yes
Remote Management Controller	XClarity Controller 2 (XCC2) Standard

Operating System

Operating System Supported

Ubuntu 24.04 LTS x64
Windows 11 Enterprise
Windows 11 IoT Enterprise

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	1
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	140 W
Power Source	AC Adapter

Physical Characteristics

Rack Height	1U
Height	2.1"
Width	5.6"
Depth	10.9"
Weight (Approximate)	5.20 lb

Miscellaneous

Package Contents	Thinkedge SE100 7DGR1001NA Server Power Adapter Power Cord
Security Features	ThinkShield Key Vault Portal web site for security management. Trusted Platform Module, supporting TPM 2.0. Nationz TPM 2.0 not supported. TPM2.0 for customers in China only is disabled. No front security bezel. Kensington cable slot, however it is not with lock position switch feature. No support for G sensor for motion detection, intrusion detection, self-encrypting drive (SED) support, power-on password, administrator's password.
Environmentally Friendly	Yes
Environmental Certification	GREENGUARD China Environmental Labeling Program (CELP)
Energy Efficiency Certification	China Energy Conservation Program (CECP)
Energy Efficiency Compliance	Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
