THINKSYSTEM SR630 V2 4316 32GB

Name: THINKSYSTEM SR630 V2 4316 32GB
Brand: LENOVO
SKU: 6569BR
Price: 5306.55 USD
Availability: InStock

LENOVO

PCN#

6569BR

MFG#

7Z71A096NA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$5,306.55

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Estimated Shipment:

Product Highlights:

Intel C621A Chip
2 Processor Support
8 TB RAM Support
TruDDR4 Up to 16 MB Graphic Card
Gigabit Ethernet
8 x Total Bay(s)
8 x SFF Bay(s)
Hot Swappable Bays
2 x 1100 W
Redundant Power Supply
Intel Optane Memory Ready

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationThree-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).

Shipping Weight: 55 lbs.

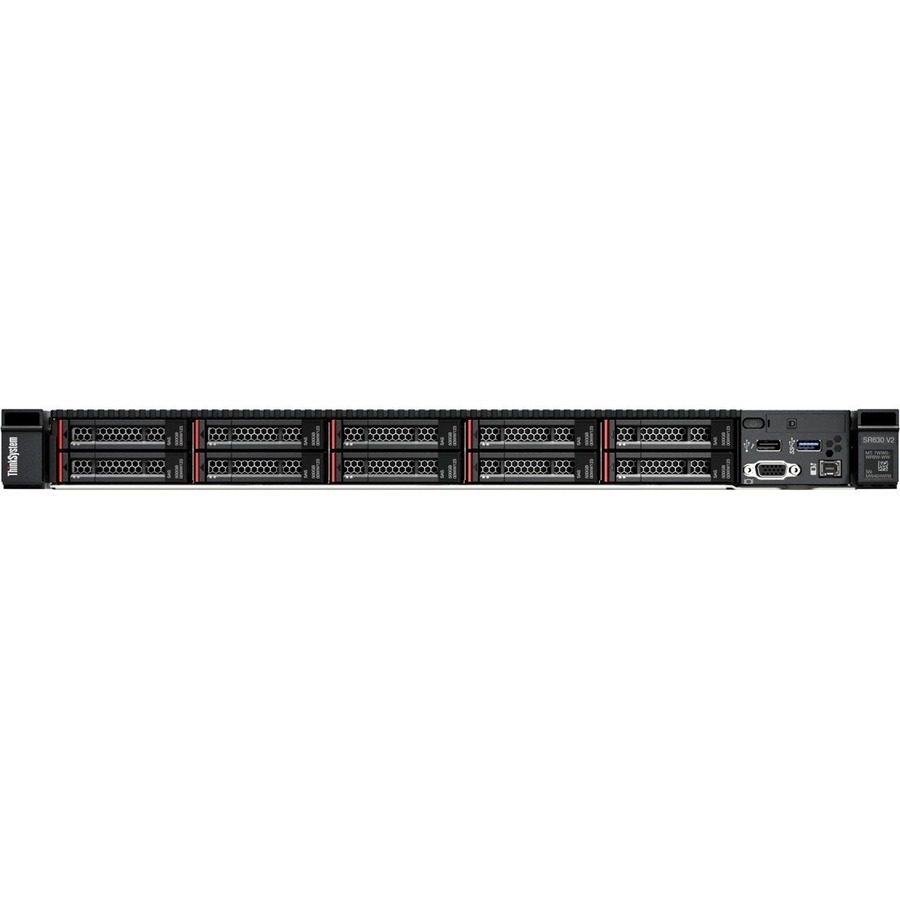

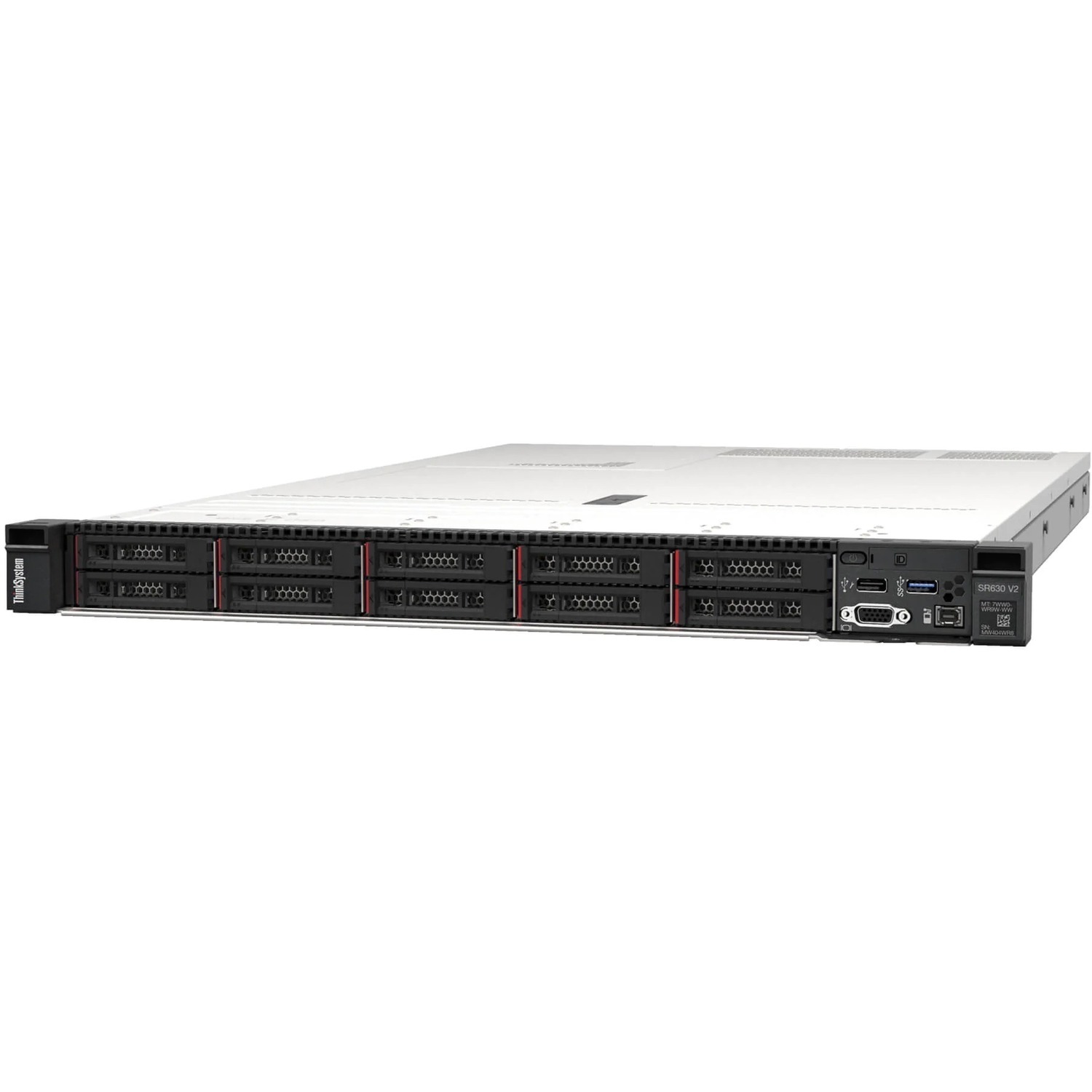

Lenovo ThinkSystem SR630 V2 7Z71A096NA 1U Rack Server - 1 Xeon Silver 4316 2.30 GHz - 32 GB RAM - 1.92 TB HDD - (1 x 1.92TB) HDD Configuration - 12Gb/s SAS Controller

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	7Z71A096NA
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Line	ThinkSystem
Product Series	SR630 V2
Product Model	7Z71A096NA
Product Name	ThinkSystem SR630 V2 7Z71A096NA Server
Marketing Information	The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Product Type	Server

Processor

Number of Processors Supported	2
Number of Processors Installed	1
Processor Type	Xeon Silver
Processor Generation	3rd Gen
Processor Model	4316
Processor Core	Icosa-core (20 Core)
Processor Speed	2.30 GHz
Cache	30 MB

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Standard Memory	32 GB
Maximum Memory Supported	8 TB
Memory Technology	TruDDR4
Memory Clock Speed	3.20 GHz
Error Checking	ECC
Total Number of Memory Slots	32
Number of Occupied Memory Slots	1
Intel Optane Memory Ready	Yes
Signal Processing	Registered (Buffered)

Storage

Number of Hard Drives	1
Total Hard Drive Capacity	1.92 TB
Hard Drive Configuration	1 x 1.92TB

Controllers

Controller Type	12Gb/s SAS
Controller Model	930-8i
RAID Supported	Yes

I/O Expansions

Number of Total Expansion Bays	8
Number of Internal 2.5" Bays	8
Number of SFF Bays	8
Hot Swappable Bays	Yes
Total Number of Expansion Slots	2
PCI Express Details	2x LP Gen4

Display & Graphics

Graphics Memory Capacity

16 MB

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Total Number of USB Ports	6
Number of USB 2.0 Ports	1
Network (RJ-45)	Yes
VGA	Yes
Number of VGA Ports	2
Remote Management	Yes
Remote Management Controller	XClarity Controller (XCC) Enterprise

Operating System

Operating System Supported

Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9
Red Hat Enterprise Linux 8.2
Red Hat Enterprise Linux 8.3
Red Hat Enterprise Linux 8.4
Red Hat Enterprise Linux 8.5
Red Hat Enterprise Linux 8.6
Red Hat Enterprise Linux 9.0
SUSE Linux Enterprise Server 15 SP3
SUSE Linux Enterprise Server 12 SP5
SUSE Linux Enterprise Server 15 SP2
SUSE Linux Enterprise Server 15 SP4
Red Hat Enterprise Linux 9.1
Red Hat Enterprise Linux 9.2
Red Hat Enterprise Linux 9.3
Red Hat Enterprise Linux 8.7
Red Hat Enterprise Linux 8.8
Red Hat Enterprise Linux 8.9
Ubuntu 18.04 LTS x64
Ubuntu 20.04 LTS x64
Ubuntu 22.04 LTS x64
Red Hat Enterprise Linux 8.10
Red Hat Enterprise Linux 9.4
SUSE Linux Enterprise Server 15 SP5
Ubuntu 24.04 LTS x64

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Plug/Connector Type	C13/C14
Maximum Power Supply Wattage	1100 W
Redundant Power Supply	Yes
Hot Swappable Power Supply	Yes
Power Source	Power Supply

Physical Characteristics

Form Factor	Rack
Rack Height	1U
Height	1.7"
Width	17.3"
Depth	30.4"
Weight (Approximate)	45.86 lb

Miscellaneous

Package Contents	ThinkSystem SR630 V2 7Z71A096NA Server Toolless Slide Rail Kit
Security Features	Power-on Password Administrator's Password Trusted Platform Module (TPM), supporting TPM 2.0
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	China Environmental Labeling Program (CELP) Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze) GREENGUARD
Energy Efficiency Certification	China Energy Conservation Program (CECP) ENERGY STAR 3.0 ENERGY STAR 4.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
