75IN LCD 3840X2160 4K MNTR 4000NIT 3200 NIT MIN WEBOS 6.0 SPKR

by
LG
PCN#
SB2222
MFG#
75XS4P-B
$9,333.00
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 75"
  • In
  • plane Switching (IPS

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 111 lbs.

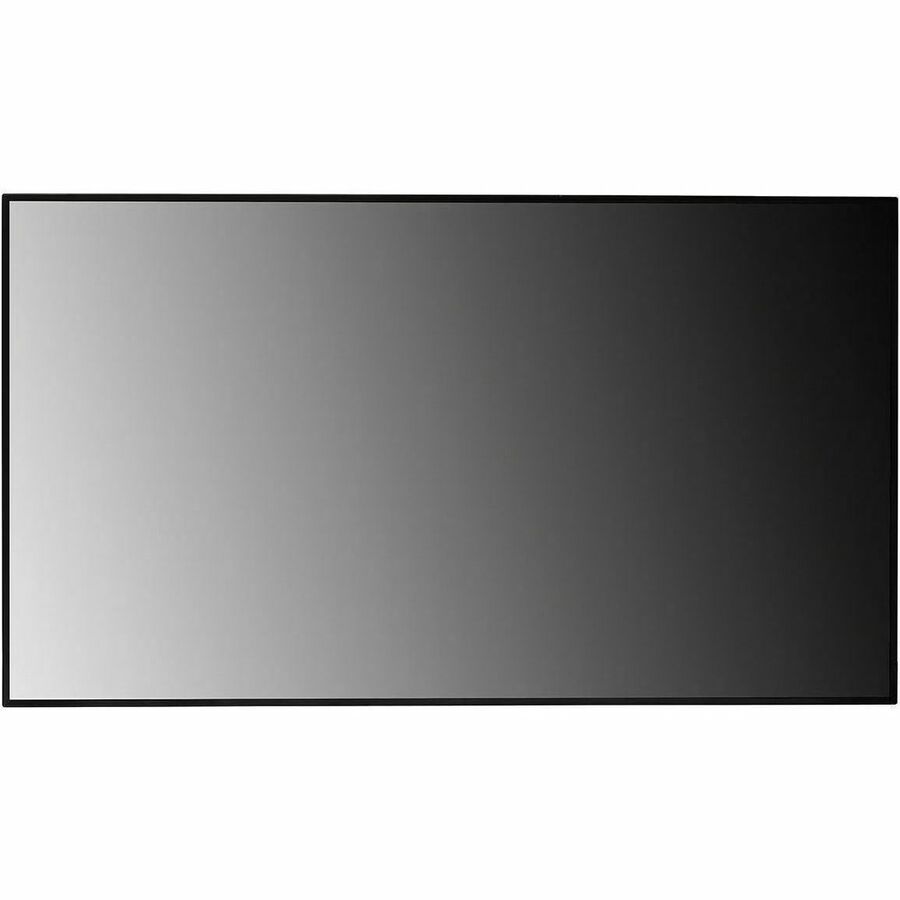

LG 75'' FHD High Bright Window Facing Display with Anti-Discoloration Technology
Tech Specs
Specifications

Manufacturer

LG Electronics

Manufacturer Part Number

75XS4P-B

Manufacturer Website Address

https://solutions.lg.com/us

Brand Name

LG

Product Model

75XS4P-B

Product Name

75'' FHD High Bright Window Facing Display with Anti-Discoloration Technology

Marketing Information

World's First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world's first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent 'screen-yellowing', while safeguarding display quality and performance stability.

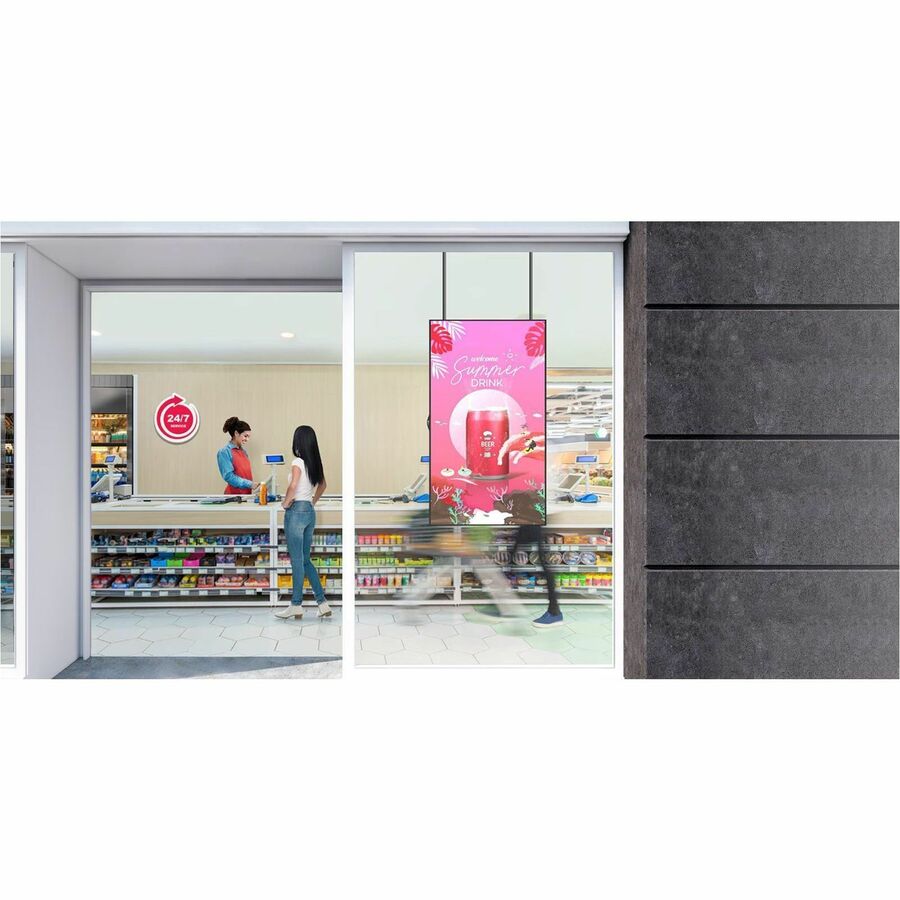

Window-facing Display

LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window

A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

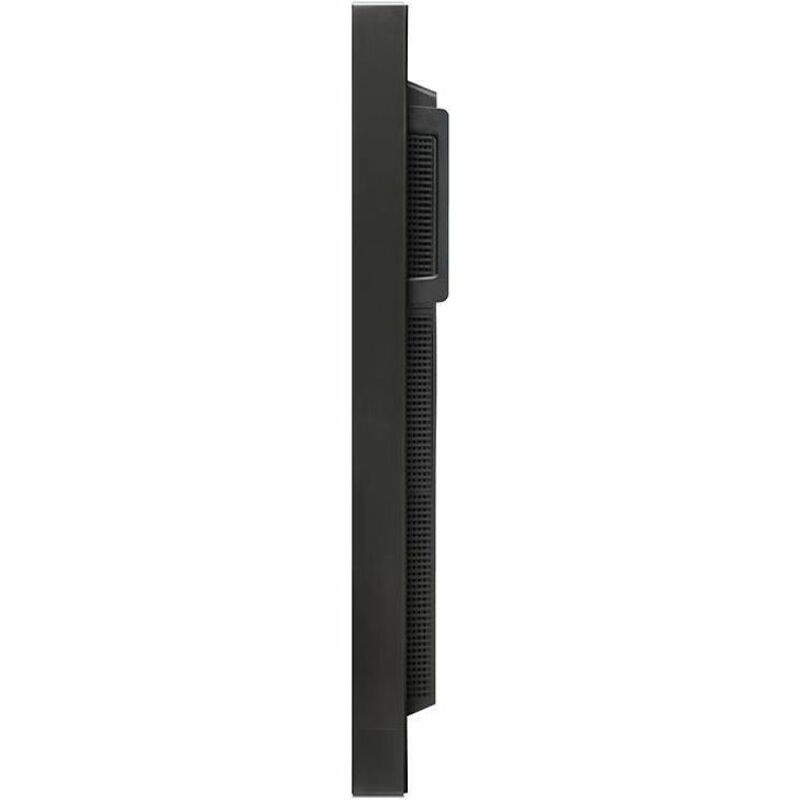

Optimized Design for Space Utilization

With its compact size and slim design, the XS4P integrates smoothly into any store's interior. Its bezel is thinner than conventional models, enabling closer installation to windows and offering an improved visual experience for customers. Additionally, standard UHD signage can be attached to the back of the XS4P, allowing it to function as a double-sided display.

High-performance with

webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)

A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG's web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Convenient Installation with Calculated Precision

The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.


Product Type

Digital Signage Display
Technical Information

Features

  • Picture by Picture (PbP)
  • Picture in Picture
  • Smart Energy Saving
  • 3% Haze
  • Quarter Wave Plate (QWP)
  • FailOver
  • Conformal Coating (Power Board)
  • Carrying Handle
  • Direct Sunlight Visibility
  • Control Manager
  • Auto Set ID
  • Scan Inversion
  • Backlight Sync
  • Group Manager
  • Booting Logo Image
  • Tile Mode Setting (15 × 15)
  • SNMP Manageable
  • HDMI (CEC)
  • ConnectedCare
  • Daisy Chain Connectivity
  • Gyroscopic Sensor
  • Brightness Sensor
  • Cooling Fan
  • Temperature Sensor
  • Wake on LAN (WOL)
  • External Input Rotation

On Screen Display (OSD) Languages

  • Arabic
  • Chinese
  • Czech
  • Danish
  • Dutch
  • English
  • Finnish
  • French
  • German
  • Greek
  • Italian
  • Japanese
  • Korean
  • Norwegian
  • Polski
  • Brazilian Portuguese
  • Portuguese (Europe)
  • Russian
  • Simplified Chinese
  • Spanish
  • Swedish

Bezel Width

0.54"

HDCP Version

2.2

Panel Technology

In-plane Switching (IPS-M+) Technology

Operation Hours

24 Hours/7 Days

Maximum Heat Generation

2844.4 kJ

Content Synchronization

RS-232C

Embedded CMS

Local Contents Scheduling

Image Sticking Minimization (ISM) Method

Yes
Display & Graphics

Viewable Screen Size

75"

Multi-touch Screen

No

Display Resolution

3840 x 2160

Response Time

8 ms

Aspect Ratio

16:9

Horizontal Viewing Angle

178°

Vertical Viewing Angle

178°

Orientation

Landscape/Portrait

Maximum LED Life

5.7 Year
Audio

Speakers

No

RMS Output Power

20 W
Video

Standard Refresh Rate

60 Hz

Dynamic Contrast Ratio

500,000:1

Native Contrast Ratio

1,200:1

Color Depth

10-bit

Brightness

4000 Nit

Color Gamut

68% NTSC
Network & Communication

Wireless LAN

Yes

Bluetooth

Yes
Interfaces/Ports

Network (RJ-45)

Yes

Audio Line In

No

Audio Line Out

No

Number of USB 2.0 Ports

1

Number of HDMI Inputs

2

USB Type-C

No

DisplayPort Output

Yes

RS-232C Input

Yes

RS-232C Output

Yes

Number of Network (RJ-45) Ports

1

Number of DisplayPort Outputs

1

DVI-D In

No

DisplayPort In

Yes

Infrared Output

Yes
Software

Operating System

webOS 6.0
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Power Consumption

790 W

Off-Mode Power Consumption

500 mW

Power Consumption (DPM)

Less Than 0.5W
Environmental Conditions

Minimum Operating Humidity

10%

Maximum Operating Humidity

80%
Physical Characteristics

Bezel Color

Black

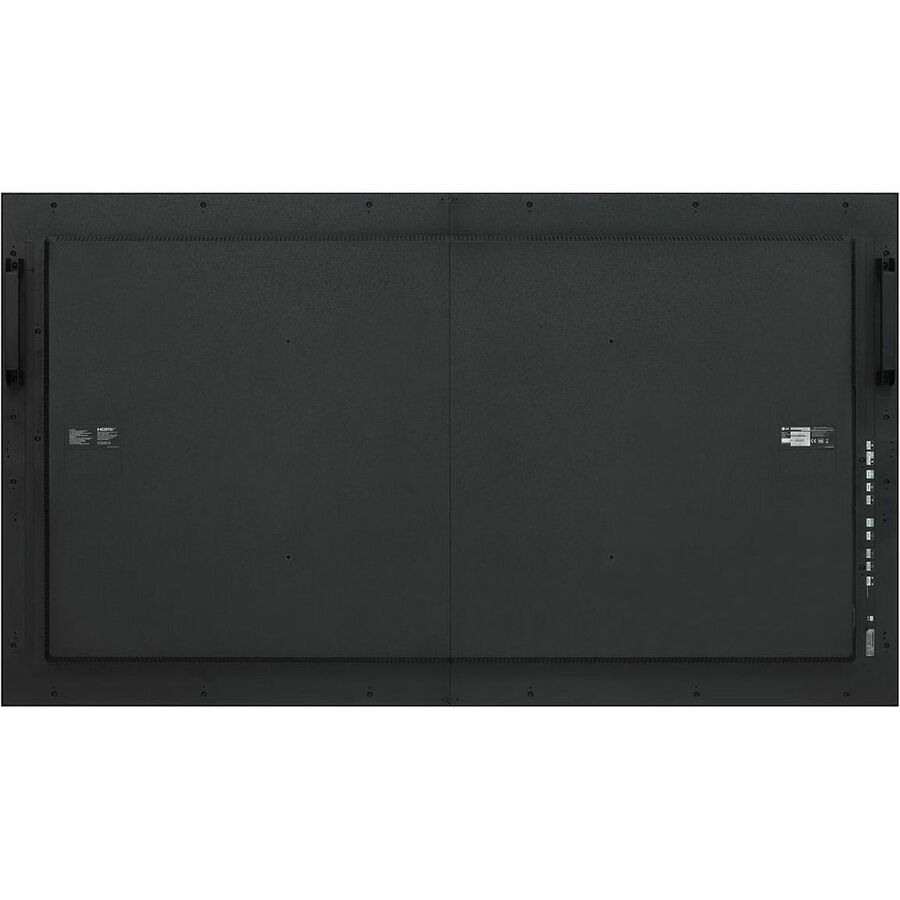

VESA Mount Standard

600 x 400

Height

37.7"

Width

66.1"

Depth

4.1"

Weight (Approximate)

87.30 lb
Miscellaneous

Package Contents

  • Remote Controller
  • Power Cord
  • HDMI Cable
  • Manual (EIG, IG)
  • IR Receiver (w/ Ambient Light Sensor)
  • RS-232C Adapter
  • IR Sheet
  • Additional Information

  • Surface Treatment (Anti Glare) : No
  • Anti-Reflective : No
  • Transparency : No
  • Internal Memory : 16 GB (eMMC)
  • Crestron Certified Compatibility : No
  • Cisco Certified Compatibility : No
  • PoE Type : No
  • BTU Heat Generation (Typ.) : 2,559 BTU
  • IR In (3.5 mm) : No
  • Power Loop Out : No
  • HDMI Out : No
  • Power Loop In : No
  • RGB In : No
  • Power In (DC From External PWR Box) : No
  • Anti-Reflective Coating : No
  • Heater : No
  • Anti-Reflective Film : No
  • Heat Dissipation : No
  • OPS Power Built-in : No
  • OPS Compatible : No
  • Idiom® : No
  • UL Certification : No
  • DisplayPort In : Yes (x1) HDCP 2.2/1.3
  • External Speaker Out (3.5 mm) : Yes (x1) L/R
  • RS-232C In (3.5 mm 4-pin) : Yes
  • RS-232C In (D-sub 9-pin) : No
  • RS-232C Out (3.5 mm) : Yes (x1)
  • Electrical:Power Consumption (Typ.):750 W (Full White), 405 W (IEC 62087)
  • Power Type : Built-in Power
  • Operation Temperature : 32°F to 104°F / 0°C to 40°C (w/o Direct Sunlight), 32°F to 86°F / 0°C to 30°C (Direct Sunlight)
  • Local Key Operation: Yes
  • Certifications & Standards

  • FCC: EMC Class A
  • CE Marking (Regulatory): Yes
  • Energy Star

    No

    Environmentally Friendly

    Yes

    Environmental Certification

    ErP

    Energy Efficiency Compliance

    Energy-related Products Directive (ErP)

    TAA Compliant

    No

    Compatible Software

    • SuperSign CMS
    • SuperSign Control+
    Warranty

    Limited Warranty

    3 Year
