LA FTZ TRANSP. OLED TOUCH SIGNAGE 31IN 200/600NITS18/7 3 HAZE

by
LG ELECTRONICS FTZ LA
PCN#
ZS2424
MFG#
30EW5TP-A.AUS
$5,806.95
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 30"
  • OLED
  • Touchscreen

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 11 lbs.

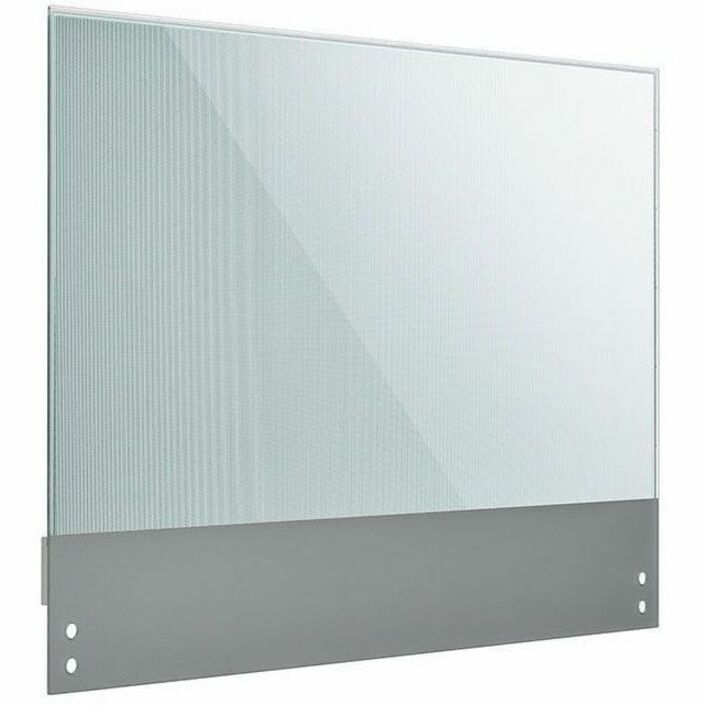

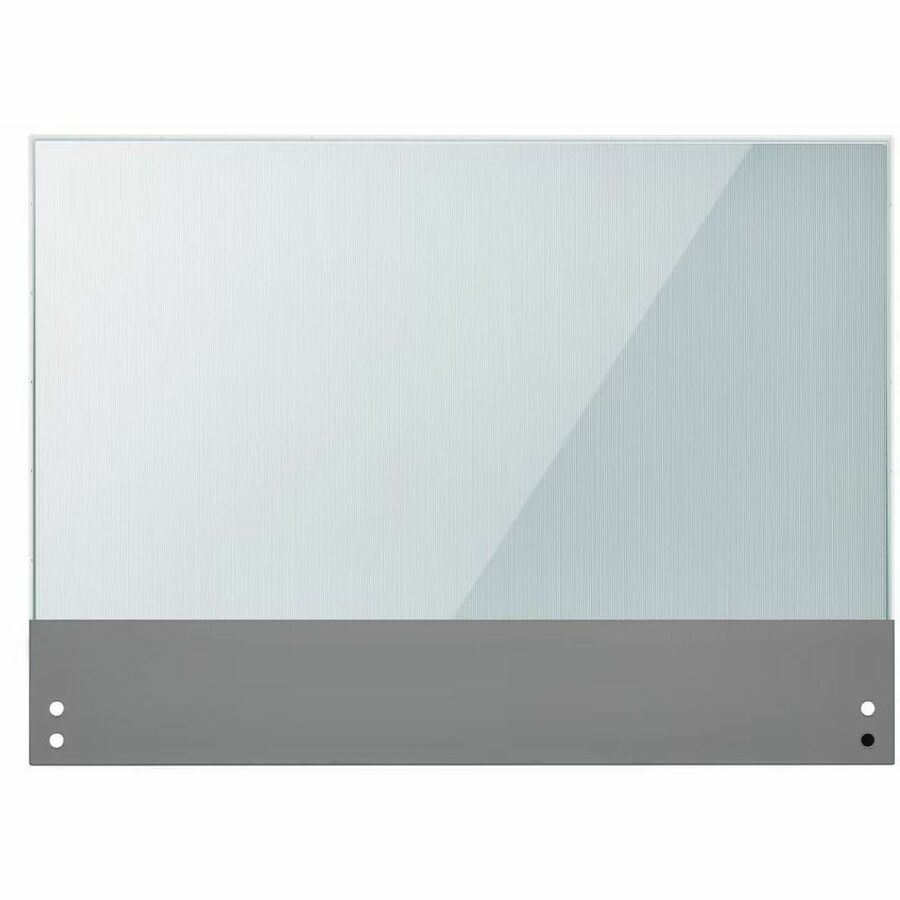

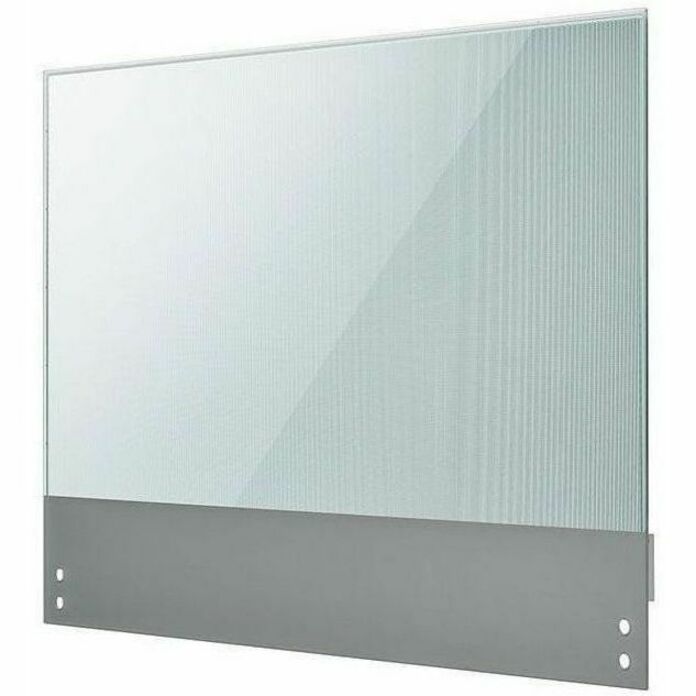

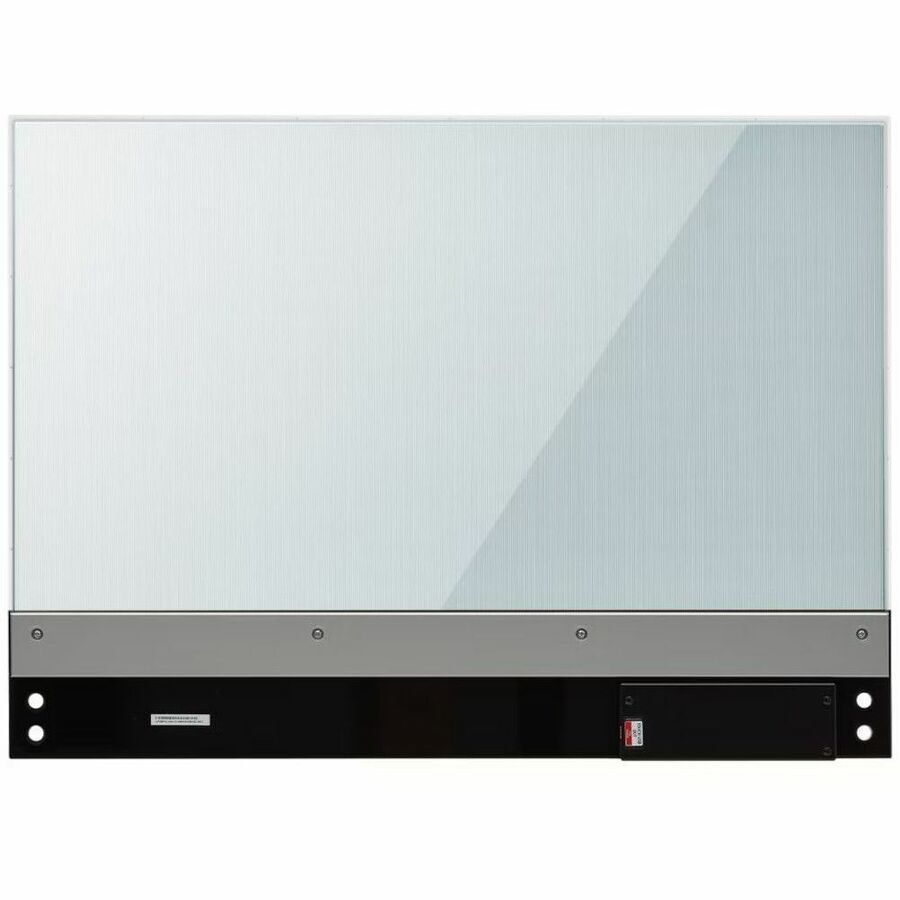

LG 30EW5TP-A Transparent OLED Touch Signage
Tech Specs
Specifications

Manufacturer

LG Electronics

Manufacturer Part Number

30EW5TP-A.AUS

Manufacturer Website Address

https://solutions.lg.com/us

Brand Name

LG

Product Model

30EW5TP-A

Product Name

30EW5TP-A Transparent OLED Touch Signage

Marketing Information

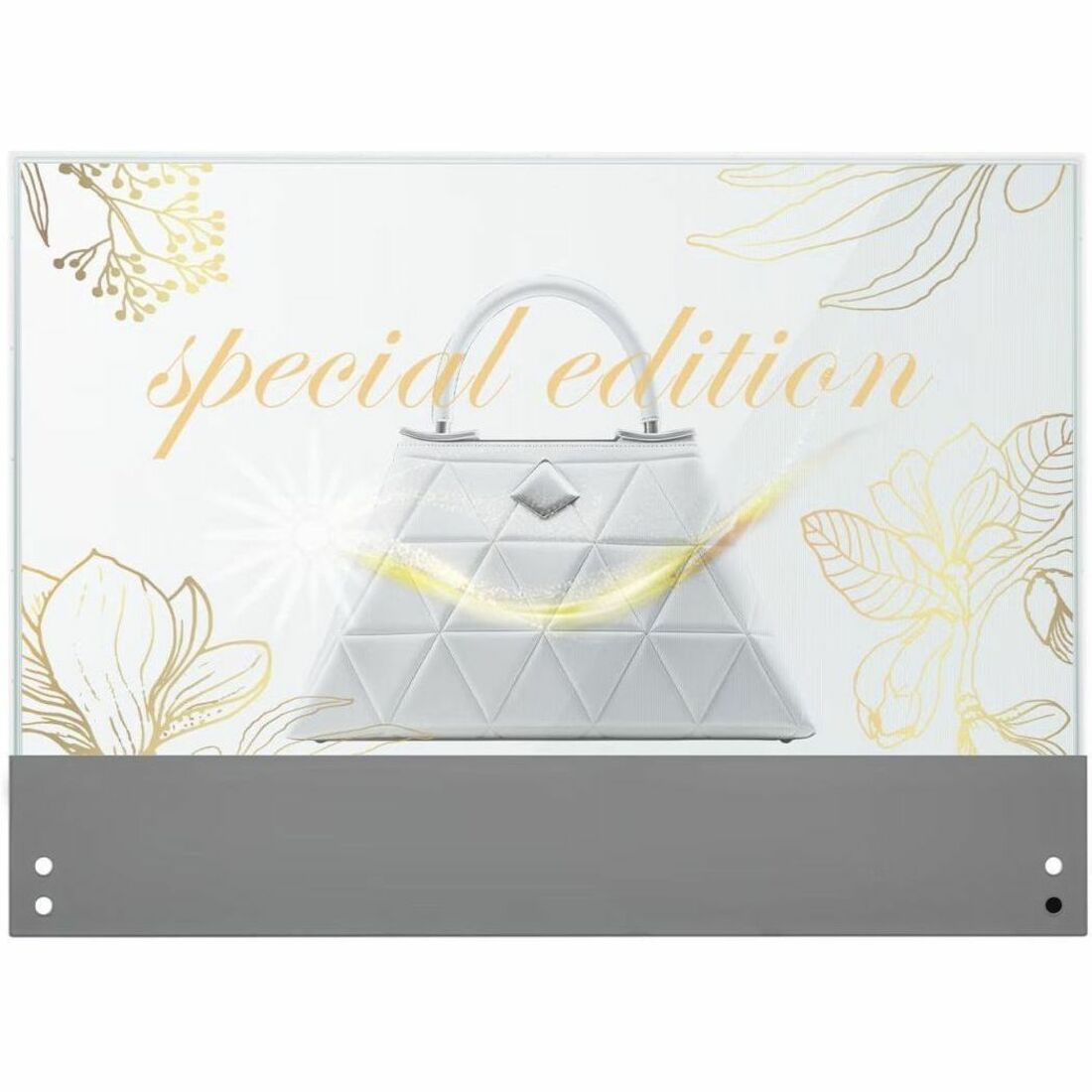

See the Unseen, LG Transparent OLED Signage | Accurate and Vivid Colors

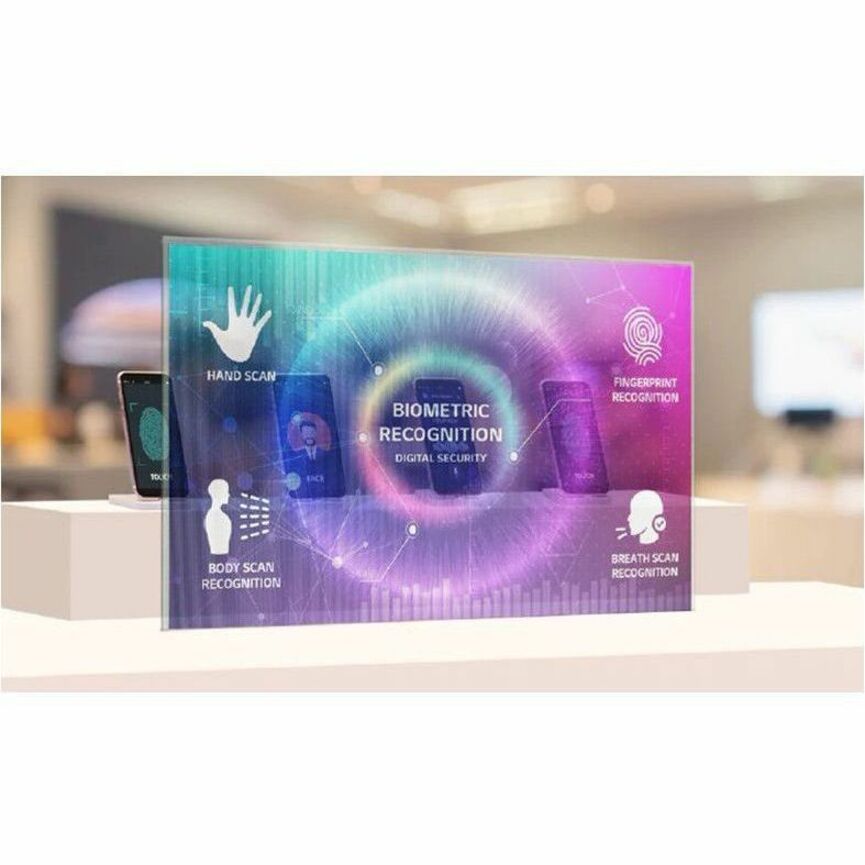

Featuring self-lighting pixels, the display maintains vivid colors and high contrast ratio even when the display becomes transparent. It brings content to life from wide viewing angles, and the content blends into its surroundings seamlessly and naturally.

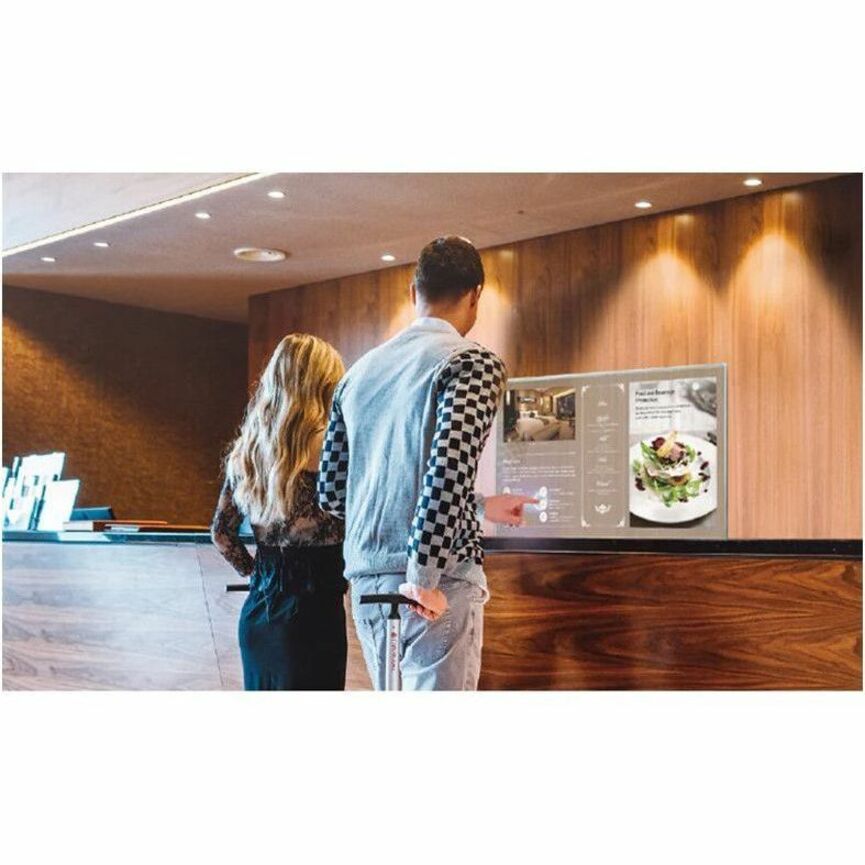

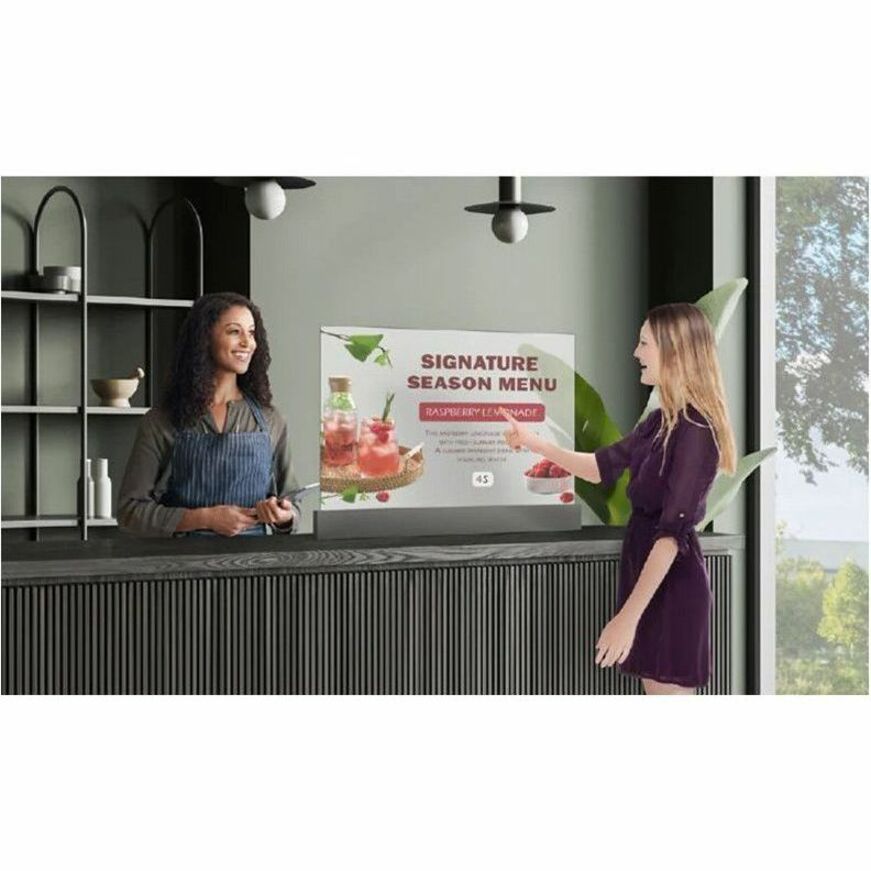

Intuitive P-Cap Touch

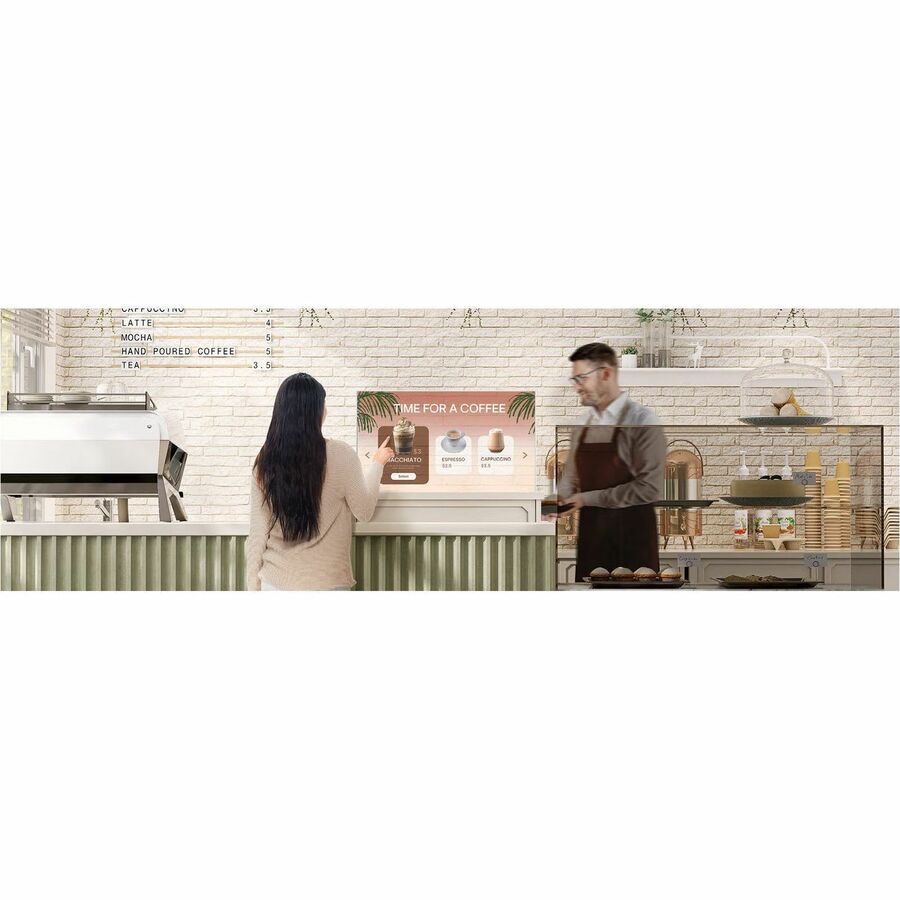

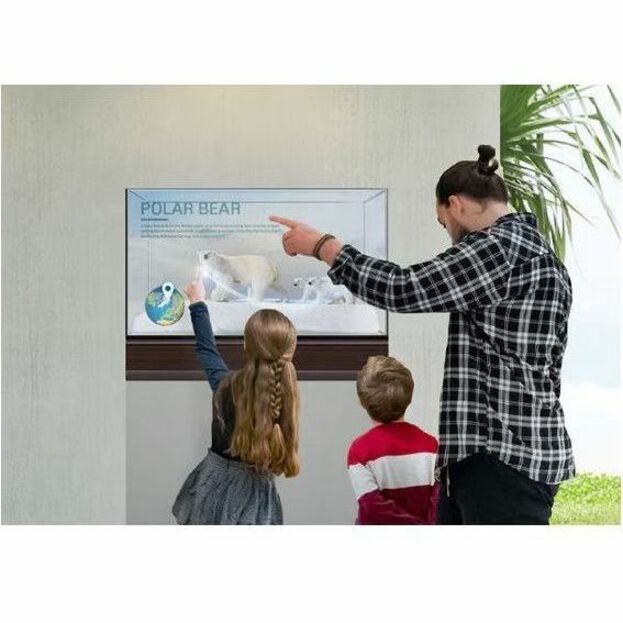

By adding P-Cap touch sensor film to the display, the utilization possibilities expand to various industries where customer interaction services are demanding. Users could enjoy its fascinating content using their fingertips.

High Transparency

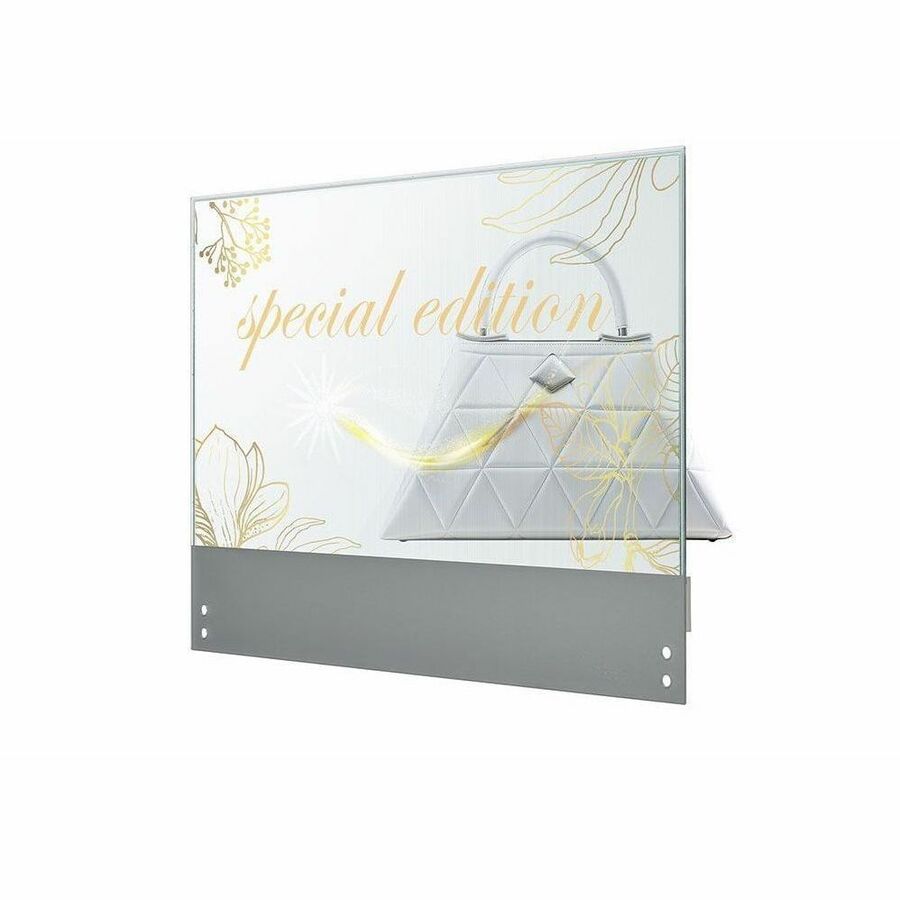

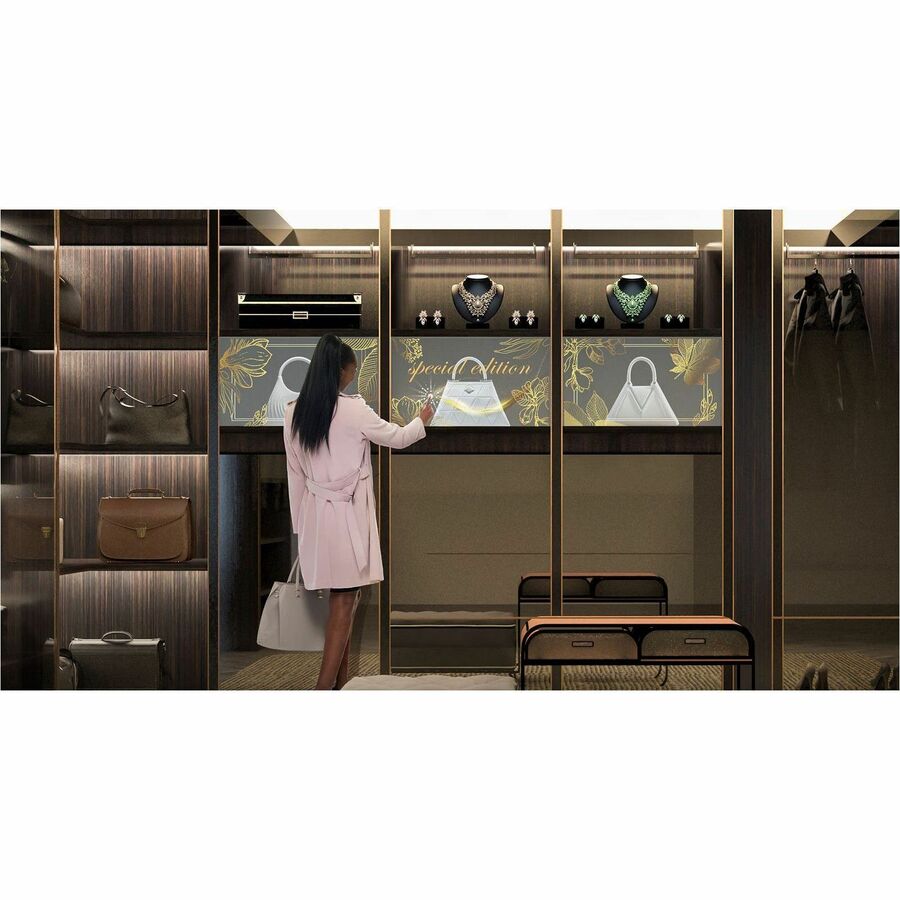

LG's OLED technology makes the Transparent OLED Touch Signage have slimmer structure without backlight unit nor a liquid crystal layer, achieving high transparency even with P-Cap touch film. While clearly showing objects behind the screen, it overlays the relevant information right before them.

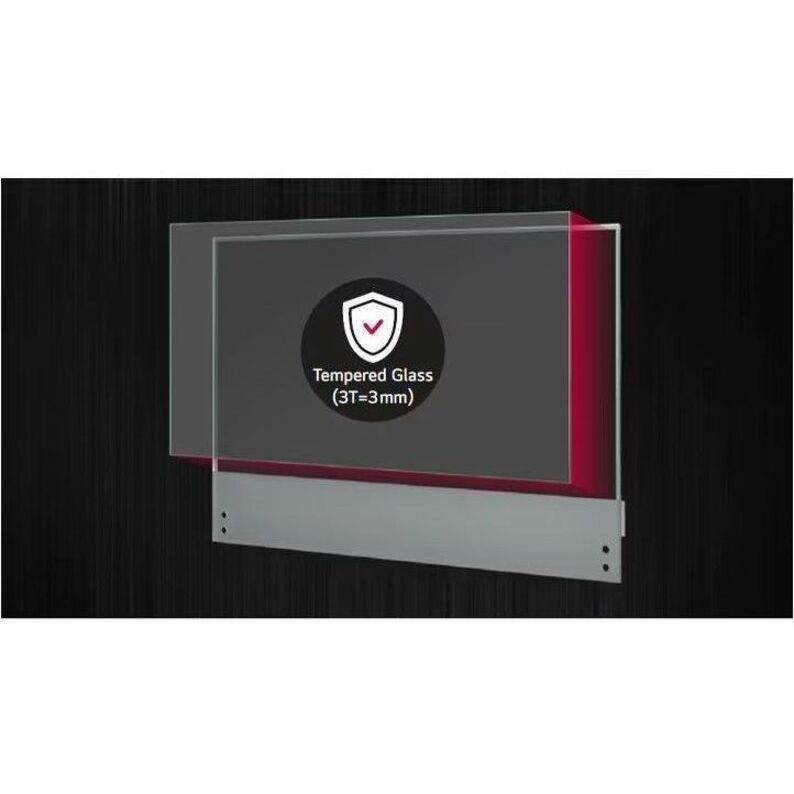

Protective Tempered Glass

Touching a display directly can cause damage or scratches. The tempered front glass protects product from such external impacts and its anti-shatter glass is designed to minimize customers' injuries.

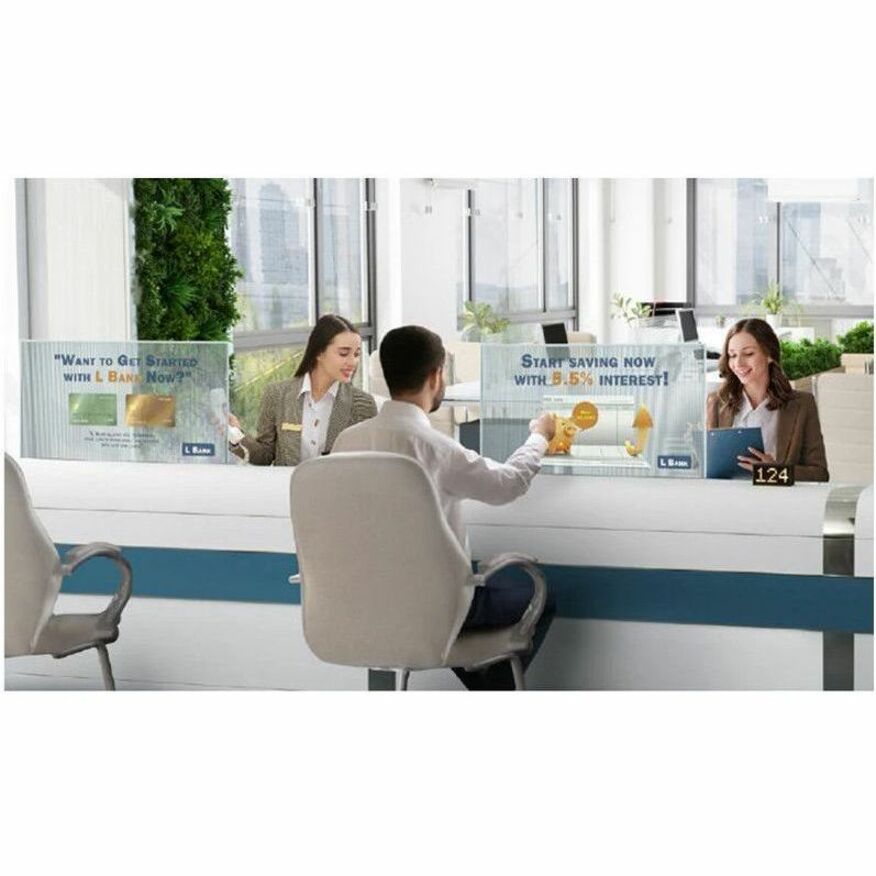

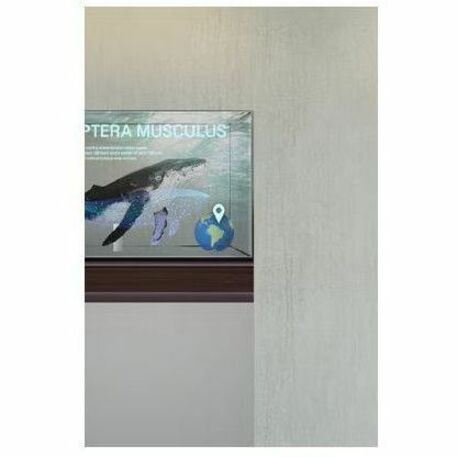

Enhanced Spatial Versatility

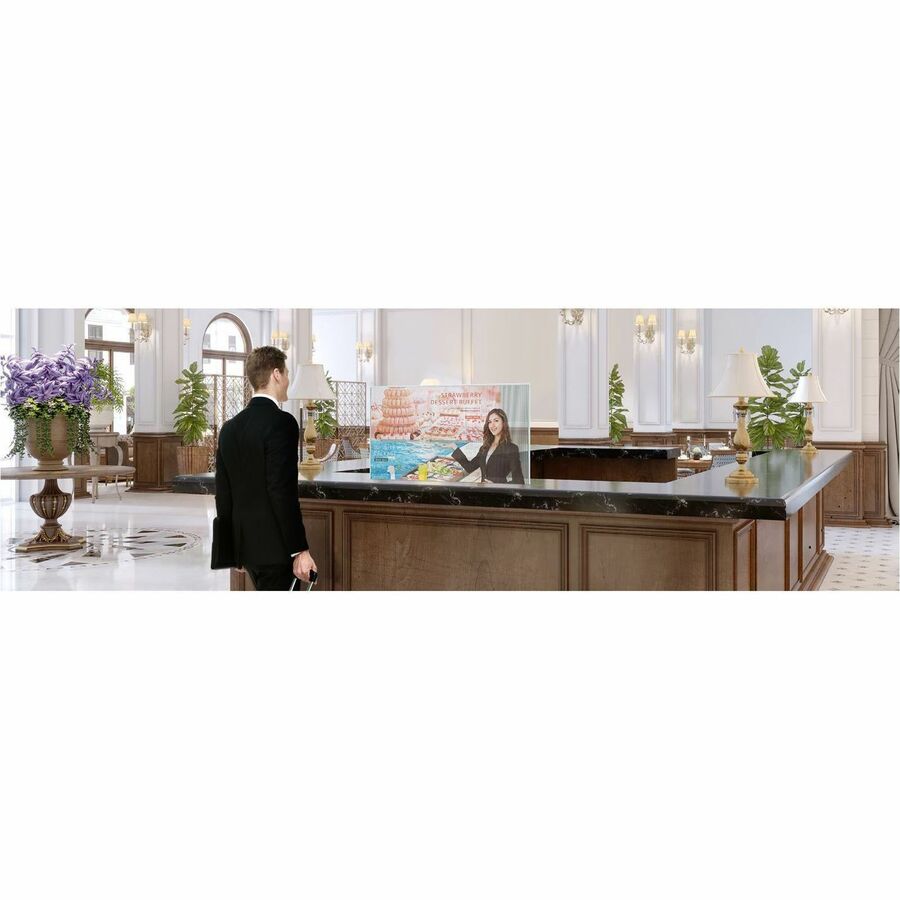

Experience the extraordinary with the state-of-the-art LG Transparent OLED Signage, which breaks down the barriers between the screen and surrounding environment, seamlessly connecting different spaces and people.

Product Type

Digital Signage Display
Technical Information

On Screen Display (OSD) Languages

  • English
  • French
  • German
  • Spanish
  • Italian
  • Korean
  • Simplified Chinese
  • Traditional Chinese
  • Brazilian Portuguese
  • Swedish
  • Finnish
  • Norwegian
  • Danish
  • Russian
  • Japanese
  • Portuguese (EU)
  • Dutch
  • Czech
  • Greek
  • Polski
  • Turkish
  • Arabic

Bezel Width (Bottom)

4.52"

Bezel Width (Top)

0.31"

Bezel Width (Left)

0.31"

Bezel Width (Right)

0.31"

Surface Hardness

5H

Panel Technology

OLED

Operation Hours

18 Hours/7 Days

Maximum Heat Generation

310.2 kJ
Display & Graphics

Number of Screens

1

Viewable Screen Size

30"

Screen Size Class

30"

Touchscreen

Yes

Multi-touch Screen

Yes

Number of Simultaneous Touchpoints

10

Display Resolution

1366 x 768

Response Time

100 µs

Aspect Ratio

16:9

Orientation

Landscape/Portrait

Maximum LED Life

3.4 Year
Video

Dynamic Contrast Ratio

200,000:1

Color Depth

10-bit

Brightness

600 Nit

Color Gamut

110% BT.709
Interfaces/Ports

USB

Yes

HDMI

Yes

DisplayPort

Yes

Serial

Yes

Number of USB 2.0 Ports

3

Number of HDMI Inputs

1

Number of DisplayPorts

1

DisplayPort Output

Yes

RS-232C Input

Yes

RS-232C Output

Yes

Digital Audio Optical Output

Yes

Number of Network (RJ-45) Ports

2

Number of Audio Line Out

1

Number of DisplayPort Outputs

1

DisplayPort In

Yes
Software

Operating System

  • webOS 7.5
  • Windows 10
  • Windows 11
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Off-Mode Power Consumption

500 mW
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

104°F (40°C)

Minimum Operating Humidity

10%

Maximum Operating Humidity

80%
Physical Characteristics

Bezel Color

Transparent

Height

19.5"

Width

26.8"

Depth

0.6"

Weight (Approximate)

9.26 lb

Front Glass Thickness

0.12"
Miscellaneous

Package Contents

  • 30EW5TP-A Transparent OLED Touch Signage
  • Remote Controller
  • 2 x Battery
  • Power Cord
  • QSG
  • IR receiver
  • Regulation Book
  • Phone to RS232C Gender
  • MCX/Harness Cables(3Mx4ea/3Mx2ea for connection between panel and Signage Box)
  • HDMI Cable(3M)
  • Micro to A type USB cable(3M, for connection between Touch and Signage box)
  • A to B type USB cable(Touch out)
  • Screw(M4xL22,12EA / M4 Nut 12EA / M3xL5.5(Silver)
  • M3xL5.5(Black) 8EA / Shield Cover Assy'
  • 4 x Rubber Damper
  • 2 x Touch Cable Holder
  • 2 x MCX Cable Holder

Energy Star

No

Energy Efficiency Compliance

Energy-related Products Directive (ErP)
Warranty

Limited Warranty

3 Year
