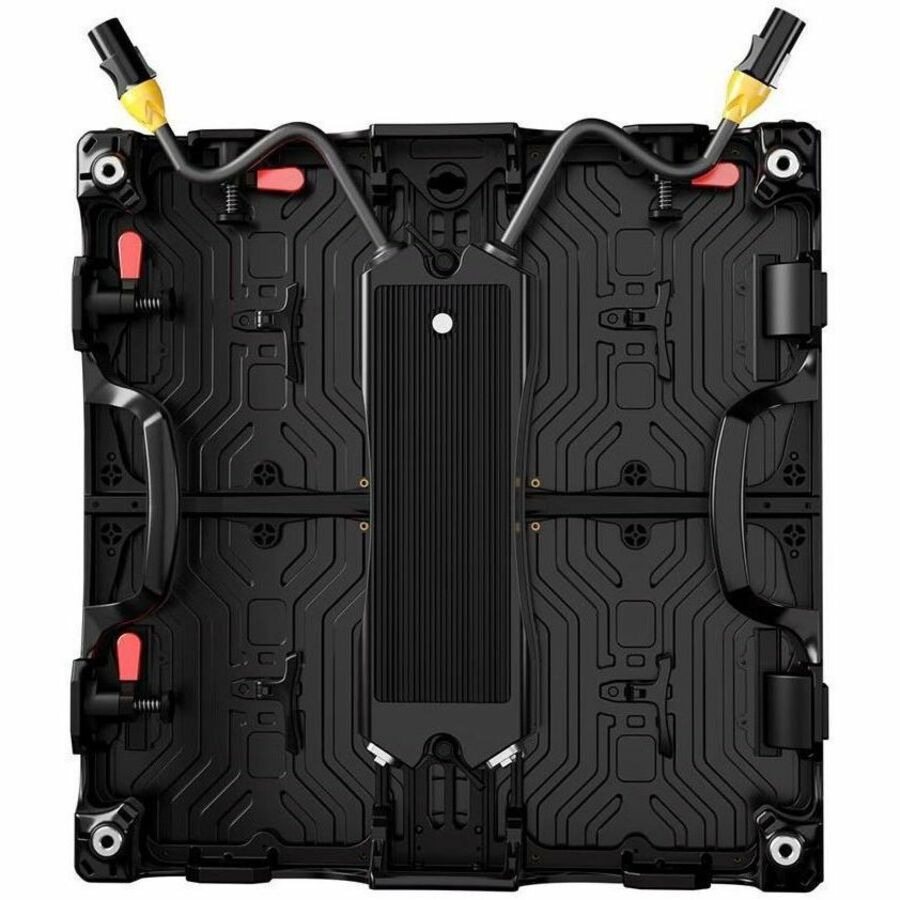

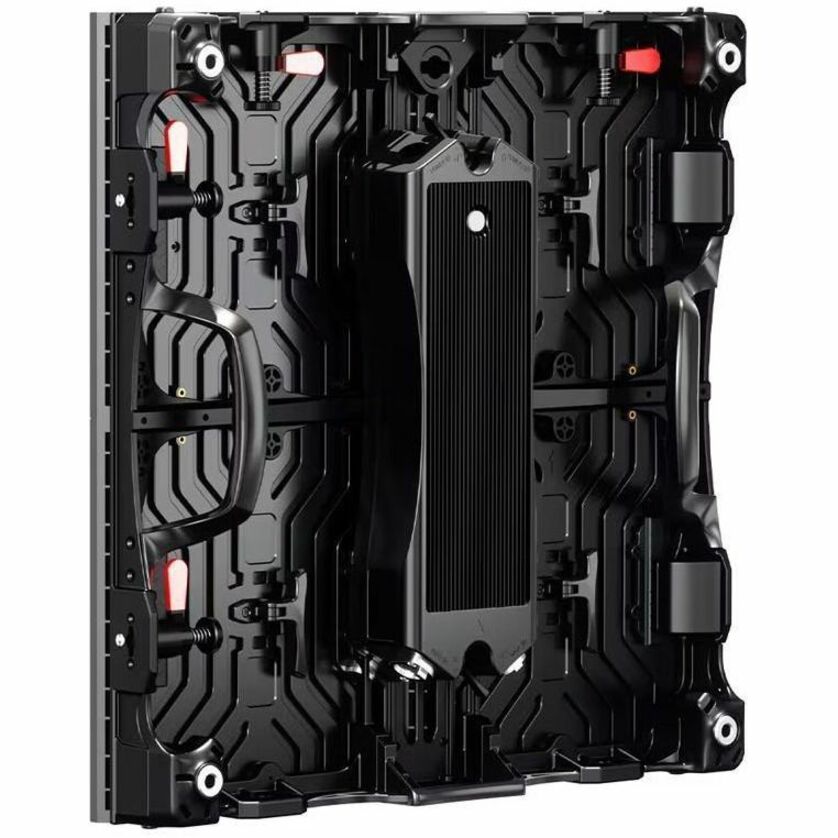

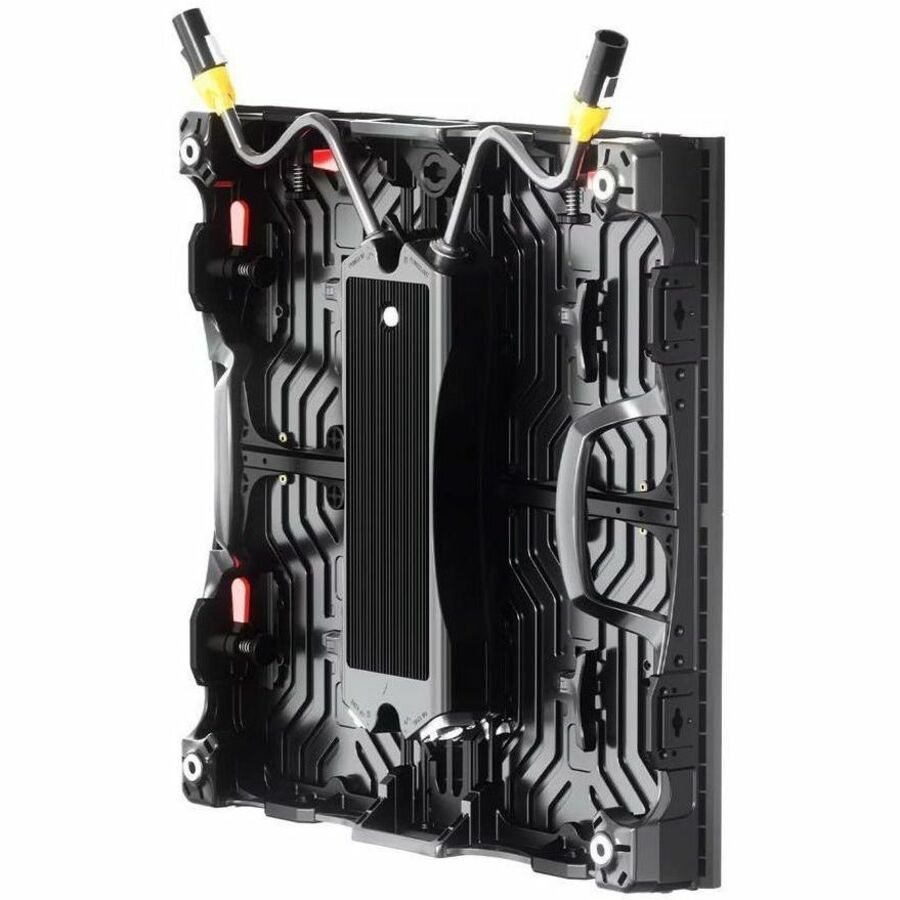

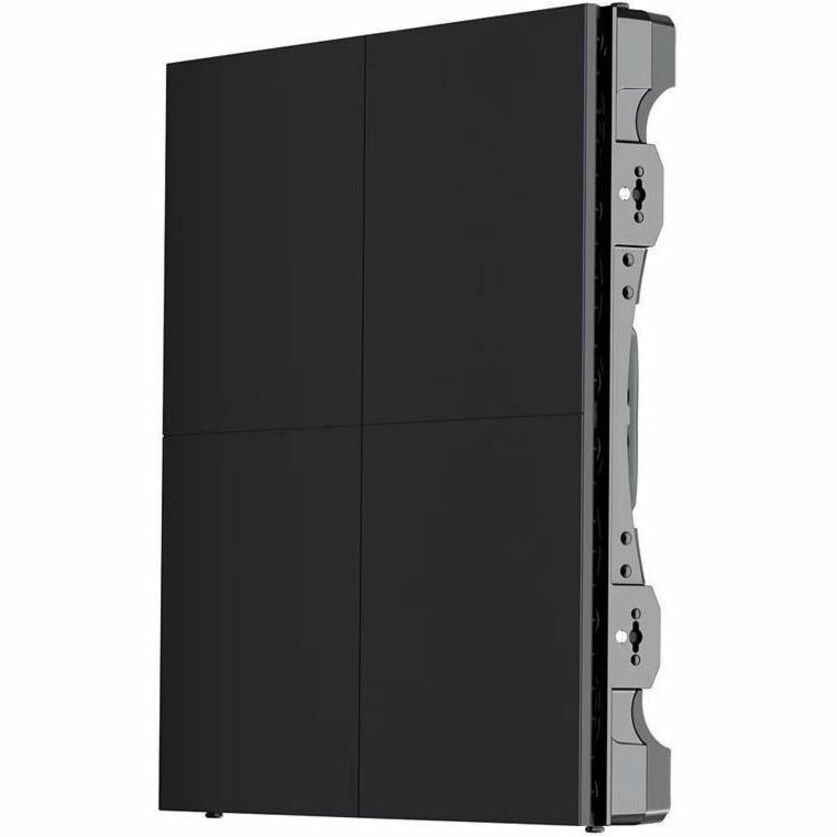

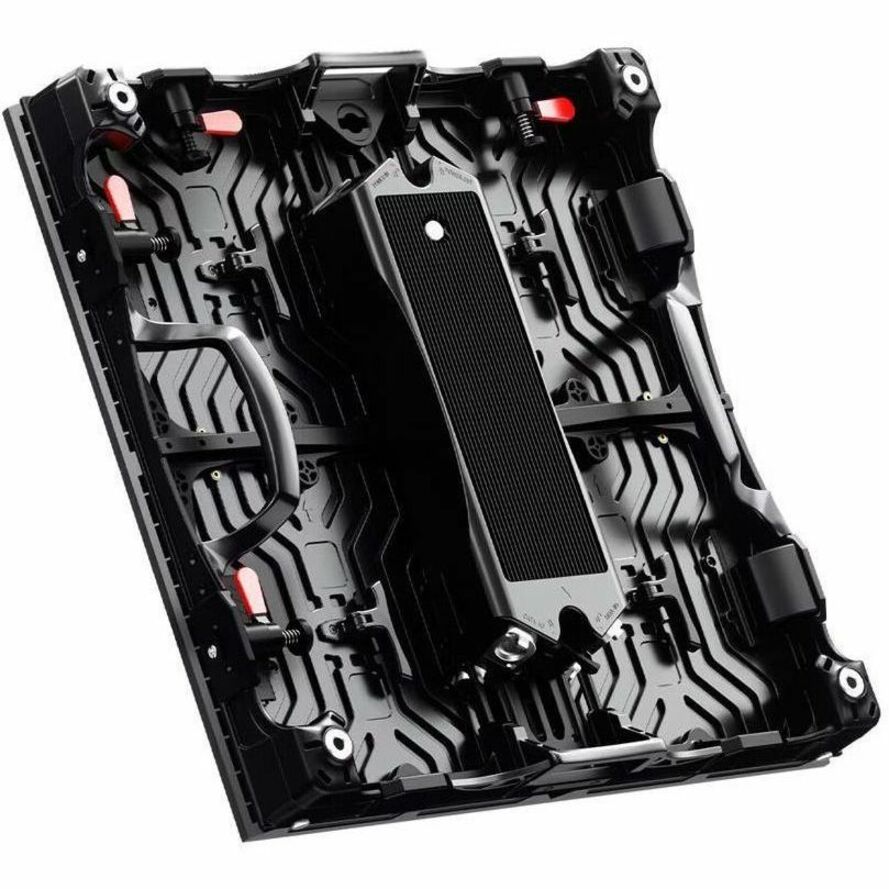

GSCF SERIES DVLED P2.60 192X192 STANDARD PANEL/CABINET

Name: GSCF SERIES DVLED P2.60 192X192 STANDARD PANEL/CABINET
Brand: LG
SKU: SQ8877
Price: 2506.1 USD
Availability: InStock

PCN#

SQ8877

MFG#

GSCF026-GP

$2,506.10

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

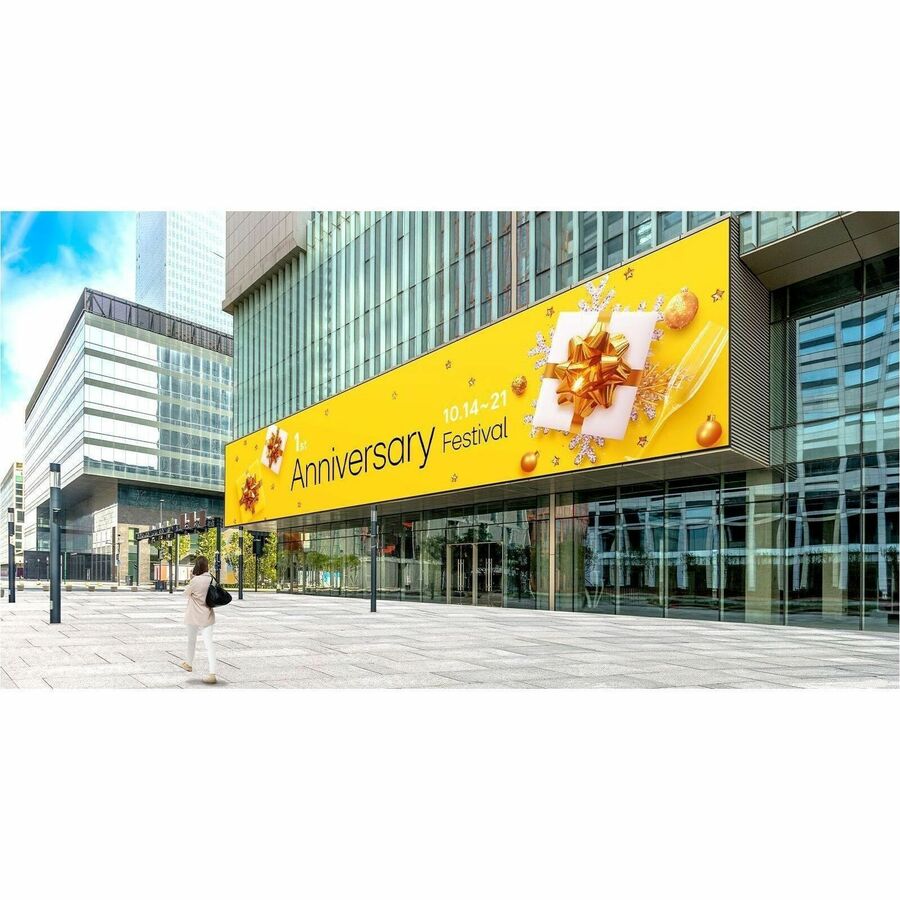

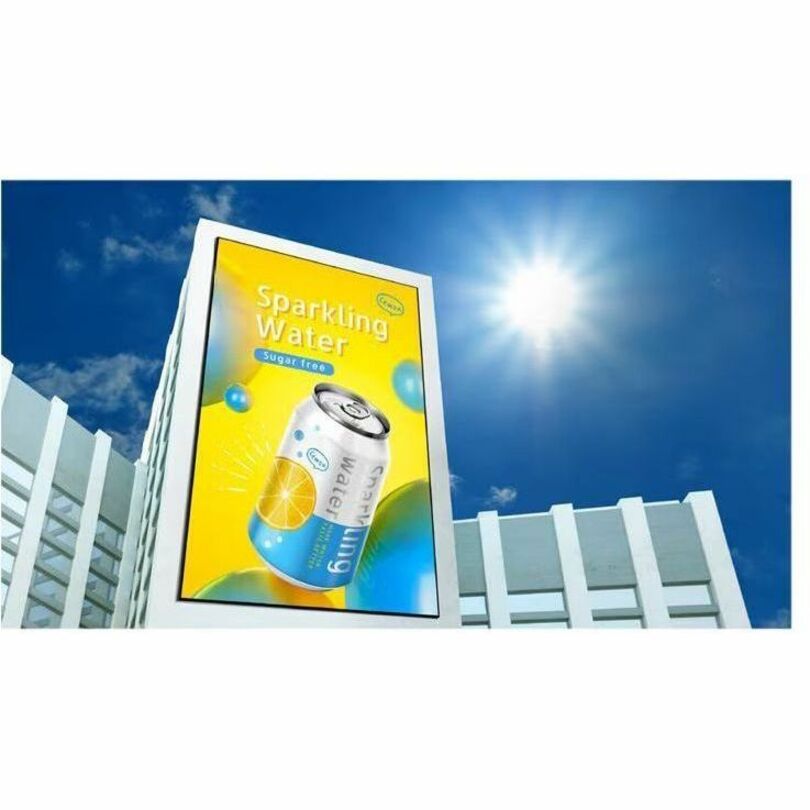

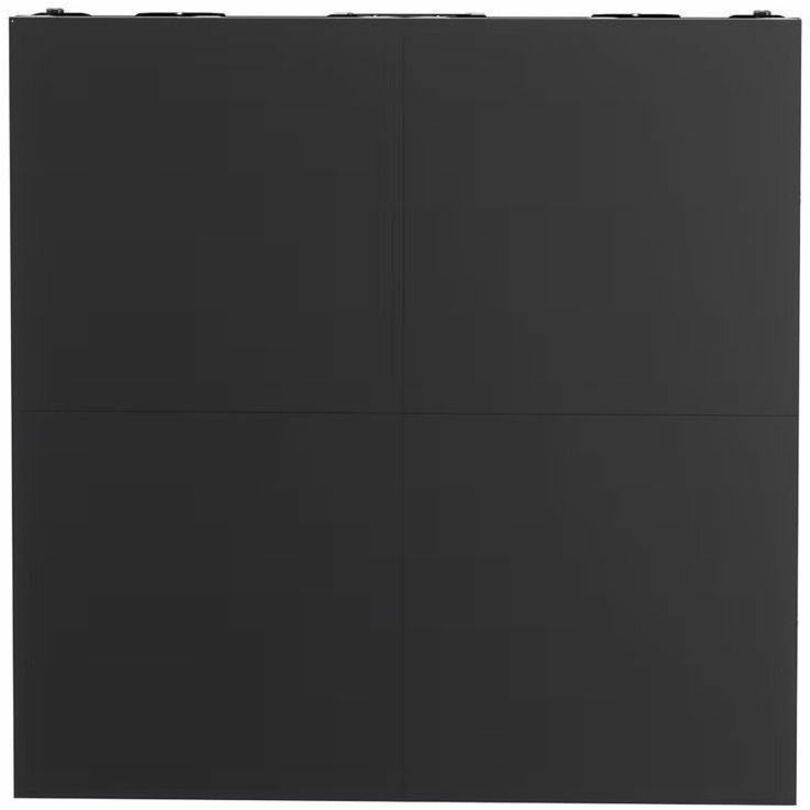

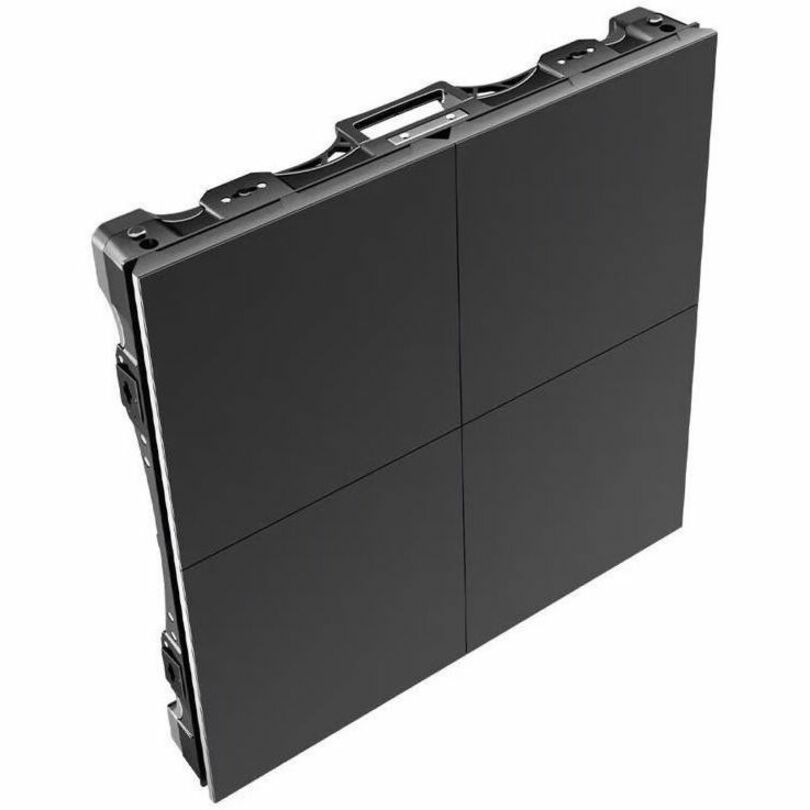

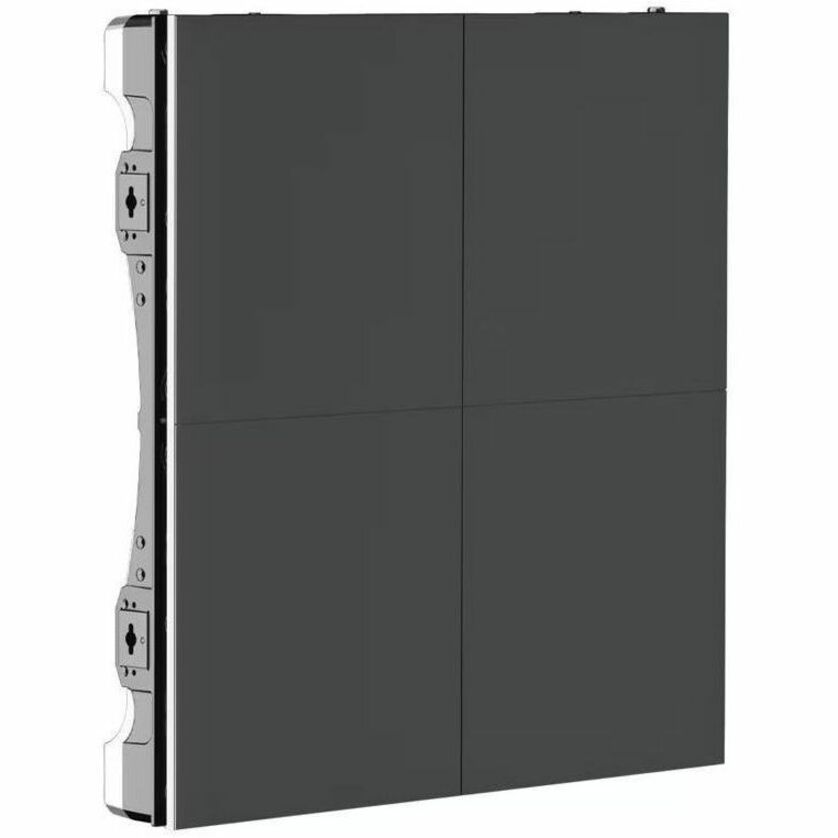

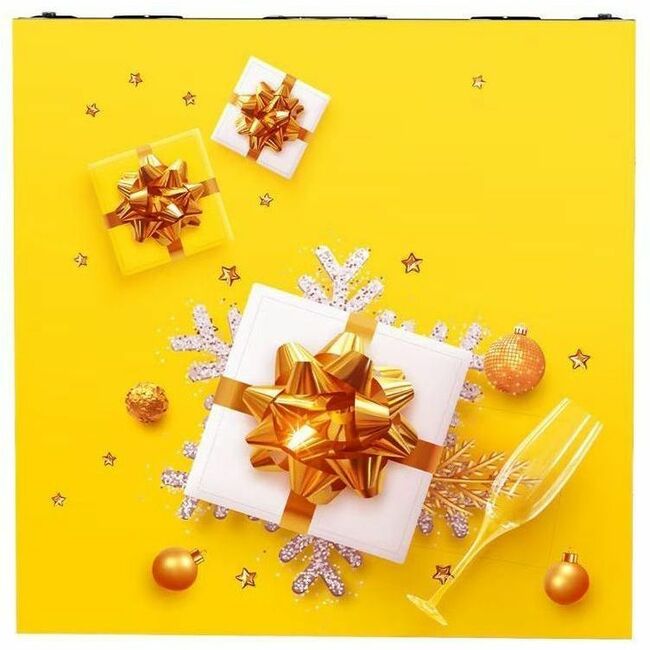

LG 2.6 mm GSCF Series High Brightness Outdoor LED Display

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	GSCF026-GP
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	GSCF026-GP
Product Name	2.6 mm GSCF Series High Brightness Outdoor LED Display

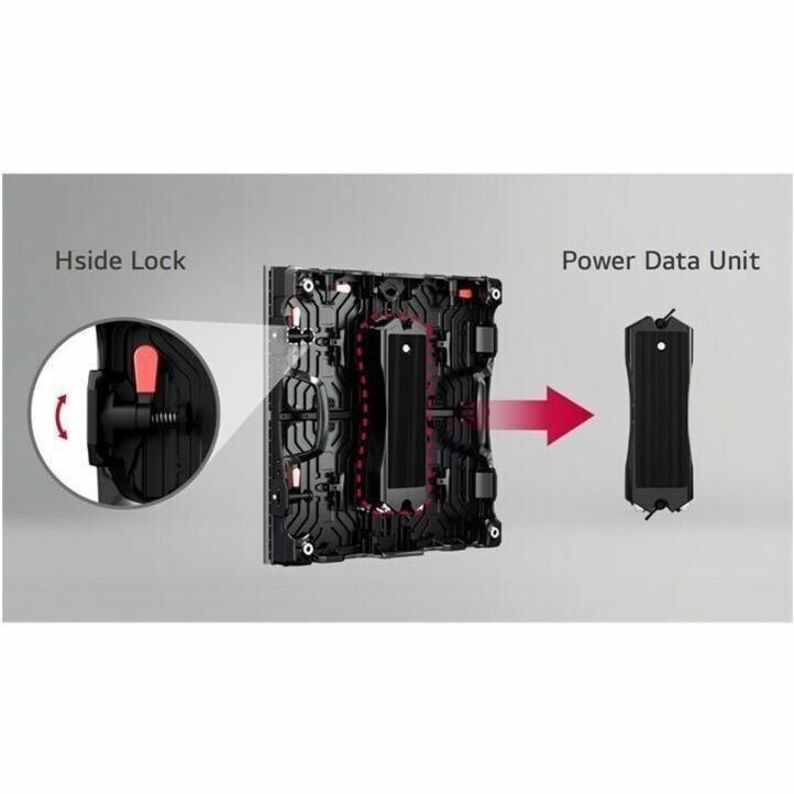

Marketing Information	High Brightness With a brightness of 5,500 nits, GSCF clearly delivers content and attracts public attention, making it an exceptional display for outdoor visibility. Easy Maintenance Not only is it possible to install from the front and back, but GSCF also has a structure where the cabinet and PDU (Power Data Unit) are separated, making maintenance convenient. Product Reliability This product, which has received an IP65 rating to effectively prevent dust and water ingress in outdoor environments, has also obtained BS 476 Part 7 Class 1 fire certification. It will assist in boosting the product's reliability. Compatibility with LG Software Solutions When connected with LG's CVCA system controller, the GSCF series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.
Product Type	Digital Signage Display

Technical Information

Features	Flame Resistant
Heat Dissipation	179.95 W
Average Heat Dissipation Per Cabinet	60.08 W
Ingress Protection (IP) Rating	IP65
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front Rear

Display & Graphics

Display Resolution	192 x 192
Pixel Pitch	0.10"
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Number of Modules Per Cabinet	2x2
Module Resolution	96 x 96
Maximum LED Life	11.4 Year
Physical Pixel Density	147456 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	122°F (50°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	99%

Physical Characteristics

Height	19.7"
Width	19.7"
Depth	3.2"
Module Height	9.80"
Module Width	9.80"
Weight per Module (Approximate)	1.80 lb
Weight per Cabinet (Approximate)	16.80 lb
Housing Material	Die-cast Magnesium

Miscellaneous

Additional Information	Power Consumption per Cabinet (Max) : 180 BTU/hr Power Consumption per Cabinet (Avg.) : 60 BTU/hr Power Consumption per Unit Area (Max.) : 720 BTU/hr Controller : CVCA
Certifications & Standards	CE FCC: EMC Class A BS476 Part7 (UK Fire Rating): Class 1 ETL (Regulatory): Yes
Environmentally Friendly	Yes
Environmental Certification	REACH
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
