VRTL PRDCTN LBCG 192X192 RES 1500 NIT 500X500X75.5 STND WALL PNL

Name: VRTL PRDCTN LBCG 192X192 RES 1500 NIT 500X500X75.5 STND WALL PNL
Brand: LG
SKU: NT5501
Price: 3467.5 USD
Availability: InStock

PCN#

NT5501

MFG#

LBCG026-GM

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,467.50

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

192 x 192
1500 Nit

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 15 lbs.

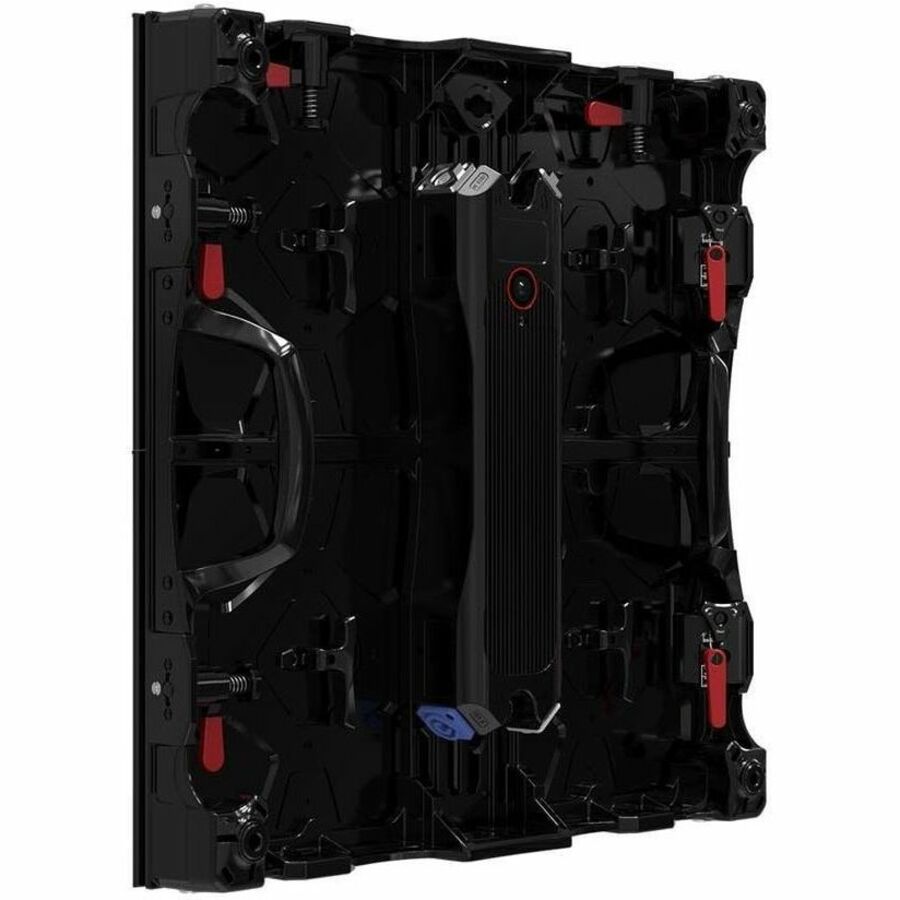

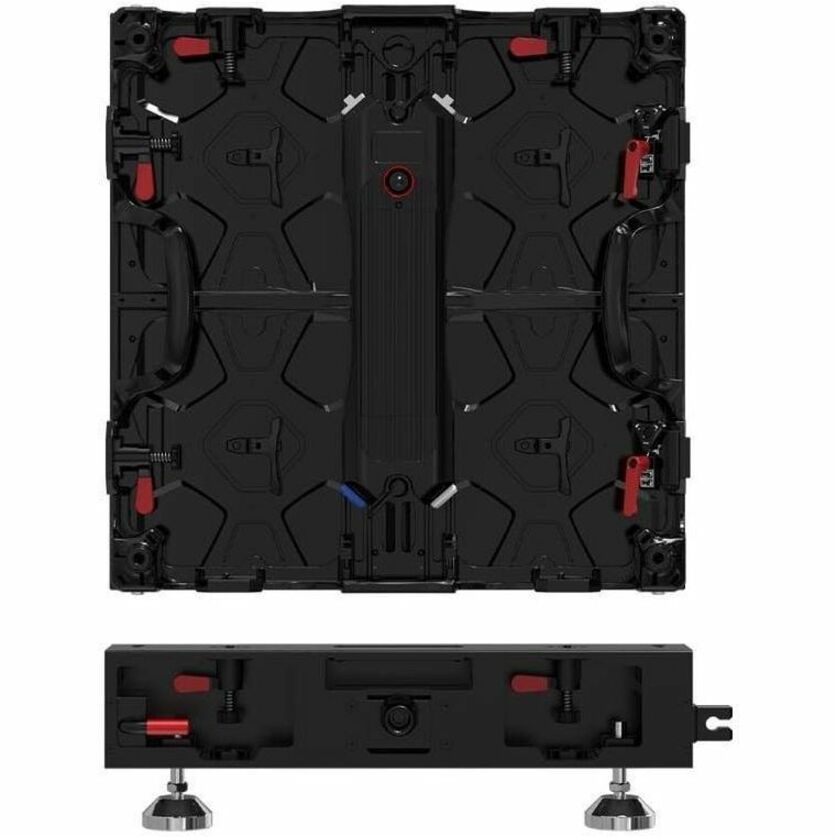

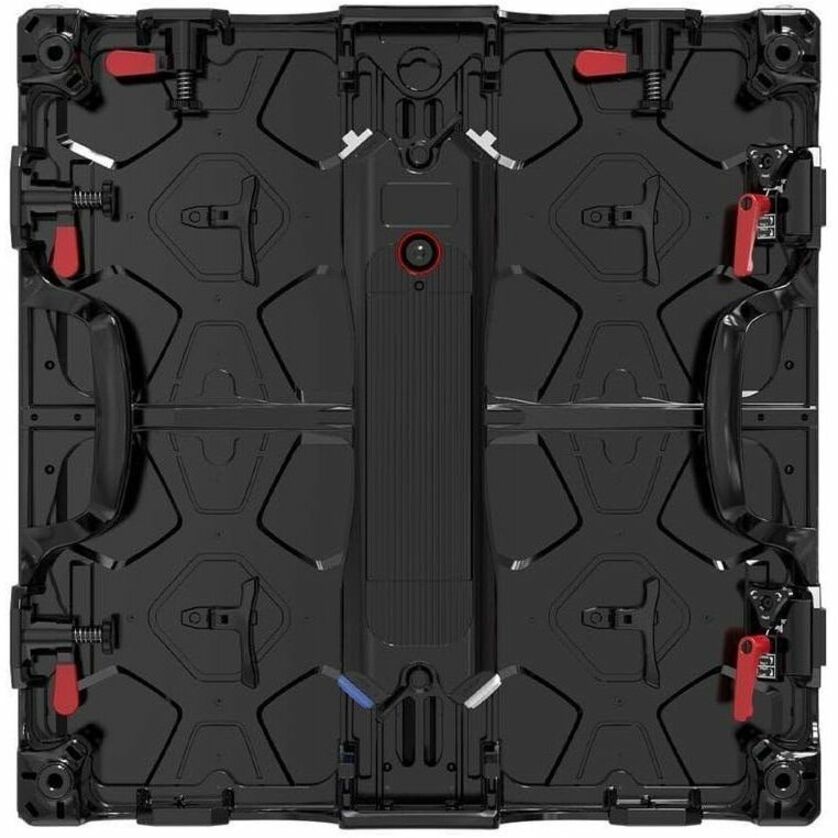

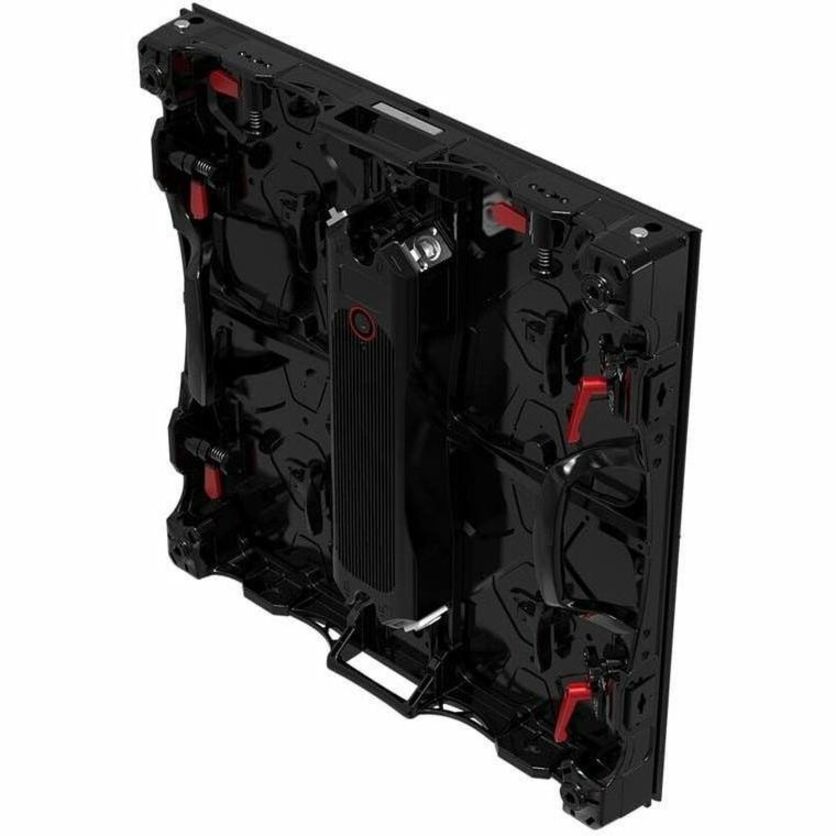

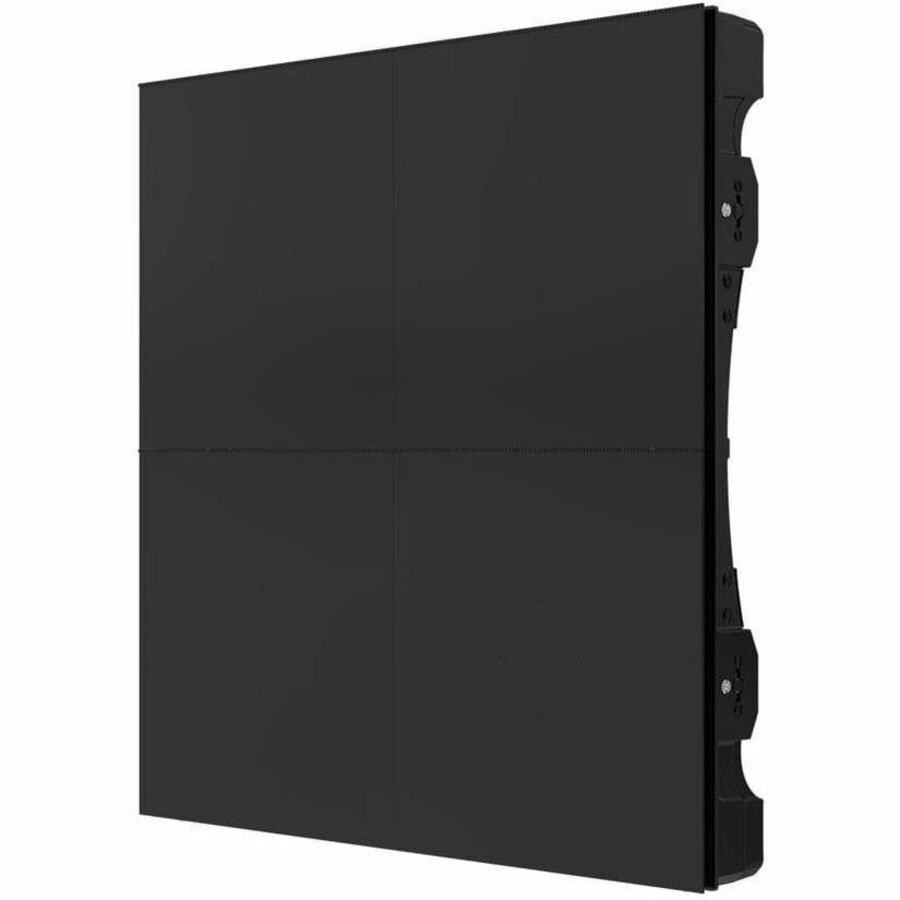

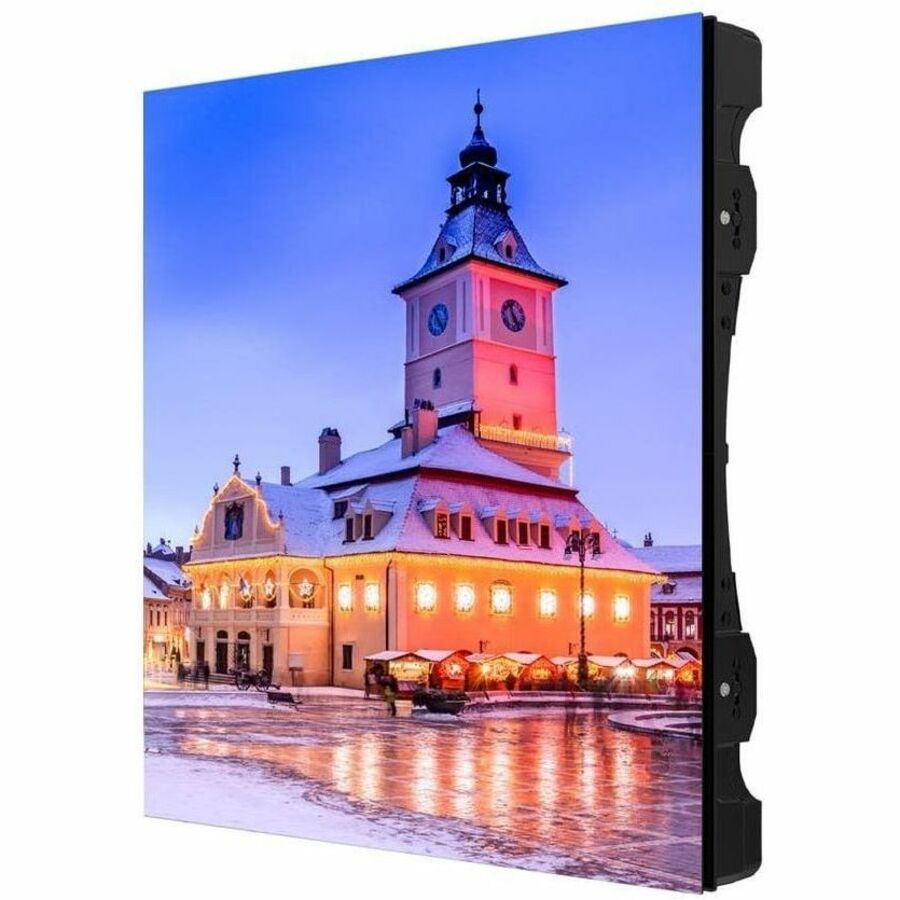

LG LBCG026-GM Digital Signage Display

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LBCG026-GM
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LBCG026-GM
Product Name	LBCG026-GM Digital Signage Display

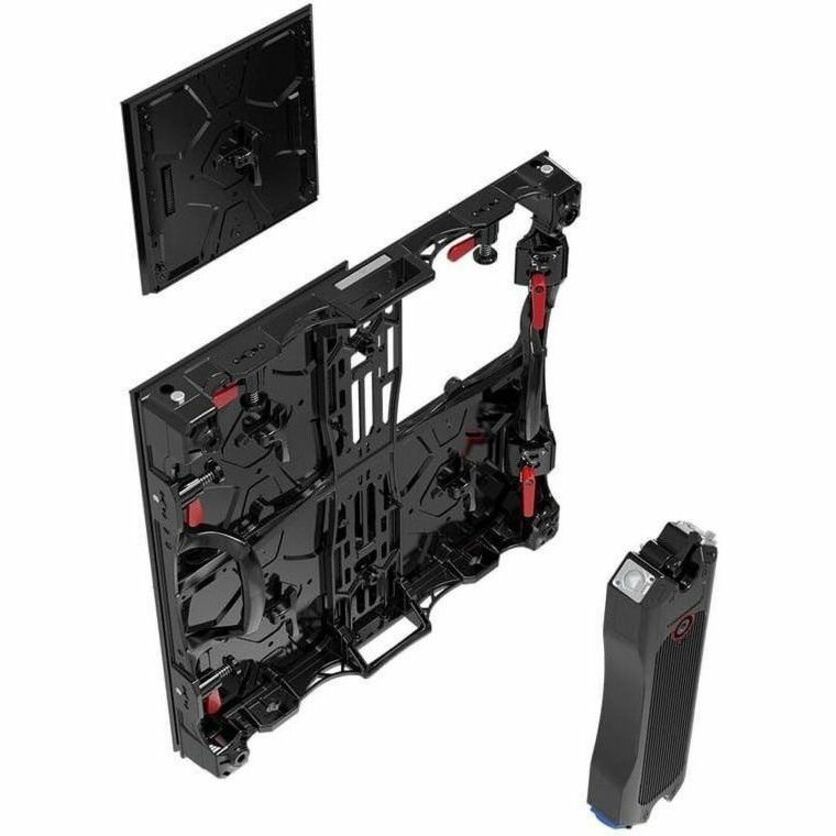

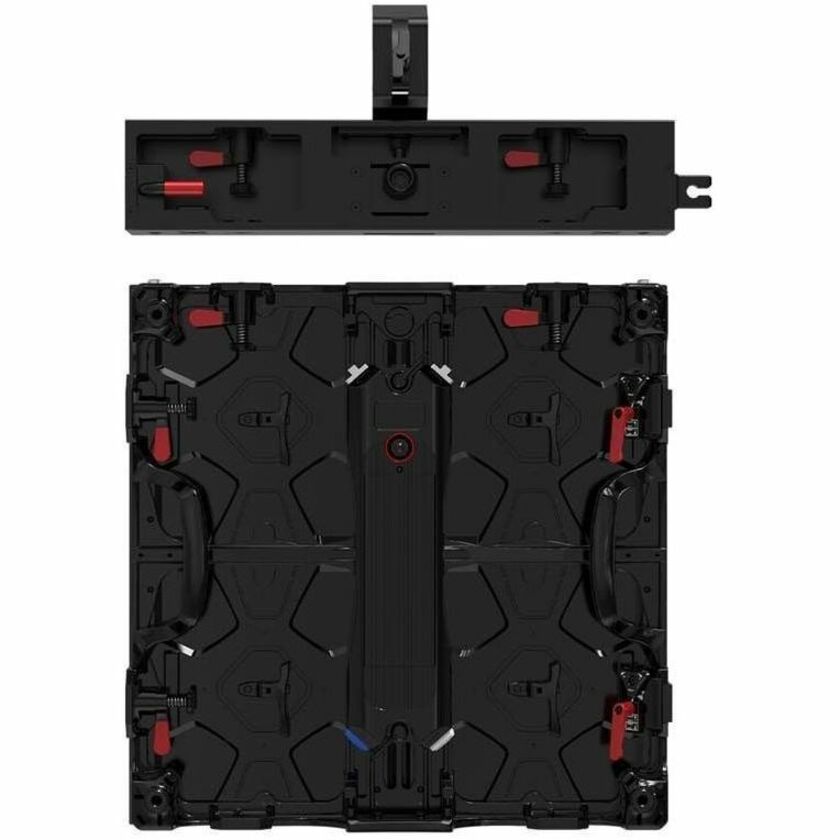

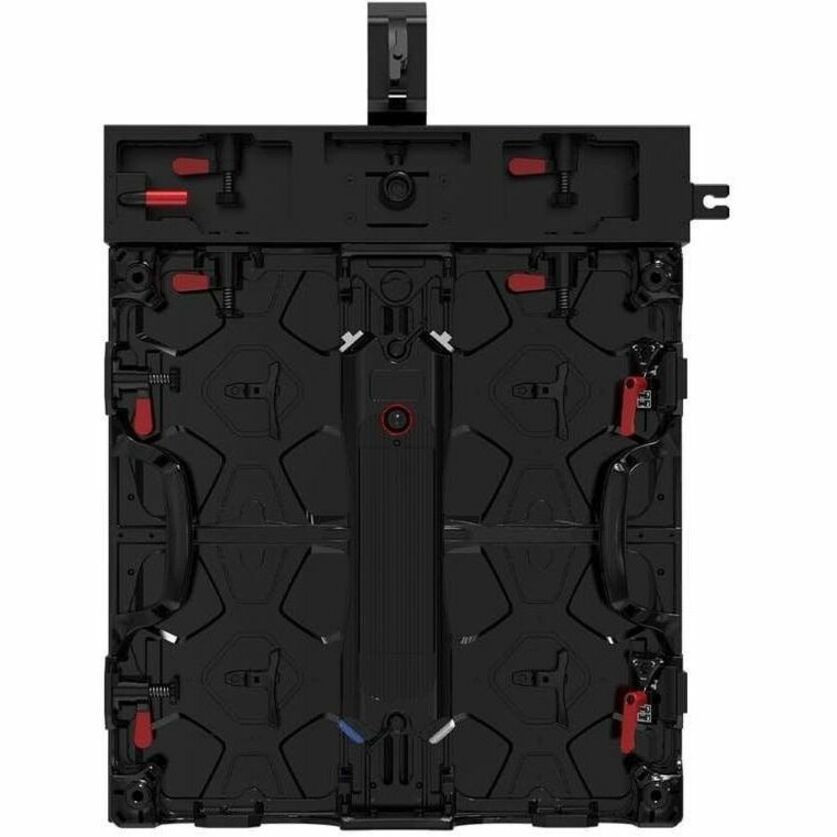

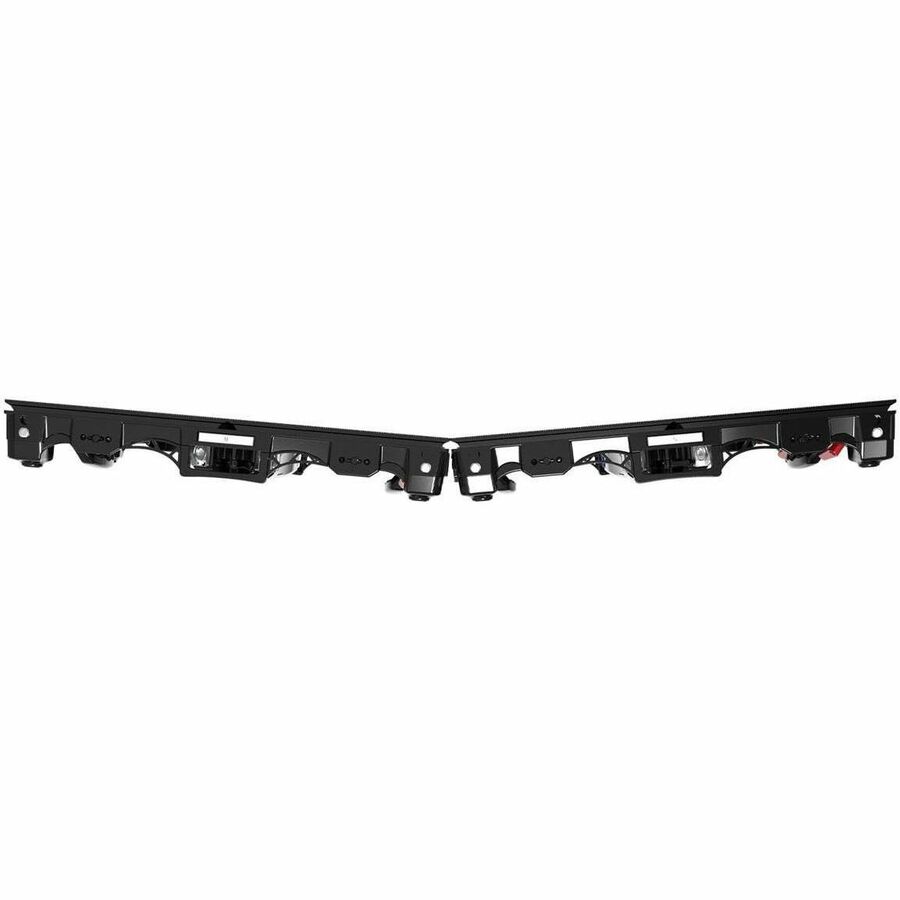

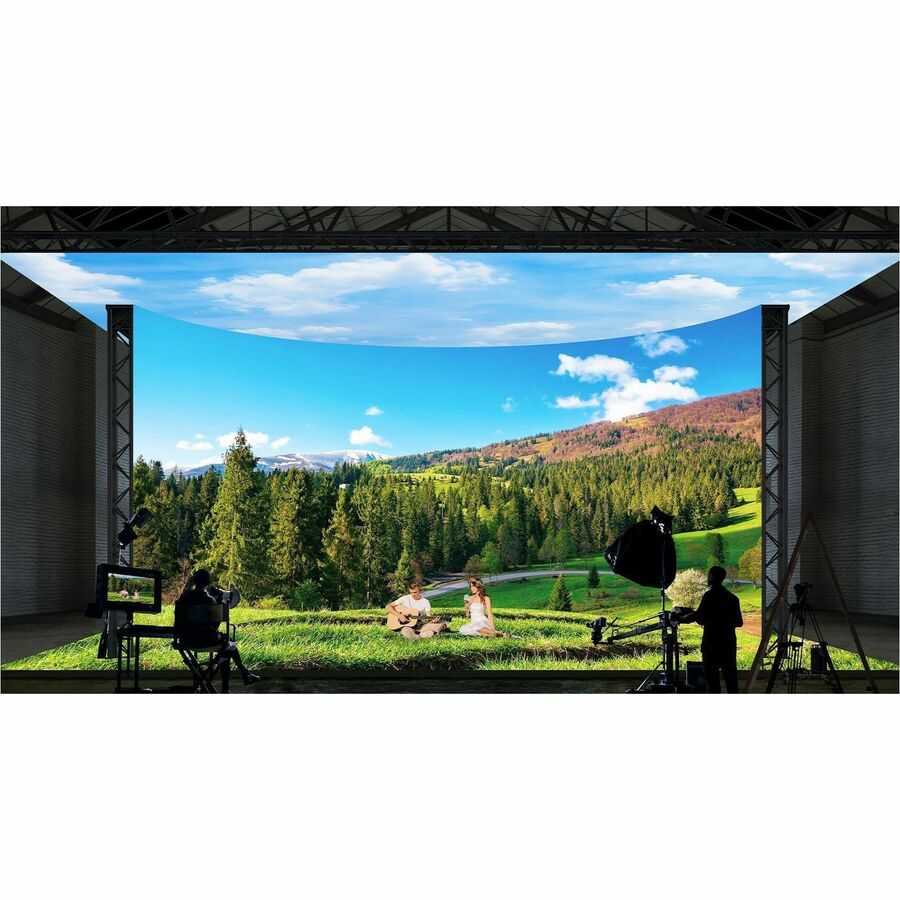

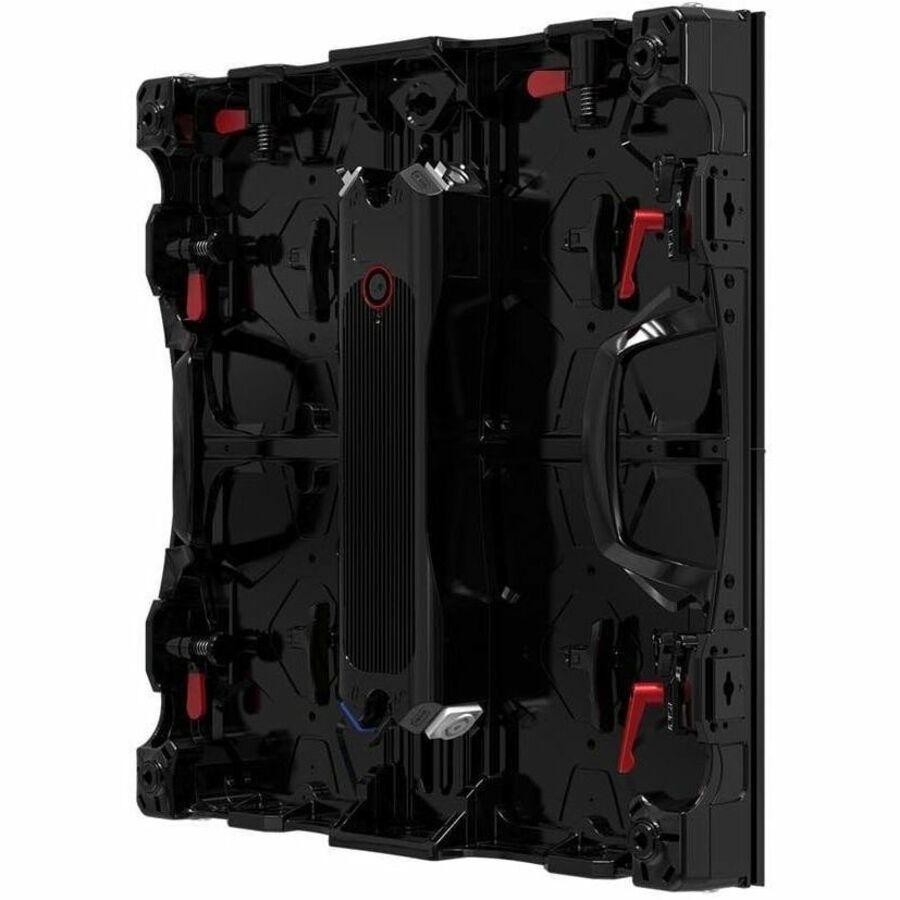

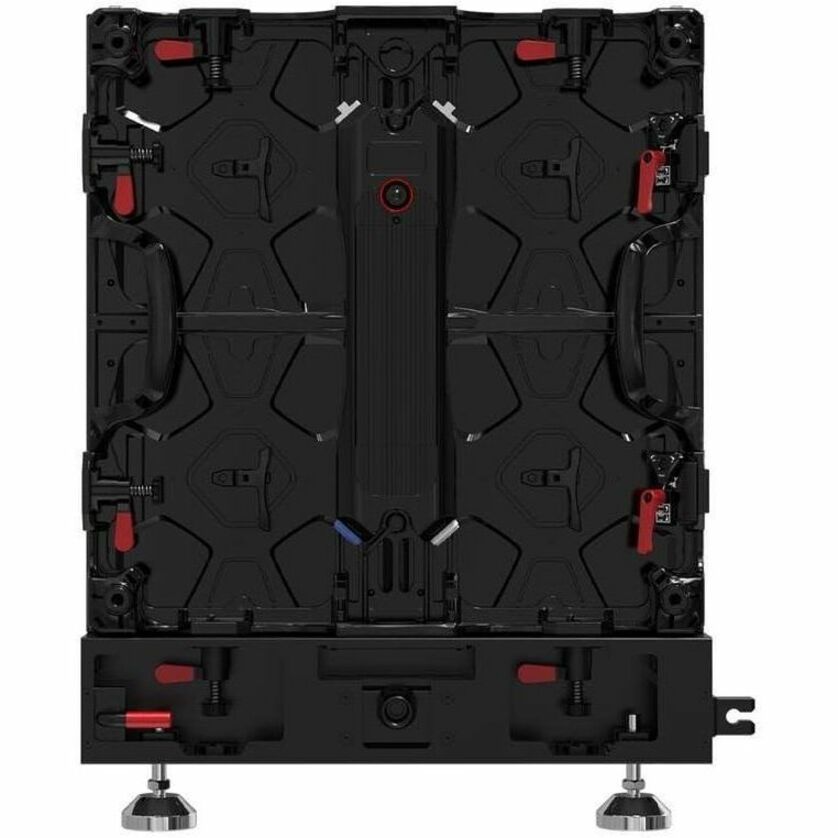

Marketing Information	Easy Installation & Maintenance The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly. Curve Effect Available The mechanical connection between the two panels is secured by an angle adapter system and a fast lock, adjustable by 10 degrees in concave areas and 5 degrees in convex areas. Stacking & Hanging System Available Installation can be performed by stacking or hanging, using the optional accessories (single, double, triple beams) for customization to the studio environment. Broadcast Quality Available Accurate color reproduction, low latency of video processing, and HDR capability. Powerful UI/UX with Megapixel VR HELIOS LED Processing Platform Thanks to the compatibility between LBCG and the Megapixel VR HELIOS LED processing platform, you can now utilize the powerful UX and UI functionalities offered by HELIOS. HELIOS processing platform includes Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics.
Product Type	Digital Signage Display

Technical Information

Average Heat Dissipation Per Cabinet	60.02 W
Ingress Protection (IP) Rating	IP30
Minimum Color Temperature	5840.3°F (3226.8°C)
Maximum Color Temperature	15740.3°F (8726.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front Rear

Display & Graphics

Display Resolution	192 x 192
Pixel Pitch	0.10"
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Cabinet Surface Area	3 Sq. ft.
Number of Modules Per Cabinet	2x2
Module Resolution	96 x 96
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	147456 pixels/m²

Video

Standard Refresh Rate	7.68 kHz
Frame Refresh Rate	60 Hz
Native Contrast Ratio	5,000:1
Brightness	1500 Nit

Power Description

Input Voltage

120 V AC
230 V AC

Environmental Conditions

Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	114°F (45.6°C)
Minimum Operating Humidity	0%
Maximum Operating Humidity	80%

Physical Characteristics

Height	19.7"
Width	19.7"
Depth	3"
Module Height	9.84"
Module Width	9.84"
Weight per Module (Approximate)	1.30 lb
Weight per Cabinet (Approximate)	13.70 lb
Housing Material	Die-cast Magnesium
Weight per Square Meter (Approximate)	24800 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 180W Heat Dissipation per Unit Area (Max.) : 2,457.1 BTU/hr/m² Power Consumption per Cabinet (Avg.) : 60W Heat Dissipation per Cabinet (Max) : 614.3 W/m² 90 Degree Corner Cut : No Minimum Viewing Distance (5-7 mm per foot) : 13-18 feet Controller : Megapixel VR Helios TKPLE-M101 Total Modules (per cabinet) : 4
Certifications & Standards	CE FCC ETL (Regulatory) cTUVus : No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
