LG LDAA025-MD Miraclass, 4K Screen

by
LG
PCN#
08WC66
MFG#
LDAA025-MD
$3,382.41
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 48 Nit
Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
LG 4K LED Cinema Screen (4,096x2,160) with DCI-P3 Color, & Dolby Atmos Compatible
Tech Specs
Specifications

Manufacturer

LG Electronics

Manufacturer Part Number

LDAA025-MD

Manufacturer Website Address

https://solutions.lg.com/us

Brand Name

LG

Product Model

LDAA025-MD

Product Name

4K LED Cinema Screen (4,096x2,160) with DCI-P3 Color, & Dolby Atmos Compatible

Marketing Information

Discover New Depths with True Black Immersion

With its series of individual, self-emissive LEDs, the LED screen of LG Miraclass results in distinctive and eye-catching contrast, taking the viewing experience to a whole new level.

Feast Your Eyes on a Festival of Color

With 24-bit color processing, capable of displaying 68.7 billion color variants, the LG Miraclass reproduces DCI-P3 colors just as the content creators intended.

Brightness Brings Detail to Life

The LG Miraclass is made up of self-emissive LEDs working independently. The result is bright and brilliant picture quality, with no corner dimming or image distortion.

Brightness to Illuminate and Inspire

Adjust the brightness to your preferred setting, with five stages ranging from 48 to 300 nits. Personalize your viewing experience and make your media the highlight.

Take Picture Quality to Another Dimension

With consistent brightness and clarity from corner to corner of the screen, audiences can fully immerse themselves in the 3D viewing experience, wherever they sit.

Easy Operation with Intuitive Software

Dedicated management software is on hand to help operators run the new LED screens smoothly and with confidence. Various functions can now be accessed at the touch of a button.

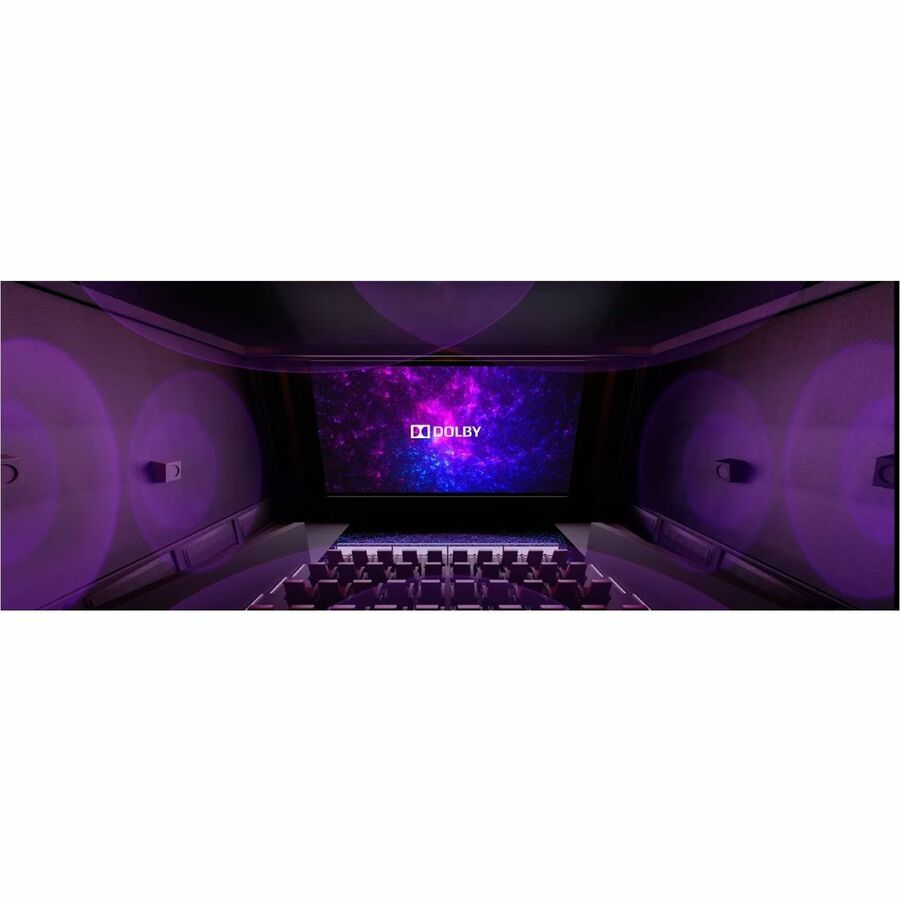

Dolby-Compatible LED Screen

The new LG Miraclass can be quickly and seamlessly integrated into theaters, thanks to its compatibility with Dolby. Dolby IMS supports stable and professional content operation, while the combination of Dolby Atmos sound and LG picture quality makes movies truly memorable.


Product Type

Digital Signage Display
Technical Information

Ingress Protection (IP) Rating

  • IP30
  • IP20

Color Uniformity

±0.05 Cx, Cy

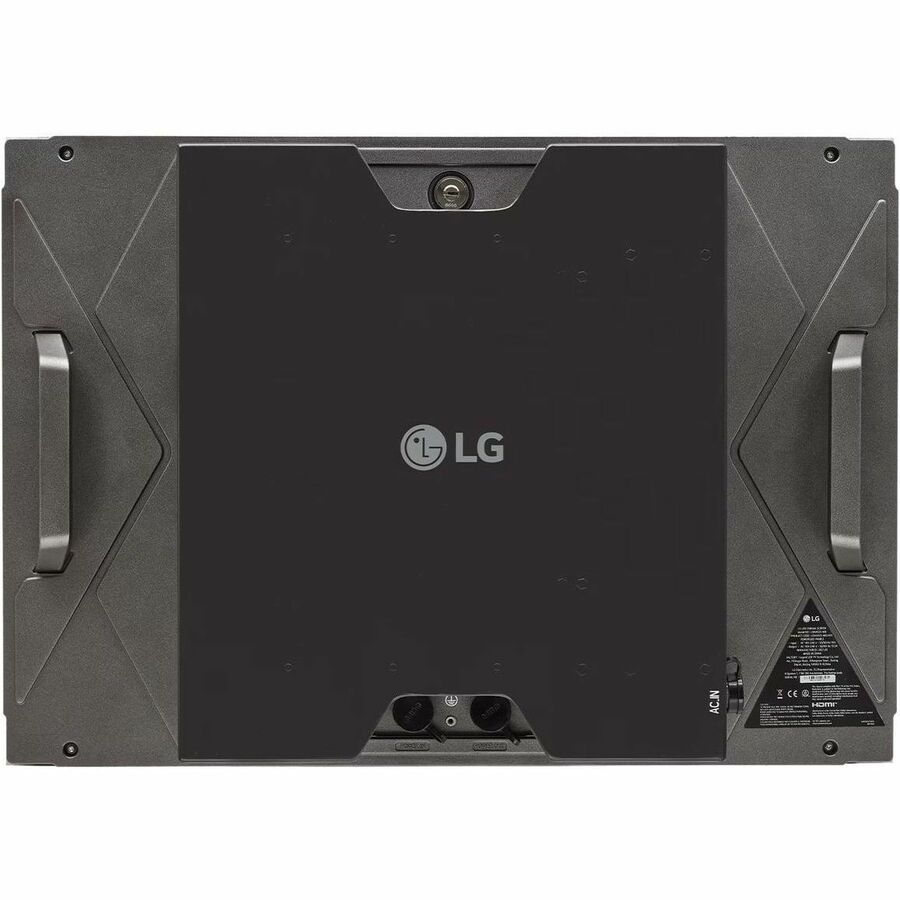

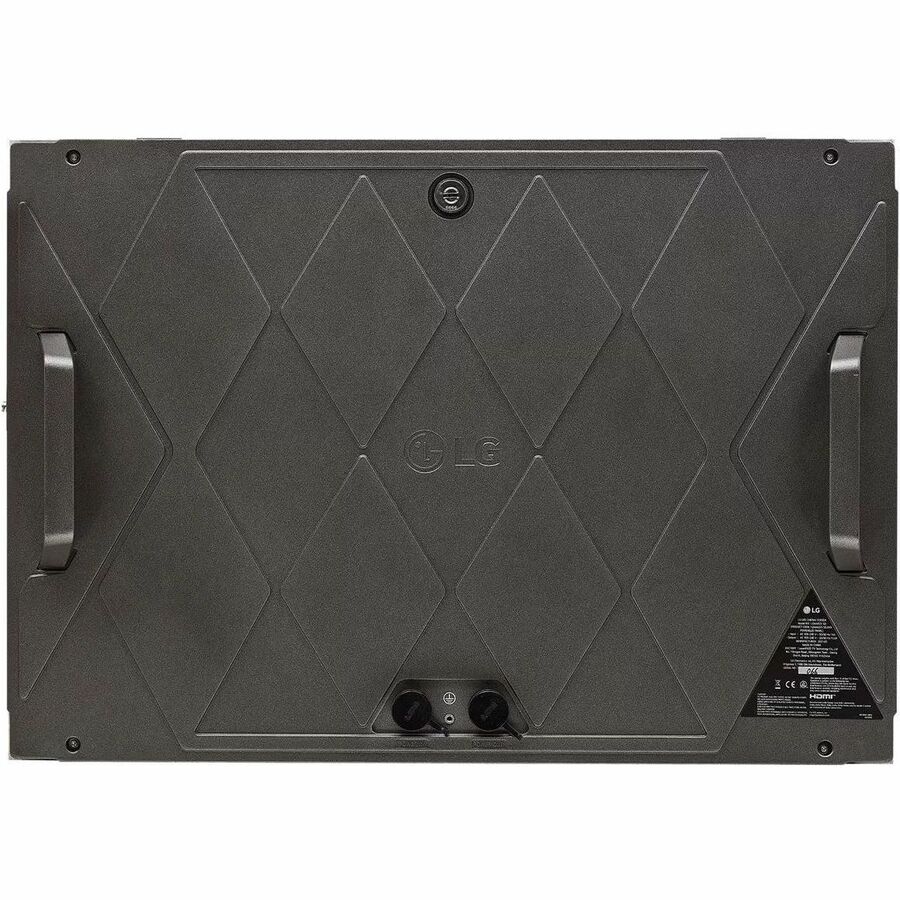

Service Access

Rear
Display & Graphics

Pixel Pitch

98.4 mil

Horizontal Viewing Angle

160°

Vertical Viewing Angle

160°

Number of Modules Per Cabinet

1x1

Module Resolution

256 x 180

Maximum LED Life

11.4 Year

LED Type

Single SMD
Video

Standard Refresh Rate

3.07 kHz

Frame Refresh Rate

144 Hz

Native Contrast Ratio

4,000:1

Brightness

48 Nit
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

104°F (40°C)

Minimum Operating Humidity

10%

Maximum Operating Humidity

80%
Physical Characteristics

Height

17.7"

Width

25.2"

Depth

6.4"

Module Height

17.70"

Module Width

25.20"

Weight per Cabinet (Approximate)

30.40 lb

Housing Material

Aluminum
Miscellaneous

Additional Information

  • 90 Degree Corner Cut : No
  • Total Modules (per cabinet) : 1
  • Cabinet Resolution (W x H) : 256 x 180
  • Controller : Embedded
  • Minimum Viewing Distance (5-7 mm per foot) : 13-18 feet
  • Certifications & Standards

  • cTUVus : No
  • TAA Compliant

    No
    Warranty

    Limited Warranty

    3 Year
