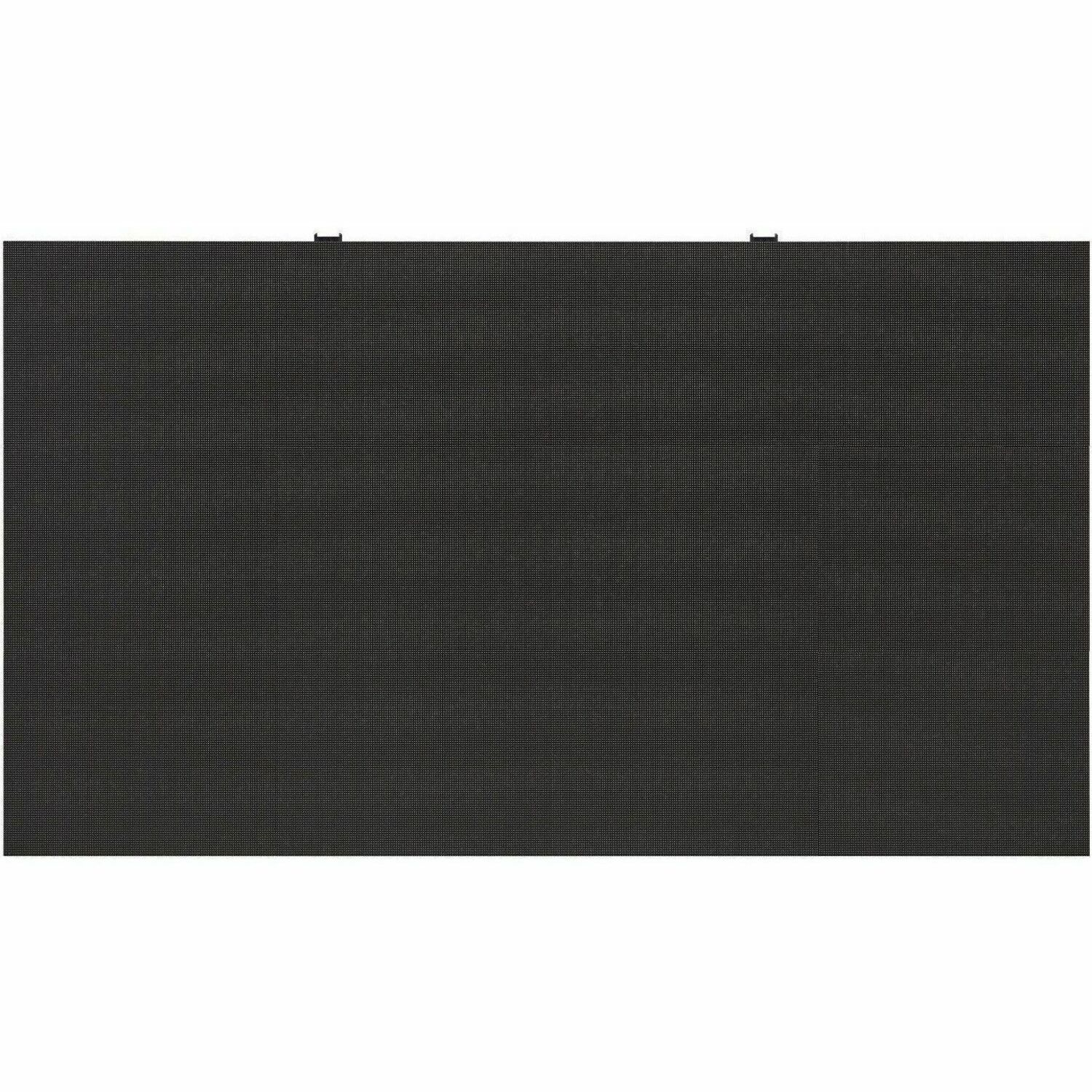

LG LSAC018-MK LED Video Wall

Name: LG LSAC018-MK LED Video Wall
Brand: LG
SKU: NT5594
Price: 6520 USD
Availability: InStock

PCN#

NT5594

MFG#

LSAC018-MK

$6,520.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 358 lbs.

LG LSAC018-MK Digital Signage Display

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LSAC018-MK
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LSAC018-MK
Product Name	LSAC018-MK Digital Signage Display
Marketing Information	Cableless Signal & Power Transmission The LSAC series is an innovative LED signage solution that employs cableless transmission technology. Capable of UHD resolution with a 16:9 ratio and block assembly design making it easy to install. Bezel Free Design The LSAC series employs a bezel-free design, so viewers of content can see images without visual gaps between display panels. Colour Expression Powered by HDR With HDR (HDR10, HDR10 Pro) support the content displayed has a wide colour spectrum and broad contrast ratio. Standby Mode When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control. Optimised Image Quality with α7 Intelligent Processor The Alpha 7 Intelligent Processor" used in the LSAC series recognises and analyses the original content, to help optimise image clarity and sharpness. Compatibility with LG Software Solutions The LSAC series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare.
Product Type	Digital Signage Display

Technical Information

Heat Dissipation	320.03 W
Average Heat Dissipation Per Cabinet	210.13 W
Ingress Protection (IP) Rating	IP20
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.05 Cx, Cy
Service Access	Front

Display & Graphics

Display Resolution	640 x 360
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	74 mil
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Cabinet Surface Area	9 Sq. ft.
Number of Modules Per Cabinet	4x3
Module Resolution	160 x 120
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	284444 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Height	26.6"
Width	47.2"
Depth	2"
Module Height	8.90"
Module Width	11.80"
Weight per Module (Approximate)	1.30 lb
Weight per Cabinet (Approximate)	51.10 lb
Housing Material	Die-cast Aluminum
Weight per Square Meter (Approximate)	28600 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 95% Power Consumption per Cabinet (Max) : 320W Power Consumption per Cabinet (Avg.) : 210W 90 Degree Corner Cut : No Total Modules (per cabinet) : 12 Heat Dissipation per Unit Area (Max.) : 1,348 BTU/hr/m² Power Consumption per Unit Area (Max) : 395 W/m² Controller : CSAD Minimum Viewing Distance (5-7 mm per foot) : 9-13 feet
Certifications & Standards	FCC: Class B cTUVus : No BS476 Part7 (UK Fire Rating): Class 1 Safety 60950-1
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
