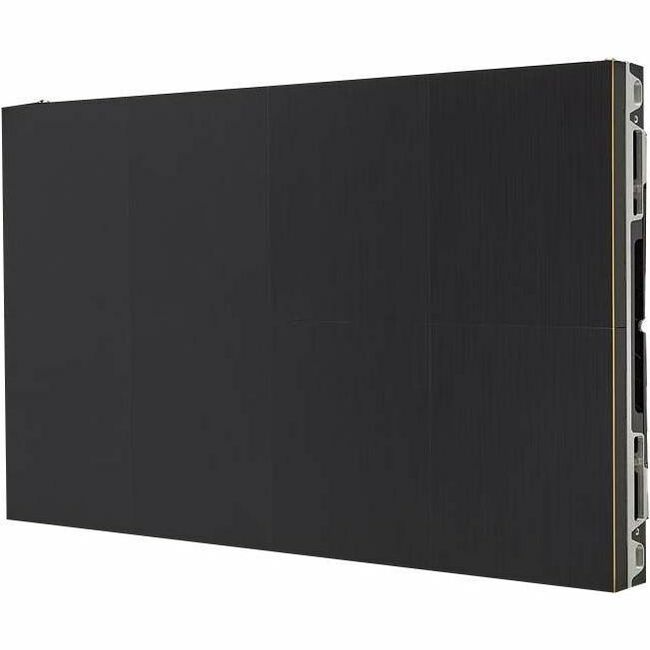

ULTRA SLIM LSCC 320X360 STNDRD PNL/CBNT 800 NIT

Name: ULTRA SLIM LSCC 320X360 STNDRD PNL/CBNT 800 NIT
Brand: LG
SKU: S43704
Price: 1767 USD
Availability: InStock

PCN#

S43704

MFG#

LSCC018-GZ

$1,767.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

LG 1.8 mm LSCC Series Ultra Slim LED

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LSCC018-GZ
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LSCC018-GZ
Product Name	1.8 mm LSCC Series Ultra Slim LED
Product Type	Digital Signage Display

Technical Information

Features	Flame Resistant
Heat Dissipation	111.95 W
Average Heat Dissipation Per Cabinet	31.94 W
Ingress Protection (IP) Rating	IP30
Minimum Color Temperature	5840.3°F (3226.8°C)
Maximum Color Temperature	15740.3°F (8726.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front

Display & Graphics

Display Resolution	320 x 360
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	74 mil
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Cabinet Surface Area	2 Sq. ft.
Number of Modules Per Cabinet	2x2
Module Resolution	160 x 180
Maximum LED Life	11.4 Year
LED Type	Single SMD

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Operating Humidity	0%
Maximum Operating Humidity	80%

Physical Characteristics

Height	13.3"
Width	23.6"
Depth	1.3"
Module Height	6.60"
Module Width	11.80"
Weight per Module (Approximate)	10.88 oz
Weight per Cabinet (Approximate)	11 lb
Housing Material	Die-cast Aluminum

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 96W Power Consumption per Cabinet (Avg.) : 32W 90 Degree Corner Cut : No Total Modules (per cabinet) : 4 Heat Dissipation per Unit Area (Max.) : 1,618 BTU/hr/m² Power Consumption per Unit Area (Max) : 474 W/m² Controller : CVCA Minimum Viewing Distance (5-7 mm per foot) : 9-13 feet
Certifications & Standards	CE FCC: EMC Class A cTUVus : No BS476 Part7 (UK Fire Rating): Class 1 EN13501-1: Yes
Environmentally Friendly	Yes
Environmental Certification	REACH
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
