LQD4500//7.68TB,G4X16 FHFL

Superior Performance

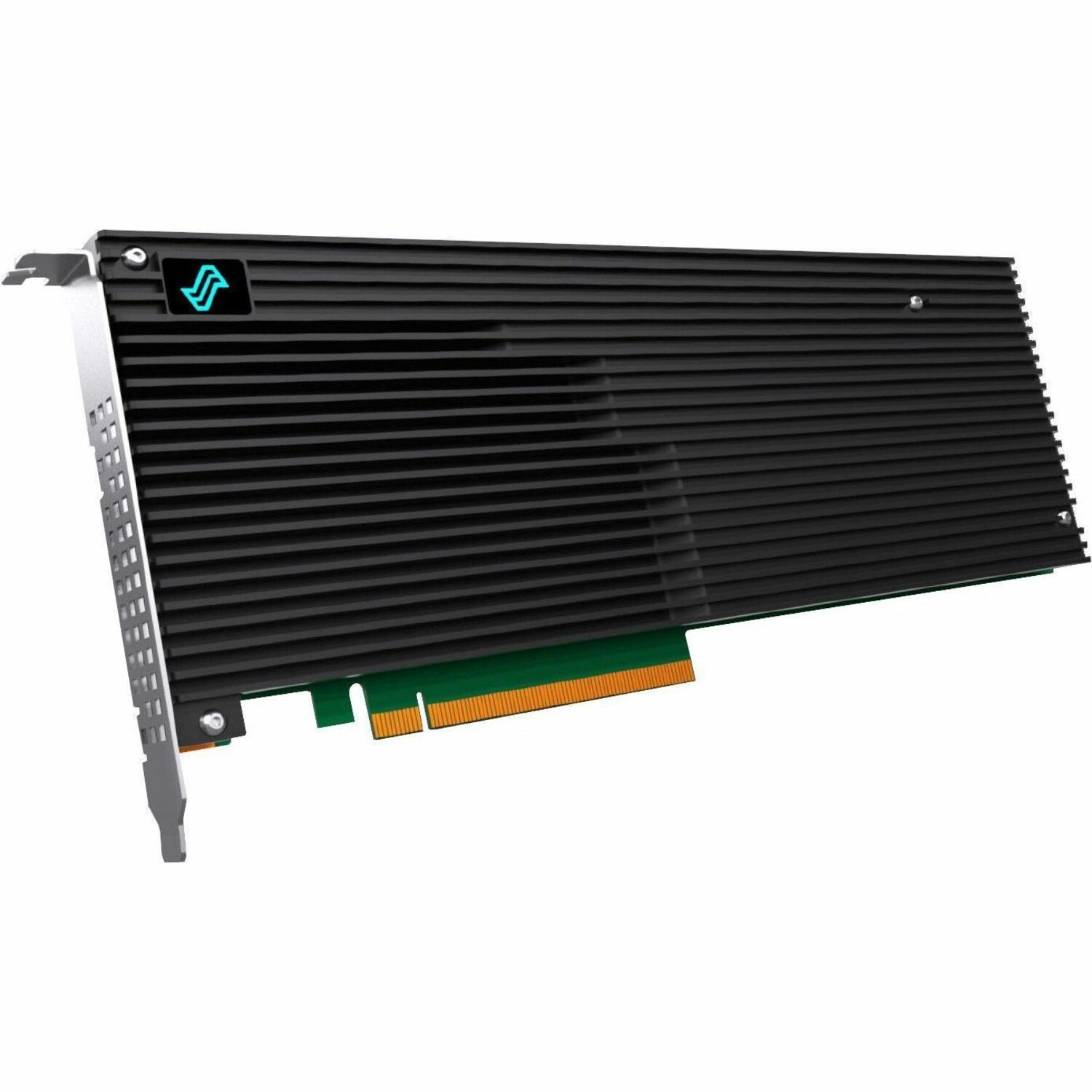

The Liqid Element LQD4500 PCIe Add-In-Card (AIC) features high storage capacity and extreme performance for mission critical and performance-demanding workloads. It is an ultra-thin, standard form factor fullheight full-length (FHFL) card that works seamlessly with systems that have existing PCIe slots. This makes the Element LQD4500 ideal for deployment in data center and enterprise applications.

The Element LQD4500 offers a Gen 4.0 x16 PCIe interface, which enables high throughput and low latency transactions and utilizes the latest NVMe protocol in order to deliver increased performance and efficiency from a single device. The LQD4500 outperforms legacy architectures by delivering up to 4 M IOPS of random performance, and over 24 GB/s of throughput, and ultralow transactional latency of 20 us.

The Element LQD4500 innovative design enables multiple drive configurations ranging from maximum performance to maximum redundancy. The LQD4500 also features enterprise-class power failure protection for increased reliability to prevent data loss and ensure uninterrupted work in case of power failure.

• Ultra Fast PCIe Gen 4.0 x16 Interface
• Performance of 4 M IOPS and 24 GB/s
• High-capacity NVMe SSD, up to 32 TB
• Enterprise-class Power Failure Protection

Key Features

• High Performance PCIe SSD
• Ultra Fast PCIe 4.0 x16 Interface
• NVMe 1.3 Protocol Supported
• High Capacity Design, up to 32 TB
• Standard Form Factor SSD
• Low Profile FHFL Card
• Plug-n-Play Compatibility
• UEFI Boot Support
• Enterprise Grade Reliability
• Power Loss Data Protection
• Active Thermal Throttling
• Active Power Management
• Advanced ECC and Data Protection
• Advanced Error Recovery
• Active Telemetry Monitoring
• Low Overhead Architecture
• No Host CPU or DRAM Off Load
• RAID on Card Supported Data Protection

• Data Encryption
• Plug and Play
• Power Loss Data Protection
• Thermal Throttling
• Error Correction Code (ECC)
• Data Protection
• Error Recovery Control (ERC)

• Windows
• Windows Server 2012
• Windows Server 2012 R2
• CentOS
• Solaris
