ADAPTEC SMARTRAID ULTRA 3258P-32I /E SINGLE

Name: ADAPTEC SMARTRAID ULTRA 3258P-32I /E SINGLE
Brand: MICROCHIP
SKU: 8375BR
Price: 1903.13 USD
Availability: InStock

MICROCHIP

PCN#

8375BR

MFG#

3258UPC32IX2S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,903.13

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

24Gb/s SAS
PCI Express 4.0 x16
Full
height
Plug
in Card
RAID Supported
0, 1, 5, 6, 10, 50, 60, 1 Triple, 10 Triple RAID Level
SlimSAS (SFF
8654)
32 Total SAS Port(s)
32 SAS Port(s) Internal
PC, Linux
8 GB

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

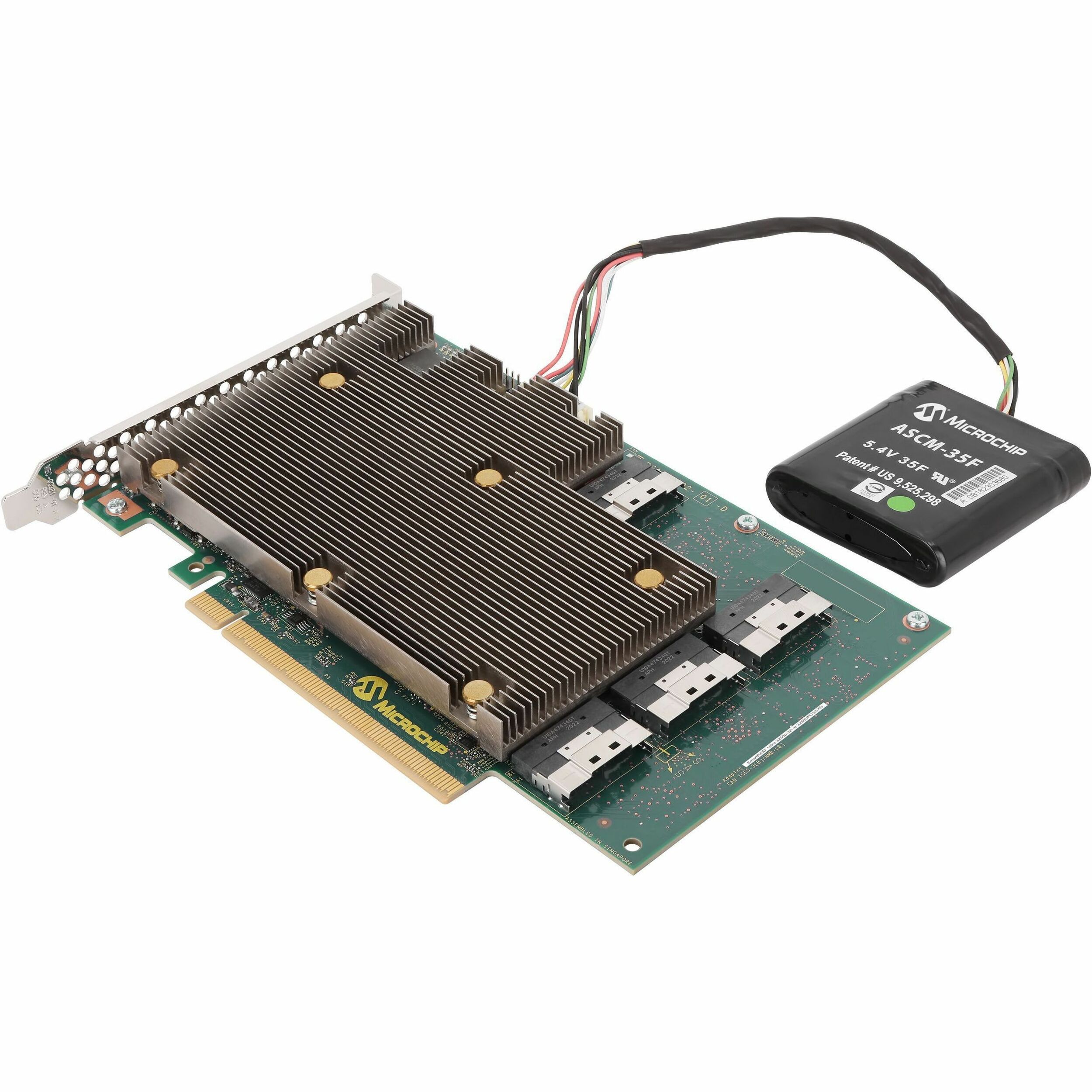

Microchip Adaptec® SmartRAID Ultra 3258p-32i /e

Overview

Tech Specs

Specifications

Manufacturer	Microchip Technology Inc.
Manufacturer Part Number	3258UPC32IX2S
Manufacturer Website Address	http://www.microchip.com
Brand Name	Microchip
Product Line	SmartRAID Ultra
Product Series	3200
Product Model	3258P-32i /e
Product Name	SmartRAID Ultra 3258P-32i /e
Marketing Information	The Adaptec® SmartRAID Ultra 3258p-32i /e RAID adapter offers maximum performance with SAS/SATA/NVMe Tri-mode functionality with a x16 host interface that doubles bandwidth to 29.6 GB/s, enabling 4x higher-performance connectivity solutions for server OEM, storage systems, data center, and enterprise customers than previous generations. Built on Microchip's proven 5th generation SmartROC 3200 storage controller, the SmartRAID Ultra 3258p-32i /e, the industry's highest port RAID adapter, supports a x16 PCIe Gen 4 host interface with the industry's highest 32 media facing port variants for internal Tri-mode connectivity. New technologies available with the SmartRAID 3200 family includes DirectPath, which integrates a PCIe switch for the industry's lowest latency and highest bandwidth NVMe solution and Microchip's Dynamic Channel Multiplexing (DCM) technology that aggregates expander attached SAS or SATA hard drives onto 24G SAS infrastructure with near 100% link efficiency for unparalleled through-put. Native HBA modes for all media types are also supported, which offers the lowest latency for memory-based PCIe storage. SmartRAID 3200 adapters include Microchip's Trusted Platform support which delivers a new level of compute and supply chain security based on a hardware root of trust that is aligned with the Open Compute Security Project. For additional layers of security, Microchip has now expanded on its unique Adaptec maxCrypto Controller-Based Encryption (CBE) solution to support SAS, SATA, and now NVMe media, and also supports Self-Encrypting Drive (SED) management software. The SmartRAID 3200 family also supports both Intel® Virtual Pin Port (VPP) for intelligent backplane management and SFF's Universal Backplane Management (UBM) standards to simplify integration and enhance product flexibility for system integrators. Also supported are industry leading storage management including standards-based Platform Level Data Model (PLDM)/Redfish® Device Enablement (RDE) to simplify integration and and Microchip's ChipLink Diagnostic Tool with signal integrity analysis and context sensitive documentation to accelerate time to market.
Product Type	SAS/SATA/NVMe Controller

Technical Information

Host Interface	PCI Express 4.0 x16
Controller Type	24Gb/s SAS
RAID Supported	Yes
RAID Levels	0 1 5 6 10 50 60 1 Triple 10 Triple
Device Supported	Server Storage System
Operating System Supported	Windows Server Windows 10 Red Hat Enterprise Linux CentOS SuSE Linux Enterprise Server Ubuntu Linux Debian Oracle Linux Citrix XenServer Solaris FreeBSD OS VMware ESXi
Features	S.M.A.R.T. Support Online Capacity Expansion (OCE)

Memory

Cache Memory

8 GB

Interfaces/Ports

Total Number of SAS Ports	32
Number of SAS Ports (Internal)	32
SAS Connector Details	SlimSAS (SFF-8654)

Physical Characteristics

Height	4.4"
Length	6.6"
Form Factor	Plug-in Card
Card Height	Full-height

Miscellaneous

Platform Supported	PC Linux
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
