INDUSTRIAL POE MIDSPANS

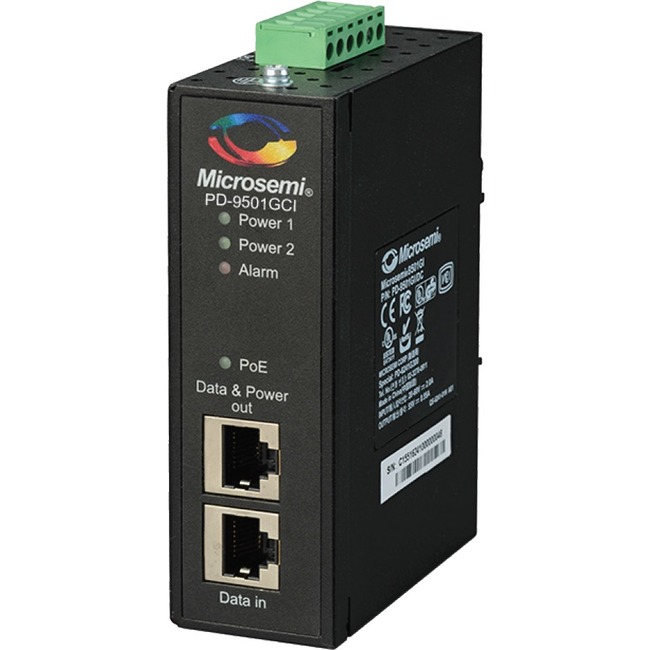

The Microchip PD-9501GCI is a single-port, high-power solution for remote powering of current and emerging high-power indoor applications. Generating 60W, the 9501GCI enables remote power for a new range of applications including wireless access points, Pan-Tilt Zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100/1000Base-T network devices and 1000BaseT devices such as wireless IEEE wireless access points.

• 20 V DC
• 60 V DC

• No. of Ports 1
• Data Rates 10/100/1000 Mbps
• Power over Ethernet Output Pin Assignment and Polarity: 1/2 (-), 3/6 (+), 4/5 (+), 7/8 (-)
• Input Power Requirements DC Input Voltage: 20 to 60 Vdc
• Connectors Shielded RJ-45, EIA 568 A and 568 B
• Environmental Conditions Operating Ambient Temperature: -40ºF to +167ºF (-40ºC to +75ºC)
• Storage Temperature: -40ºF to +185ºF (-40ºC to +85ºC)
• Reliability MTBF: 170,000 hrs. @25ºC
• Thermal Rating 32BTU/Hr @60 Vdc

Indicators:

• Power 1 - Power 1 Source is connected
• Power 2 - Power 2 Source is connected
• Alarm - One of Power 1 or Power 2 sources is faulty
• PoE - PoE is active and delivering power

• Wireless Access Points
• Pan-Tilt Zoom (PTZ) Cameras
• IP Terminals
• Network Devices

• IEEE 802.3BT
• IEEE 802.3af/at
• IEEE 802.3at (PoE)
• CE
• FCC Part 15
• Class A
• EN 55032 Class A (Emissions)
• EN 55024 (Immunity)
• UL508
• UL/EN/IEC 60950-1 (ed. 2)

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
