PRIMARY ATTACHED,3 O/L,MAG

Name: PRIMARY ATTACHED,3 O/L,MAG
Brand: MIDDLE ATLANTIC
SKU: 9065BD
Price: 198.28 USD
Availability: InStock

MIDDLE ATLANTIC

PCN#

9065BD

MFG#

MDSA10-MG

$198.28

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Shipping Weight: 4 lbs.

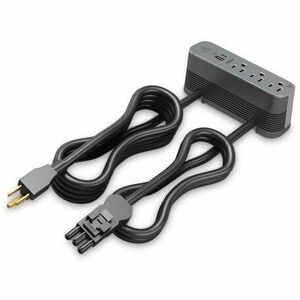

Wiremold ModPower Series - Primary Unit On Surface - 10ft Cord - Magnesium

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	MDSA10MG
Manufacturer Website Address	http://www.legrand.us
Brand Name	Wiremold
Product Line	ModPower
Product Name	Wiremold ModPower Series On-Surface Primary Module Power - Magnesium
Marketing Information	Modular code-compliant power. Connect up to six of our module power units together to create a system of power for training spaces, workstations, or flexible spaces. Choose in-surface or on-surface. Pick the option that best fits your space: in-surface or on-surface. On-surface units can be mounted under or above table surfaces. In-surface units include a bezel that hides the mounting screws for a cleaner look. On-surface units can be mounted using a clamp (for a damage-free install) or installed using wood screws. Installation for in-surface units is a snap: Simply cut the opening, insert the unit, tighten the clamps, snap on the bezel, and plug it in. UL Spill Water Compliant. Passed UL 962A spill water test requirements so it can be used in a horizontal surface, such as a tabletop. This device complies with part 15 of the FCC rules. You will notice that our units (primary, middle, and end) all utilize a circuit breaker. UL962A Supplement SD requires that all furniture power distribution units for portable (moveable) workspace tables contain supplementary overcurrent protection. Tamper-resistant receptacles. Models have three tamper-resistant receptacles to keep little fingers away from danger.
Product Type	Power/Data Outlet

Technical Information

Plug/Connector Type	NEMA 5-15P
Total Number of Receptacles	3
Receptacle Type	NEMA 5-15R USB
Receptacles Detail	3 x NEMA 5-15R 2 x USB
Features	Tamper Resistant Water Spill Protection Overcurrent Protection

Interfaces/Ports

USB	Yes
Number of USB Ports	2

Power Description

Voltage Rating	125 V AC
Current Rating	15 A

Physical Characteristics

Form Factor	Tabletop Surface Mount Under Table Screw Mount
Power Cable Length	10 ft
Color Family	Other
Product Color	Magnesium

Miscellaneous

Additional Information	Cord Type: 12/3 SJT Cable Size: 12 AWG
Certifications & Standards	CSA Listed 161600 (LR 350) UL Listed UL962A CSA Standard C22.2 No. 203-16 File E349493 Guide IYNC
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
