UPS ONLINE 900W 2U RACK/TOWER EXT RUN TAA COMPLIANT W/ SNMP-NV6 C

Name: UPS ONLINE 900W 2U RACK/TOWER EXT RUN TAA COMPLIANT W/ SNMP-NV6 C
Brand: MINUTEMAN POWER
SKU: SF8552
Price: 1399.13 USD
Availability: InStock

MINUTEMAN POWER

PCN#

SF8552

MFG#

EC1000RTXL2UNC

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,399.13

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

2U Rack/Tower
2 Minute Stand
by
120 V AC Input
120 V AC, 110 V AC, 127 V AC Output
True Sine Wave
Serial Port
USB
LCD Display
6 x NEMA 5
15R Receptacle(s)
RS
232, SNMP, Network Card
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationFull 3-year warranty which includes batteries.Directly Connected Equipment Guarantee200000

Shipping Weight: 30 lbs.

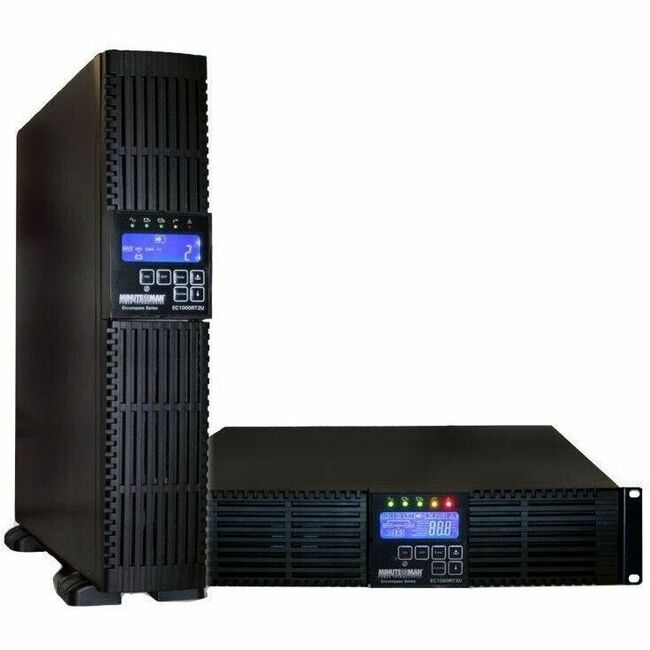

Minuteman Encompass RTXL EC1000RTXL2UNC 1000VA Rack/Tower UPS

Overview

Tech Specs

Specifications

Manufacturer	Para Systems, Inc
Manufacturer Part Number	EC1000RTXL2UNC
Manufacturer Website Address	http://www.minutemanups.com
Brand Name	Minuteman
Product Line	Encompass
Product Series	RTXL
Product Model	EC1000RTXL2UNC
Product Name	Encompass RTXL EC1000RTXL2UNC 1000VA Rack/Tower UPS
Marketing Information	On-Line UPS, Comprehensive Protection Compact, true double-conversion online UPS series. Offers virtually unlimited runtime solutions with the use of compatible external battery packs. Complies with Trade America Act (TAA) regulations for sale to all Federal, State and Local government agencies Front panel LCD display for monitoring of UPS condition. Output receptacle control for load management applications Full 3-year warranty which includes batteries.
Product Type	Double Conversion Online UPS

Technical Information

Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	6 x NEMA 5-15R
Cord Length	10 ft
Application/Usage	Medical Network Server VoIP Phone System IP Phone Security Edge Computing Government Security System Audio/Video Equipment Equipment Hospital
Features	Cold Start Function Built-in Bypass Switch

Power Description

Load Capacity (VA)	1000 VA
Load Capacity (Watt)	900 W
Input Voltage	120 V AC
Input Voltage Range	0 V AC - 160 V AC
Output Voltage	120 V AC 110 V AC 127 V AC
Input Frequency	50 Hz 60 Hz
Output Frequency	50 Hz 60 Hz
Waveform Type	True Sine Wave
Circuit Breaker	Yes
Output Power Factor	0.9

Display & Graphics

Display

LCD

Management

Network Management

RS-232
SNMP
Network Card

Interfaces/Ports

Serial Port	Yes
USB	Yes
EPO Port	Yes

Battery Information

Battery Characteristics	Sealed, Non-spillable, Maintenance-free, Valve-regulated
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	2 Minute
Backup/Run Time (Half Load)	10 Minute
Hot Swappable	Yes
Replaceable Battery	Yes

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Maximum Operating Elevation	9842.52 ft

Physical Characteristics

Height	3.50"
Width	18.90"
Length	16"
Rack Height	2U
Form Factor	Rack/Tower
Weight (Approximate)	24.30 lb

Miscellaneous

Certifications & Standards	cTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 /R: 2014) FCC Class A CE certified DoE 10 CFR Part 430 (EU Directive 2011/65/EU)
Energy Star	Yes
TAA Compliant	Yes
Energy Efficiency Certification	ENERGY STAR 2.0
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2

Warranty

Limited Warranty	3 Year
Additional Warranty Information	Full 3-year warranty which includes batteries.
Directly Connected Equipment Guarantee	200000
