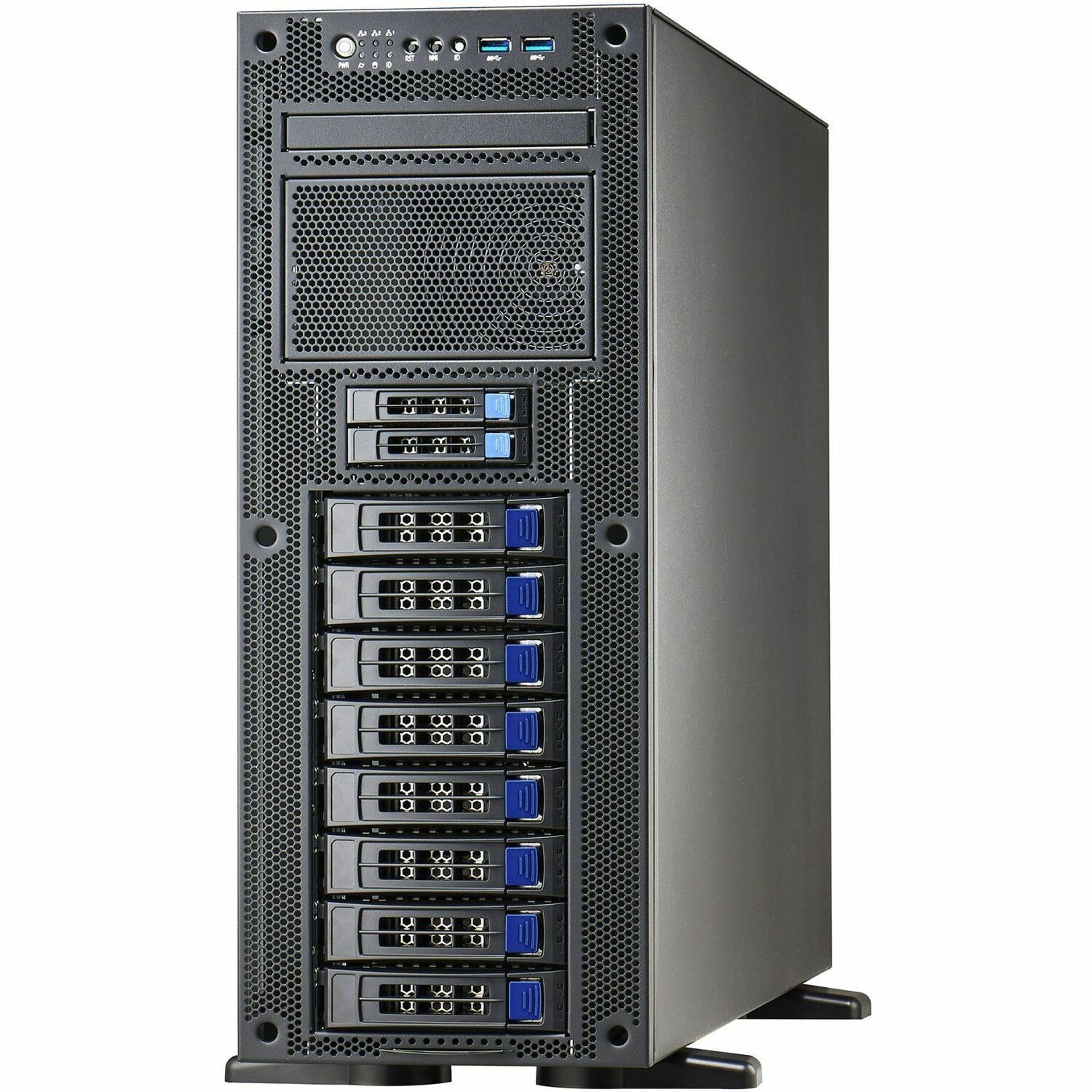

THUNDER HX FT65T-B5642 - SERVER BAREBONE - 4U - XEON - GIGABIT ETHERNET - POWER

Name: THUNDER HX FT65T-B5642 - SERVER BAREBONE - 4U - XEON - GIGABIT ETHERNET - POWER
Brand: MITAC COMPUTING COMPANY
SKU: 9873BR
Price: 2002.41 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9873BR

MFG#

B5642F65TV8E2H-G

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,002.41

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Estimated Shipment:

Product Highlights:

Intel C621A Chip
DDR5 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
8 Total Memory Slots
Serial ATA/600 RAID Supported, NVMe, 12Gb/s SAS Controller
8 3.5" Bay(s)
Network (RJ
45)
2 M.2 Interface(s)
14 SATA Interface(s)
Processor Support (Xeon Platinum, Xeon Silver, Xeon Gold, Xeon Bronze)
Gigabit Ethernet
4 USB 3.0 Port(s)
2000 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 83 lbs.

Mitac Thunder HX FT65TB5642 Barebone System - 4U Tower - Socket LGA-4189 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B5642F65TV8E2H-G
Manufacturer Website Address	http://www.tyan.com
Brand Name	Mitac
Product Line	Thunder HX
Product Model	FT65TB5642
Product Name	Thunder HX FT65TB5642 Barebone System
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket LGA-4189
Processor Supported	Xeon Platinum Xeon Silver Xeon Gold Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Memory Technology	DDR5 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	8

Storage

Supported Storage Drive Interfaces	PCI Express NVMe 4.0 Serial ATA III SAS-3 PCI Express 3.0
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type	Serial ATA/600 NVMe 12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Display & Graphics

Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	10
Number of 3.5" Bays	8
Total Number of Expansion Slots	7
Number of PCI Express x8 Slots	2
Number of PCI Express x16 Slots	3
Number of M.2 Interfaces	2

Interfaces/Ports

Total Number of USB Ports	6
Number of USB 3.0 Ports	4
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Number of SATA Interfaces	14
Number of VGA Ports	1

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	2000 W
Thermal Design Power	270 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Tower
Rack Height	4U
Height	6.9"
Width	16.8"
Depth	25.6"

Miscellaneous

Package Contents	Thunder HX FT65TB5642 Barebone System Quick Installation Guide
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 6

Warranty

Limited Warranty

3 Year
