2U CHASSIS WITH 12X 3.5IN FRONT ACCESSIBLE DRIVE BAYS, DUAL SOCKET

Name: 2U CHASSIS WITH 12X 3.5IN FRONT ACCESSIBLE DRIVE BAYS, DUAL SOCKET
Brand: MITAC COMPUTING COMPANY
SKU: 9875BR
Price: 3163.21 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9875BR

MFG#

B7122T75V8E4HR-2T

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,163.21

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

Intel C621A Chip
4 TB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
32 Total Memory Slots
Serial ATA/600 RAID Supported, 12Gb/s SAS, NVMe Controller
12 3.5" Bay(s)
Network (RJ
45)
2 M.2 Interface(s)
12 SATA Interface(s)
Processor Support (Xeon Gold, Xeon Bronze, Xeon Platinum, Xeon Silver)
10 Gigabit Ethernet
Windows Server 2019, Red Hat Enterprise Linux 8.3 x64, CentOS 8.3 x64 Supported Operating System
2 USB 3.2 Gen 1 Port(s)
2 x 1600 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 70 lbs.

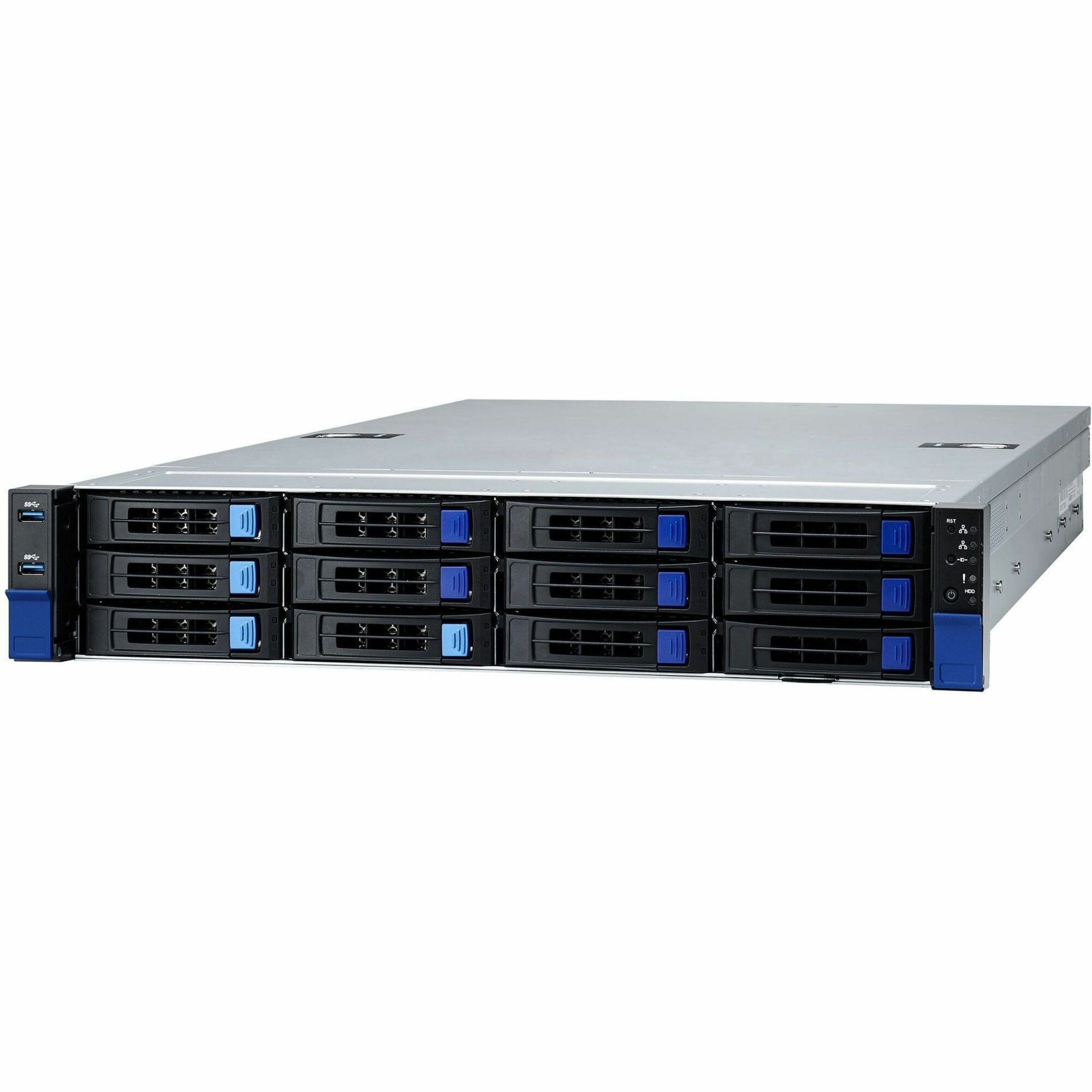

Mitac Thunder HX TS75-B7122 Barebone System - 2U Rack-mountable - Socket LGA-4189 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7122T75V8E4HR-2T
Manufacturer Website Address	http://www.tyan.com
Brand Name	Mitac
Product Line	Thunder HX
Product Model	TS75-B7122
Product Name	Thunder HX TS75-B7122
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA-4189
Processor Supported	Xeon Gold Xeon Bronze Xeon Platinum Xeon Silver
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Maximum Memory Supported	4 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	32

Storage

Supported Storage Drive Interfaces	Serial ATA III SAS PCI Express
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type	Serial ATA/600 12Gb/s SAS NVMe
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Display & Graphics

Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

10 Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	12
Number of 3.5" Bays	12
Total Number of Expansion Slots	5
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	4
Number of M.2 Interfaces	2

Interfaces/Ports

Total Number of USB Ports	4
Number of USB 3.1 Gen 1 Ports	2
Number of USB 3.2 Gen 1 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	2
Number of SATA Interfaces	12
Number of VGA Ports	1

Operating System

Operating System Supported

Windows Server 2019
Red Hat Enterprise Linux 8.3 x64
CentOS 8.3 x64

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1600 W
Thermal Design Power	270 W
Frequency	47 Hz 63 Hz

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.3"
Depth	29.6"
Weight (Approximate)	44.75 lb

Miscellaneous

Package Contents	Thunder HX TS75-B7122 1 x Quick Installation Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 6

Warranty

Limited Warranty

3 Year
