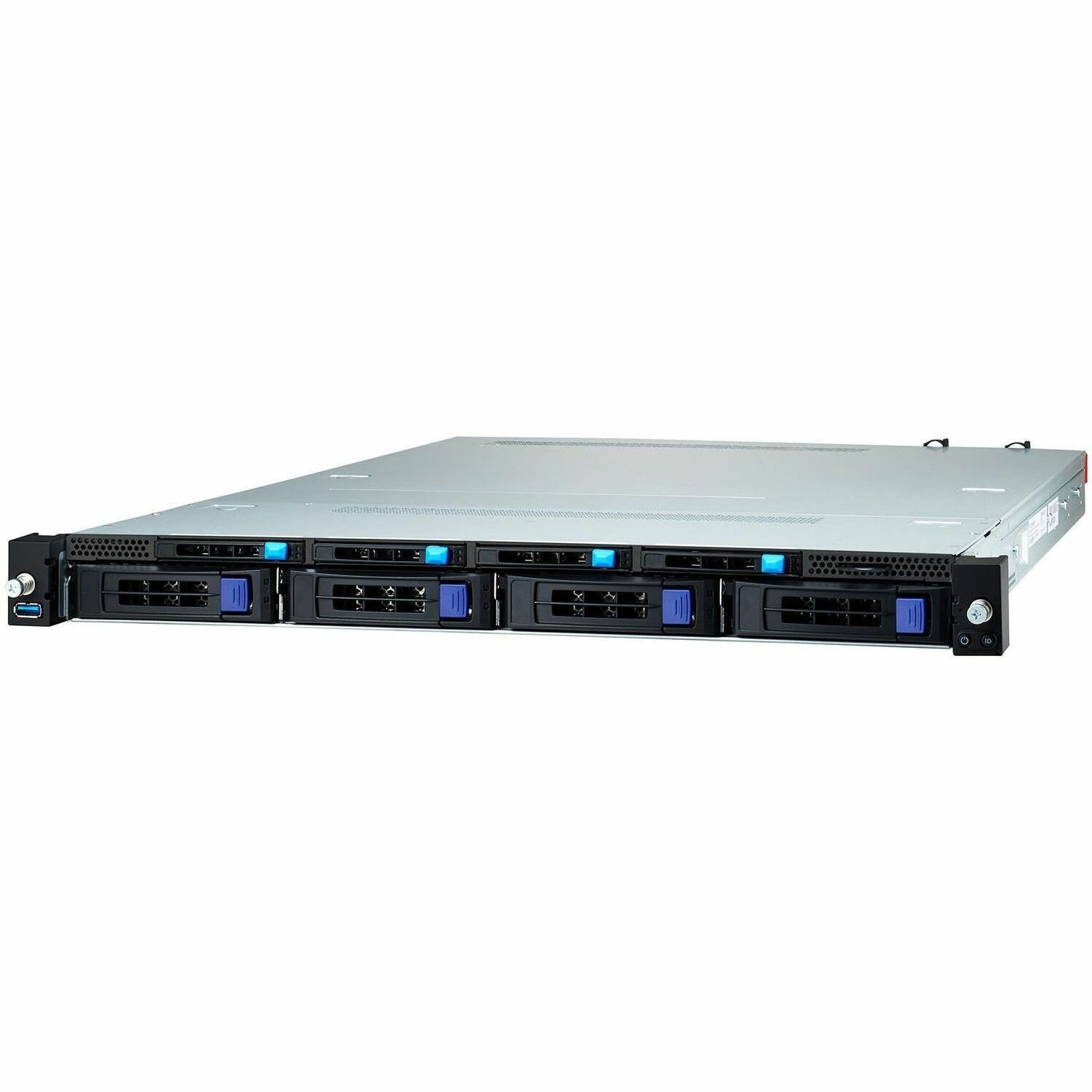

1U2S CLOUD SERVER, 4 LFF + 4 NVME U.2

Name: 1U2S CLOUD SERVER, 4 LFF + 4 NVME U.2
Brand: MITAC COMPUTING COMPANY
SKU: 9866BR
Price: 2102.49 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9866BR

MFG#

B7126G68V4E4HR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,102.49

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C621A Chip
DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
16 Total Memory Slots
Serial ATA/600 RAID Supported, NVMe, 12Gb/s SAS Controller
4 3.5" Bay(s)
Network (RJ
45)
1 M.2 Interface(s)
Processor Support (Xeon Platinum, Xeon Silver, Xeon Gold, Xeon Bronze)
Gigabit Ethernet
3 USB 3.0 Port(s)
2 x 850 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 24 lbs.

Mitac Thunder CX GC68B7126 Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7126G68V4E4HR
Manufacturer Website Address	http://www.tyan.com
Brand Name	Mitac
Product Line	Thunder CX
Product Model	GC68B7126
Product Name	Thunder CX GC68B7126 Barebone
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA-4189
Processor Supported	Xeon Platinum Xeon Silver Xeon Gold Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C621A

Memory

Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	16

Storage

Supported Storage Drive Interfaces	PCI Express NVMe 4.0 Serial ATA III SAS PCI Express 3.0
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type	Serial ATA/600 NVMe 12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Display & Graphics

Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	8
Number of 3.5" Bays	4
Total Number of Expansion Slots	4
Number of PCI Express x16 Slots	3
Number of M.2 Interfaces	1

Interfaces/Ports

Total Number of USB Ports	3
Number of USB 3.0 Ports	3
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3
Number of VGA Ports	1

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	850 W
Thermal Design Power	205 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	1U
Height	1.7"
Width	17.3"
Depth	26.8"
Weight (Approximate)	23.15 lb

Miscellaneous

Package Contents	Thunder CX GC68B7126 Barebone Quick Installation Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 6

Warranty

Limited Warranty

3 Year
