TYAN B7132T75E8HR, INTEL XEON SP SERIES - 4TH GEN

Name: TYAN B7132T75E8HR, INTEL XEON SP SERIES - 4TH GEN
Brand: MITAC COMPUTING COMPANY
SKU: 9907BR
Price: 3233.79 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9907BR

MFG#

B7132T75E8HR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,233.79

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Estimated Shipment:

Product Highlights:

Intel c741 Chip
4 TB DDR5 SDRAM DDR5
5600/PC5
44800 Maximum RAM Support
32 Total Memory Slots
Serial ATA/600 RAID Supported, NVMe, 12Gb/s SAS Controller
8 3.5" Bay(s)
Network (RJ
45)
2 M.2 Interface(s)
10 SATA Interface(s)
Processor Support (Xeon Platinum, Xeon Silver, Xeon Gold, Xeon Bronze)
10 Gigabit Ethernet, Gigabit Ethernet
3 USB 3.2 Gen 1 Port(s)
2 x 1600 W

Product Condition: New and Factory Fresh

Shipping Weight: 70 lbs.

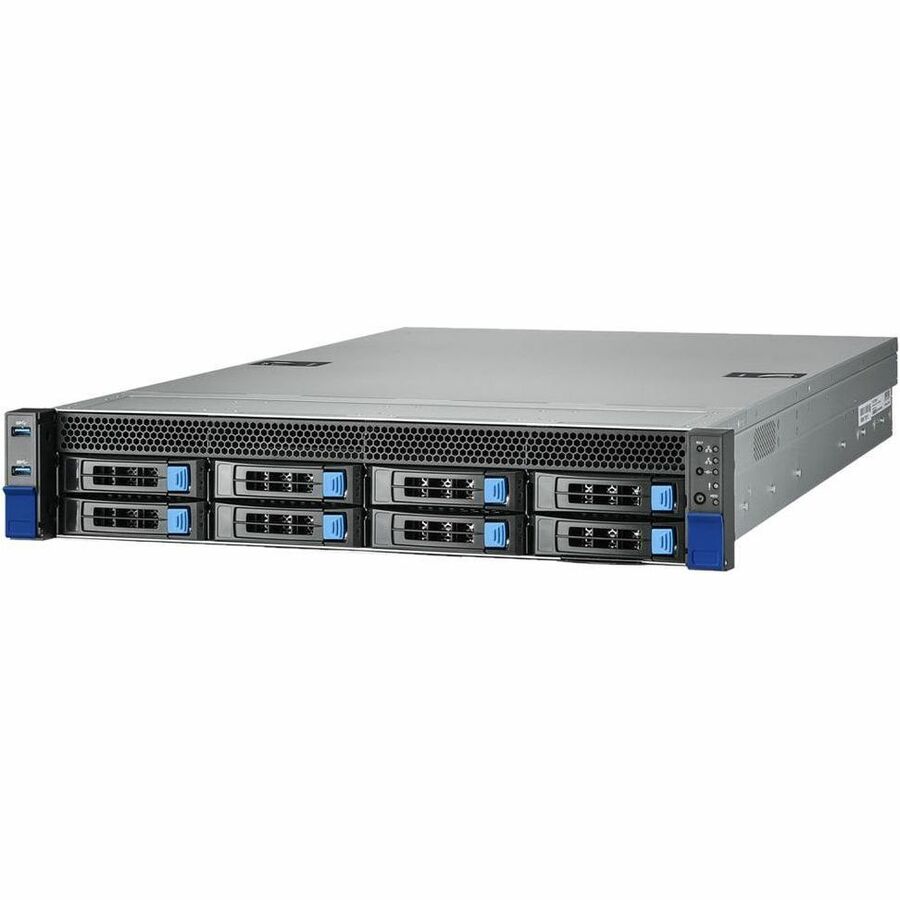

Mitac Thunder HX TS75B7132 Barebone System - 2U Rack-mountable - Socket LGA-4677 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7132T75E8HR
Manufacturer Website Address	http://www.tyan.com
Brand Name	Mitac
Product Line	Thunder HX
Product Model	TS75B7132
Product Name	Thunder HX TS75B7132 Barebone System
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA-4677
Processor Supported	Xeon Platinum Xeon Silver Xeon Gold Xeon Bronze
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	c741

Memory

Maximum Memory Supported	4 TB
Memory Technology	DDR5 SDRAM
Memory Standard	DDR5-5600/PC5-44800
Total Number of Memory Slots	32

Storage

Supported Storage Drive Interfaces	PCI Express NVMe 4.0 Serial ATA III SAS-3
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type	Serial ATA/600 NVMe 12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Display & Graphics

Graphics Memory Technology	DDR5 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	8
Number of 3.5" Bays	8
Total Number of Expansion Slots	6
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	5
Number of M.2 Interfaces	2

Interfaces/Ports

Total Number of USB Ports	3
Number of USB 3.2 Gen 1 Ports	3
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3
Number of SATA Interfaces	10
Number of VGA Ports	1

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1600 W
Thermal Design Power	350 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.3"
Depth	29.6"
Weight (Approximate)	44.75 lb

Miscellaneous

Package Contents	Thunder HX TS75B7132 Barebone System Quick Installation Guide
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 6
