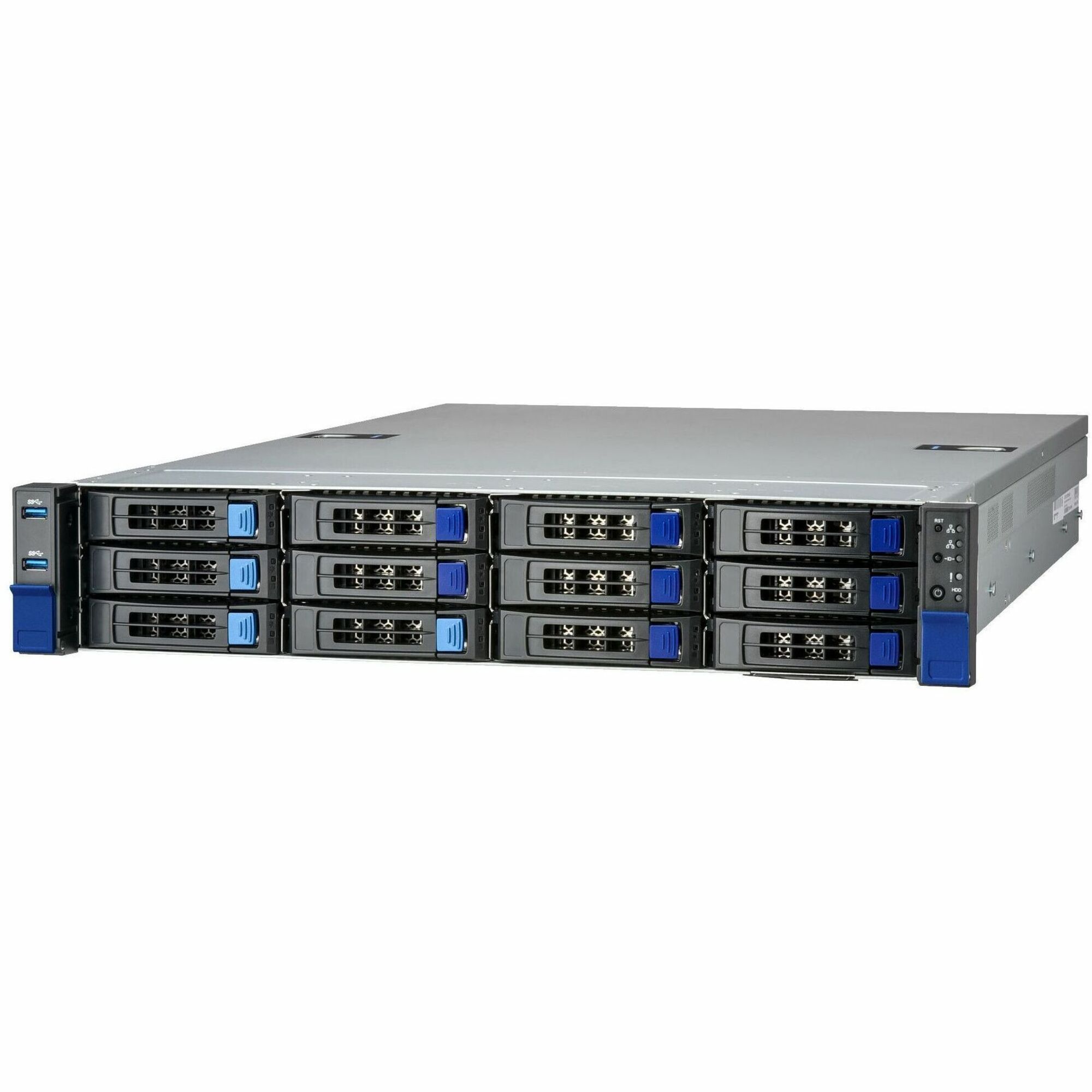

TYAN B7136T70V10E4HR-2T 2U SERVER, INTEL XEON SP SERIES - 4TH GEN

Name: TYAN B7136T70V10E4HR-2T 2U SERVER, INTEL XEON SP SERIES - 4TH GEN
Brand: MITAC COMPUTING COMPANY
SKU: 9927BR
Price: 3290.09 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9927BR

MFG#

B7136T70V10E4HR-2T

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,290.09

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel C741 Chip
2 TB DDR5 SDRAM DDR5
4800/PC5
38400 Maximum RAM Support
16 Total Memory Slots
Serial ATA/600 RAID Supported, NVMe Controller
12 3.5" Bay(s)
Network (RJ
45)
2 M.2 Interface(s)
14 SATA Interface(s)
Processor Support (Xeon Bronze, Xeon Gold, Xeon Platinum, Xeon Silver)
10 Gigabit Ethernet, Gigabit Ethernet
Windows Server 2022, CentOS Stream 8, Ubuntu 20.04.3 LTS Supported Operating System
3 USB 3.2 Gen 1 Port(s)
2 x 1200 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 40 lbs.

Mitac Thunder SX TS70-B7136 Barebone System - 2U Rack-mountable - Socket LGA-4677 - 2 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B7136T70V10E4HR-2T
Manufacturer Website Address	http://www.tyan.com
Brand Name	Mitac
Product Line	Thunder SX
Product Model	TS70-B7136
Product Name	Thunder SX TS70-B7136
Marketing Information	2S Intel Emerald Rapids / Sapphire Rapids CPU 16 DIMM slots with DDR5-4800 memory support 12 3.5" SATA with opt. 4 NVMe U.2 hot-swap, tool-less drive bays 2 2.5" SATA hot-swap, tool-less drive bays @ rear PCIe 5.0 x16 OCP v3.0 LAN mezzanine slot 2 NVMe M.2 2280 slots 1 dedicate 1000Base-T IPMI port (1+1) CRPS
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Processor Socket	Socket LGA-4677
Processor Supported	Xeon Bronze Xeon Gold Xeon Platinum Xeon Silver
64-bit Processing	Yes

Chipset

Chipset Manufacturer	Intel
Chipset Model	C741

Memory

Maximum Memory Supported	2 TB
Memory Technology	DDR5 SDRAM
Memory Standard	DDR5-4800/PC5-38400
Total Number of Memory Slots	16

Storage

Supported Storage Drive Interfaces	Serial ATA III PCI Express NVMe 4.0
Supported Storage Drive Types	HDD SSD

Controllers

Controller Type	Serial ATA/600 NVMe
RAID Supported	Yes
RAID Levels	0, 1, 5, 10

Display & Graphics

Graphics Memory Technology	DDR5 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	14
Number of 3.5" Bays	12
Total Number of Expansion Slots	6
Number of PCI Express x8 Slots	3
Number of PCI Express x16 Slots	3
Number of M.2 Interfaces	2

Interfaces/Ports

Total Number of USB Ports	3
Number of USB 3.2 Gen 1 Ports	3
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	3
Number of SATA Interfaces	14
Number of VGA Ports	1

Operating System

Operating System Supported

Windows Server 2022
CentOS Stream 8
Ubuntu 20.04.3 LTS

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1200 W
Thermal Design Power	350 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.3"
Depth	27.6"
Weight (Approximate)	36.38 lb

Miscellaneous

Package Contents	Thunder SX TS70-B7136 1 Quick Installation Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 6

Warranty

Limited Warranty

3 Year
