TYAN B8253T65V10E4HR-2T, AMD EPYC 7003 SERIES - 3RD GEN

Name: TYAN B8253T65V10E4HR-2T, AMD EPYC 7003 SERIES - 3RD GEN
Brand: MITAC COMPUTING COMPANY
SKU: 9880BR
Price: 2431.75 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9880BR

MFG#

B8253T65V10E4HR-2T

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,431.75

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

AMD Chip
1 TB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
16 Total Memory Slots
NVMe, 12Gb/s SAS, Serial ATA/600 Controller
12 3.5" Bay(s)
Network (RJ
45)
12 SATA Interface(s)
Processor Support (EPYC)
10 Gigabit Ethernet, Gigabit Ethernet
2 x 1200 W
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 34 lbs.

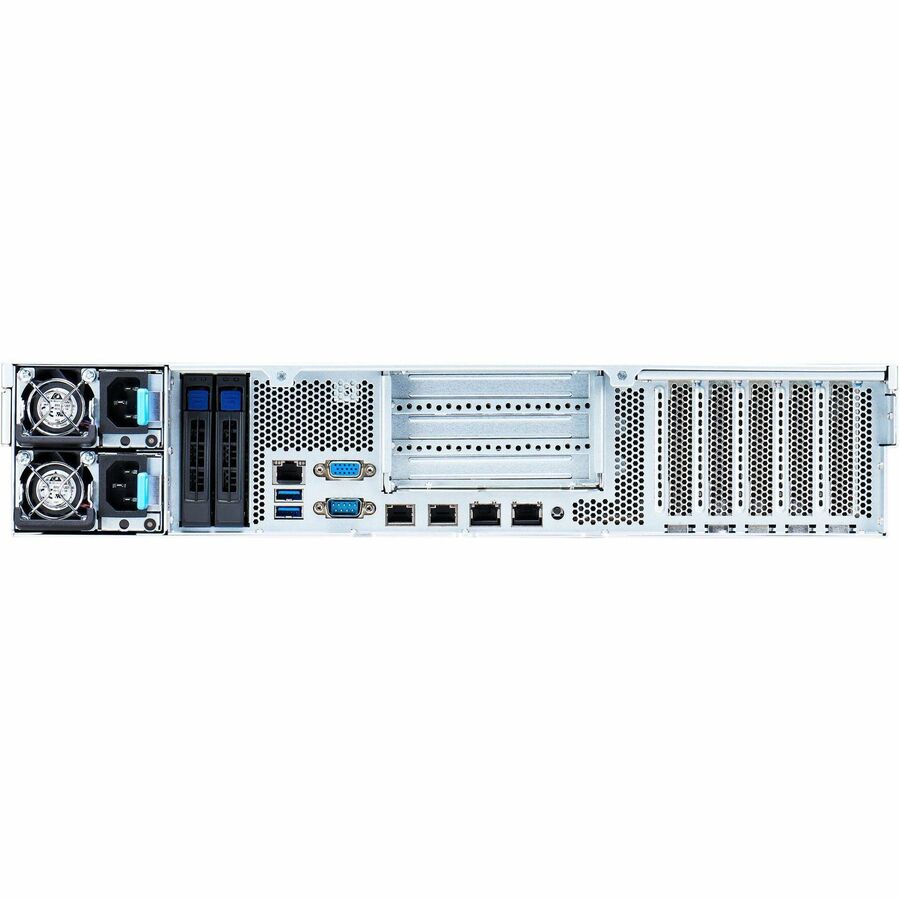

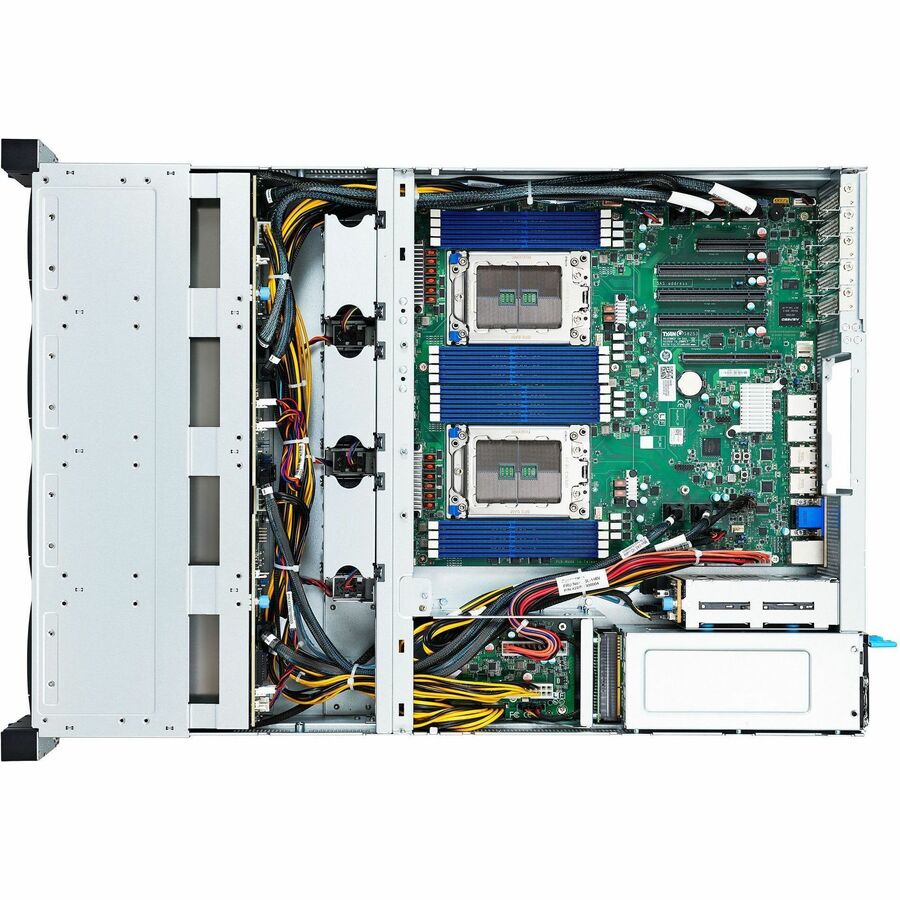

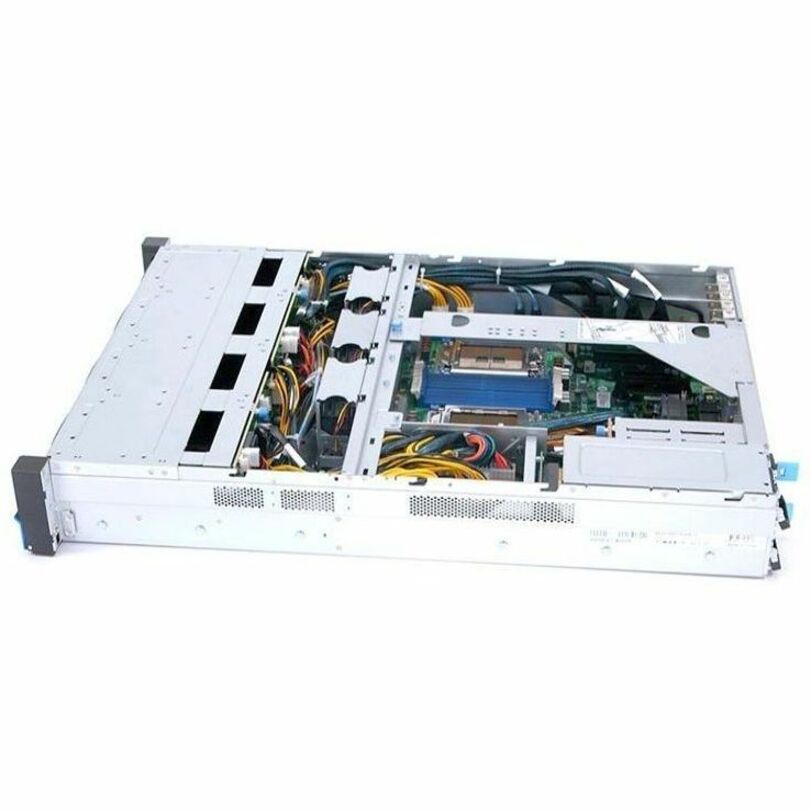

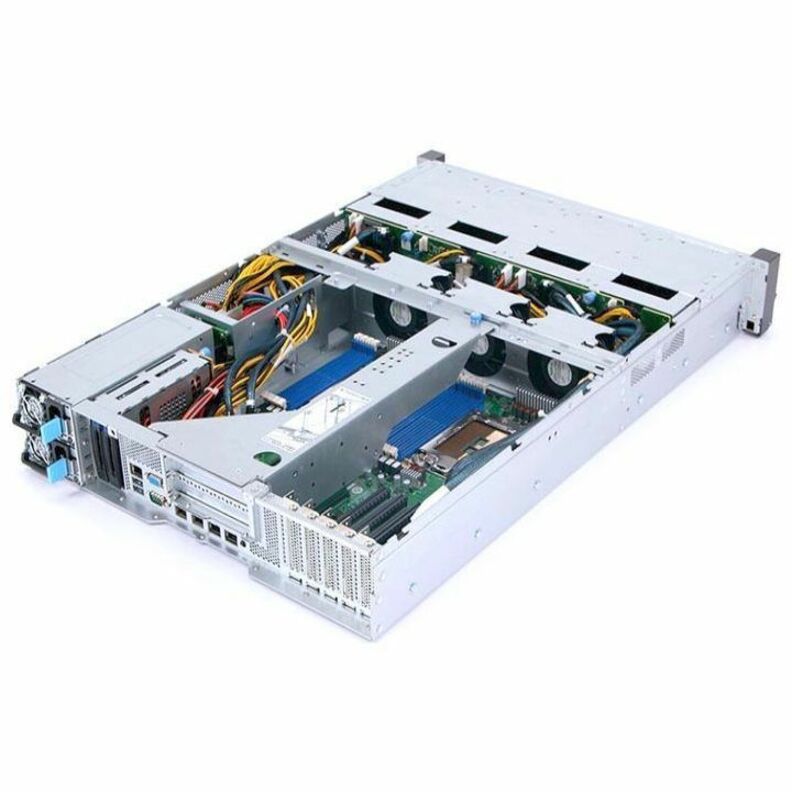

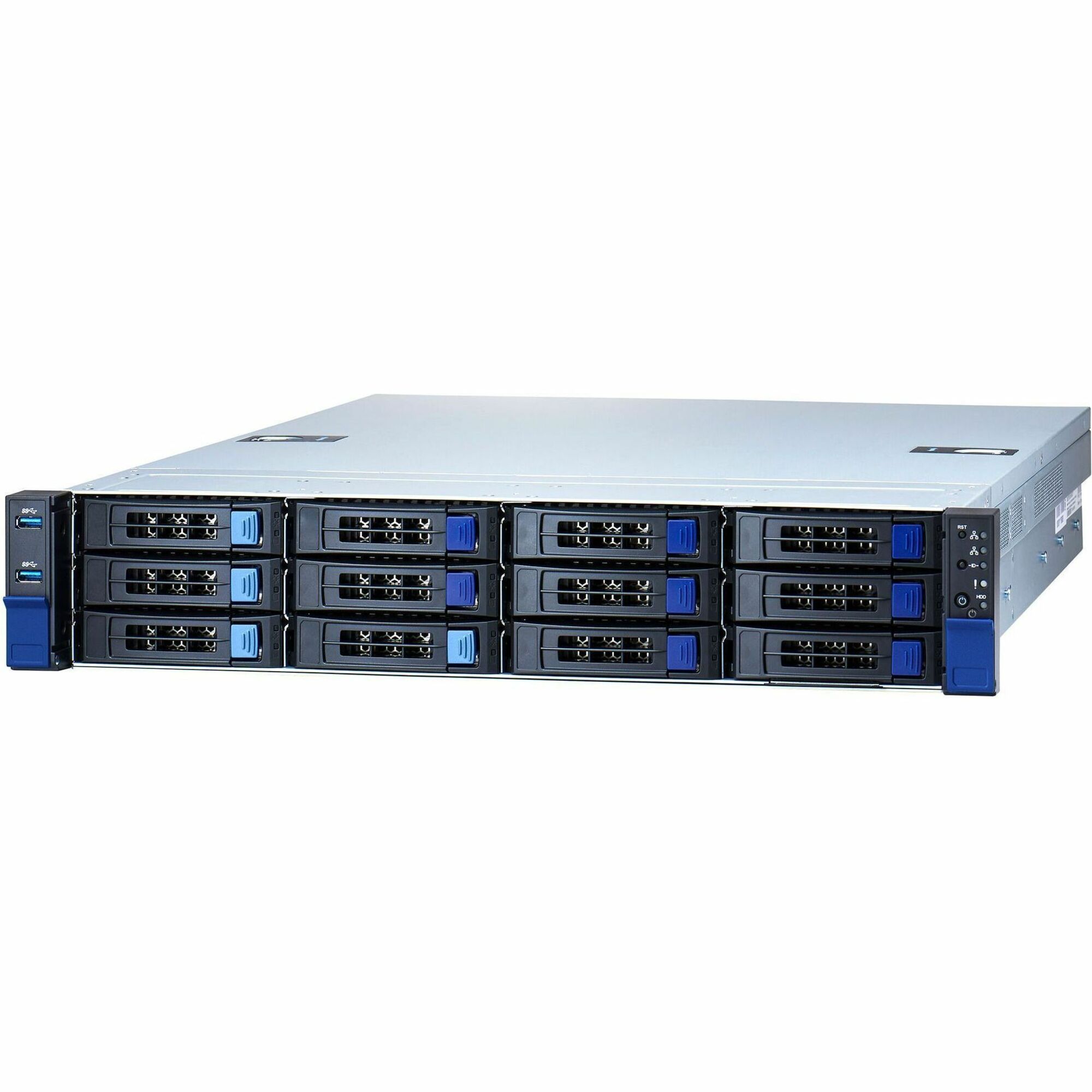

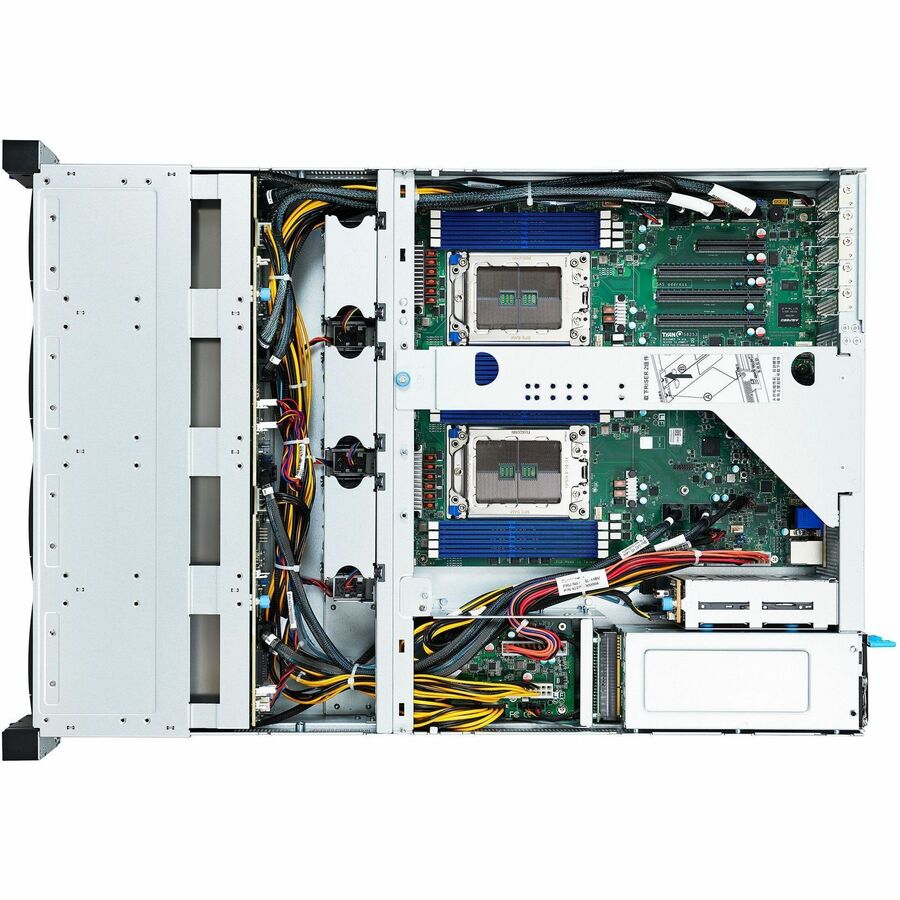

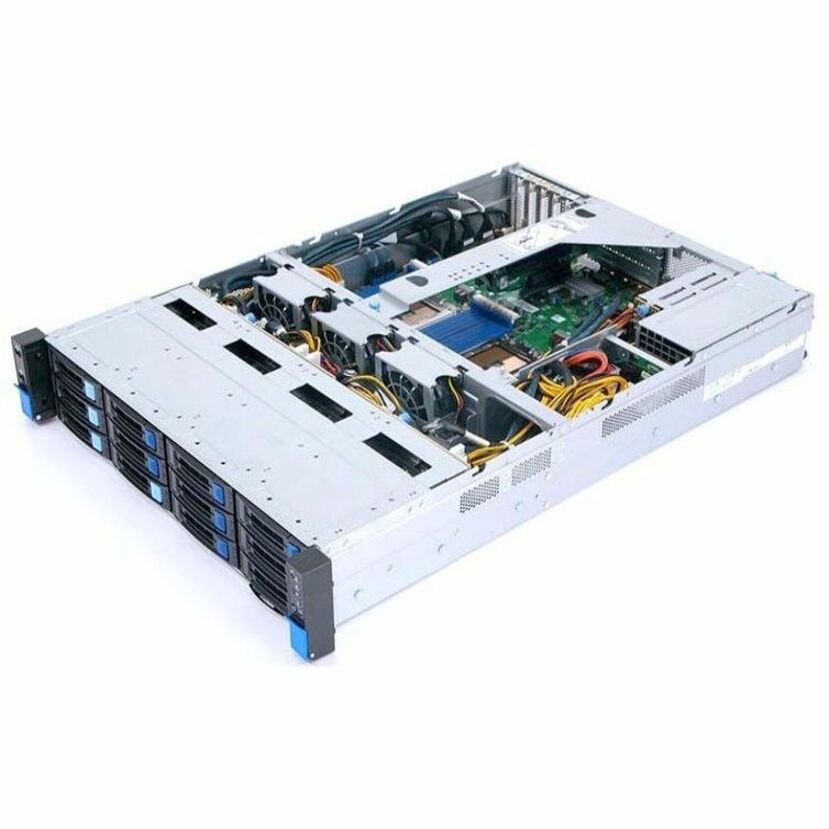

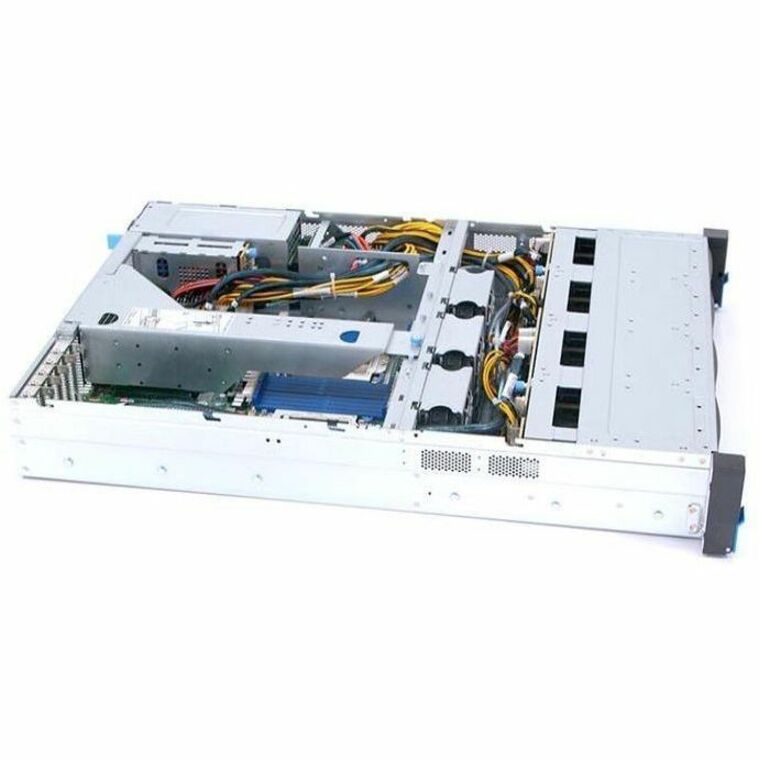

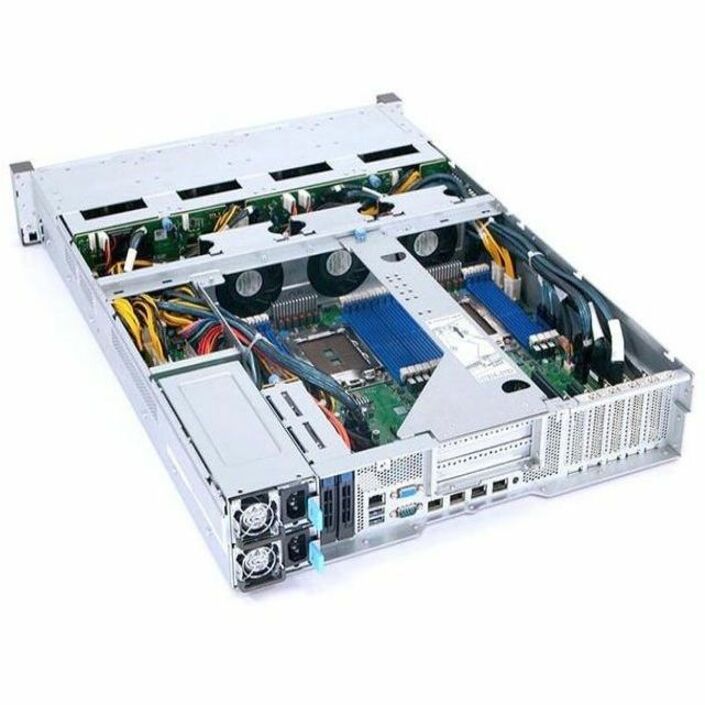

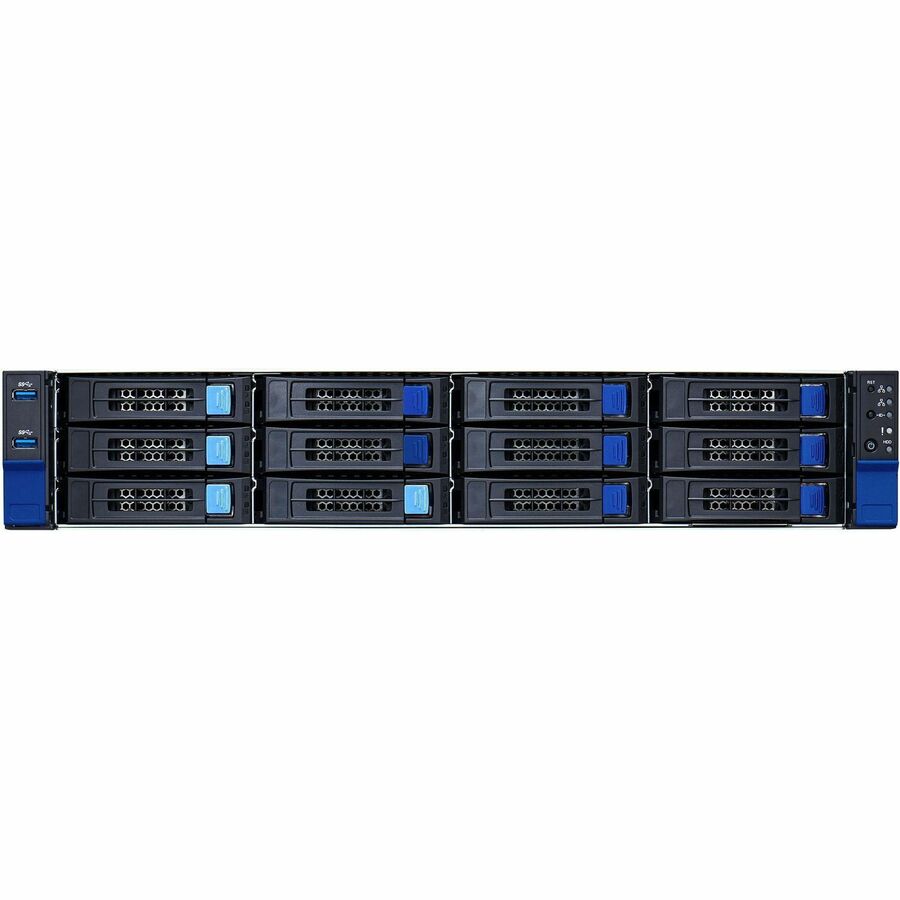

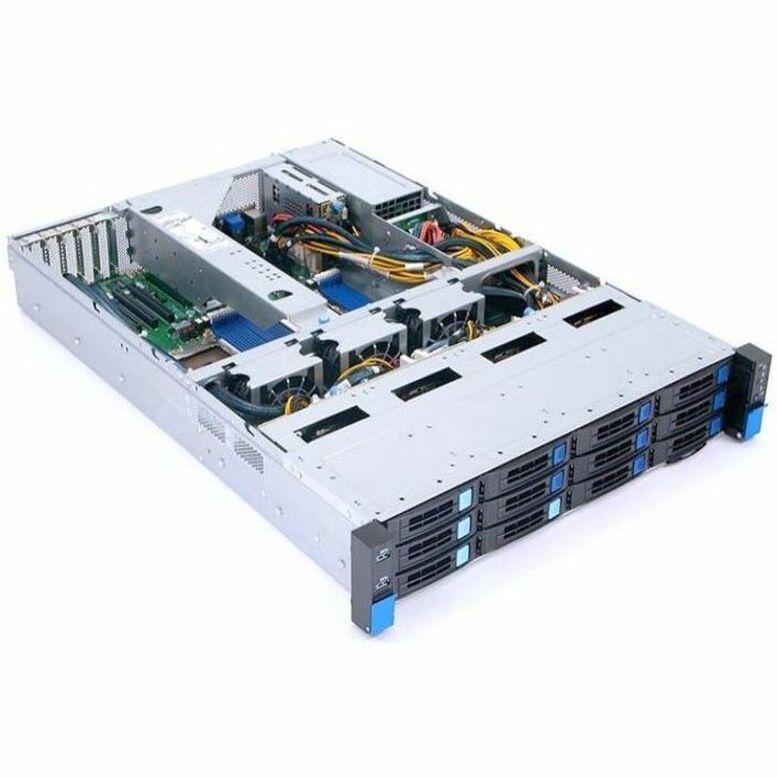

Mitac Transport SX TS65-B8253 Barebone System - 2U Rack-mountable - Socket SP3 - 2 x Processor Support - 2

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	B8253T65V10E4HR-2T
Manufacturer Website Address	http://www.tyan.com
Brand Name	Mitac
Product Line	Transport SX
Product Model	TS65-B8253
Product Name	Transport SX TS65-B8253
Packaged Quantity	1
Product Type	Barebone System

Processor

Number of Processors Supported	2
Number of Processors Installed	2
Processor Socket	Socket SP3
Processor Supported	EPYC
64-bit Processing	Yes

Chipset

Chipset Manufacturer

AMD

Memory

Maximum Memory Supported	1 TB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	16

Storage

Supported Storage Drive Interfaces	SAS Serial ATA III PCI Express NVMe 4.0
Supported Storage Drive Types	SSD HDD

Controllers

Controller Type	NVMe 12Gb/s SAS Serial ATA/600
RAID Supported	No

Display & Graphics

Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	14
Number of 3.5" Bays	12
Total Number of Expansion Slots	7
Number of PCI Express x8 Slots	3
Number of PCI Express x16 Slots	4

Interfaces/Ports

Total Number of USB Ports	6
Number of USB 3.1 Gen 1 Ports	6
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	4
Number of SATA Interfaces	12
Number of VGA Ports	1

Power Description

Input Voltage	120 V AC 230 V AC
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1200 W
Thermal Design Power	240 W
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	17.3"
Depth	25.6"
Weight (Approximate)	41.89 lb

Miscellaneous

Package Contents	Transport SX TS65-B8253 1 x Quick Installation Guide
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 6

Warranty

Limited Warranty

3 Year
