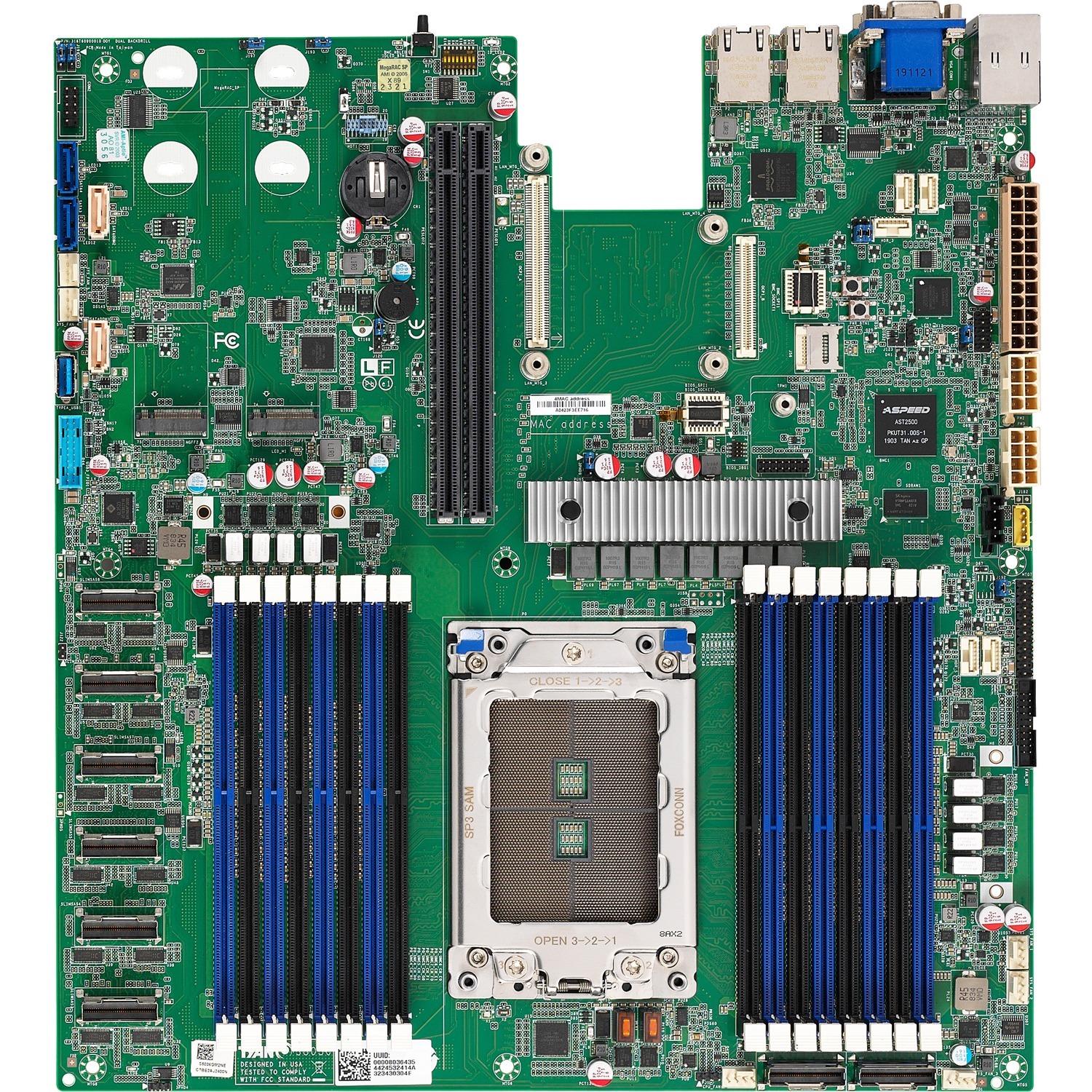

TYAN MOTHERBOARD S8036GM2NE, AMD, 2 PCLE 4.0 RISER SLOTS

Name: TYAN MOTHERBOARD S8036GM2NE, AMD, 2 PCLE 4.0 RISER SLOTS
Brand: MITAC COMPUTING COMPANY
SKU: 9883BR
Price: 681.53 USD
Availability: InStock

MITAC COMPUTING COMPANY

PCN#

9883BR

MFG#

S8036GM2NE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$681.53

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

EPYC Processor Supported
4 TB DDR4 SDRAM Maximum RAM
RDIMM, DIMM, LRDIMM
16 x Memory Slots
Gigabit Ethernet
20 x SATA Interfaces

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 5 lbs.

Tyan Tomcat SX S8036 Server Motherboard - AMD Chipset - Socket SP3 - Extended ATX

Overview

Tech Specs

Specifications

Manufacturer	Tyan Computer Corp
Manufacturer Part Number	S8036GM2NE
Manufacturer Website Address	http://www.tyan.com
Brand Name	Tyan
Product Line	Tomcat SX
Product Model	S8036
Product Name	Tomcat SX S8036 Server Motherboard
Packaged Quantity	1
Product Type	Server Motherboard

Processor & Chipset

Chipset Manufacturer	AMD
Total Processor Supported	1
Processor Socket	Socket SP3
Processor Supported	EPYC

Memory

Number of Memory Slots	16
Memory Form Factor	RDIMM DIMM LRDIMM
Maximum Memory Supported	4 TB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	3200 MHz

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	No

Video

Onboard Video	On-board Video Chipset
Graphics Controller Model	AST2500

Network & Communication

Gigabit Ethernet

Yes

I/O Expansions

Total Number of Expansion Slots	2
Total Number of PCI Express Slots	2
Number of PCI Express x24 Slots	2

Interfaces/Ports

Total Number of USB Ports	2
Number of USB 3.1 Ports	2
VGA	Yes
Number of Network (RJ-45) Ports	3

Onboard Interfaces

Number of SATA Interfaces	20
Number of M.2 Interfaces	2
Total Number of Onboard USB Ports	3
Number of Onboard USB 3.1 Ports	3
Number of NVMe Ports	12

Physical Characteristics

Form Factor	Extended ATX
Width	12"
Depth	13"

Miscellaneous

Package Contents	Tomcat SX S8036 Server Motherboard 1 x Quick Installation Guide 1 x I/O Shield 2 x SATA Signal Cables
Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

3 Year
