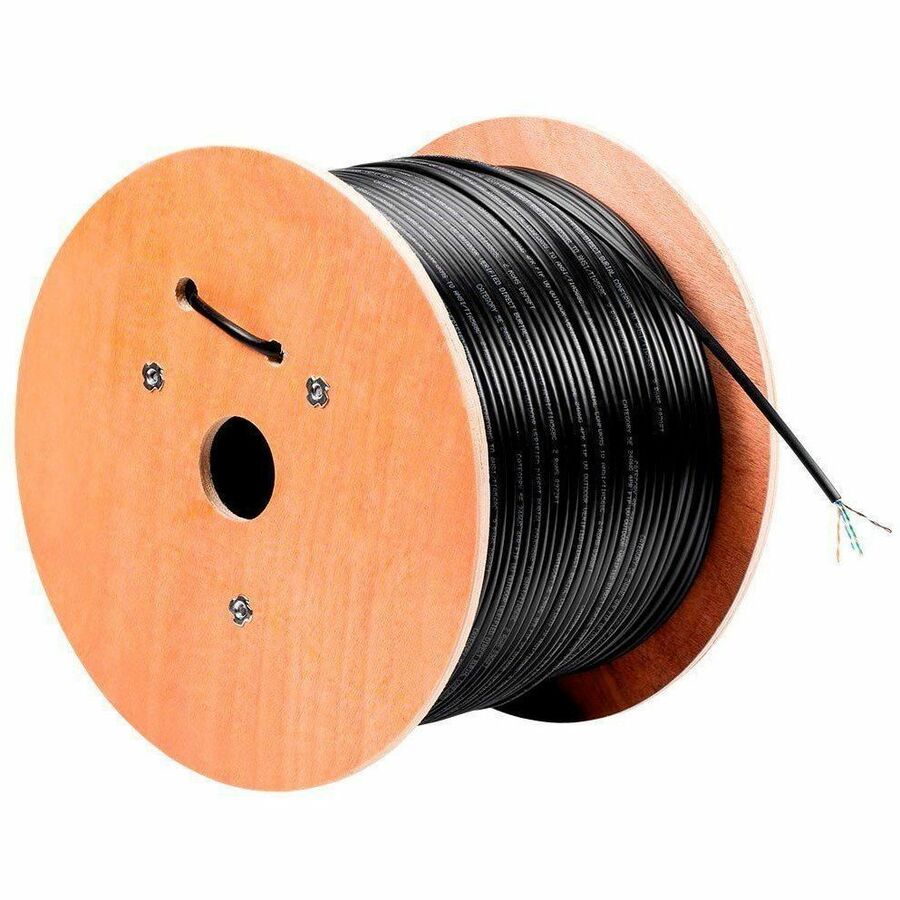

CAT5E ETHERNET BULK CABLE 1000FT_ BLACK

Name: CAT5E ETHERNET BULK CABLE 1000FT_ BLACK
Brand: MONOPRICE INC.
SKU: 8794AS
Price: 286.38 USD
Availability: InStock

MONOPRICE INC.

PCN#

8794AS

MFG#

21868

$286.38

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 20 lbs.

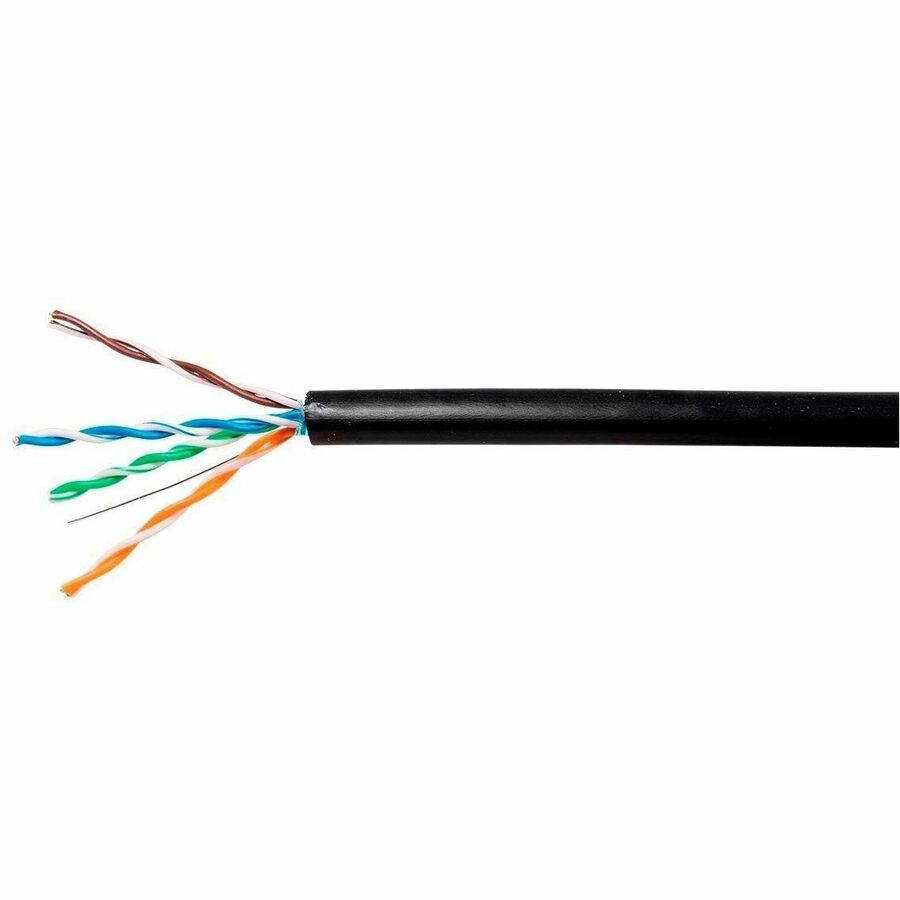

Monoprice UTP Category 5e Network Cable

Tech Specs

Specifications

Manufacturer	Monoprice, Inc
Manufacturer Part Number	21868
Manufacturer Website Address	http://www.monoprice.com
Brand Name	Monoprice
Product Name	UTP Category 5e Network Cable
Marketing Information	Avoid having excess Ethernet cable lying around by building your own cables to the exact length needed using this Bulk Ethernet Copper Cable from Monoprice™! Features: Unshielded Twisted Pair (UTP) Category 5e Ethernet cable 24AWG solid, pure bare copper conductors Outdoor gel-filled direct burial rated 350MHz bandwidth 1000 foot roll Monoprice™ Ethernet cables are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL® Code 444 and National Electrical Code® TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.

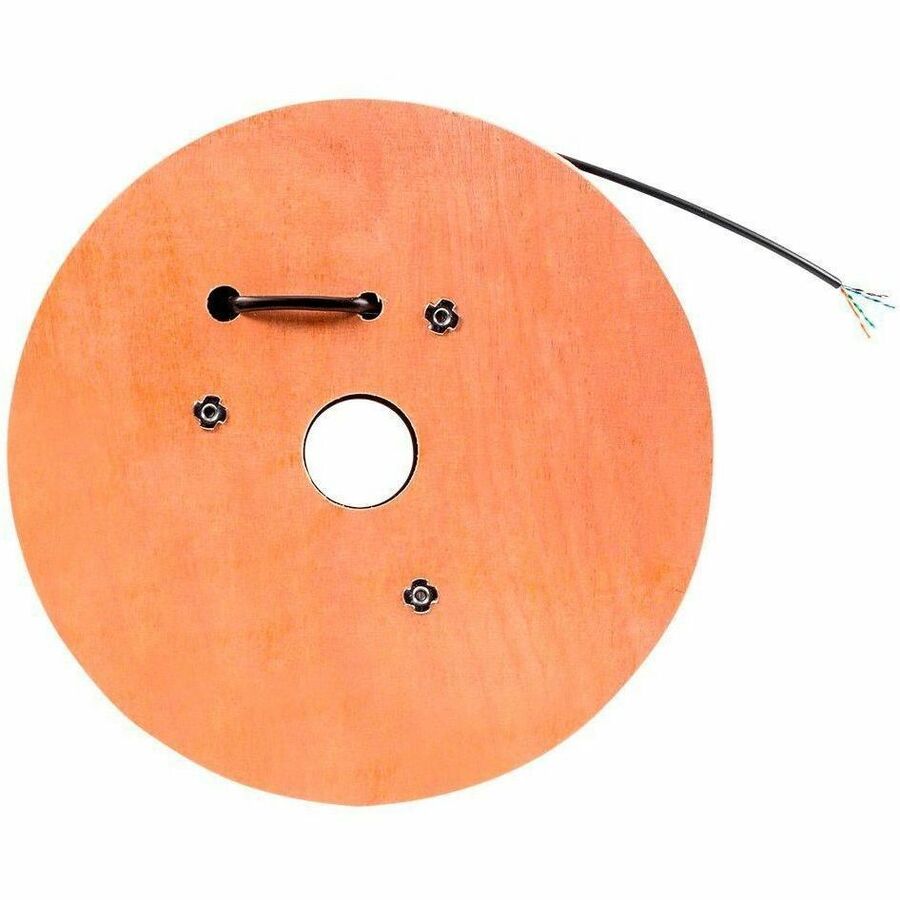

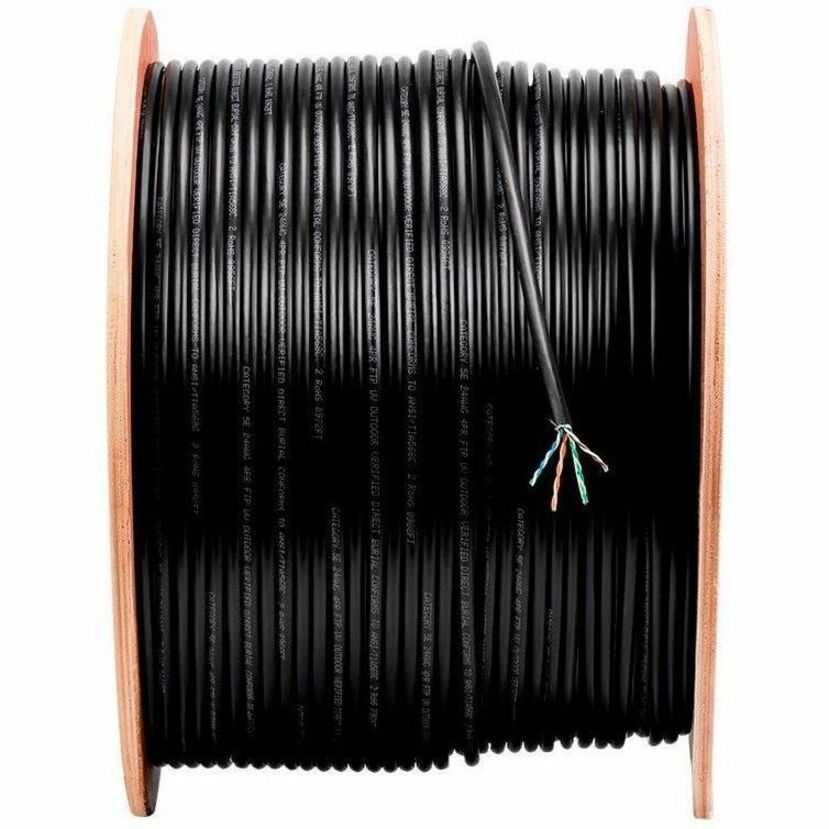

Packing	Spool
Package Type	Bulk
Product Type	Network Cable

Technical Information

Cable Type	Category 5e
Cable Length	1000 ft
Outer Diameter	19.3 mil
Cable Shielding Type	Unshielded Twisted Pair (UTP)
Connector Type on First End	Bare Wire
Connector on First End Details	1 x Barewire
Connector Type on Second End	Bare Wire
Connector on Second End Details	1 x Barewire
Conductor	Bare Copper
Device Supported	Network Device
American Wire Gauge	24 AWG
Number of Conductors	4
Features	Gel-filled

Physical Characteristics

Color Family	Black
Product Color	Black
Jacket Color	Black
Insulation Material	High-density Polyethylene (HDPE)

Miscellaneous

Additional Information	Aging Condition: 100°C x 168 hours Characteristic Impedance: 100Ω ±15 Ω Elongation: Aging ≥ 150% Maximum Conductor DC Resistance @20°C: ≤9.5Ω/100 Meters Maximum DC Resistance Unbalanced @20°C: ≤2.5% Maximum Delay Skew: ≤45nS/100 Meters Maximum Pair-to-Pair Ground Capacitance: ≤330pF/100 Meters Mutual Capacitance: ≤5.6nF/100 Meters Rated Temperature / Voltage: 5000MΩ/km Tensile Strenth: Before ≥ 15 Mpa
Application/Usage	Commercial Residential
Certifications & Standards	TIA-568-C.2 UL 444

Warranty

Limited Warranty

Lifetime
