MONOPRICE BLACKBIRD 4K 8X8 HDMI MATRIX SWITCH WITH HDMI 2.0 SUPPORT_ HDR_ 18GBPS

Name: MONOPRICE BLACKBIRD 4K 8X8 HDMI MATRIX SWITCH WITH HDMI 2.0 SUPPORT_ HDR_ 18GBPS
Brand: MONOPRICE INC.
SKU: 8500AS
Price: 939.1 USD
Availability: InStock

MONOPRICE INC.

PCN#

8500AS

MFG#

24180

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$939.10

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

8 x Inputs
8 x Outputs
Audio Line Out
8 x HDMI In
8 x HDMI Out
Network (RJ
45)
Notebook Compatible

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 8 lbs.

Monoprice Blackbird Video Switcher

Overview

Tech Specs

Specifications

Manufacturer	Monoprice, Inc
Manufacturer Part Number	24180
Manufacturer Website Address	http://www.monoprice.com
Brand Name	Monoprice
Product Line	Blackbird
Product Name	Blackbird Video Switcher

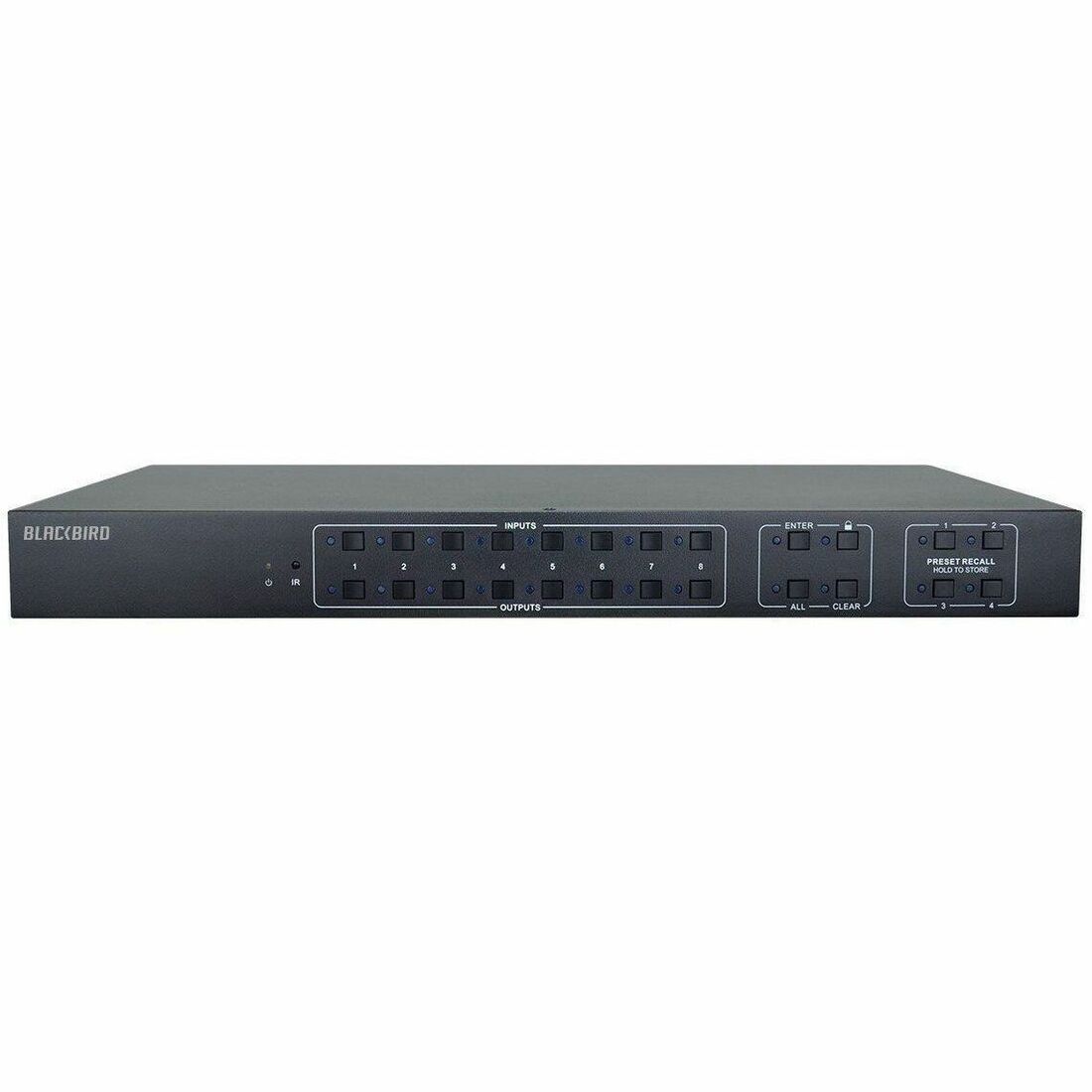

Marketing Information	This Blackbird™ 4K 8x8 HDMI® Matrix allows you to independently distribute any of up to eight HDMI sources to any or all of eight HDMI displays. It is compliant with the HDMI 2.0 and HDCP™ 2.3 standards and supports video resolutions up to 4K@60Hz with YCbCr 4:4:4 color space with support for HDR10 and Dolby Vision™. Four of the eight outputs support video downscaling to 1080p and all 16 HDMI ports can provide 5 VDC, 500mA of power for use with Active Optical Cables (AOC). It features eight sets of audio outputs, each of which has a digital optical S/PDIF connector and a stereo pair of RCA jacks. Each audio output channel can be independently assigned to output audio de-embedded from any of the HDMI inputs or outputs. It has advanced EDID® management and advanced HDCP handling for broader compatibility with a wide range of video source devices and output displays. It can be controlled using the front panel buttons, the included IR remote control, or with a computer using the built-in web GUI or with RS-232 control commands.
Product Type	Video Switcher

Product Information

Device Supported

Notebook

Interfaces/Ports

Number of Inputs	8
Number of Outputs	8
Audio Line Out	Yes
Digital Audio Optical Out	Yes
HDMI In	Yes
HDMI Out	Yes
Network (RJ-45)	Yes
Serial	Yes
Number of Audio Line Out	8
Number of Digital Audio Optical Output	8
Number of HDMI Inputs	8
Number of HDMI Outputs	8

Power Description

Input Voltage

120 V AC
230 V AC
24 V DC

Physical Characteristics

Weight (Approximate)

6.61 lb

Warranty

Limited Warranty

1 Year
