MONOPRICE CAT6A 1000FT BLUE CMR BULK CABLE_ SOLID_ UTP_ 23AWG_ 650MHZ_ 10G_ PURE

Name: MONOPRICE CAT6A 1000FT BLUE CMR BULK CABLE_ SOLID_ UTP_ 23AWG_ 650MHZ_ 10G_ PURE
Brand: MONOPRICE INC.
SKU: 1933BS
Price: 359.08 USD
Availability: InStock

MONOPRICE INC.

PCN#

1933BS

MFG#

30661

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$359.08

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

1000 ft Category 6a Network Cable for Network Device
First End: 1 x Barewire
Second End: 1 x Barewire
10 Gbit/s
Unshielded Twisted Pair (UTP)
CMR
23 AWG
Blue

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 33 lbs.

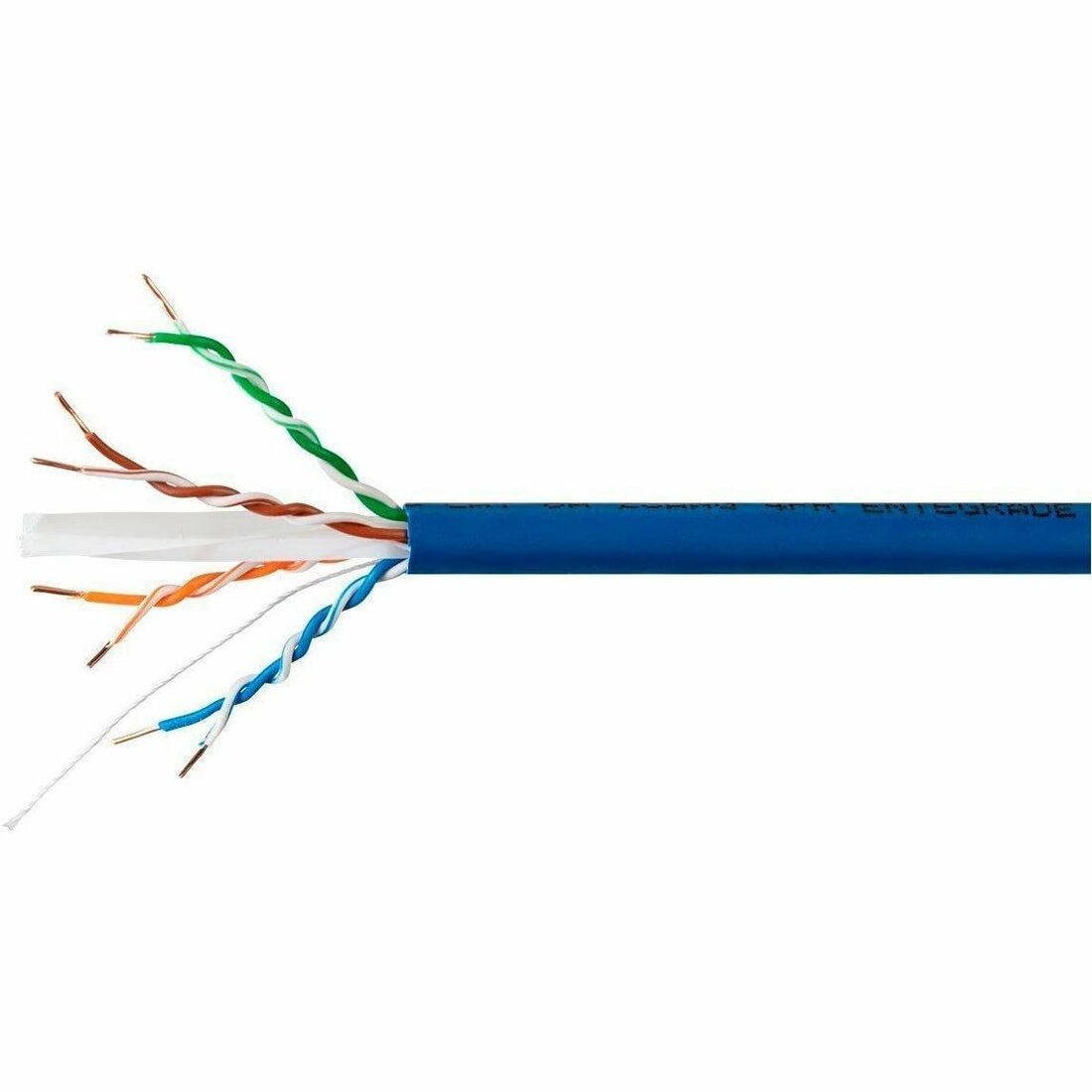

Monoprice UTP Category 6a Network Cable

Overview

Tech Specs

Specifications

Manufacturer	Monoprice, Inc
Manufacturer Part Number	30661
Manufacturer Website Address	http://www.monoprice.com
Brand Name	Monoprice
Product Name	UTP Category 6a Network Cable
Marketing Information	Avoid having excess Ethernet cable lying around by building your own cables to the exact length needed using this Bulk Ethernet Copper Cable from Monoprice™! Features: Unshielded Twisted Pair (UTP) Category 6A Plus Ethernet cable 23AWG solid, pure bare copper conductors CMR (Riser) fire safety rating 650MHz bandwidth 1000 foot roll Monoprice™ Ethernet cables are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL® Code 444 and National Electrical Code® TIA-568-C.2 fire and safety standards, which require pure bare copper wire in communications cables.
Package Type	Bulk
Product Type	Network Cable

Technical Information

Cable Type	Category 6a
Cable Length	1000 ft
Outer Diameter	22.4 mil
Cable Shielding Type	Unshielded Twisted Pair (UTP)
Connector Type on First End	Bare Wire
Connector on First End Details	1 x Barewire
Connector Type on Second End	Bare Wire
Connector on Second End Details	1 x Barewire
Conductor	Bare Copper Annealed Bare Copper
Jacket Type	CMR
Device Supported	Network Device
American Wire Gauge	23 AWG
Data Transfer Rate	10 Gbit/s
Features	Flame Retardant

Physical Characteristics

Color Family	Blue
Product Color	Blue
Insulation Material	High-density Polyethylene (HDPE)
Jacket Material	Fire Resistant Polyvinyl Chloride (FR-PVC)

Miscellaneous

Additional Information	Conductor Resistance @20°C: ≤ 93.8Ω/km Insulation Diameter: 1.01mm ±0.50mm Insulation Resistance: ≥ 5000MΩ/km (500 VDC charge 1 minute) Mutual Capacitance: ≤ 56nF/100m Nominal Insulation Wall Thickness: 0.215mm Pair-to-Ground Capacitance Unbalanced: ≤ 330pF/100m Unbalanced Conductor DC Resistance: ≤ 5%
Certifications & Standards	ANSI TIA EIA-568-B UL 444 CSA C22.6 CEC ETL VERIFIED CMR TIA-568-C.2
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2

Warranty

Limited Warranty

Lifetime
