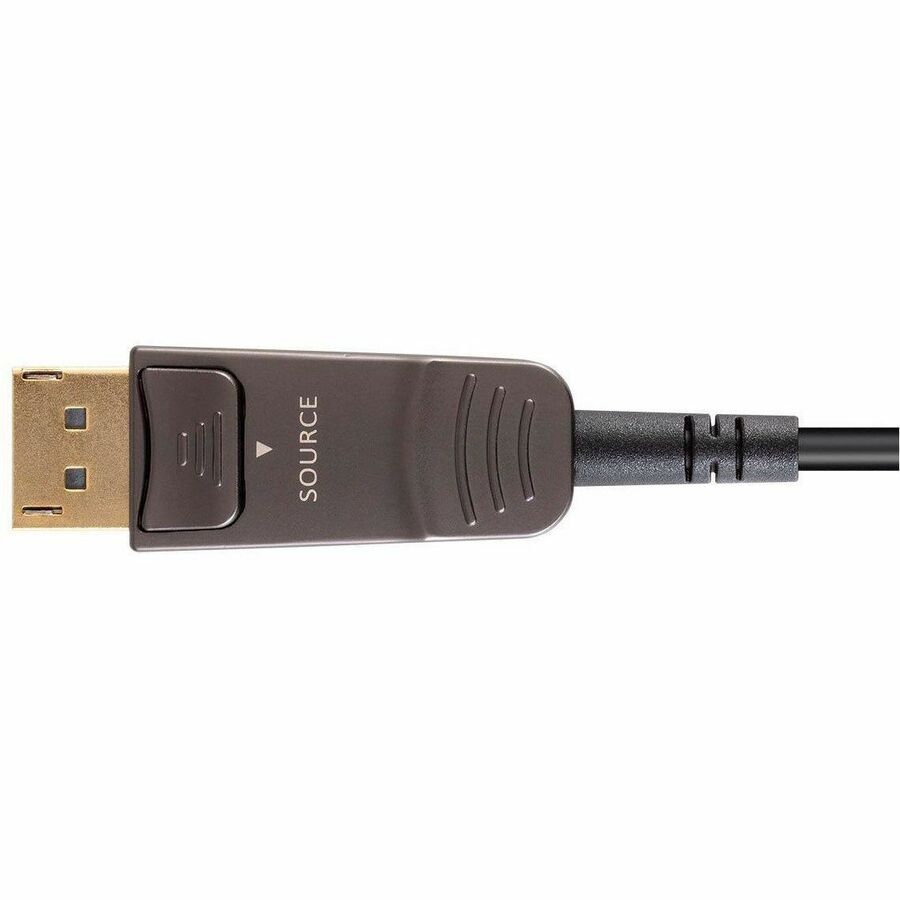

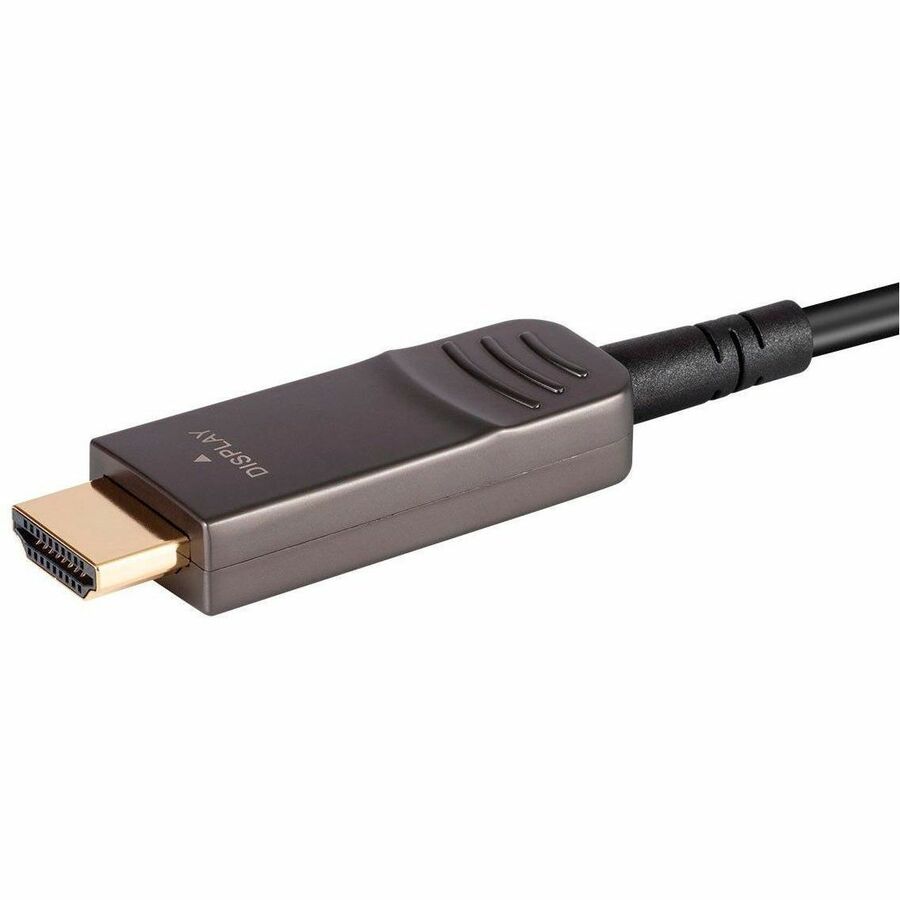

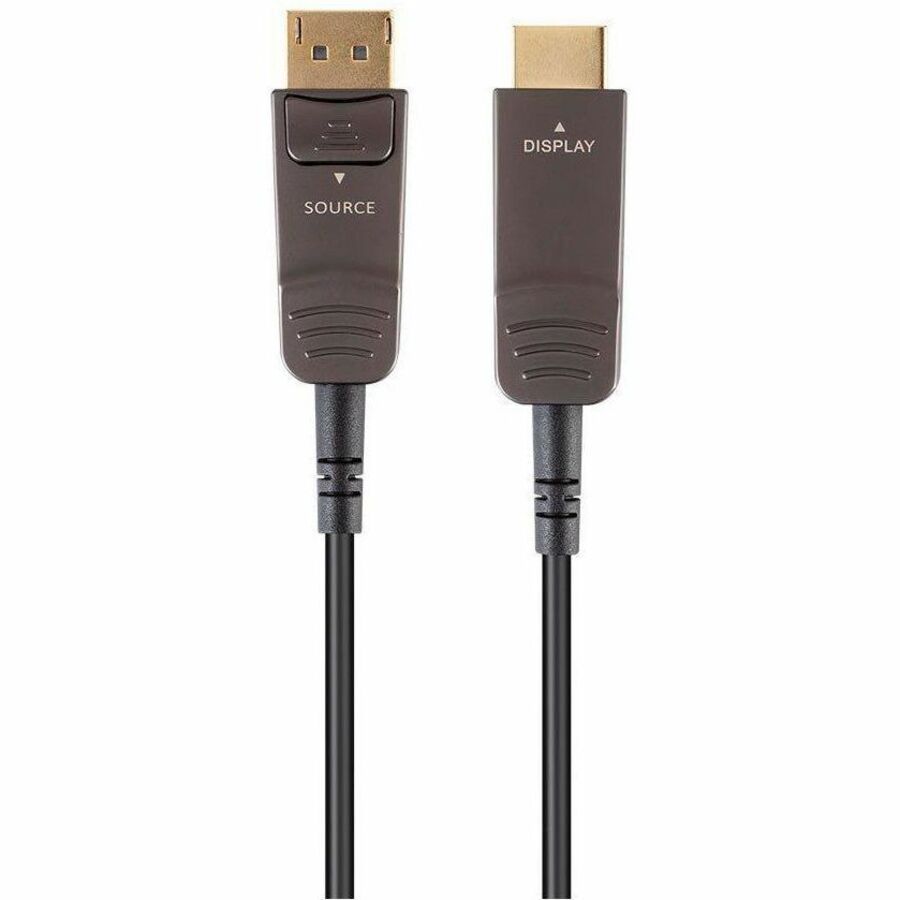

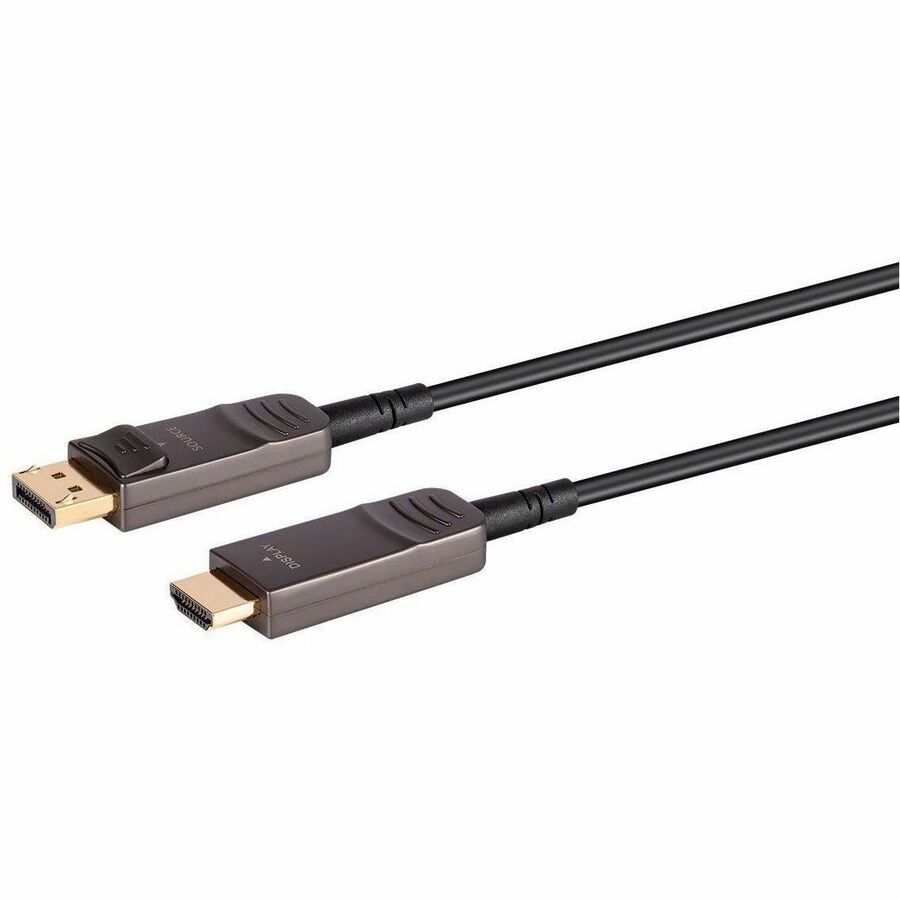

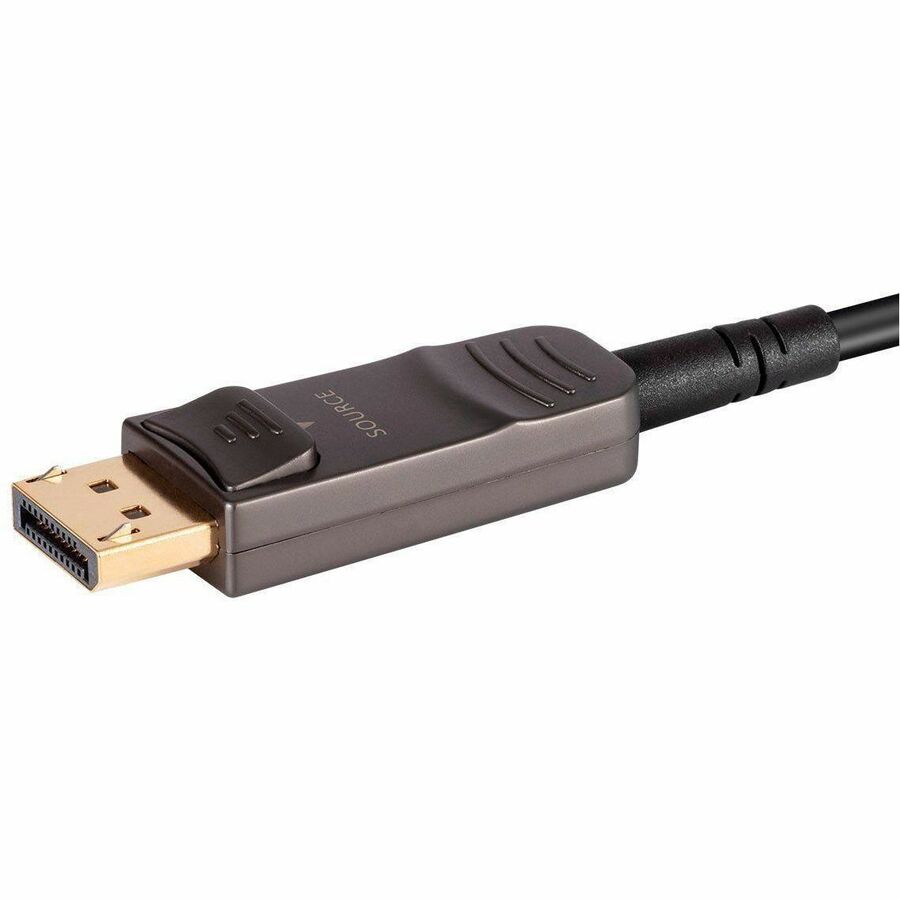

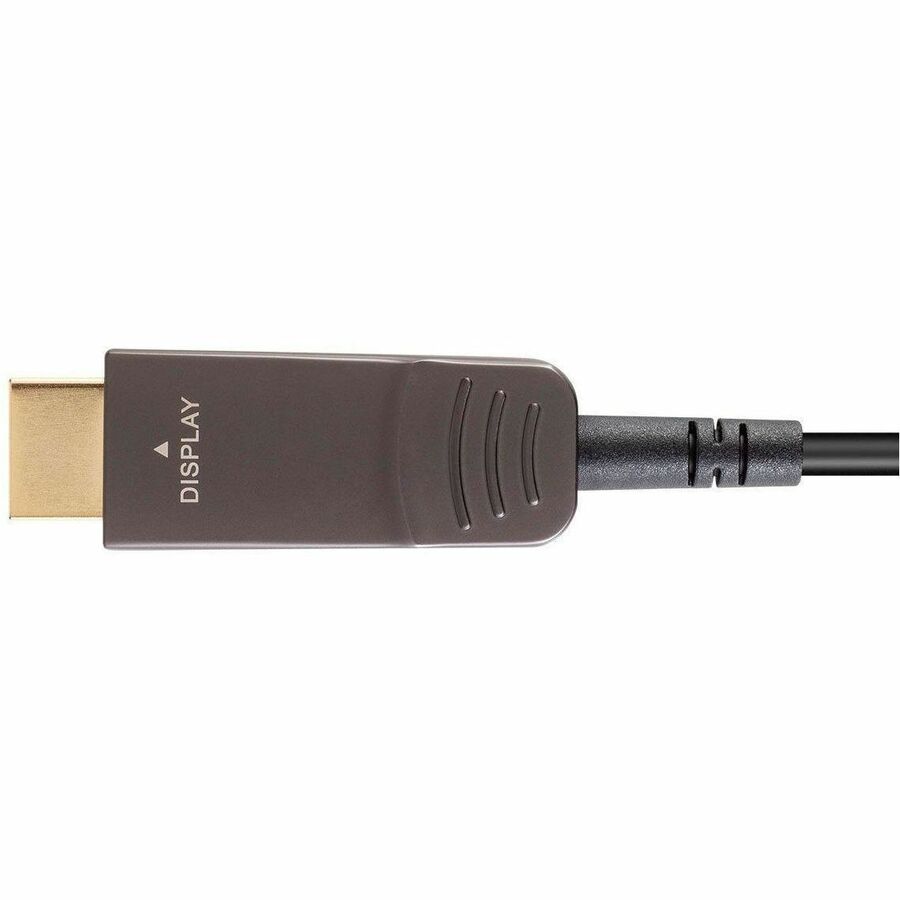

MONOPRICE SLIMRUN AV HDR DISPLAYPORT TO HDTV CABLE_ 4K@60HZ_ AOC_ 25FT

by
MONOPRICE INC.
PCN#
9041AS
MFG#
39032
$149.40
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 5 GHz, 2.40 GHz
  • 6 x Internal Antenna(s)
  • MIMO Technology

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
Extreme Networks AP3825i IEEE 802.11ac 1.75 Gbit/s Wireless Access Point
Tech Specs
Specifications

Manufacturer

Extreme Networks, Inc

Manufacturer Part Number

39032

Manufacturer Website Address

http://www.extremenetworks.com

Brand Name

Extreme Networks

Product Model

AP3825i

Product Name

AP3825i Wireless Access Point

Marketing Information

The AP3825 is a high-performance 802.11ac and 802.11abgn indoor access point purpose built for high-density deployments. This access point is designed to operate in heavy-user and mission critical environments such as healthcare facilities, universities, conference centers, arenas, and stadiums. Active/active data ports and multiple power options ensure that the AP3825 provides always-on connectivity. This high-performance access point is equally adept at serving high-bandwidth video applications as well as low-latency voice applications. The AP3825i comes with an integrated six antenna array for ease of installation. The AP3825e requires professional installation and includes six RP-SMA antenna connectors supporting oth 2.4GHz and 5GHz band antennas. Unique to this class of access point, the power efficient AP3825 uses 802.3af Power over Ethernet (PoE) without reducing its performance nor degrading its enterprise-grade capabilities. An optional external power supply is available for deployments that do not support Power over Ethernet.

The AP3825 is built on the newest Wi-Fi technology including 802.11ac, dynamic radio management, and spectrum analysis with interference classification, beam forming, self-forming and self-healing meshing, security, role-based authentication, authorization, and access control. The 3x3:3 platform is capable of delivering 1.75Gbps over-the-air-performance and up to 75,000 packets per second on the wire port. The use of a dual core CPU and a network co-processor for offloading frame processing ensures that there are no bottlenecks in the data path when packets are processed through the slow path from the air-to-the wire. Multiple antenna offerings (e.g., omni, sector, and panel) ensure that the AP3825e deployment can be optimized to meet any coverage or capacity need.

Product Type

Wireless Access Point
Technical Information

Wireless LAN Standard

IEEE 802.11ac

Frequency Band

  • 5 GHz
  • 2.40 GHz

ISM Band

Yes

UNII Band

Yes

ISM Minimum Frequency

2.40 GHz

ISM Maximum Frequency

2.48 GHz

UNII Minimum Frequency

5.15 GHz

UNII Maximum Frequency

5.85 GHz

Total Number of Antennas

6

Number of Internal Antennas

6

Antenna Gain (Isotropic)

  • 3 dBi
  • 4 dBi

Wireless Transmission Speed

1.75 Gbit/s

Wireless Security

  • WPA
  • WPA2
  • AES

MIMO Technology

Yes

Beamforming Technology

Yes

Features

  • MIMO Technology
  • Quality of Service (QoS)
Interfaces/Ports

Ethernet Technology

  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet

Number of Network (RJ-45) Ports

2

Network (RJ-11)

No

PoE (RJ-45) Port

No

VGA

No

HDMI

No

Audio Line Out

No

USB

No

Powerline

No

Management Port

Yes
Management & Protocols

Management

Dynamic Radio Management
Power Description

Input Voltage

12 V DC
Physical Characteristics

Form Factor

  • Wall Mountable
  • Ceiling Mountable

Height

1.3"

Width

6.6"

Depth

6.6"

Weight (Approximate)

1.35 lb
