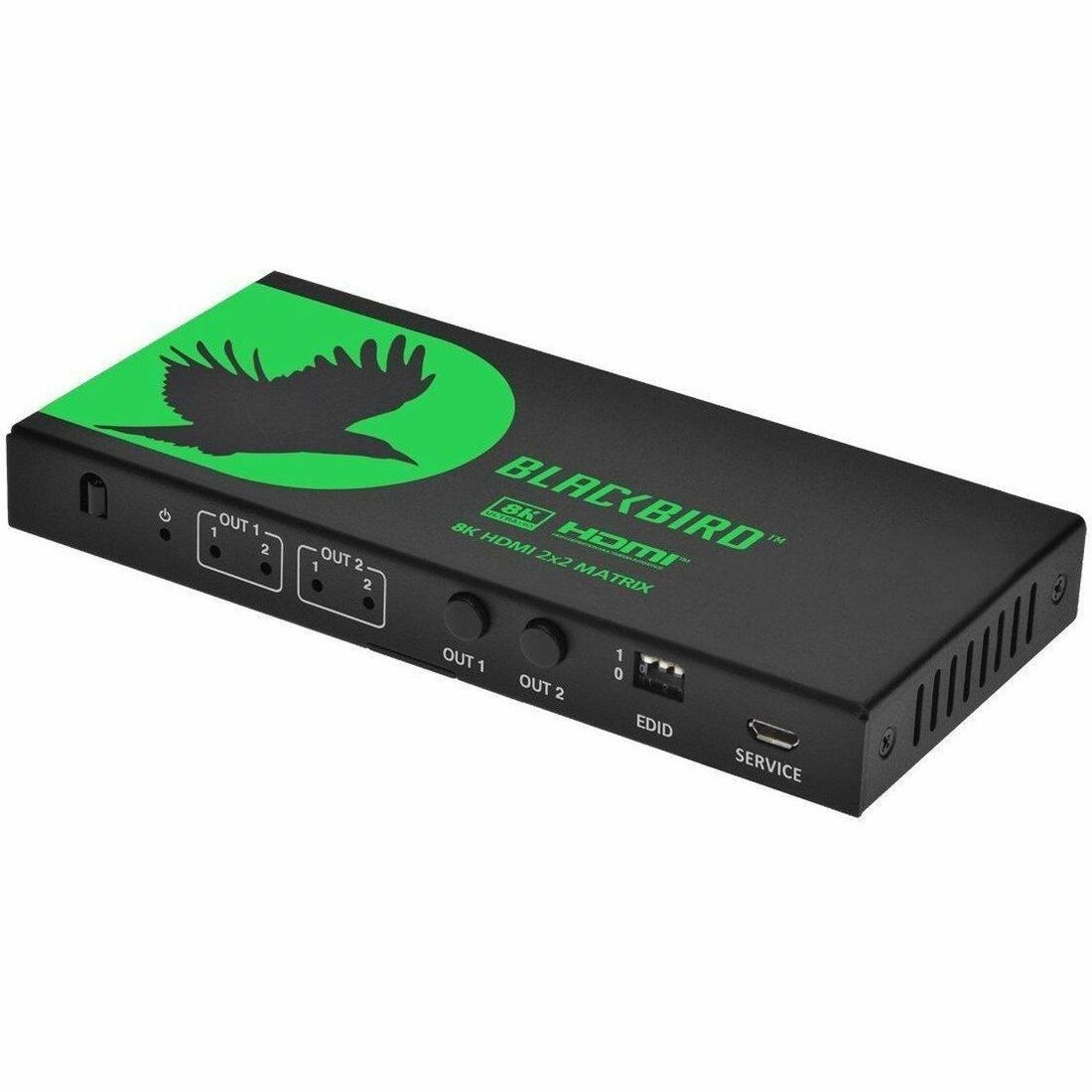

BLACKBIRD 2X2 HDMI MATRIX WITH AUDIO EXTRACTION_ HDMI 2.1_ HDCP 2.3

Blackbird™ by Monoprice™ | 8K60 2x2 HDMI Matrix With Audio Extraction, HDMI 2.1, HDCP 2.3 | Connect two 8K60 sources to two 8K60 monitors and send content from either source to either or both monitors.

The 44438 Blackbird 8K60 2x2 HDMI Matrix can mix content from two HDMI inputs between two HDMI outputs. It can send content from either of the HDMI inputs to either of both outputs simultaneously. It supports video resolution up to 8K60 4:2:0. The device also features advanced EDID management and audio extraction. With the ability to be used as either a splitter or a switch, this multi-functional device can be widely applied for various demonstrations such as video conferences, multimedia presentations, gaming, and other applications that need the highest resolution on big-screen displays.

• HDMI 2.1 and HDCP 2.3 compliant
• 40Gbps bandwidth
• 8K60 4:2:0 10 bit, 4K120 4:4:4 10 bit
• HDR, HDR10, HDR 10+, Dolby Vision, and HDLG pass-through
• LPCM, Dolby Digital/Plus/Ex, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• VRR, FVA, and ALLM
• Advance EDID management
• Audio extraction through analog or digital optical
• Built in equalizer, retiming and driver
• IR remote and front panel control

TOP TIER PERFORMANCE

Handles the ultimate in ultra high definition video, 8K60 4:2:0 10 bit and 4K120 4:4:4 10 bit.

SET THE STANDARD

HDMI 2.1 and HDCP 2.3 represent the state of the art for video compatibility standards.

VIBRANT VIDEO

HDR, HDR10, HDR10+, Dolby Vision, and HLG pass-through improve video quality for the clearest, crispest possible viewing experience.

FURIOUS SOUND

LPCM, Dolby Digital/Plus/Ex, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, and DSD put you in the middle of the action.

QUICK DRAW

VRR, FVA, and ALLM ensure the lowest possible latency and fastest refresh rate possible at any given instant for the best reaction time in gaming.

ROCK OUT

Extract audio from the HDMI feeds and provide it to your external audio receiver through either analog or digital optical to set the stage for encore-quality sound.

CONTROL FREAK

Advanced EDID management lets you dictate the video resolution selection. The front panel and IR remote control provide easy options for switching.

• Blackbird 8K60 2x2 Video Matrix with HDMI plus Audio Extraction HDCP 2.3
• 1 x Remote Control
• 1 x Power Supply
• 1 x User Manual
