MPG B760I EDGE WIFI DDR4 INTEL B760 DDR4 WIFI6

by
MSI
PCN#
11NZ55
MFG#
B760IEDGEWIFID4
$208.52
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Core, Pentium Gold, Celeron Processor Supported
  • 64 GB DDR4 SDRAM Maximum RAM
  • DIMM, UDIMM

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 3 lbs.

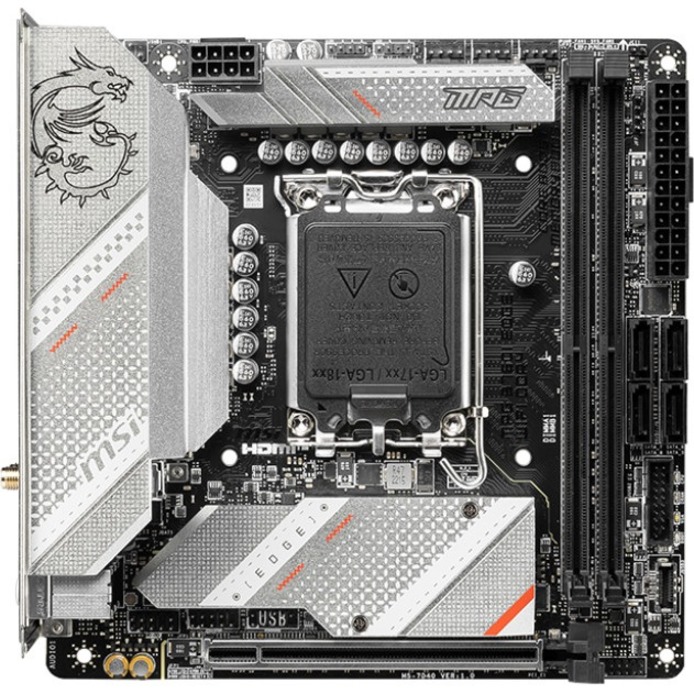

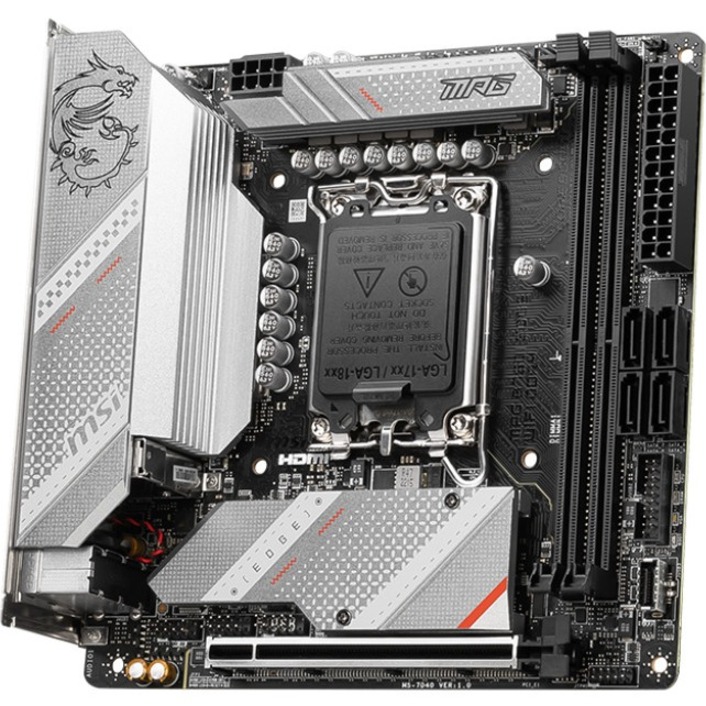

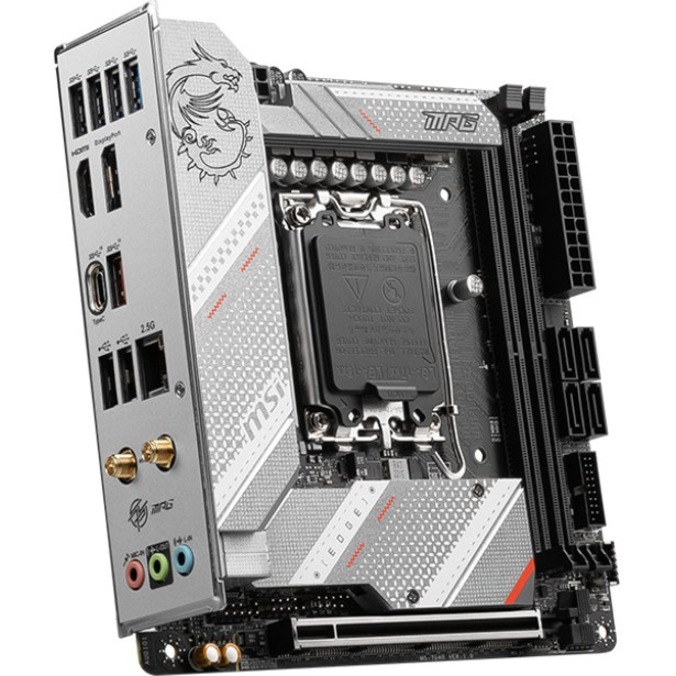

MSI MPG B760I EDGE WIFI DDR4 Gaming Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - Mini ITX
Tech Specs
Specifications

Manufacturer

MSI

Manufacturer Part Number

B760IEDGEWIFID4

Manufacturer Website Address

http://www.msi.com

Brand Name

MSI

Product Line

MPG

Product Model

B760I EDGE WIFI DDR4

Product Name

MPG B760I EDGE WIFI DDR4 Gaming Desktop Motherboard

Marketing Information

MPG B760I EDGE WIFI DDR4 employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink

Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

7W/mK Thermal Pad

High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

M.2 Shield Frozr

Keeps M.2 SSDs safe while preventing throttling, making them run faster.

Pump Fan Support

Control watercooling pump speeds for best flow and noise control.

8-Layer Server Grade PCB

8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

Product Type

Gaming Desktop Motherboard
Processor & Chipset

Chipset Manufacturer

Intel

Chipset Model

B760

Total Processor Supported

1

Processor Socket

Socket LGA-1700

Processor Generation Supported

  • 12th Gen
  • 13th Gen

Processor Supported

  • Core
  • Pentium Gold
  • Celeron
Memory

Number of Memory Slots

2

Memory Form Factor

  • DIMM
  • UDIMM

Maximum Memory Supported

64 GB

Memory Technology

DDR4 SDRAM

Memory Speed Supported

  • 5333 MHz
  • 5200 MHz
  • 5066 MHz
  • 5000 MHz
  • 4800 MHz
  • 4600 MHz
  • 4533 MHz
  • 4400 MHz
  • 4266 MHz
  • 4000 MHz
  • 3866 MHz
  • 3733 MHz
  • 3600 MHz
  • 3466 MHz
  • 3333 MHz
  • 3200 MHz
  • 3000 MHz
  • 2933 MHz
  • 2800 MHz
  • 2666 MHz
  • 2400 MHz
  • 2133 MHz
I/O Controller

Controller Type

Serial ATA/600

RAID Supported

Yes

RAID Levels

  • 0
  • 1
  • 5
  • 10
Video

Onboard Video

CPU Dependent Video
Audio

Audio Channels

7.1
Network & Communication

Bluetooth

Yes

Bluetooth Standard

Bluetooth 5.3

Gigabit Ethernet

Yes

2.5Gigabit Ethernet

Yes

Wireless LAN

Yes

Wireless LAN Standard

IEEE 802.11 a/b/g/n/ac/ax
I/O Expansions

Number of Total Expansion Slots

1

PCI Express Standard

PCI Express 5.0

Total Number of PCI Express Slots

1

Number of PCI Express x16 Slots

1

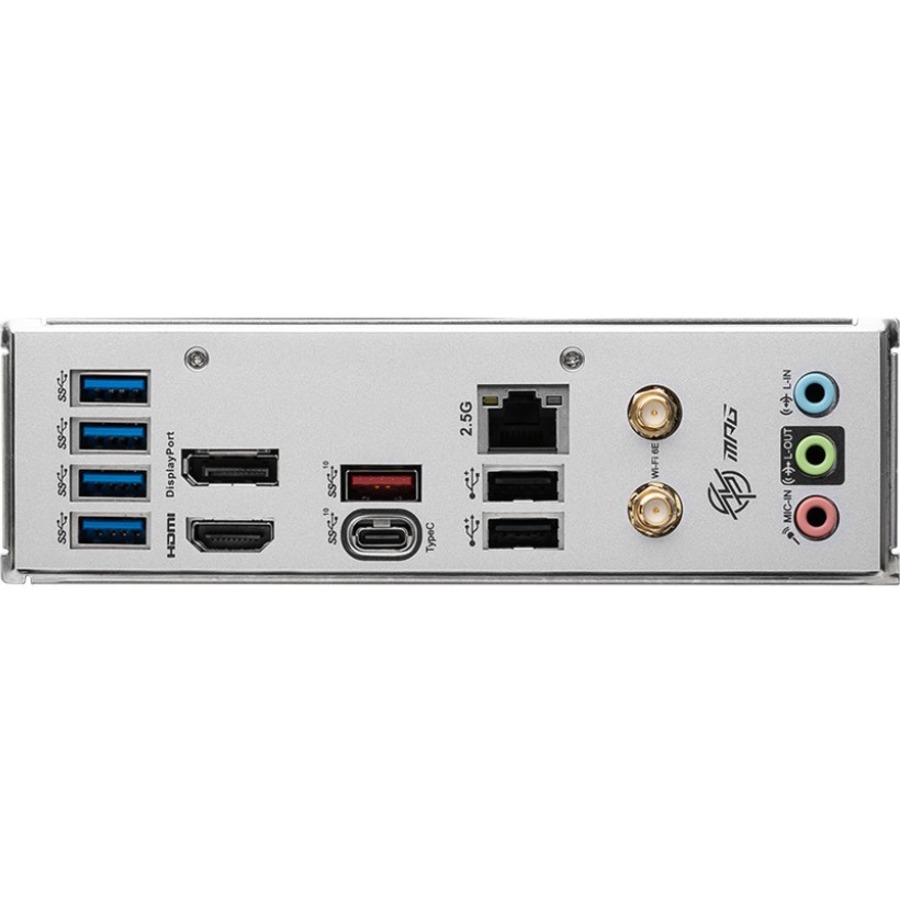

Interfaces/Ports

Total Number of USB Ports

8

Number of USB 2.0 Ports

2

Number of USB 3.2 Gen 1 Type-A Ports

4

Number of USB 3.2 Gen 2 Type-A Ports

1

Number of USB 3.2 Gen 2 Type-C Ports

1

HDMI

Yes

HDMI Version

2.1

DisplayPort

Yes

Number of Network (RJ-45) Ports

1
Onboard Interfaces

Number of SATA Interfaces

4

Number of M.2 Interfaces

2

Total Number of Onboard USB Ports

5

Number of Onboard USB 2.0 Ports

2
Physical Characteristics

Form Factor

Mini ITX

Width

6.7"

Depth

6.7"
Miscellaneous

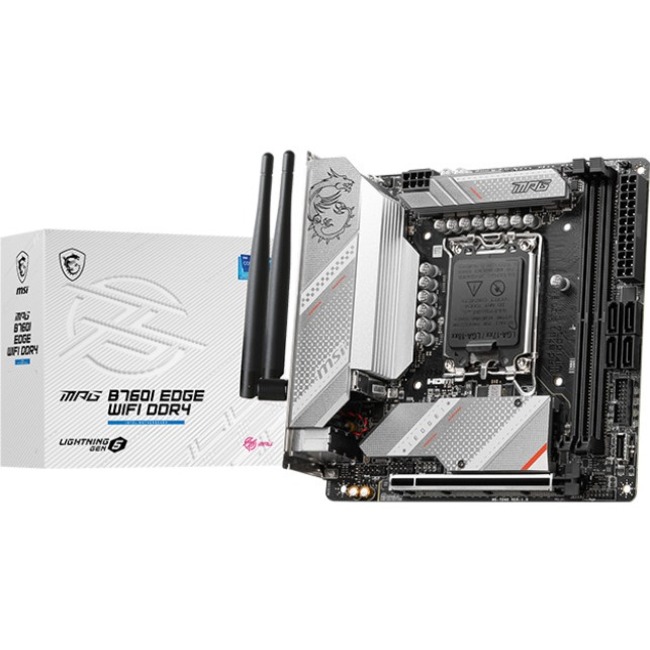

Package Contents

  • MPG B760I EDGE WIFI DDR4 Gaming Desktop Motherboard
  • European Union Regulatory Notice
  • Quick Installation Guide
  • M.2 Screw Package
  • Wi-fi Antenna
  • Cable Stickers
  • 1 x Sata Cables
  • Rainbow RGB LED Extension Cable

Brand Compatibility

Intel
