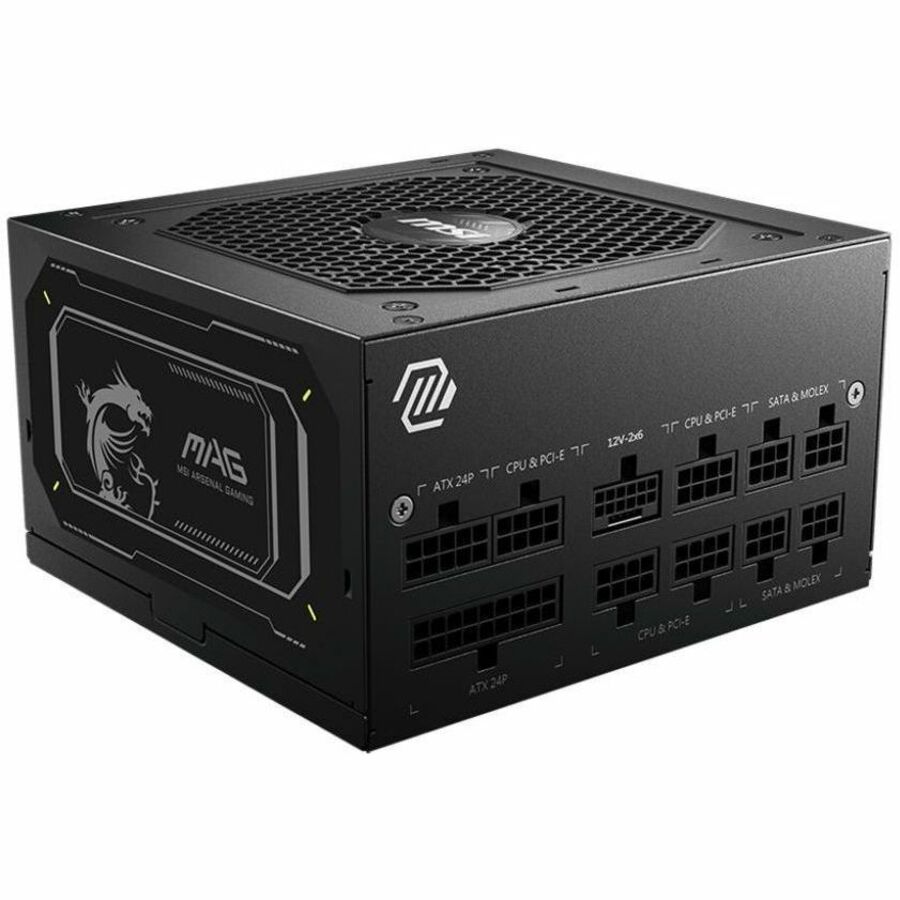

MAG A750GL PCIE5 II POWER SUPPLY UNIT

ATX 3.1 ReadyIt has an output port that is compliant with PCIe 5.1 and Intel PSDG(Power Supply Design Guide) ATX 3.1, also the power supply can hold up to 2x total power excursion and 3x GPU power excursion. ENERGY EFFICIENCY CERTIFICATIONThe efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency. COMPACT SIZINGSmaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside. ONLY WHAT YOU NEEDThe connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables. ALL THE MORE ORGANIZEDOrganizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow. FLUID DYNAMIC BEARINGThe power supply's fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level. DC to DC & Full bridgeDC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design. THE POWER YOU HAVEThe single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply's CPU & PCIe connectors are more than plenty. PROTECTION MECHANISMSTo make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.

• OCP Over Current Protection
• OTP Over Temperature Protection
• OVP Over Voltage Protection
• OPP Over Power Protection
• UVP Under Voltage Protection
• SCP Short Circuit Protection

Product TypePower SupplyTechnical InformationSpecification ComplianceATX 3.1Efficiency90%Power Factor Correction (PFC)ActiveNumber of Fans1Fan Bearing TypeFluid Dynamic BearingFan Diameter120 mmProtection Type

• Over Current
• Over Temperature
• Over Voltage
• Over Power
• Under Voltage
• Short Circuit

ModularYesNVIDIA SLI SupportedYesFeaturesCompactPower DescriptionNumber of +12V Rails1Input Voltage

• 120 V AC
• 230 V AC

Output Voltage

• 5 V DC
• 3.3 V DC
• 12 V DC
• -12 V DC
• 5 V SB

Output Voltage Detail

• 5 V DC @ 20 A
• 3.3 V DC @ 20 A
• 12 V DC @ 62 A
• -12 V DC @ 0.3 A
• 5 V SB @ 2.5 A

Output Power750 WInput Frequency63HzInterfaces/PortsNumber of SATA Power Connectors8PCI Express ConnectorYesNumber of (6+2 pin) PCI Express Power Connectors3Number of (4+4 pin) CPU Power Connectors2Number of 4-pin Molex Power Connectors4Physical CharacteristicsForm FactorInternalHeight3.4"Width5.9"Length5.5"MiscellaneousEnergy Efficiency Certification80 Plus Gold
