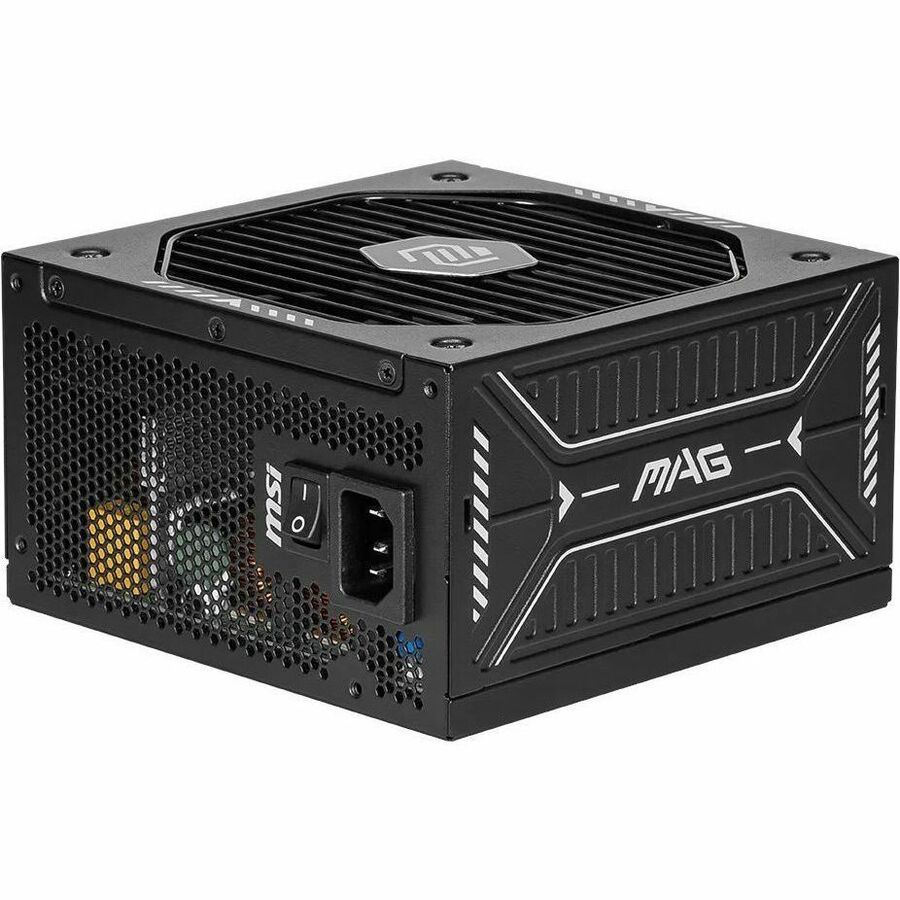

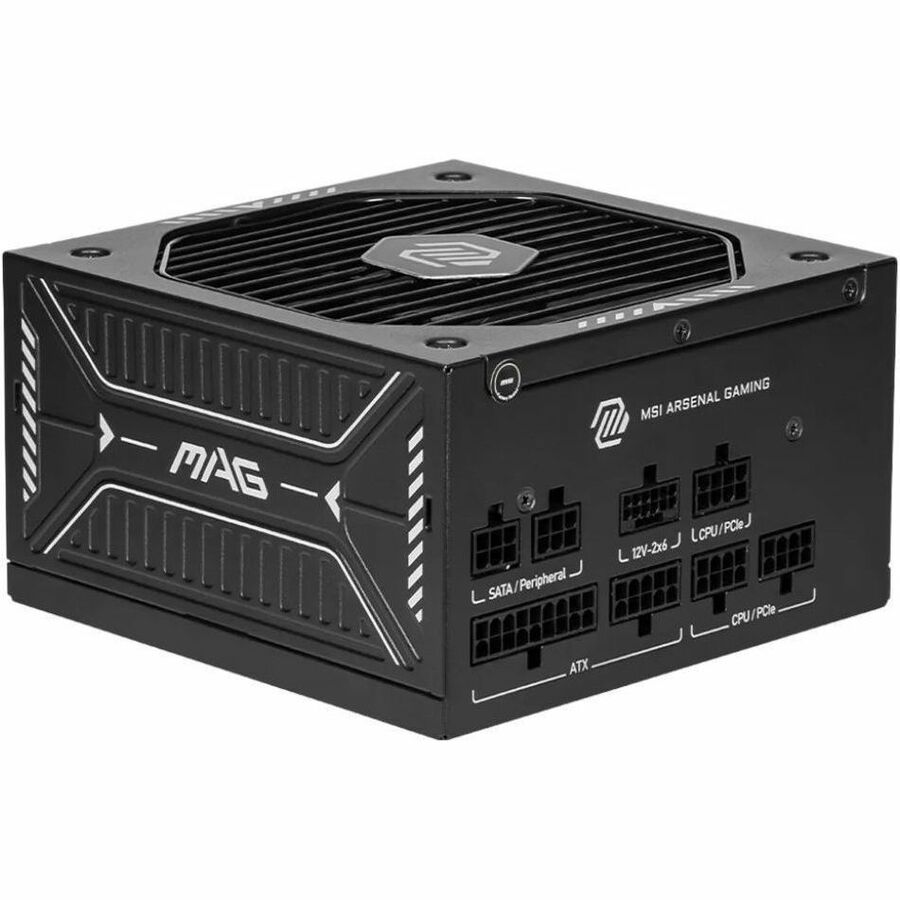

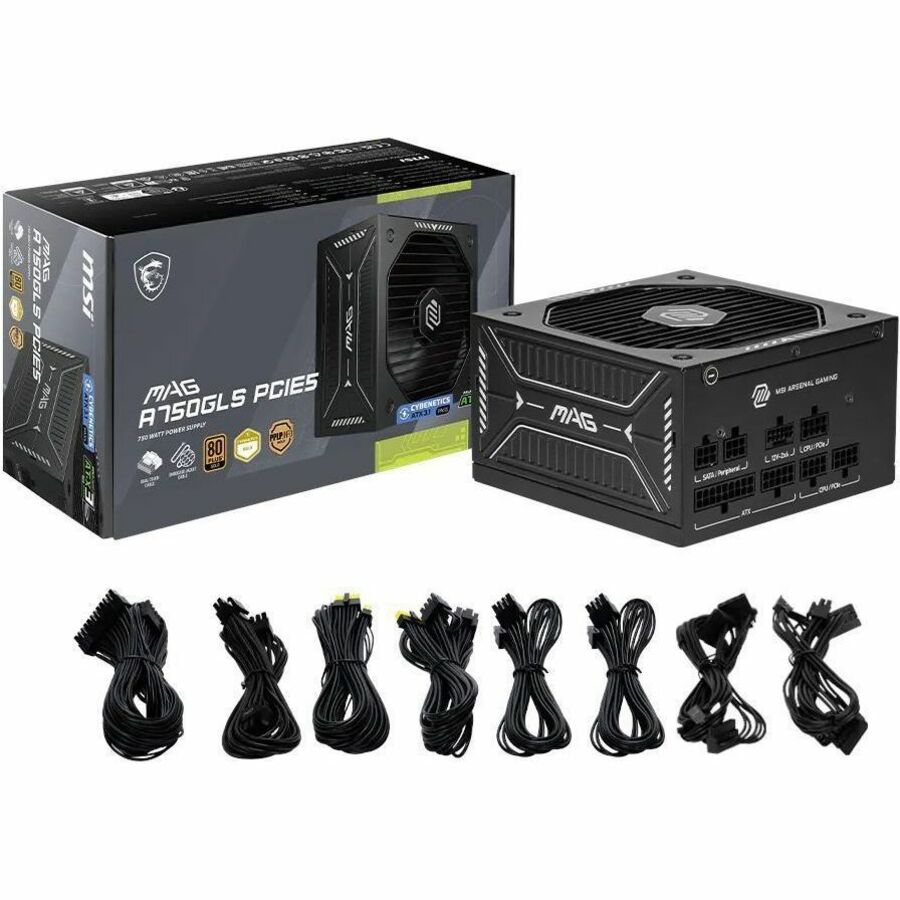

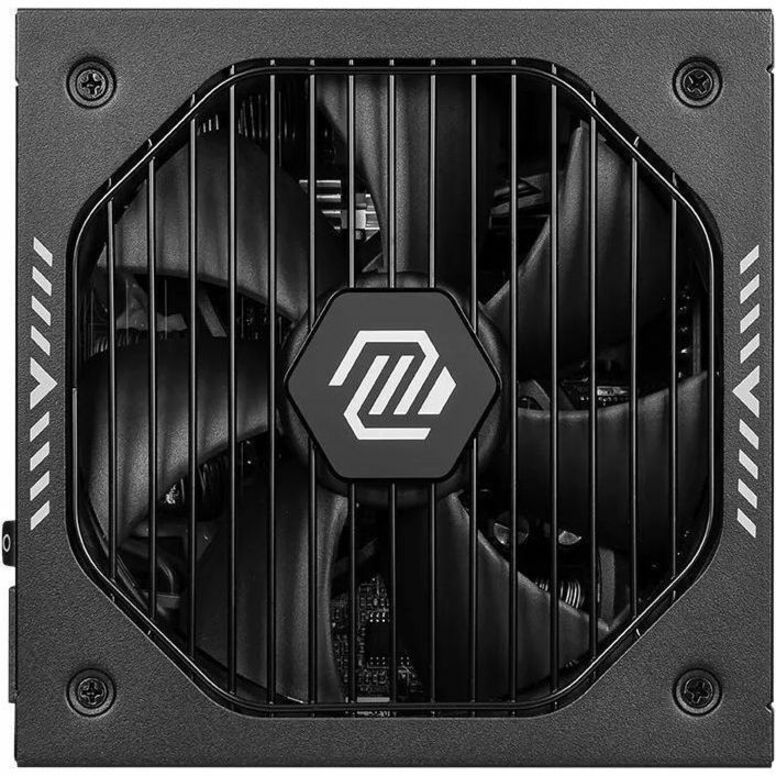

MAG A750GLS PCIE5 POWER SUPPLY 750W FULLY-MODULAR 80 PLUS GOLD

Name: MAG A750GLS PCIE5 POWER SUPPLY 750W FULLY-MODULAR 80 PLUS GOLD
Brand: MSI
SKU: 330L88
Price: 137.72 USD
Availability: InStock

MSI

PCN#

330L88

MFG#

MAGA750GLSPCIE5

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$137.72

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $32.99

1-Year $24.99

Free Shipping

Estimated Shipment:

Product Highlights:

Internal
120 V AC, 230 V AC Input
5 V DC, 3.3 V DC, 12 V DC,
12 V DC, 5 V SB Output
750 W
Active PFC
1 +12V Rails
PCI Express Connector 5.1
1 Fan(s)
90% Efficiency
On/Off Switch, Low Noise

Product Condition: New and Factory Fresh

Limited Warranty7 Year

Shipping Weight: 8 lbs.

MSI MAG 750W Power Supply

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	MAGA750GLSPCIE5
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Series	MAG
Product Name	MAG 750W Power Supply
Marketing Information	Midnight Sound Level This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.
Product Type	Power Supply

Technical Information

Specification Compliance	ATX 3.1
Efficiency	90%
Power Factor Correction (PFC)	Active
Number of Fans	1
Fan Bearing Type	Fluid Dynamic Bearing
Fan Diameter	135 mm
Protection Type	Over Current Over Temperature Over Power Short Circuit Over Voltage Under Voltage Surge & Inrush Protection No Load
Modular	Yes
Modular Type	Fully Modular
Features	On/Off Switch Low Noise

Power Description

Number of +12V Rails	1
Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 V AC - 240 V AC
Output Voltage	5 V DC 3.3 V DC 12 V DC -12 V DC 5 V SB
Output Voltage Detail	5 V DC @ 20 A 3.3 V DC @ 20 A 12 V DC @ 62.5 A -12 V DC @ 0.3 A 5 V SB @ 3 A
Output Current	20 A 62.50 A 300 mA 3 A
Output Power	750 W
Input Frequency	50-60 Hz

Interfaces/Ports

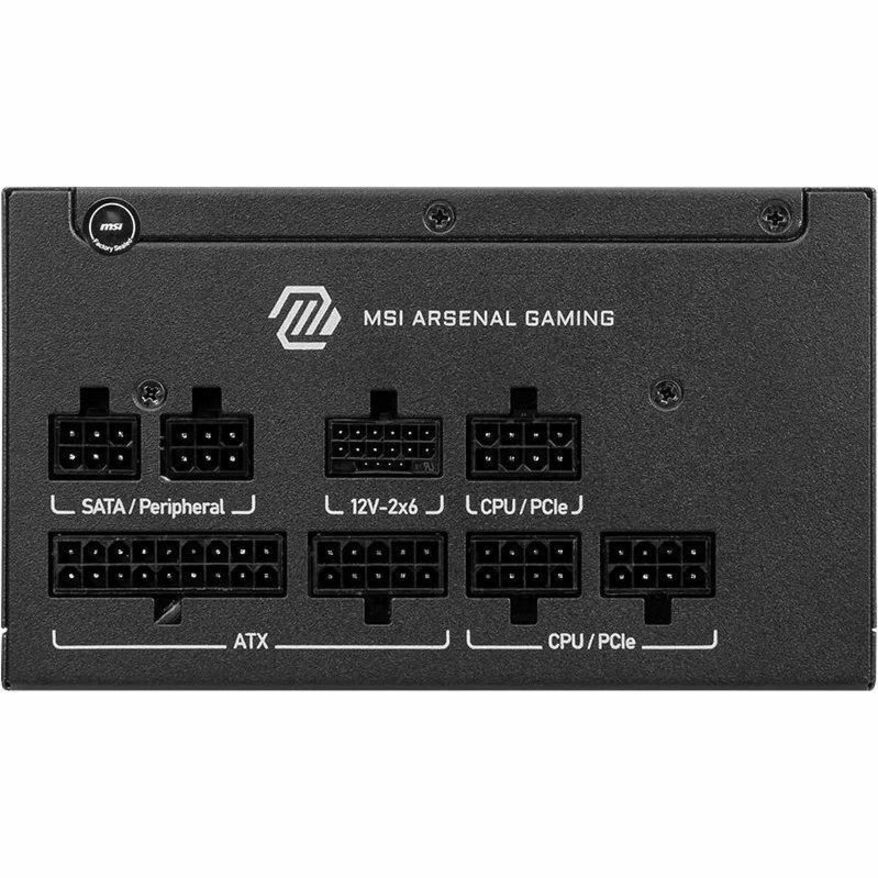

Number of SATA Power Connectors	5
PCI Express Connector	Yes
PCI Express Version	5.1
Number of (6+2 pin) PCI Express Power Connectors	4
Number of (4+4 pin) CPU Power Connectors	2
Number of 4-pin Molex Power Connectors	2

Physical Characteristics

Form Factor	Internal
Height	3.4"
Width	5.9"
Depth	5.9"

Miscellaneous

Energy Efficiency Certification

80 Plus Gold

Warranty

Limited Warranty

7 Year
