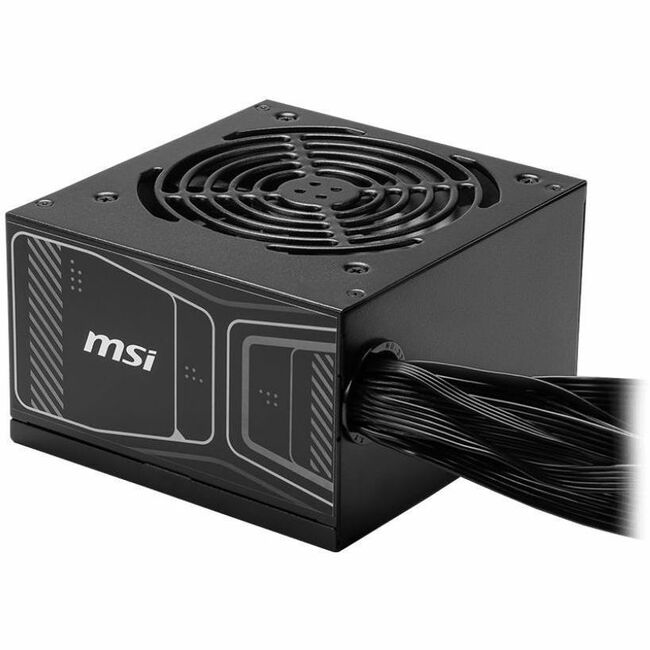

MAG A750GN PCIE5 POWER SUPPLY UNIT

80 PLUS GOLD CERTIFIEDThe efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency. ATX 3.1 ReadyIt has an output port that is compliant with PCIe CEM 5.1 and Intel PSDG (Power Supply Design Guide)ATX 3.1, also this power supply can hold up to 2x total power excursion and 3x GPU power excursion. Offer the CPU sufficient powerThis power supply features dual 4+4-pin PCIe power connectors, providing ample 12V power to support high-performance CPUs. POWER AT YOUR SIDEThe power supply is built with DC-to-DC construction, ensuring top-tier efficiency and unwavering voltage stability for your system. SET FREE FOR THE +12V POWER OUTPUTThe latest CPUs and graphics cards demand more power, and a single +12V rail PSU provides an ideal combination of simplicity, robust power delivery. FANThe fan curve is designed to prioritize low noise output while maintaining effective cooling. When the power supply operates at 70% load, the resulting noise level is kept below 20 dBA. Capacitors You Can TrustThe 105°C main capacitor is designed to perform reliably in handling high temperatures and peak voltage fluctuations. It ensures stable performance, providing your system with dependable reliability. CERTIFIED CABLEThis power supply comes equipped with certified cables and connector made of copper alloy terminals. This provides greater safety than typical phosphor bronze connectors, especially during high current surges. PROTECTION MECHANISMSoperate safely and stably at all times, this power supply comes with a number of protection mechanisms to give you the best peace of mind.

• OCP Over Current Protection
• OTP Over Temperature Protection
• OVP Over Voltage Protection
• OPP Over Power Protection
• SCP Short Circuit Protection

CONNECTORSThis power supply equipped with black, flat cables that are soft, and easy to bend, making cable management a breeze.Product TypePower SupplyTechnical InformationSpecification ComplianceATX 3.1Efficiency90%Power Factor Correction (PFC)ActiveNumber of Fans1Fan Bearing TypeSleeve BearingFan Diameter120 mmProtection Type

• Over Current
• Over Temperature
• Over Voltage
• Over Power
• Under Voltage
• Short Circuit

ModularYesNVIDIA SLI SupportedYesFeaturesCompactPower DescriptionNumber of +12V Rails1Input Voltage

• 120 V AC
• 230 V AC

Output Voltage

• 5 V DC
• 3.3 V DC
• 12 V DC
• -12 V DC
• 5 V SB

Output Voltage Detail

• 5 V DC @ 20 A
• 3.3 V DC @ 20 A
• 12 V DC @ 62 A
• -12 V DC @ 0.3 A
• 5 V SB @ 2.5 A

Output Power750 WInput Frequency63HzInterfaces/PortsNumber of SATA Power Connectors4PCI Express ConnectorYesNumber of (6+2 pin) PCI Express Power Connectors2Number of (4+4 pin) CPU Power Connectors2Number of 4-pin Molex Power Connectors2Physical CharacteristicsForm FactorInternalHeight5.5"Width5.9"Depth3.4"
