MPG X870E CARBON MAX WIFI ATX AM5 DDR5 MOTHERBOARD

Name: MPG X870E CARBON MAX WIFI ATX AM5 DDR5 MOTHERBOARD
Brand: MSI
SKU: 970V66
Price: 513.43 USD
Availability: InStock

MSI

PCN#

970V66

MFG#

MPGX870ECARBONMAX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$513.43

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

PCIe 5.0
DDR5
M.2 Gen5
SATA
USB A
USB C
5Gbps LAN
Wifi 7
Bluetooth 5.4

Product Condition: New and Factory Fresh

Limited Warranty3 YearAdditional Warranty InformationMSI motherboards purchased by end users will have a warranty period of 3 years (36 months) that covers damage due to regular usage but not physical damage caused to the motherboard. The warranty period will begin on the date of purchase the end user made from an authorized retailer if an invoice is provided as a proof of purchase. If the end user is unable to provide the invoice, then the warranty period will begin based off that product's manufactured date.

Shipping Weight: 6 lbs.

MSI MPG X870E CARBON MAX WIFI - MPGX870ECARBONMAX - ATX Gaming Motherboard - AM5 - X870E Chipset

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	MPGX870ECARBONMAX
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Line	MPG
Product Model	X870E CARBON MAX WIFI
Product Name	MPG X870E CARBON MAX WIFI Gaming Desktop Motherboard
Marketing Information	MPG X870E CARBON MAX WIFI MPG X870E CARBON MAX WIFI employs a carbon black color scheme and reflection decoration over Mysticlight RGB lighting to show a different identity. It is also powerful inside by featuring OC Engine, Wi-Fi 7, 5G + 2.5G LAN , and the latest PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, making this motherboard one of the best X870 ATX motherboards for AMD Ryzen 9000 processors. MPG MSI ARSENAL GAMING MSI's premium MPG series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colors, reflecting MPG's commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends. READY FOR Ai PC MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before. Al Engine provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment. AI LAN MANAGER optimizes networking performance and minimizes latency, providing a seamless online experience. Frozr Al Cooling automatically adjusts fan duty to make sure the system stays in cool, stable and high performance. Al Boost is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
Product Type	Gaming Desktop Motherboard

Technical Information

AI-powered

Yes

Processor & Chipset

Chipset Manufacturer	AMD
Chipset Model	X870E
Total Processor Supported	1
Processor Socket	Socket AM5
Processor Supported	Ryzen 9 Ryzen 7

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM CUDIMM
Maximum Memory Supported	256 GB
Memory Technology	DDR5 SDRAM
Memory Speed Supported	9000 MHz 8400 MHz 6400 MHz 5600 MHz 4800 MHz

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 5 10

Video

Onboard Video

CPU Dependent Video

Audio

Audio Channels

7.1

Network & Communication

Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.4
Gigabit Ethernet	Yes
2.5Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax/be

I/O Expansions

Total Number of Expansion Slots	3
PCI Express Standard	PCI Express 5.0 PCI Express 4.0
Total Number of PCI Express Slots	3
Number of PCI Express x4 Slots	1
Number of PCI Express x8 Slots	1
Number of PCI Express x16 Slots	1

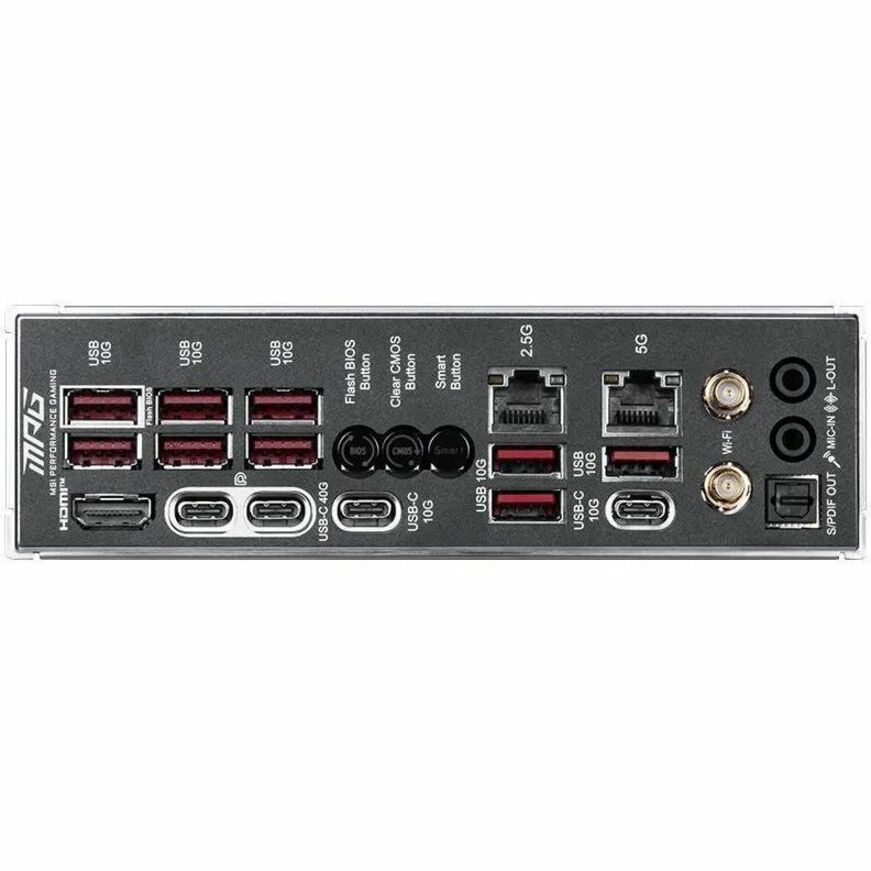

Interfaces/Ports

Total Number of USB Ports	13
S/PDIF	Yes
HDMI	Yes
HDMI Version	2.1
DisplayPort	Yes
Number of Network (RJ-45) Ports	2

Onboard Interfaces

Number of SATA Interfaces	4
Number of M.2 Interfaces	4
Total Number of Onboard USB Ports	9
Number of Onboard USB 2.0 Ports	4

Physical Characteristics

Color Family	Black
Product Color	Carbon Black
Form Factor	ATX
Width	12"
Depth	9.6"

Miscellaneous

Package Contents	MPG X870E CARBON MAX WIFI Gaming Desktop Motherboard Quick Installation Guide European Union Regulatory Notice 2 x SATA Cable EZ M.2 Clips II EZ M.2 Clip II Remover Cable Sticker EZ Wi-Fi Antenna 1 to 3 EZ Conn-Cable (V2) EZ Front Panel Cable ARGB Front Extension Cable
Compatibility	Processor (CPU): AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors. Socket: Socket AM5. Chipset: AMD X870E. Memory (RAM): 4x DDR5 Slots, supports dual-channel DDR5 8400+ MT/s (OC). Expansion Slots: PCIe 5.0 x16 slots (supports x16/x4 modes). Storage: 4x M.2 slots (multiple PCIe 5.0/4.0), 4x SATA 6G ports. Form Factor: ATX.
Brand Compatibility	AMD

Warranty

Limited Warranty

3 Year

Additional Warranty Information

MSI motherboards purchased by end users will have a warranty period of 3 years (36 months) that covers damage due to regular usage but not physical damage caused to the motherboard. The warranty period will begin on the date of purchase the end user made from an authorized retailer if an invoice is provided as a proof of purchase. If the end user is unable to provide the invoice, then the warranty period will begin based off that product's manufactured date.
