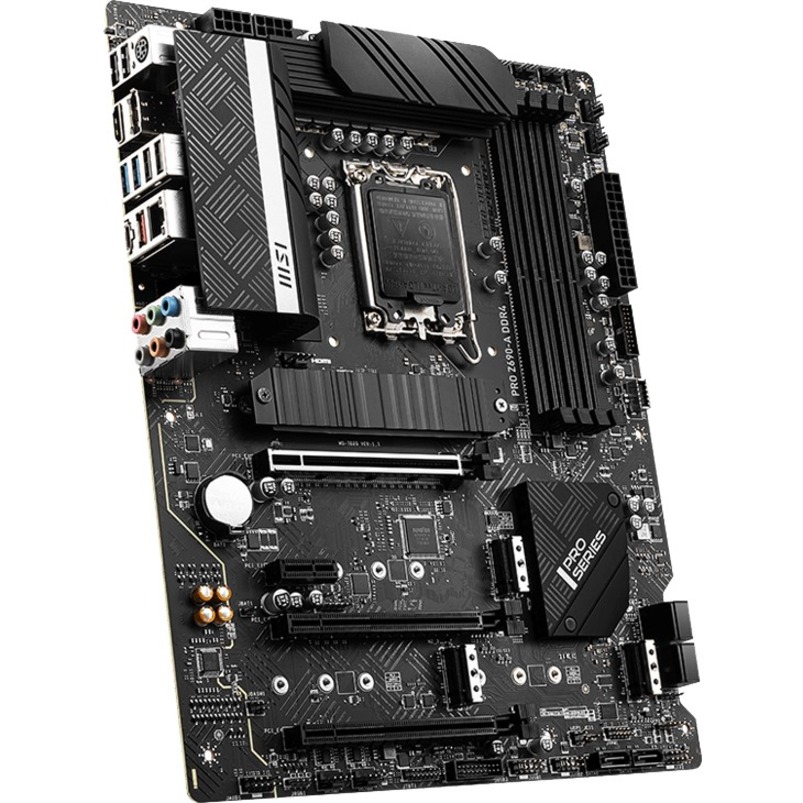

MSI Z690-A DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Name: MSI Z690-A DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX
Brand: MSI
SKU: 9RD731
Price: 214.57 USD
Availability: InStock

MSI

PCN#

9RD731

MFG#

PROZ690ADDR4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

Estimated Shipment:

Product Highlights:

Pentium Gold, Celeron, Core i5, Core i7, Core i9 Processor Supported
128 GB DDR4 SDRAM Maximum RAM
DIMM, UDIMM
4 x Memory Slots
HDMI
DisplayPort
6 x SATA Interfaces

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 4 lbs.

MSI Z690-A DDR4 Desktop Motherboard - Intel Z690 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - ATX

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	PROZ690ADDR4
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Series	PRO
Product Model	Z690-A DDR4
Product Name	PRO Z690-A DDR4 Desktop Motherboard
Marketing Information	Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds. High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
Product Type	Desktop Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	Z690
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Processor Generation Supported	12th Gen
Processor Supported	Pentium Gold Celeron Core i5 Core i7 Core i9
Multi GPU Supported	CrossFire

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	128 GB
Memory Technology	DDR4 SDRAM
Memory Speed Supported	2133 MHz 2666 MHz 2933 MHz 3200 MHz 5200 MHz 4800 MHz 4400 MHz 4000 MHz
Intel Optane Memory Ready	Yes

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 5 10

Video

Onboard Video

CPU Dependent Video

Audio

Audio Channels

7.1

Network & Communication

2.5Gigabit Ethernet

Yes

I/O Expansions

Number of Total Expansion Slots	4
Total Number of PCI Express Slots	4
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	3

Interfaces/Ports

Total Number of USB Ports	8
Number of USB 2.0 Ports	4
Number of USB 3.2 Ports	1
Number of USB 3.2 Gen 1 Ports	2
Number of USB 3.2 Gen 2 Type-A Ports	1
S/PDIF	Yes
HDMI	Yes
DisplayPort	Yes
Number of Network (RJ-45) Ports	1

Onboard Interfaces

Number of SATA Interfaces	6
Number of M.2 Interfaces	4
Total Number of Onboard USB Ports	9
Number of Onboard USB 2.0 Ports	4
Number of Onboard USB 3.2 Ports	5

Physical Characteristics

Form Factor	ATX
Width	12"
Depth	9.6"

Miscellaneous

Package Contents	PRO Z690-A DDR4 Desktop Motherboard Quick Installation Guide M.2 Screw / Standoff Sets 2 x M.2 Clips 2 x SATA Cables Product Registration Card I/O Shield Driver DVD
Brand Compatibility	Intel
Country of Origin	China

Warranty

Limited Warranty

3 Year
