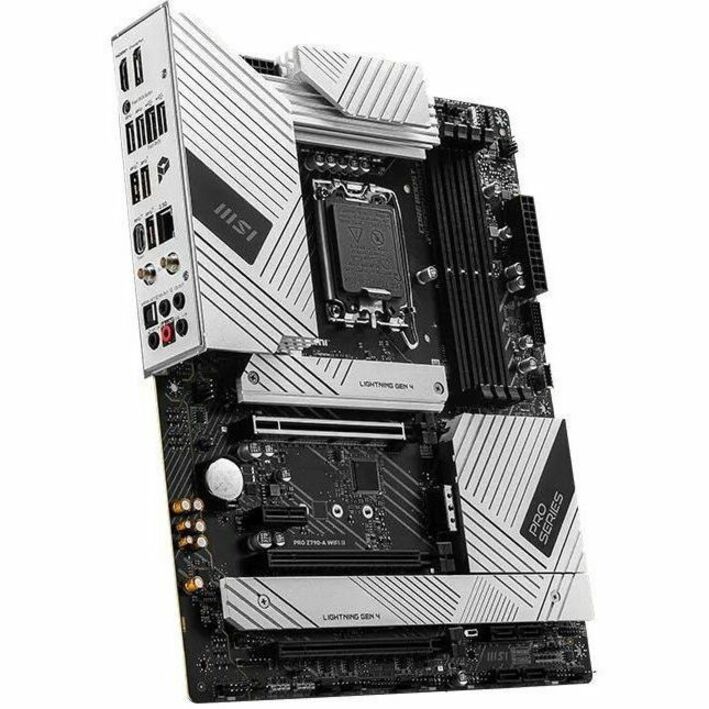

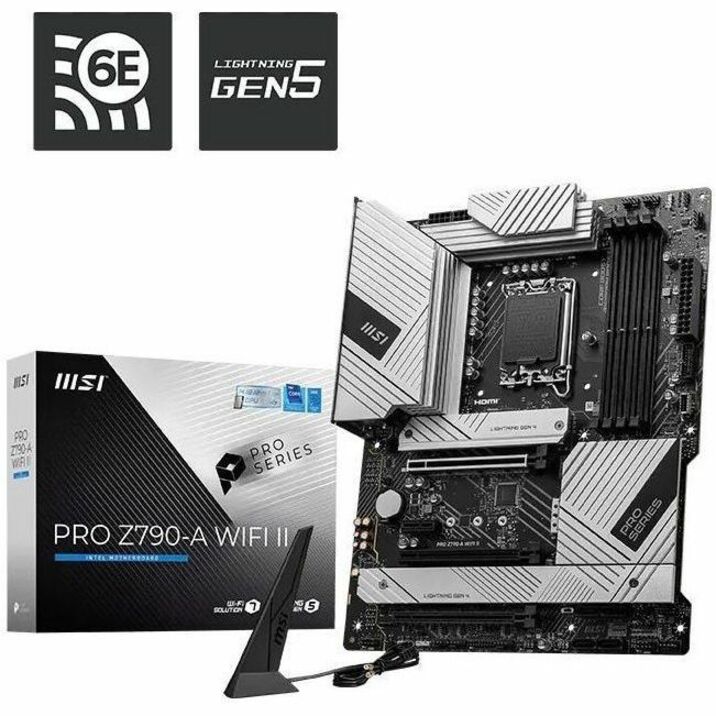

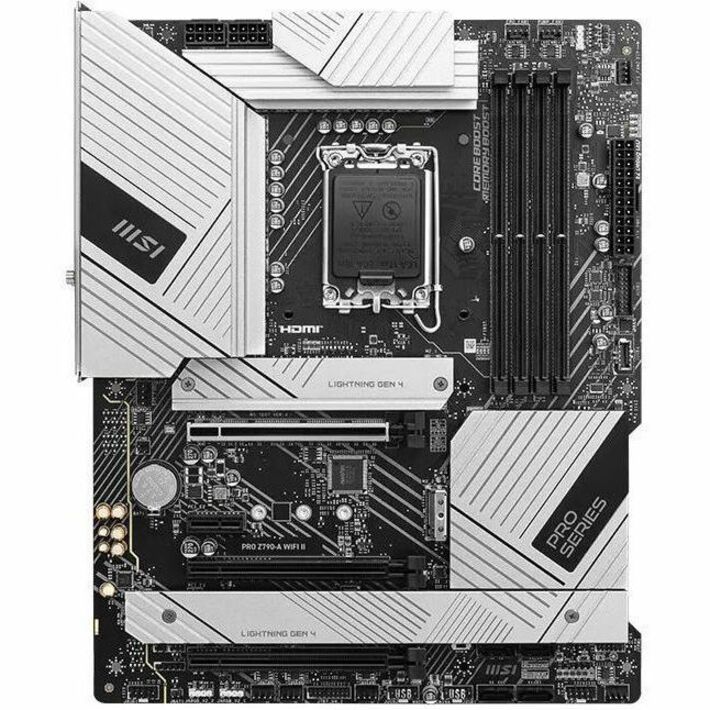

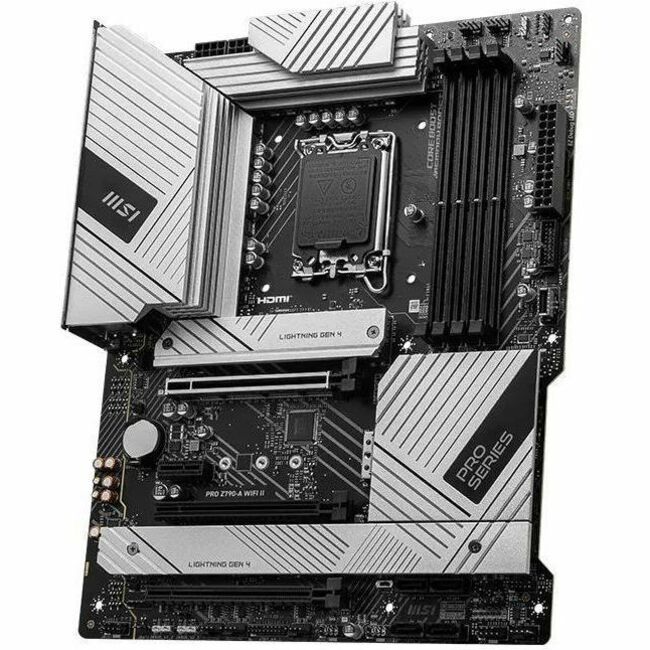

PRO Z790-A WIFI II ATX DDR5 128GB WIFI7 MOTHERBOARD

Name: PRO Z790-A WIFI II ATX DDR5 128GB WIFI7 MOTHERBOARD
Brand: MSI
SKU: 220R36
Price: 193.32 USD
Availability: InStock

MSI

PCN#

220R36

MFG#

PROZ790AWIIFII

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$193.32

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

PCIe 5.0
DDR5
M.2 Gen5
SATA
USB A
USB C
2.5Gbps LAN
Wifi 6E
Bluetooth 5.3

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 5 lbs.

MSI PRO Z790-A WIFI II - PROZ790AWIIFII - ATX Professional Motherboard - Z790 Chipset

Overview

Tech Specs

Specifications

Manufacturer	MSI
Manufacturer Part Number	PROZ790AWIIFII
Manufacturer Website Address	http://www.msi.com
Brand Name	MSI
Product Series	PRO
Product Model	Z790-A WIFI II
Product Name	PRO Z790-A WIFI II Gaming Desktop Motherboard
Marketing Information	PRO Z790-A WIFI II offers a simple design with a harmonious silver color scheme that perfectly matches white and black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 6E solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.
Package Type	Retail
Product Type	Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	Z790
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Processor Generation Supported	14th Gen 13th Gen 12th Gen
Processor Supported	Pentium Gold Celeron Core

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	256 GB
Memory Technology	DDR5 SDRAM
Memory Speed Supported	7800 MHz 7600 MHz 7400 MHz 7200 MHz 7000 MHz 6800 MHz 6600 MHz 6400 MHz 6200 MHz 6000 MHz 5800 MHz 5600 MHz 5400 MHz 5200 MHz 5000 MHz 4800 MHz

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 1 5 10

Video

Onboard Video

CPU Dependent Video

Audio

Audio Channels

7.1

Network & Communication

Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.3
Gigabit Ethernet	Yes
2.5Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Total Number of Expansion Slots	4
PCI Express Standard	PCI Express 5.0 PCI Express 4.0 PCI Express 3.0
Total Number of PCI Express Slots	4
Number of PCI Express x1 Slots	2
Number of PCI Express x4 Slots	1
Number of PCI Express x16 Slots	1

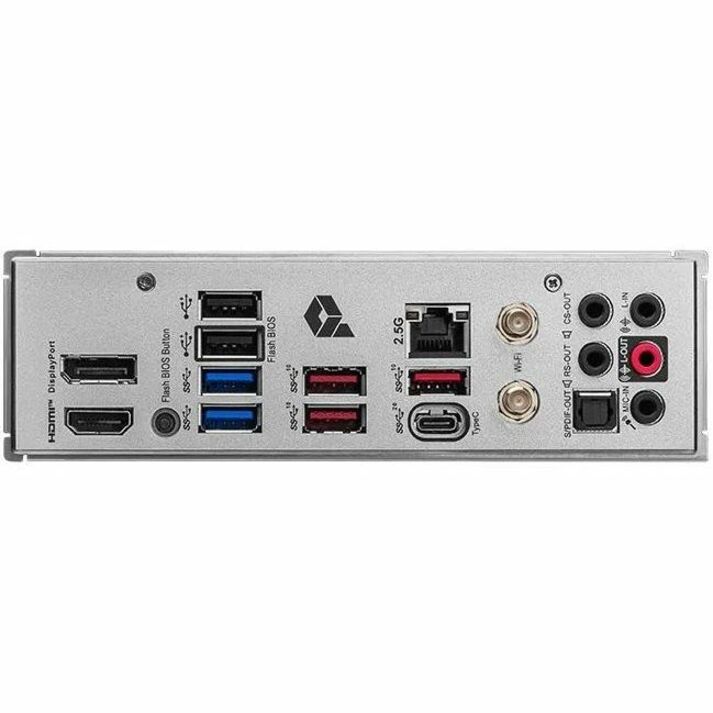

Interfaces/Ports

Total Number of USB Ports	8
Number of USB 2.0 Ports	2
S/PDIF	Yes
HDMI	Yes
HDMI Version	2.1
DisplayPort	Yes
Number of Network (RJ-45) Ports	1

Onboard Interfaces

Number of SATA Interfaces	6
Number of M.2 Interfaces	4
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4

Physical Characteristics

Color Family	Silver
Product Color	Silver
Form Factor	ATX
Height	13.5"
Width	2.8"
Depth	9.6"
Weight (Approximate)	4.59 lb

Miscellaneous

Package Contents	PRO Z790-A WIFI II Gaming Desktop Motherboard European Union Regulatory Notice Quick Installation Guide M.2 Screw /Standoff Set 2 x M.2 Clips EZ Wi-Fi Antenna 2 x SATA Cables
Brand Compatibility	Intel

Warranty

Limited Warranty

3 Year
