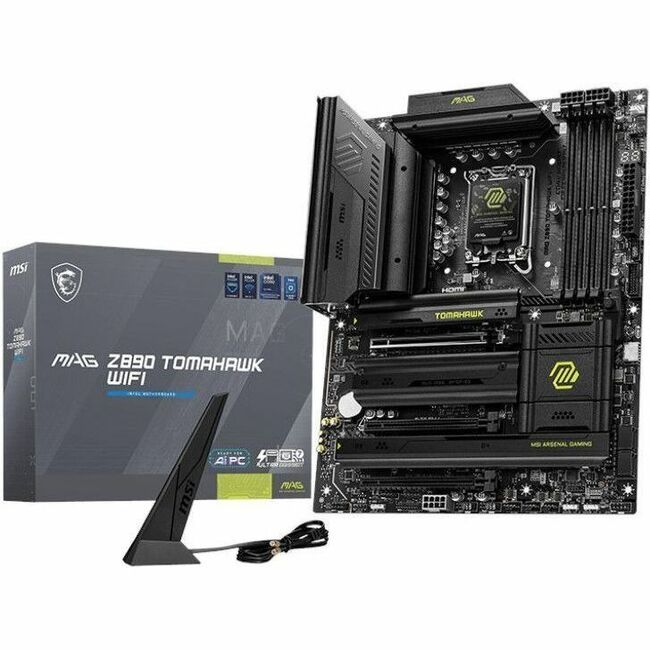

MAG Z890 TOMAHAWK WIFI INTEL MOTHERBOARD

AI Engineprovides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment. AI LAN MANAGERoptimizes networking performance and minimizes latency, providing a seamless online experience. Frozr AI Coolingautomatically adjusts fan duty to make sure the system stays in cool, stable and high performance. EZ PCIe ReleaseAn easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience. Pre-Installed I/O ShieldThe Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build. EZ MOUNTINGMSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard. EZ AntennaMSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation. EZ Conn header (JAF_2)MSI's EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device. EZ FRONT PANEL CABLEThis cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately. EZ DEBUG LEDOnboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again. EZ DIGI-DEBUG LEDDisplays the error code for troubleshooting. Also functions as temperature monitor!Product TypeGaming Desktop MotherboardTechnical InformationAI-poweredYesProcessor & ChipsetChipset ManufacturerIntelChipset ModelZ890Total Processor Supported1Processor SocketSocket LGA-1851Processor SupportedCore UltraMemoryNumber of Memory Slots4Memory Form Factor

• DIMM
• UDIMM

Maximum Memory Supported256 GBMemory TechnologyDDR5 SDRAMMemory Speed Supported

• 9200 MHz
• 7200 MHz
• 6400 MHz
• 4800 MHz

I/O ControllerController TypeSerial ATA/600RAID SupportedYesRAID Levels

• 0
• 1
• 5
• 10

VideoOnboard VideoCPU Dependent VideoAudioAudio Channels7.1Network & CommunicationBluetoothYesBluetooth StandardBluetooth 5.4Gigabit EthernetYesWireless LANYesWireless LAN StandardIEEE 802.11 a/b/g/n/ac/ax/beI/O ExpansionsTotal Number of Expansion Slots3PCI Express Standard

• PCI Express 5.0
• PCI Express 4.0

Total Number of PCI Express Slots3Number of PCI Express x16 Slots3Interfaces/PortsTotal Number of USB Ports8S/PDIFYesHDMIYesHDMI Version

2.1

DisplayPortYesNumber of Network (RJ-45) Ports1ThunderboltYesNumber of Thunderbolt 4 Ports2Onboard InterfacesNumber of SATA Interfaces4Number of M.2 Interfaces4Total Number of Onboard USB Ports7Number of Onboard USB 2.0 Ports4Physical CharacteristicsForm FactorATXWidth12"Depth9.6"MiscellaneousPackage Contents

• MAG Z890 TOMAHAWK WIFI Gaming Desktop Motherboard
• Quick Installation Guide
• SATA Cable
• Cable Stickers
• Wi-FI Antenna

Brand CompatibilityIntelWarrantyLimited Warranty3 YearAdditional Warranty Information3 Year Limited Warranty
