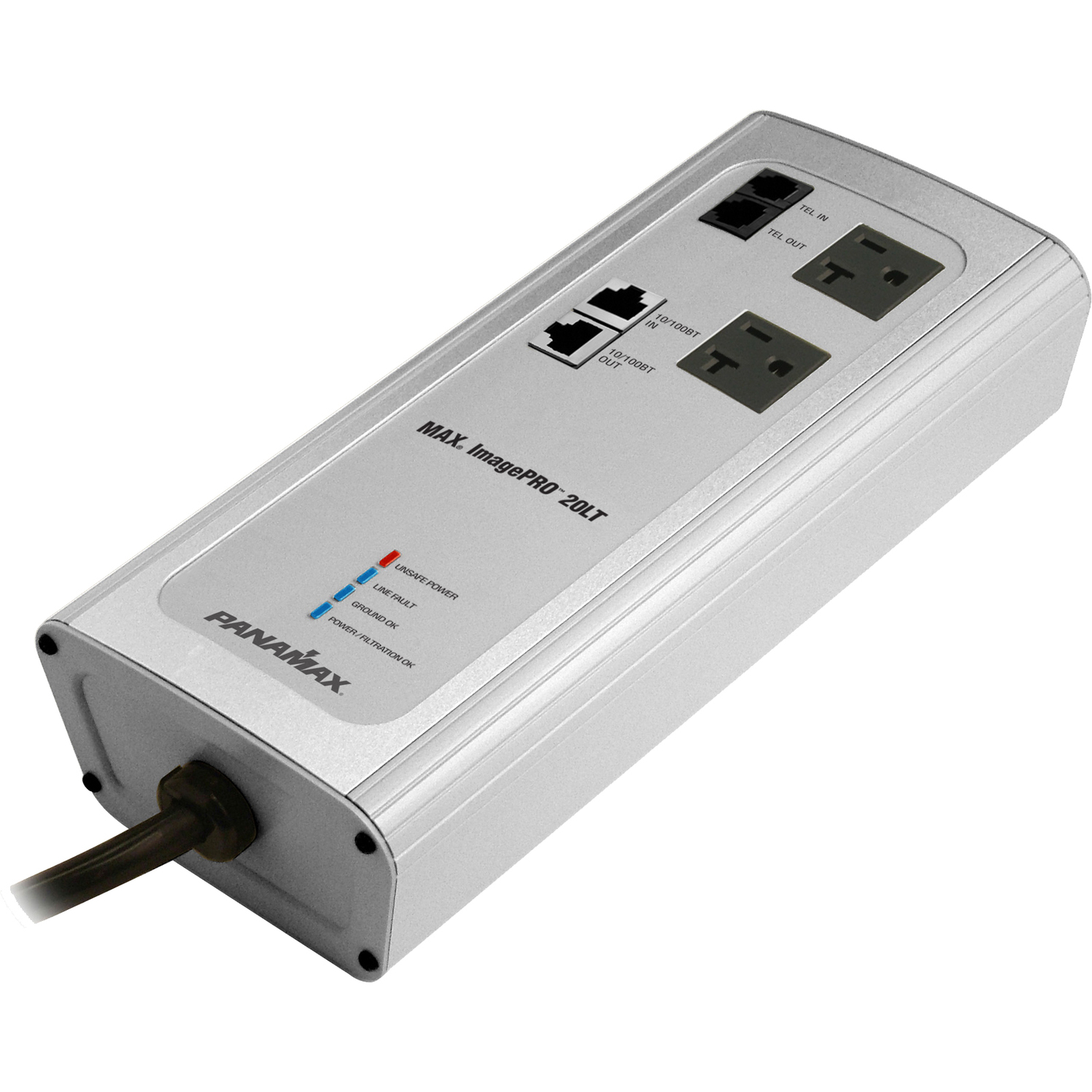

MAX IMAGE PRO LT 20 AMP

• Line to Neutral
• Line to Ground
• Neutral to Ground
• AC Noise
• EMI / RFI
• Under Voltage
• AC Surge
• Over Voltage

• MIP-20LT Line Conditioner
• 2 x Telco Cables

• Protect or Disconnect Circuitry
• Automatic Voltage Monitoring (AVM) Circuit
• Thermal Fusing
• UL 1449 3rd Edition Voltage Protection Rating: 400V
• Initial Clamping Level: 200 Volts
• Surge Response Time: < 1 nanosecond

10/100/1000 Base-T LAN Protection:

• TIA-568-C.2 Performance: CAT5e
• Protection Modes: All pins to ground
• Pins Protected: RJ-45, pins 1-8
• Clamping Level: 62V

Telephone Protection:

• Protection Modes: Metallic & Longitudinal
• Pins Protected: RJ-11/45, pins 4, 5
• Clamping Level: 260V
• Capacitance: 30 pf (approx.)
